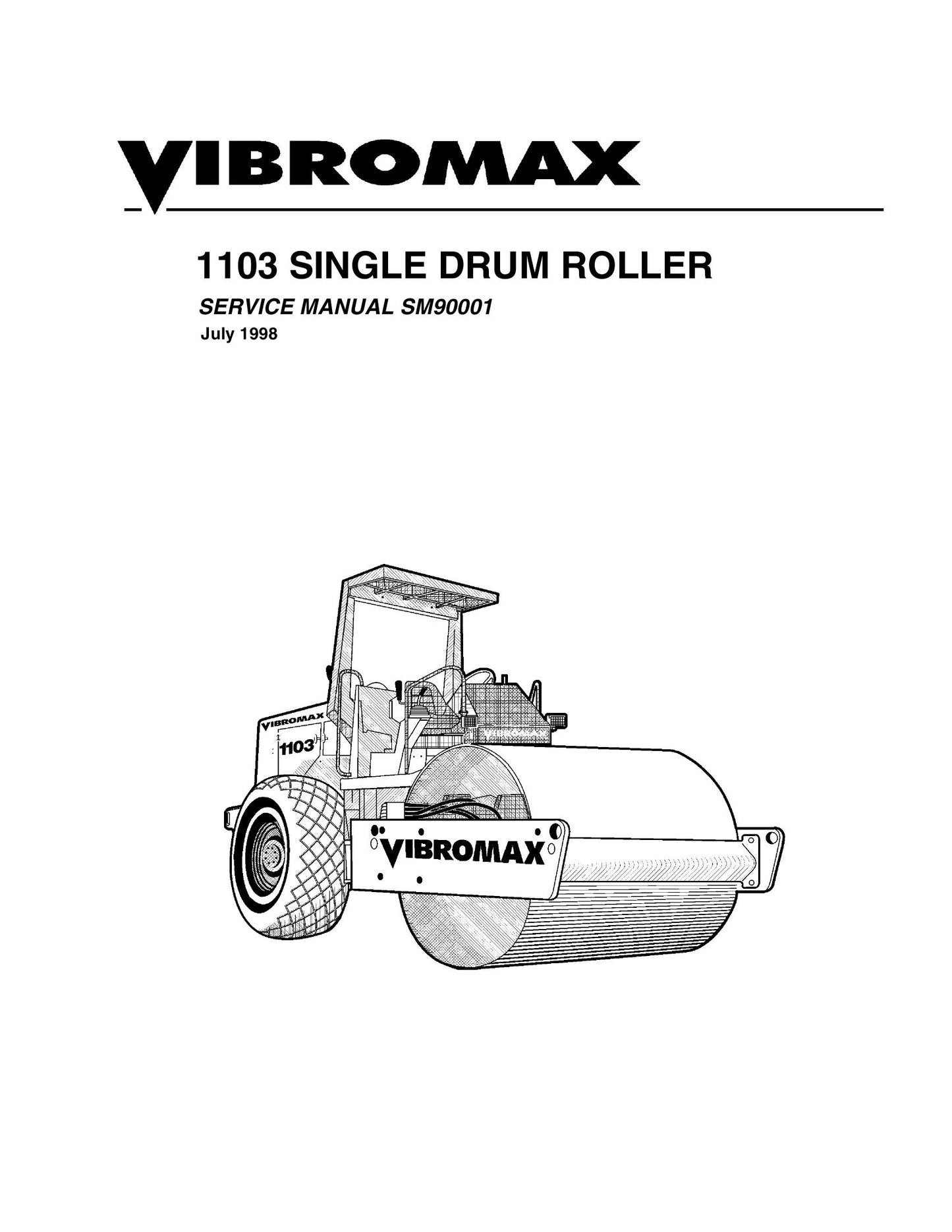

VIBROMAX 1103 Single Drum Roller Factory Workshop Service Manual SM900011103

VIBROMAX 1103 Single Drum Roller Factory Workshop Service Manual SM900011103
============================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 5.4 MB
Pages: 222
Format: PDF
Language: English
Brand: VIBROMAX

CONTENTS (Table of Contents):
----------------------------------------
July 1998
GENERAL INFORMATION
MACHINE DESCRIPTION .........................................................................
SPARK ARRESTER ........................................................................1 -
SAFETY, MACHINE OPERATION.............................................................
CLEANING ....................................................................................1 -
NEEDLE BEARINGS .....................................................................1 -
STANDARD TORQUE DATA ...................................................................1 -
DIESEL FUEL SPECIFICATION...............................................................1 -
ENGINE
CUMMINS ENGINE WARRANTY ..............................................................2 -
ELECTRICAL
GENERAL INFORMATION ........................................................................3 -
UNDERSTANDING RELAYS .....................................................................3 -
VIBROMAX RELAYS ....................................................................3 -
STARTER/CHARGING CIRCUIT (before JKC8302000) .........................3 -
STARTER/CHARGING CIRCUIT (AFTER JKC8302000) ........................3 -
UNDERSTANDING BATTERIES .............................................................3 -
BATTERY DIAGNOSTICS ............................................................3 -
4 July
UNDERSTANDING ALTERNATORS ......................................................
CHARGING SYSTEM DIAGNOSTICS .........................................
CIRCUIT WIRING TEST ...............................................................
STARTER SOLENOID ..................................................................
STARTER SYSTEM DIAGNOSTICS ......................................................
SOLENOID CIRCUIT TEST ..........................................................
STARTER CIRCUIT WIRING TEST .............................................
STARTER MOTOR TEST .............................................................
INSTRUMENTATION PANEL .................................................................
EMERGENCY STOP SWITCH/ BRAKE SWITCH ..................................
WIRE HARNESS 7250/16315 .................................................................
WIRE CHART 7250/16110 ......................................................................
HYDRAULIC
HYDRAULIC TEST SYSTEM ....................................................................
PROPULSION SYSTEM .........................................................................
INTERNAL LEAKAGE ..................................................................
VIBRATION FREQUENCY ......................................................................
PARKING BRAKE SYSTEM ....................................................................
TOWING YOUR MACHINE ..........................................................
PARKING BRAKE DIAGNOSTICS ..........................................................
DIFFERENTIAL LOCK SYSTEM .............................................................4 -
HYDRAULIC SCHEMATIC ......................................................................4 -
FINAL DRIVES
GENERAL INFORMATION ........................................................................5 -
SPETH STANDARD AXLE ........................................................................
AXLE TUBE DISASSEMBLY .....................................................................5 -
DIFFERENTIAL LOCK ASSEMBLY .........................................................5 -
INTERMEDIATE GEARBOX ASSEMBLY ...............................................5 -
DRUM DRIVE BEARING REMOVAL.......................................................
PARKING BRAKE SYSTEM
RELEASE AND TOWING ..........................................................................6 -
DRUM MOTOR BRAKE .............................................................................6 -
DISASSEMBLY OF MOTOR BRAKE..............................................
ASSEMBLY OF MOTOR BRAKE ....................................................6 -
BAND BRAKE CYLINDER.......................................................................
HEAVY DUTY AXLE BRAKE ...................................................................6 -
6 July
VIBRATION SYSTEM
VIBRATORY SYSTEM DIAGNOSTICS ....................................................
SMOOTH DRUM SHAFT ........................................................................
PADFOOT DRUM SHAFT .......................................................................
STEERING SYSTEM
CHASSIS
OPERATOR PLATFORM ..........................................................................
ROLLOVER PROTECTION STRUCTURE ...............................................
ATTACHMENTS
BLADE HYDRAULIC LINES ....................................................................

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
