Tigercat 726 Feller Buncher Repair Service Manual (SN 7260101 – 7260999)

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Machine Type:
Tigercat Feller Buncher
Publication: Issue 4.1, March 2003
Serial Number: From 7260101 to 7260999
Language: English
Format: PDF
Tigercat 726 Feller Buncher Repair Service Manual – 108 Pages
Tigercat 726 Feller Buncher Operators Manual – 54 Pages

Description
Tigercat 726 Feller Buncher Repair Service Manual (SN 7260101 – 7260999)
Machine Type:
Tigercat Feller Buncher
Publication: Issue 4.1, March 2003
Serial Number: From 7260101 to 7260999
Language: English
Format: PDF
Tigercat 726 Feller Buncher Repair Service Manual – 108 Pages
Tigercat 726 Feller Buncher Operators Manual – 54 Pages

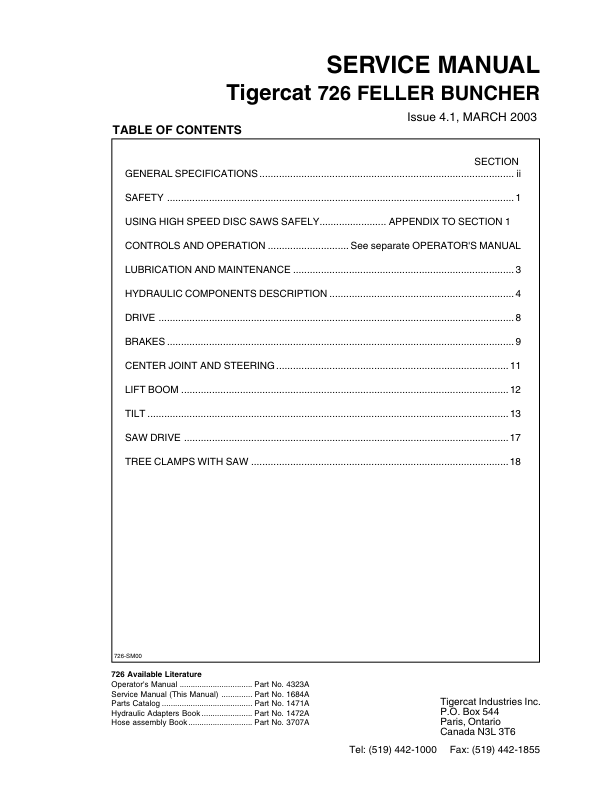

Table of Content of Tigercat 726 Manual
GENERAL SPECIFICATIONS………………………………………………………………………………. ii
SAFETY …………………………………………………………………………………………………………….1
USING HIGH SPEED DISC SAWS SAFELY…………………… APPENDIX TO SECTION 1
LUBRICATION AND MAINTENANCE …………………………………………………………………….3
HYDRAULIC COMPONENTS DESCRIPTION …………………………………………………………4
DRIVE ……………………………………………………………………………………………………………….8
BRAKES …………………………………………………………………………………………………………….9
CENTER JOINT AND STEERING………………………………………………………………………..11
LIFT BOOM ………………………………………………………………………………………………………12
TILT …………………………………………………………………………………………………………………13
SAW DRIVE ……………………………………………………………………………………………………..17
TREE CLAMPS WITH SAW ………………………………………………………………………………..18
The 726 Feller Buncher is designed for harvesting trees, selective felling, thinning and final felling applications in plantations and natural stands.
The operator's manual will assist the operator with the techniques of proper and safe operation of the 726 Feller Buncher. There is also important information regarding the safe operation of the saw head.
The service manual contains safety and servicing procedures and a preventive maintenance schedule to assist in repair and to ensure optimum machine performance. For manual part numbers, see the title page in each manual.
