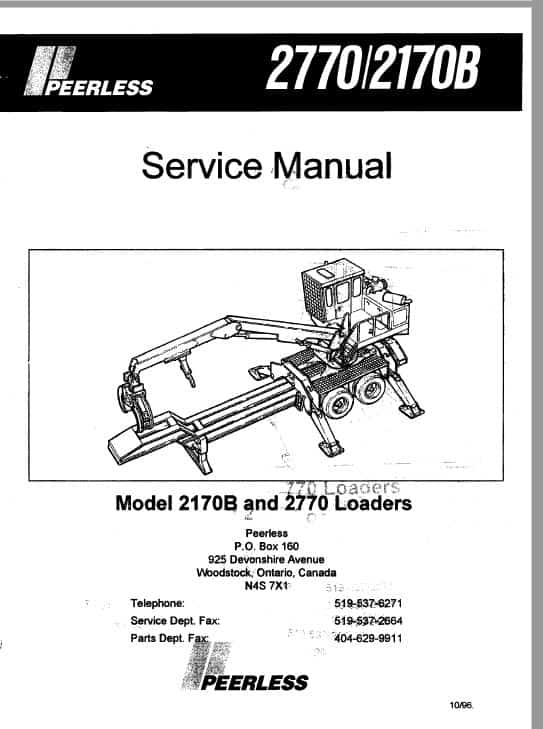

Peerless 2170B, 2770 Loader Service Repair Manual (CB1066-CE1313, 961314 and Up) Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
Service Repair Manual:
257 Pages
Specifications:
Brand:
John Deere
Model:
Peerless 2170B and 2770
Serial Number:
2170B (CB1066-CE1313) and 2770 ( 961314 and Up)
Type:
Shovel Logger
Manuals:
Service Repair Manual
Publication Numbers:
Language:
English
Format:
PDF

Description
Peerless 2170B and 2770 Loader Service Repair Manual
Description
Introduction
Safety Rules
Theory of Operation
Specifications
Test Procedures
Hydraulic System
Electrical System
Troubleshooting
Maintenance and Repair
OEM Documentation

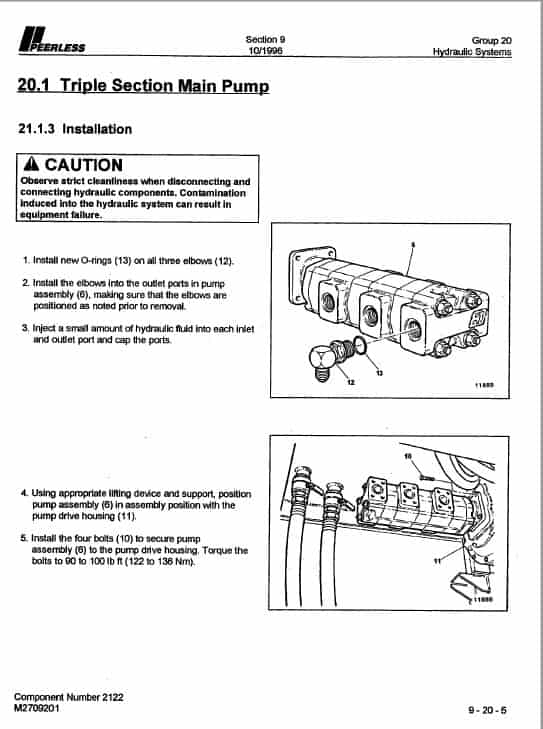

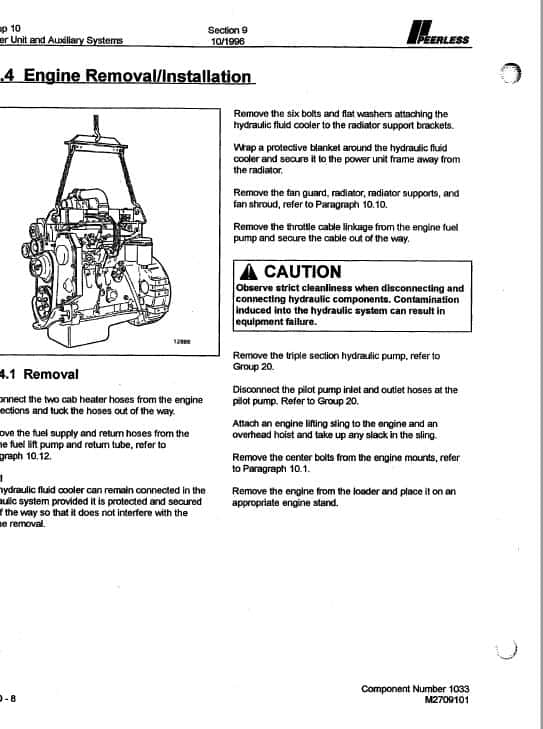

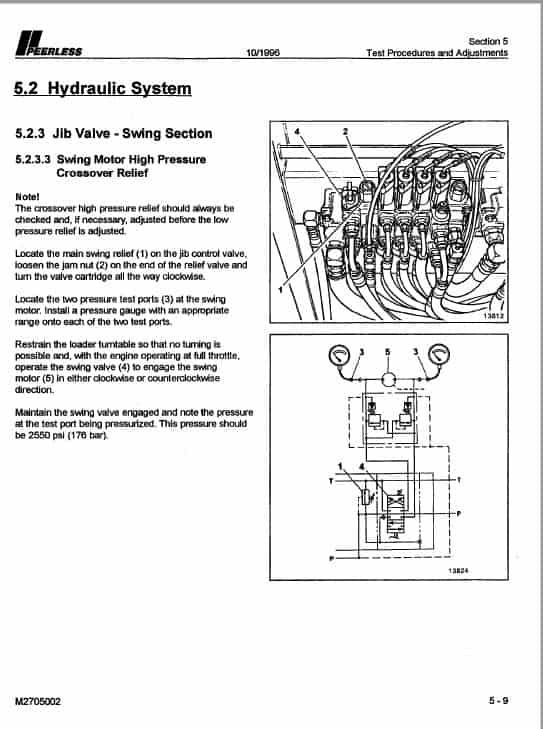

This service manual provides detailed instructions for troubleshooting, maintenance, and repair of the Peerless 2170B/2770 Log Loader, including removal/installation, inspection, and replacement. It also includes test procedures and system specifications.
Use this manual as a quick reference on the job. Information is concise to help technicians quickly understand what they need to do.
For orientation:
The machine is considered a two-part unit: the base (platform and outriggers) and the turntable (superstructure with booms).
The front of the base points towards the truck cab or trailer neck. Left and right sides are determined from behind the truck/trailer, looking forward.
On the turntable, the booms are at the front. Left and right sides are determined from the operator's seat, facing the booms.
