New Holland W230C Wheel Loader Factory Workshop Service Manual 84489509

New Holland W230C Wheel Loader Factory Workshop Service Manual 84489509
=======================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 259.23 MB
Pages: 942
Format: PDF
Language: English
Brand: NEW HOLLAND

CONTENTS (Table of Contents):
----------------------------------------
Copyright © 2011 CNH Italia S.p.A.
All rights reserved.
Printed in E.C.
Via Plava, 8010135 Torino
Italia84489509W230C Wheel Loader

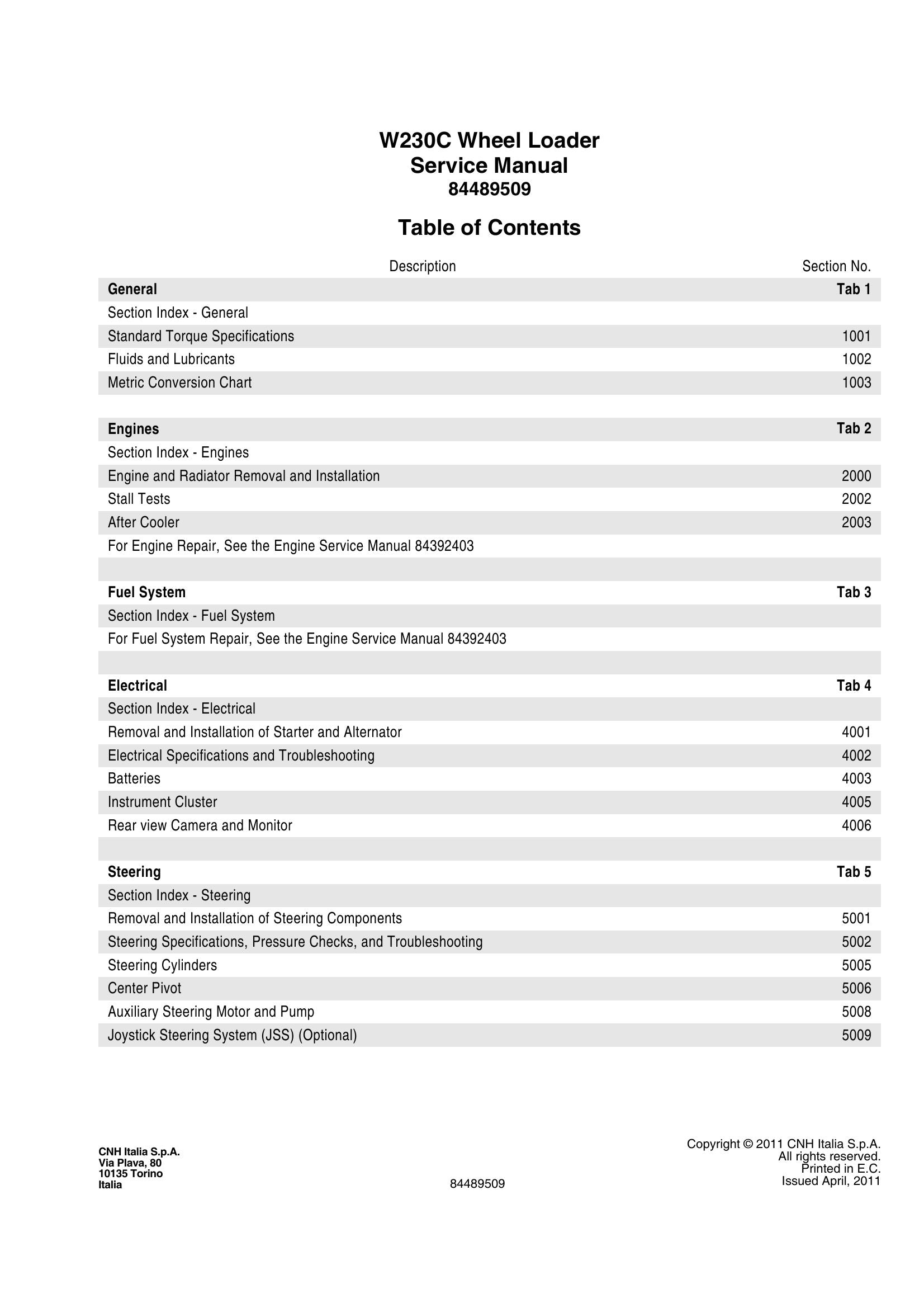

Service Manual
84489509
General Tab
Standard Torque Specifications
Fluids and Lubricants
Metric Conversion Chart
Engines Tab
Engine and Radiator Removal and Installation
Stall Tests
After Cooler
For Engine Repair, See the Engine Service Manual
Fuel System Tab
For Fuel System Repair, See the Engine Service Manual
Electrical Tab
Removal and Installation of Starter and Alternator
Electrical Specifications and Troubleshooting
Batteries
Instrument Cluster
Rear view Camera and Monitor
Steering Tab
Removal and Installation of Steering Components
Steering Specifications, Pressu re Checks, and Troubleshooting
Steering Cylinders
Center Pivot
Auxiliary Steering Motor and Pump
Joystick Steering Sy stem (JSS) (Optional)
Power Train Tab
Removal and Installation of Power Train Components
Transmission Specifications, Pres sure Checks, and Troubleshooting
Transmission
Front Axle
Rear Axle
Drive Shafts, Center Bearing, and Universal Joints
Wheels and Tires
Transmission Control Valve
Brakes Tab
Removal and Installation of Brake Components
Hydraulic Brake Troubleshooting
Brake Pump
Brake Accumulators
Parking Brake
Hydraulics Tab
Removal and Installation of Hydraulic Components
Hydraulic Specifications, Troubleshooting, and Pressure Checks
Cleaning the Hydraulic System
Hydraulic Pump
Loader Control Valve
Cylinders
Coupler Solenoid Locking Valve
Ride Control Accumulator
Ride Control Valve 8014W230C Wheel Loader
Italia84489509Mounted Equipment Tab
Air Conditioning Troubleshooting and System Checks For Systems with HFC-134a Refrigerant
Air Conditioner System Service
Removal and Installation of Air Conditioning and Heater Components
Loader
Rollover Protective Structure (ROPS) Cab Structural Frame (CSF)
Cab Glass Installation
Electrical Schematic Foldouts and Hydraulic Schematic Foldout In Rear PocketW230C Wheel Loader
GENERAL

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
