New Holland TC54 TC56 AL59 Combine Harvester Factory Workshop Service Manual Supplement 87595929

New Holland TC54 TC56 AL59 Combine Harvester Factory Workshop Service Manual Supplement 87595929
================================================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 16.24 MB
Pages: 164
Format: PDF
Language: English
Brand: NEW HOLLAND

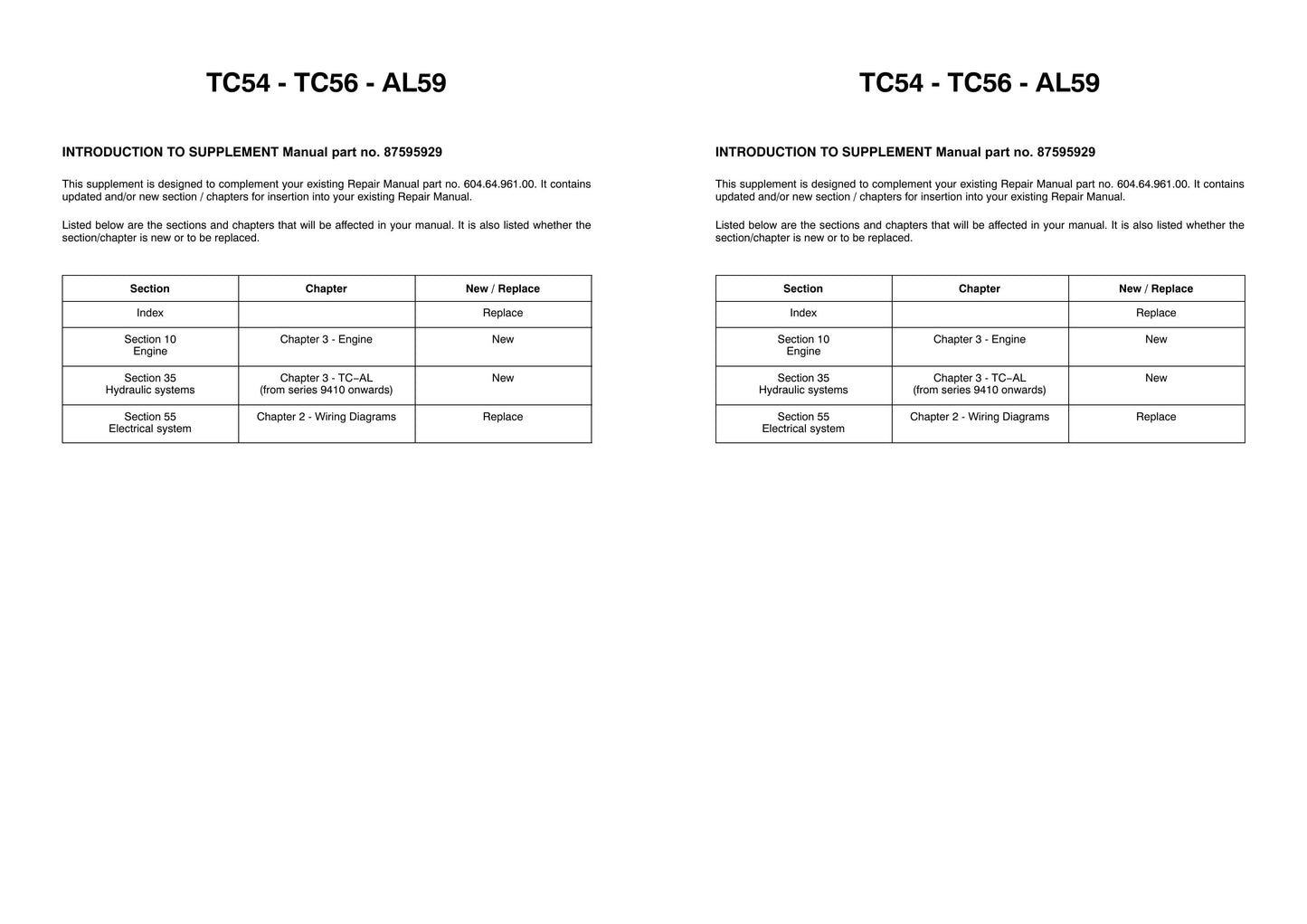

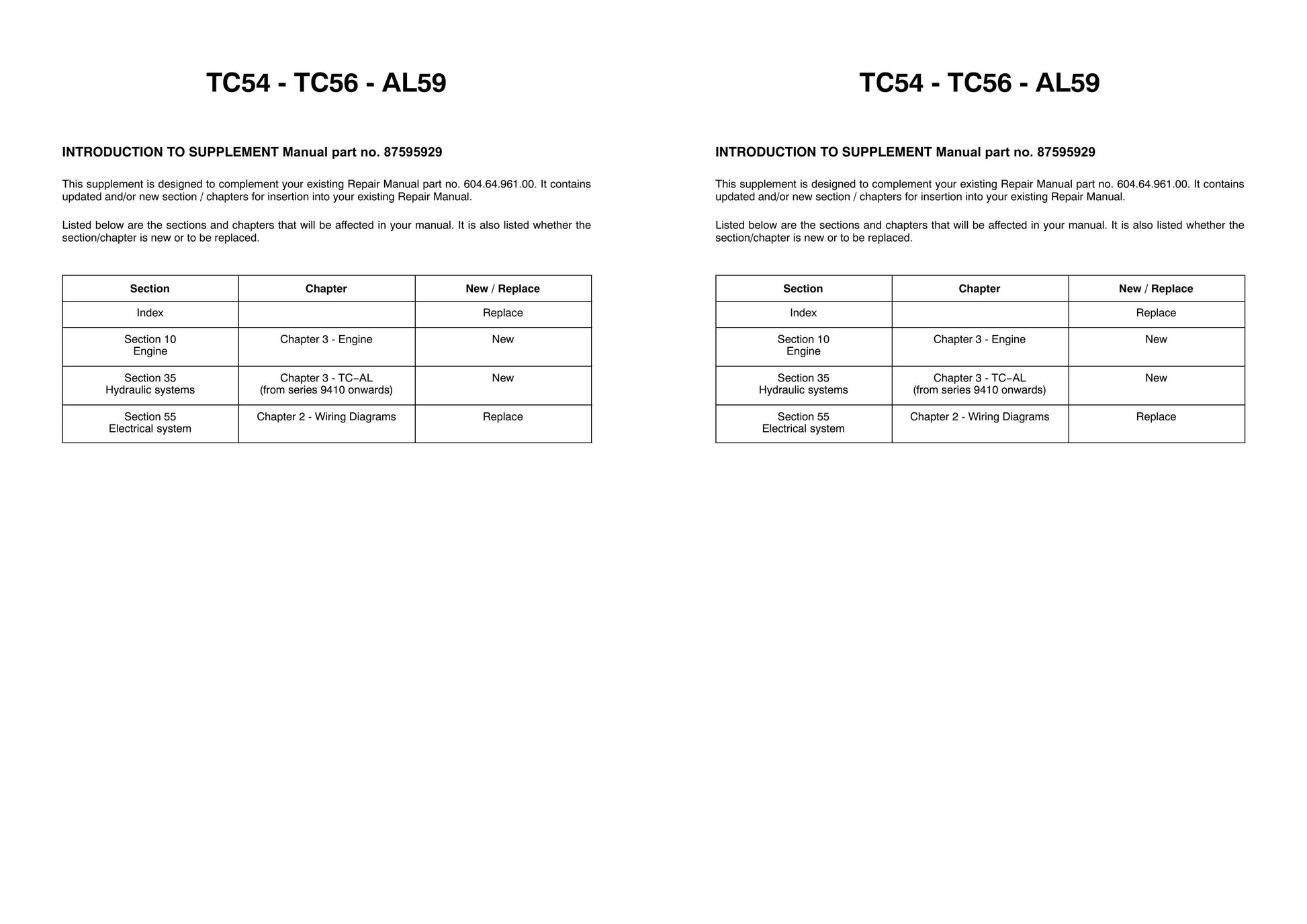

CONTENTS (Table of Contents):
----------------------------------------
TC54 - TC56 - AL59

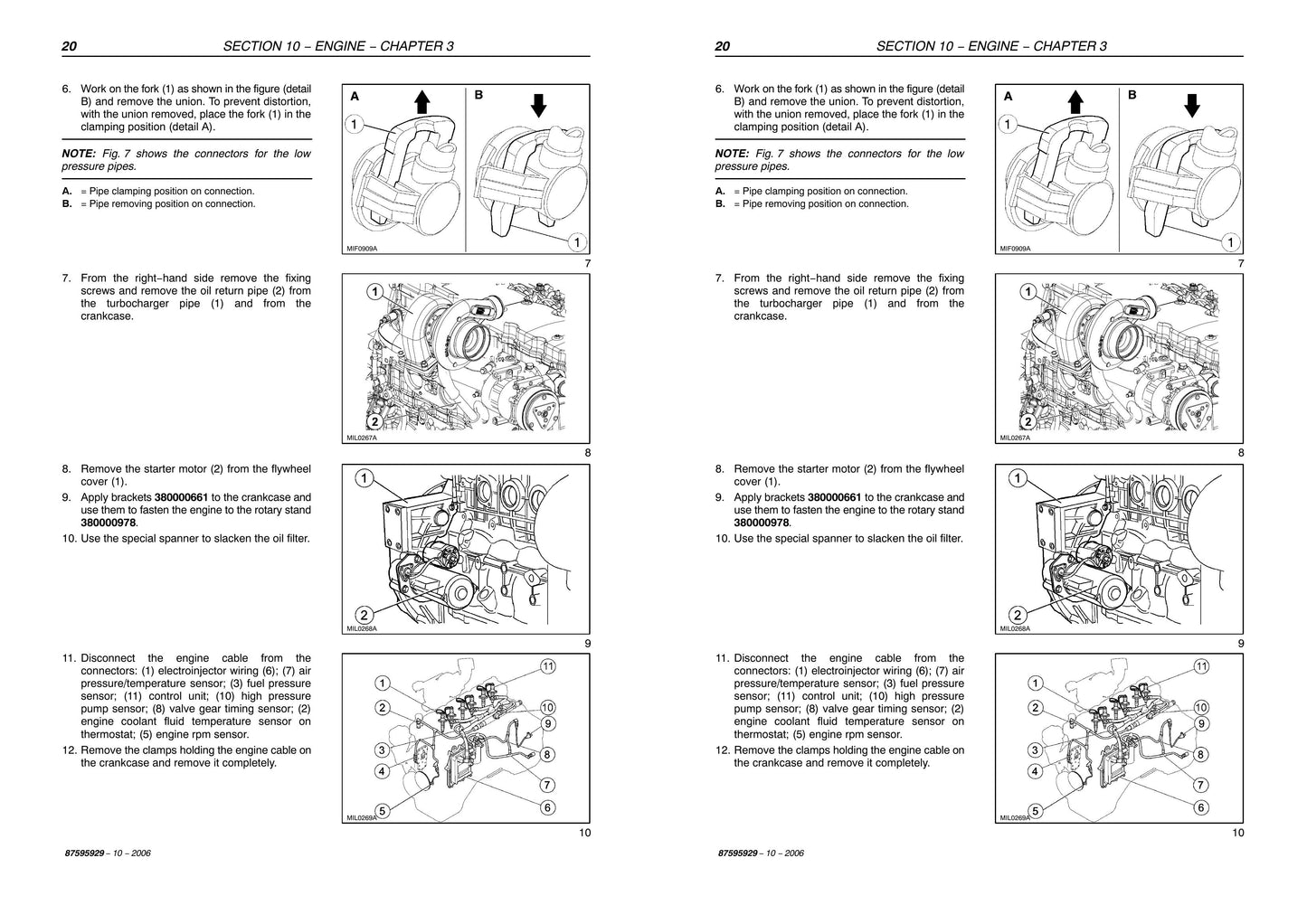

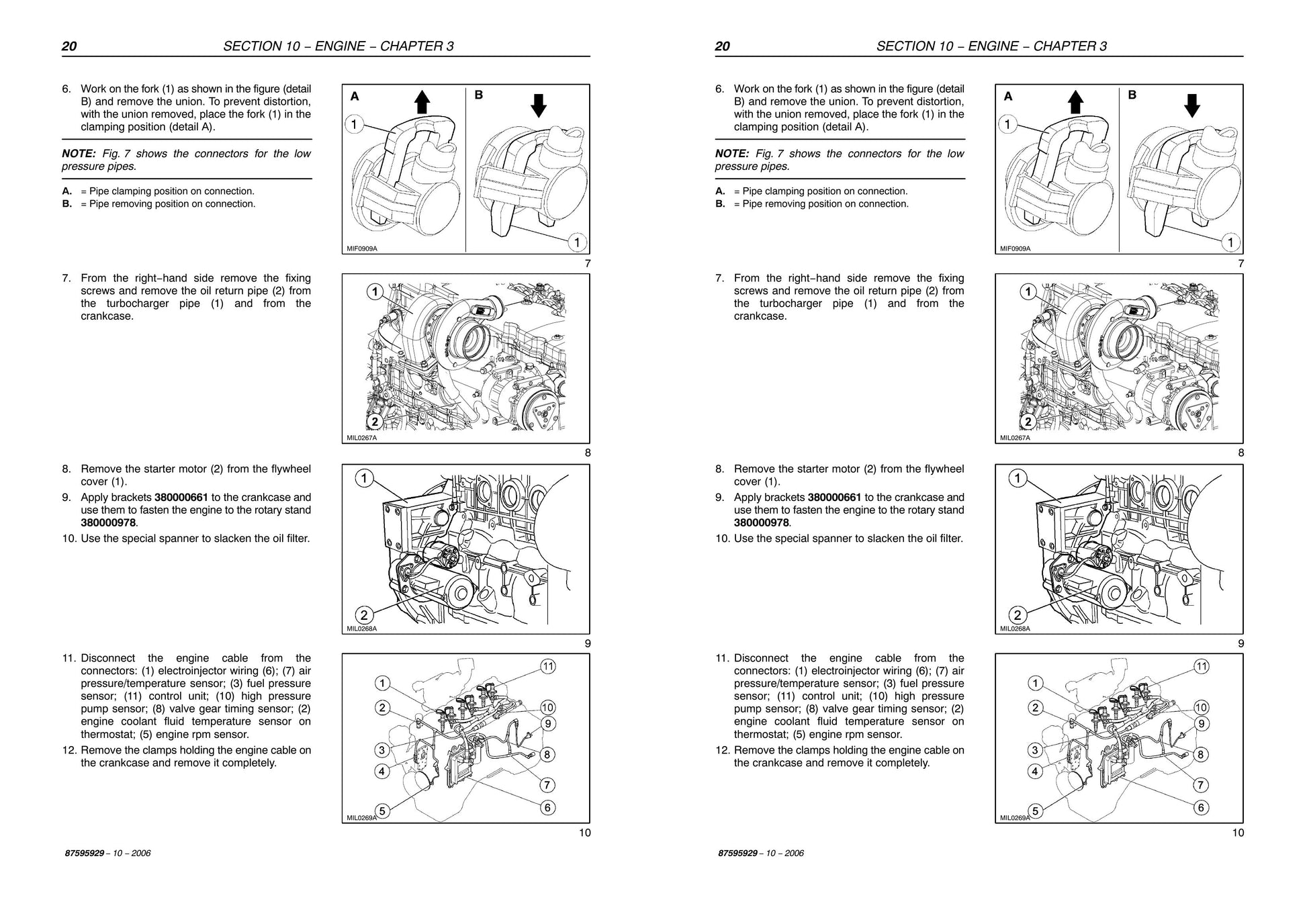

EngineChapter 3 - Engine New
Hydraulic systemsChapter 3 - TC −AL
(from series 9410 onwards)New
Electrical systemChapter 2 - Wiring Diagrams ReplaceTC54 - TC56 - AL59
Electrical systemChapter 2 - Wiring Diagrams Replace
GENERAL INFORMATION
Protecting the electronic/electrical systems during charging or welding 4 .
Units of measure − conversion chart 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Minimum hardware tightening torques 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Explanation of machine serial numbers 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHAPTER
Engine disassembly and overhaul:
coupled cylinder head, valves and other parts 33 . . . . . . . . . . . . . . . . . . . . . . .

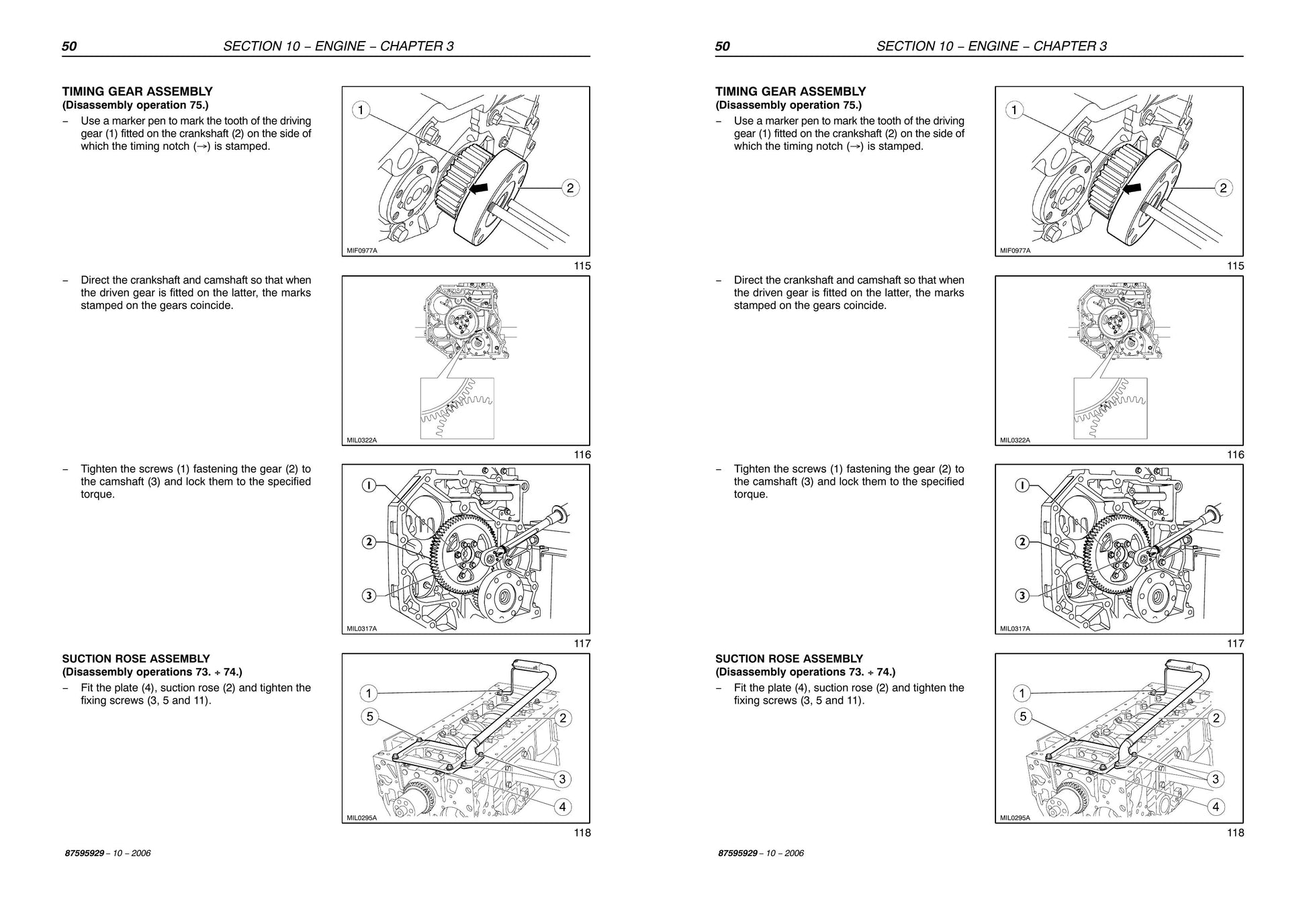

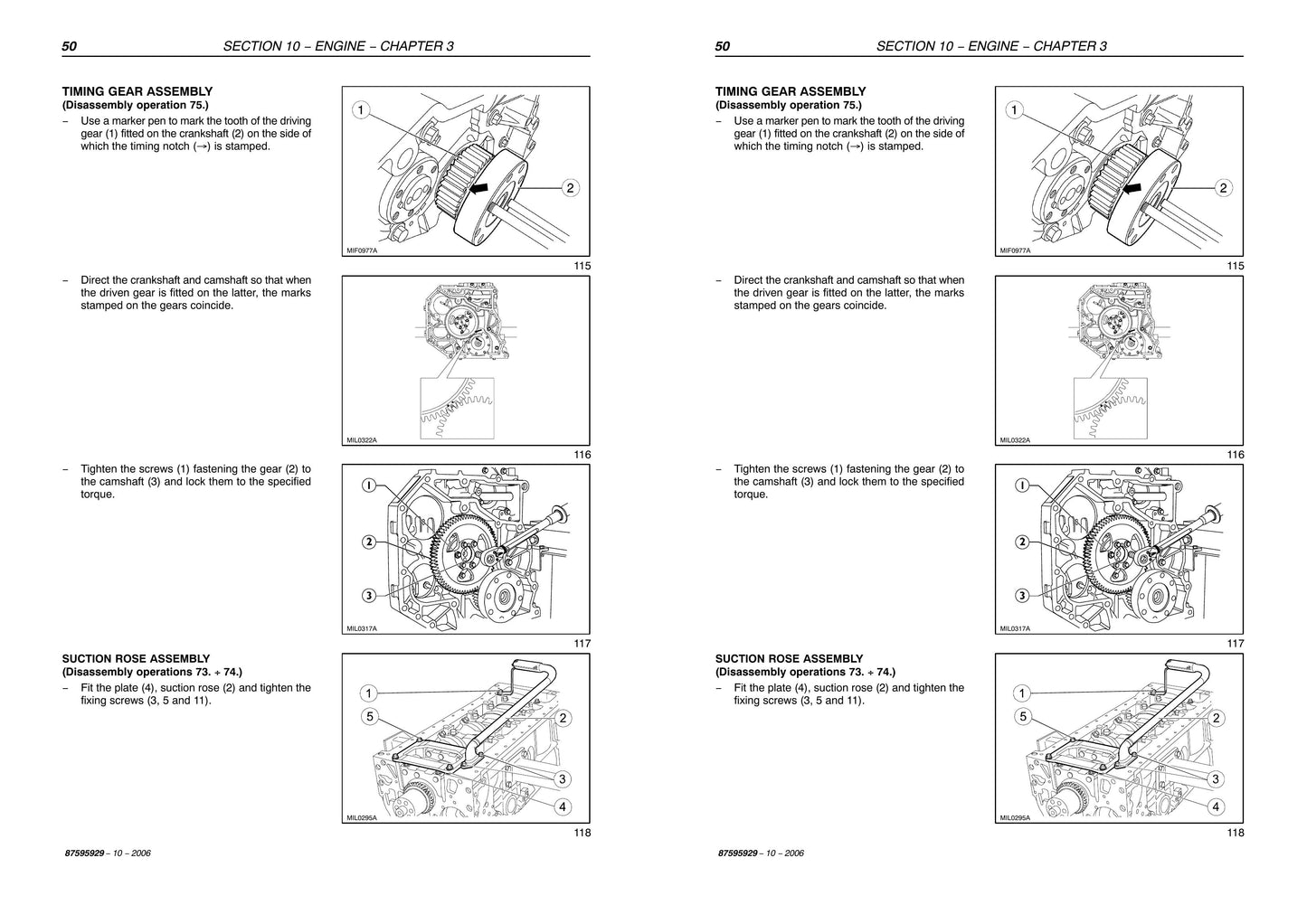

Engine front cover and timing gears 44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting rod bushing replacement 59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHAPTER 2 − COOLANT FILTER
CHAPTER 3 − ENGINE
Engine D./A. − Checks, measurements and repair operations 19 . . . . . . . . .
Adjusting the valve tappet and rocker clearance 77 . . . . . . . . . . . . . . . . . . . . .
CHAPTER 1 − TC TRANSMISSION
Mechanically −operated transmission, 4 gears 2 . . . . . . . . . . . . . . . . . . . . . . .
Hydrostatically −operated transmission, 4 gears 18 . . . . . . . . . . . . . . . . . . . . .
Mechanically −operated transmission, 3 gears 34 . . . . . . . . . . . . . . . . . . . . . . .
CHAPTER 2 − AL TRANSMISSION
CHAPTER 1 − TC
CHAPTER 2 − AL
CHAPTER 1 − HYDRAULIC SYSTEM (TC)
CHAPTER 2 − HYDRAULIC SYSTEM (AL)
Bleed of the fitting between the two brake master cylinders 6 . . . . . . . . . . .

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
