New Holland T4.85 T4.95 T4.105 T4.115 Tractor Factory Workshop Service Manual 47865294

New Holland T4.85 T4.95 T4.105 T4.115 Tractor Factory Workshop Service Manual 47865294
======================================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 32.73 MB
Pages: 401
Format: PDF
Language: English
Brand: NEW HOLLAND

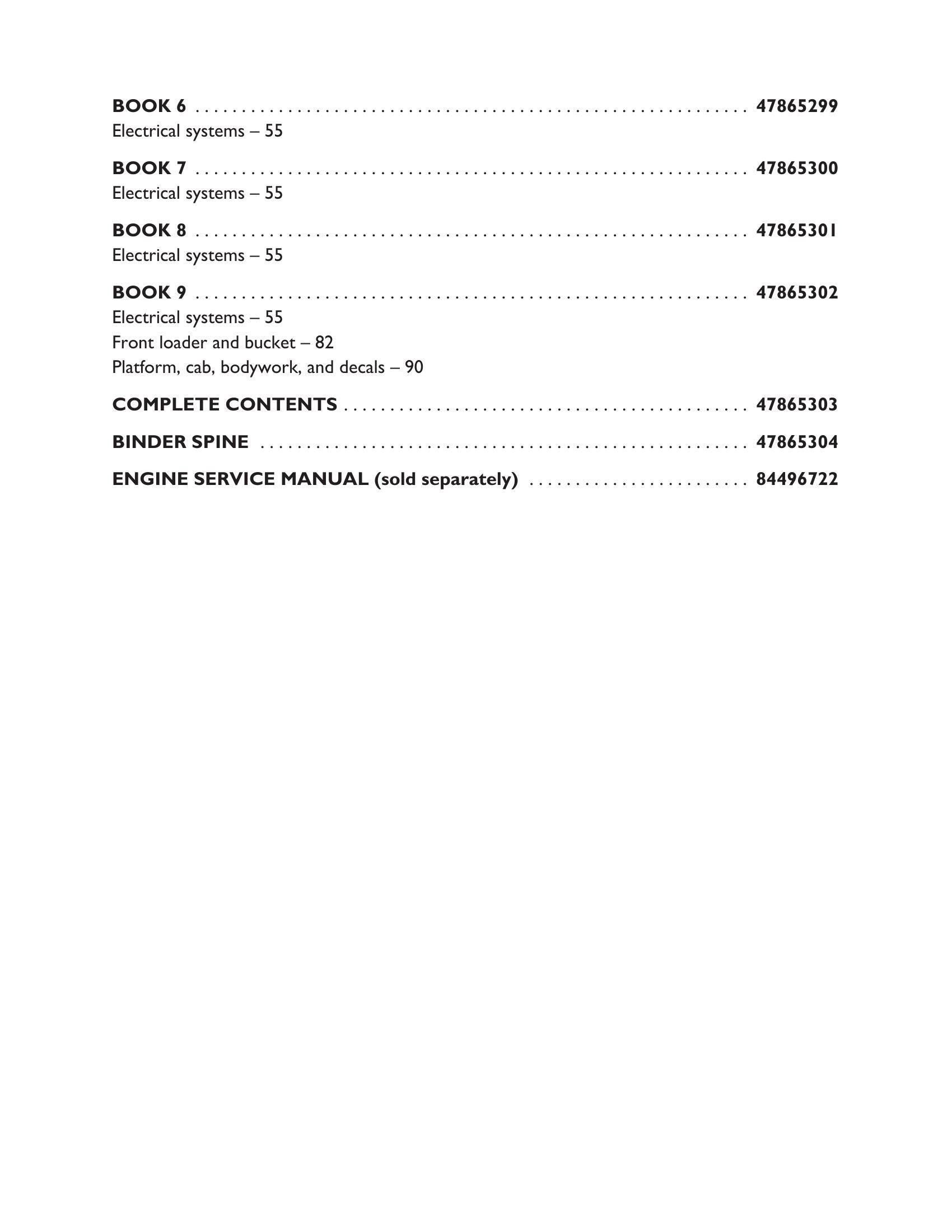

CONTENTS (Table of Contents):
----------------------------------------

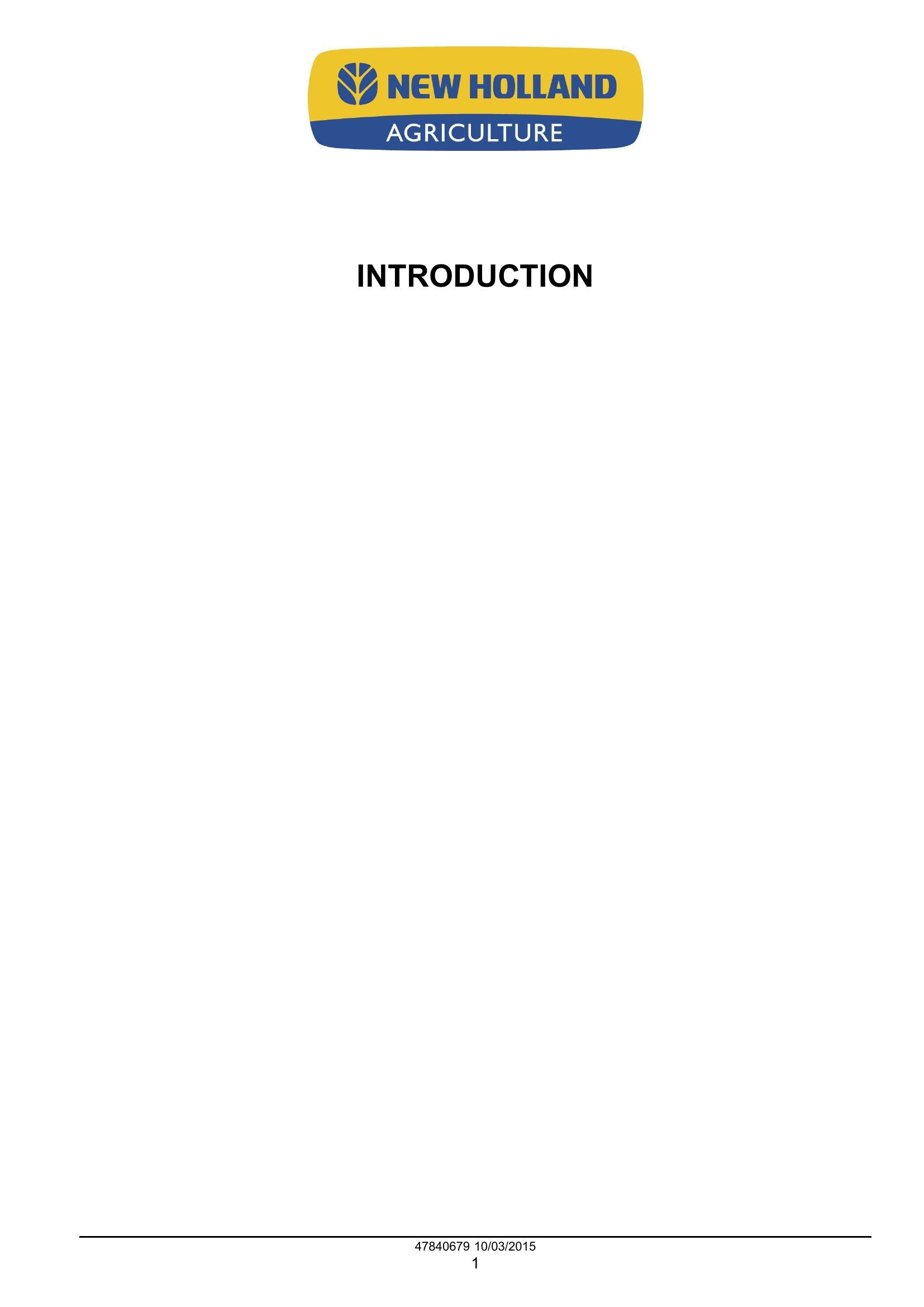

- INTRODUCTION
- Engine - 10

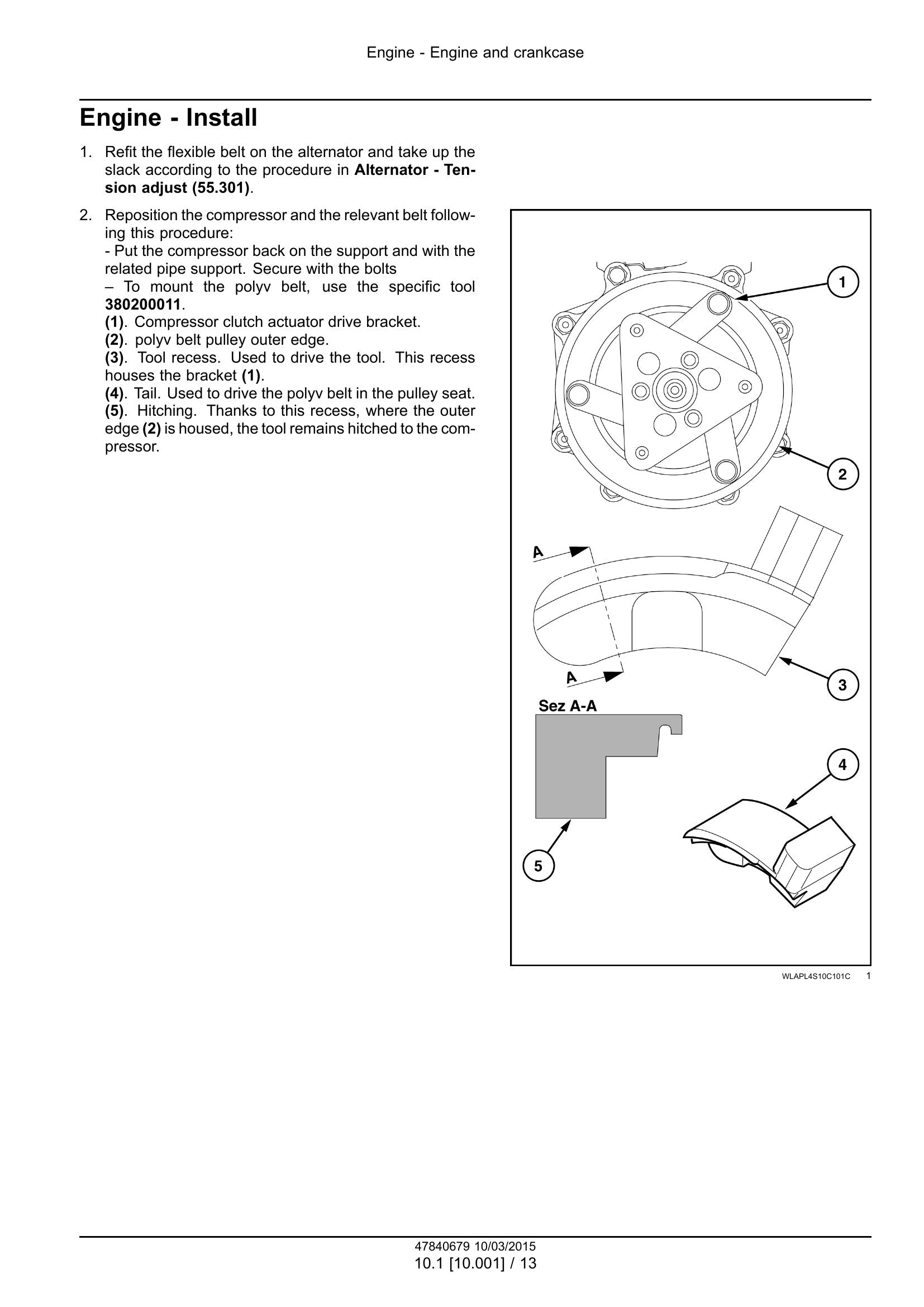

- Engine and crankcase - 001
- Fuel tanks - 216

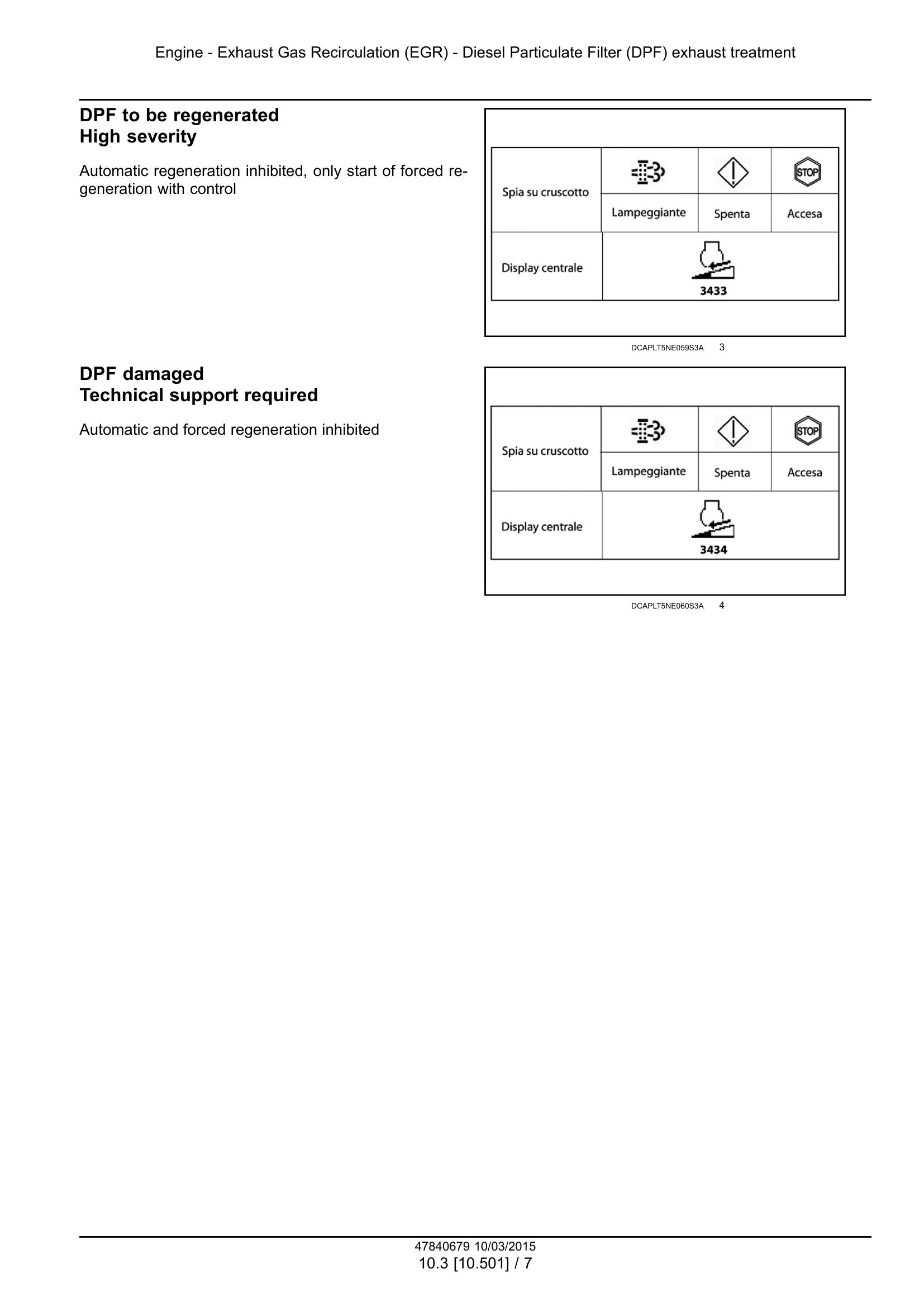

- Exhaust Gas Recirculation (EGR) - Diesel Particulate Filter (DPF) exhausttreatment - 501
- Engine cooling system - 400
- Fan and drive - 414
- Aftercooler - 310
- Clutch - 18
- Clutch mechanical release control - 100
- Clutch hydraulic release control - 104
- Clutch and components - 110
- Transmission - 21
- Mechanical transmission external controls - 130
- Power shuttle transmission - 112
- Master clutch housing - 110
- Power shuttle transmission external controls - 134
- Power shuttle transmission internal components - 154
- Creeper - 160
- Reverser - 162
- Hi-Lo unit - 168
- Transmission cooler and lines - 109
- Transmission/Rear drive - 118
- Transmission/Rear drive internal components - 148
- Transmission generic sub-group - AAA

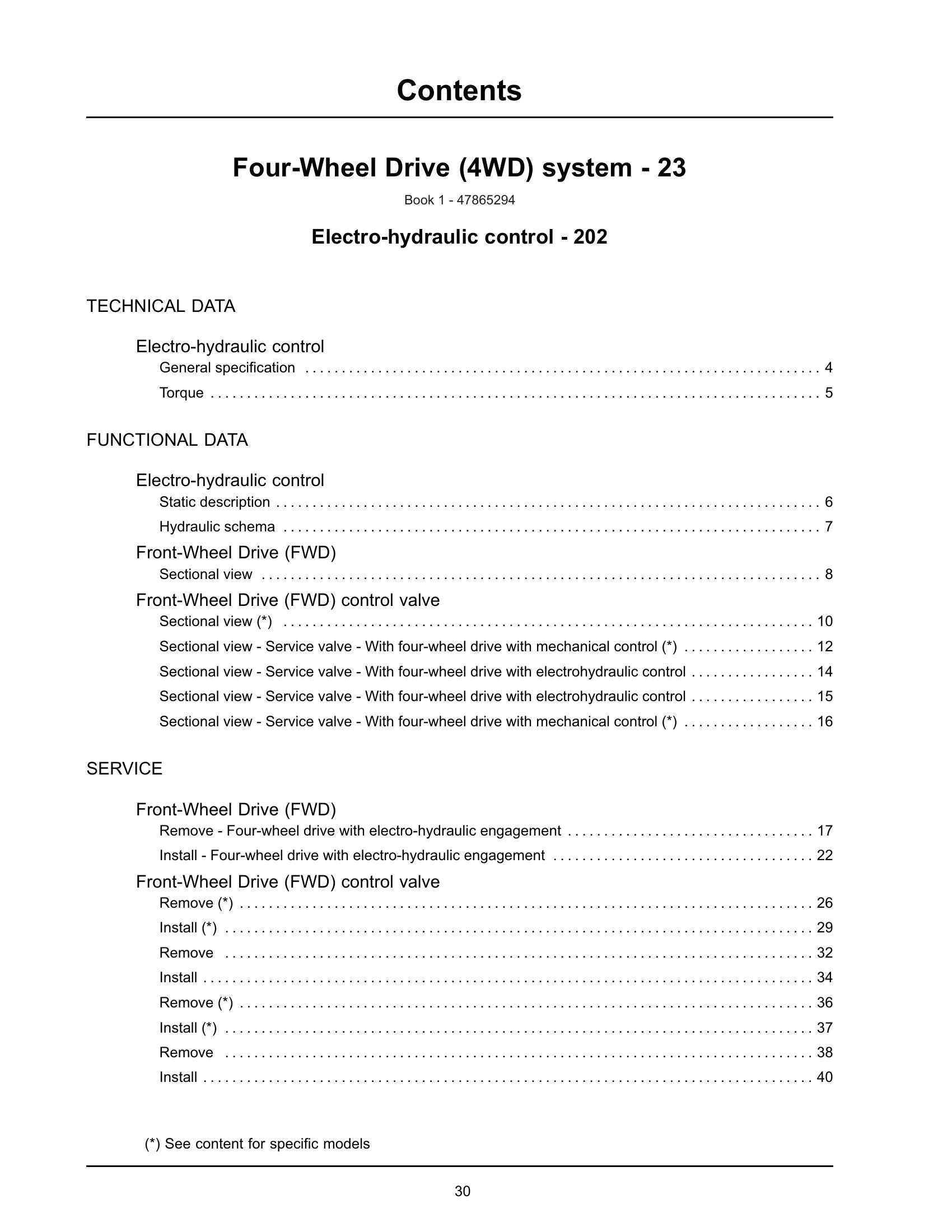

- Four-Wheel Drive (4WD) system - 23
- Mechanical control - 101
- Electro-hydraulic control - 202
- Drive shaft - 314

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
