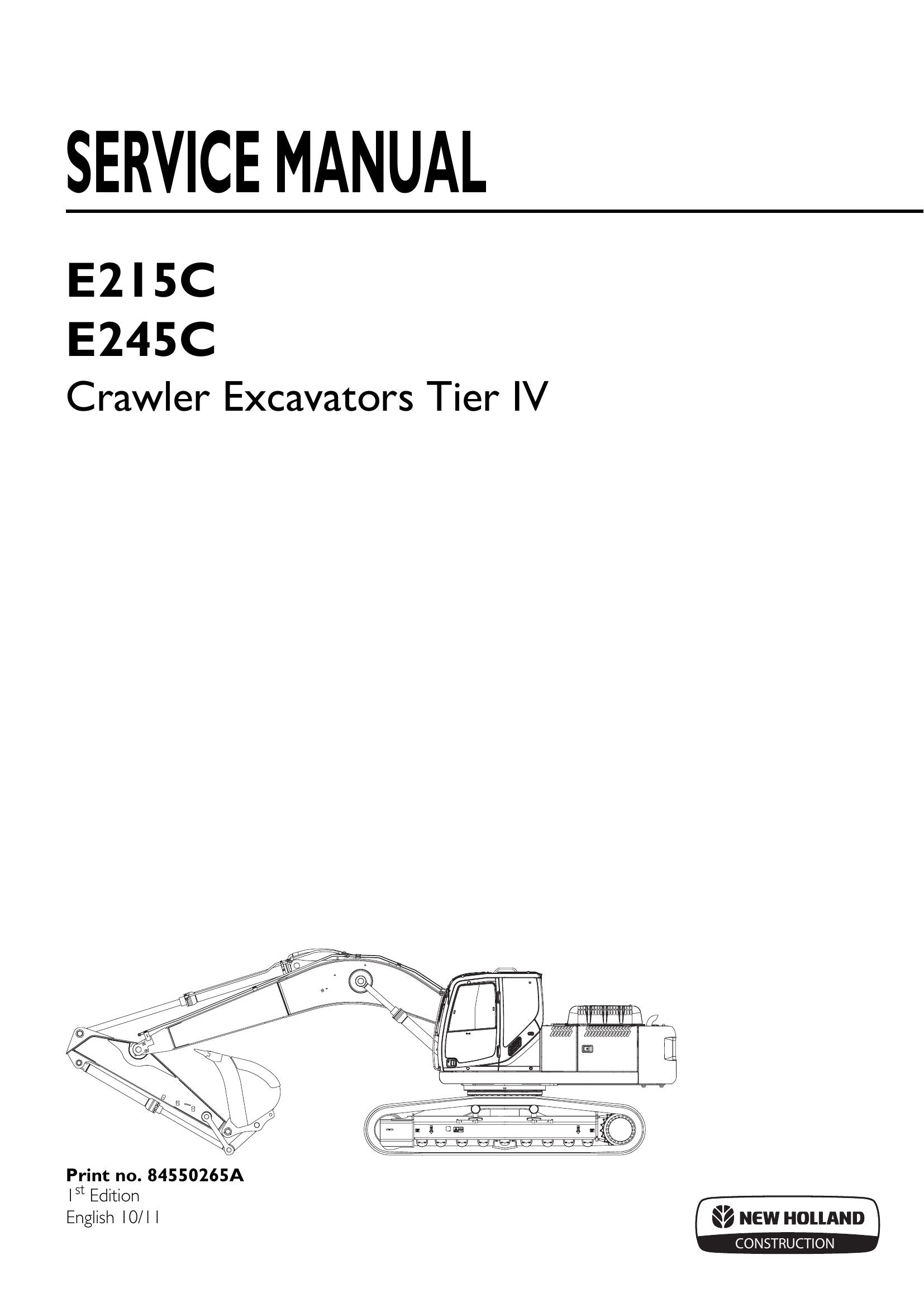

New Holland E215C E245C Crawler Excavator Factory Workshop Service Manual 84550265A

New Holland E215C E245C Crawler Excavator Factory Workshop Service Manual 84550265A
===================================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 120.61 MB
Pages: 860
Format: PDF
Language: English
Brand: NEW HOLLAND

CONTENTS (Table of Contents):
----------------------------------------
TO THE READER
• This manual is written for an experienced
technician to provide technical informationneeded to maintain and repair this machine.
- Be sure to thoroughly read this manual for
NEW HOLLAND KOBELCO
ADDITIONAL REFERENCES
• Please refer to the ma terials listed below in
addition to this service manual:
- Operator's Manual
- Service Parts Catalogue
COMPLETE SERVICE MANUAL
• The complete Service Manual consists of two
distinct volumes:
- Service Manual “Crawler Excavators”- Service Manual “Engine”
The two distinct volumes of the complete Service
Manual can be identified through their print numberas stated below:
• The Service Manual “Crawler Excavators”
consists of five parts:
recommended procedures that, if followed, canavoid the risk of accident for operator and for staff
related to the work and maintenance machineoperations.
- The “Operational Principle” part includes the
technical information concerning the operation ofmain devices and systems.
- The “Operational Performance Test” part includes
the information needed to carry out the machine
operational performance test.
- The “Troubleshooting” part includes the technical
information needed for troubleshooting andmalfunction detection.
- The “Repair Instructions” part includes information
procedures.
VOLUME PRINT NUMBER
Service Manual “Crawler Excavators” 84550265A
Service Manual “Engine”
GENERAL SAFETY INFORMATION Page
OPERATIONAL PRINCIPLE
Group 1 Mechatro Control System .............................................................. T2-1
Group 10 Selective Catalytic Reduction ...................................................... T3-10
OPERATIONAL PERFORMANCE TEST
Group 2 Standard Performances ................................................................. T4-2
TROUBLESHOOTING
Group 1 Troubleshooting (by error codes)... ................................................ T5-1
Group 2 Troubleshooting (by trouble).......................................................... T5-2
REPAIR INSTRUCTIONS
Group 1 Precautions for Disassembly and As sembly.................................W1-1
Group 6 Upper and Lower Roller ...............................................................W3-6

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
