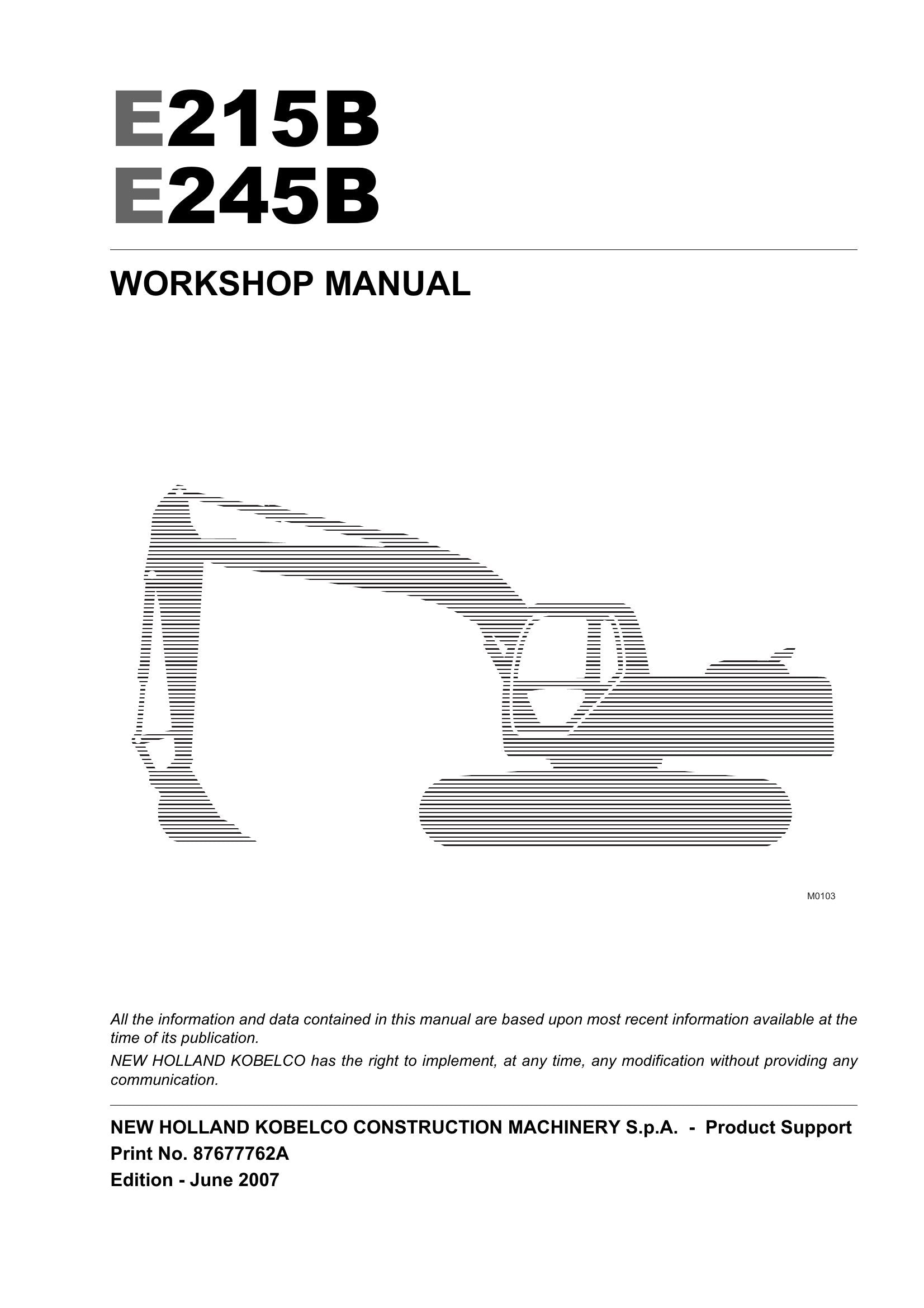

New Holland E215B E245B Crawler Excavator Workshop Manual 87677762A

New Holland E215B E245B Crawler Excavator Workshop Manual 87677762A
===================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 47.63 MB
Pages: 768
Format: PDF
Language: English
Brand: NEW HOLLAND

CONTENTS (Table of Contents):
----------------------------------------
TO THE READER
• This manual is writte n for an experienced
technician to provide technic al information
needed to maintain and repair this machine.
- Be sure to thoroughly read this manual for
correct information conce rning the service
procedures.- If you have any questions or comments, or if you
NEW HOLLAND KOBELCO
ADDITIONAL REFERENCES
• Please refer to the materials listed below in
addition to this service manual:
- Operation and Maintenance Instruction
Manual
-P a r t s C a t a l o g
WORKSHOP MANUAL COMPOSITION
• The Workshop Manual consists of five parts:

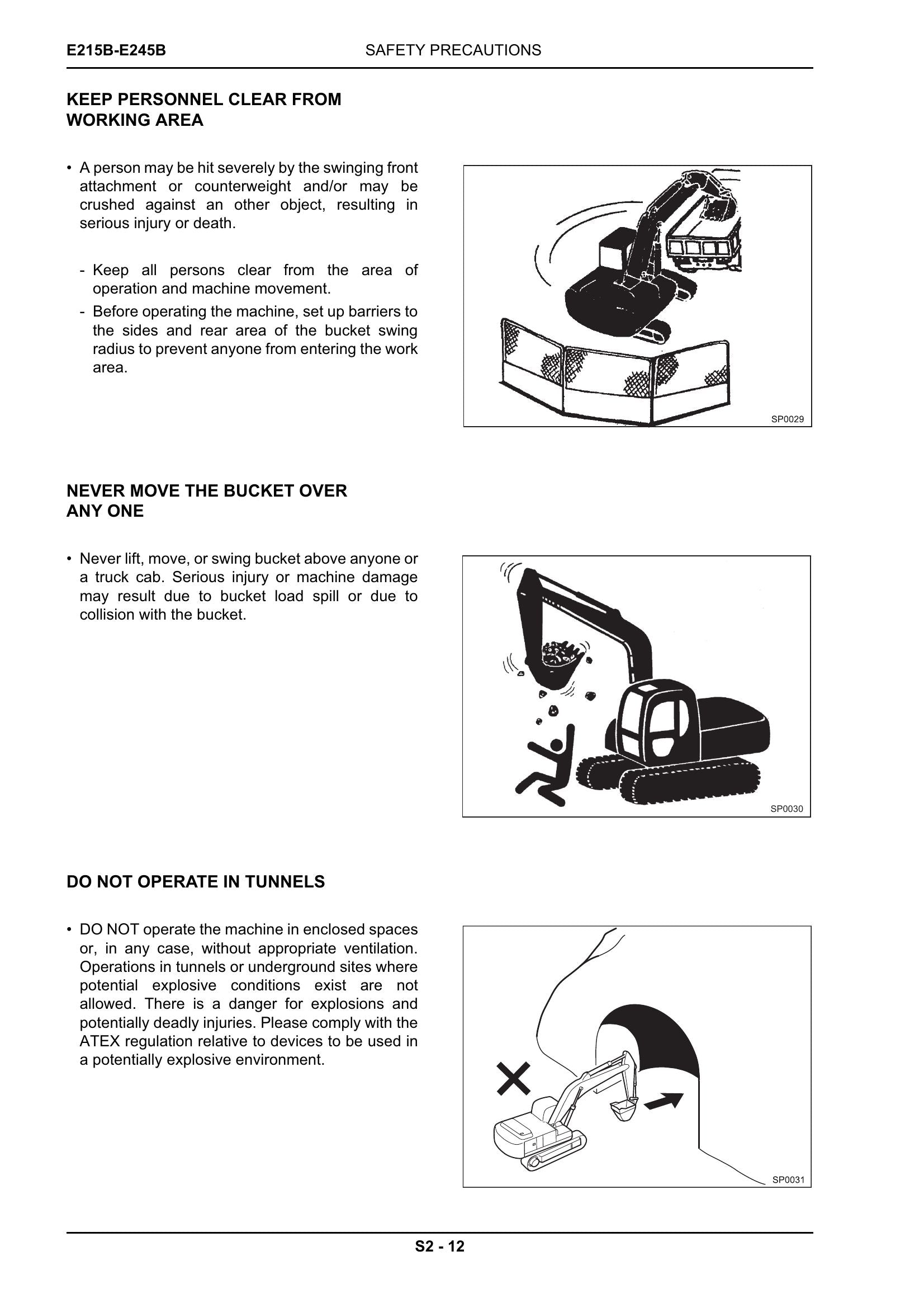

- “Safety Precautions”
- “Operational Principle”- “Operational Performance Test”
- “Troubleshouting”- “Repair Instructions”
- The “Safety Precaution” part includes the
recommended procedures that, if followed, can
- The “Operational Pr inciple” part includes the
technical information concern ing the operation of
main devices and systems.- The “Operational Performance Test” part includes
the information needed to carry out the machine
operational pe rformance test.
- The “Troubleshooting” part includes the technical
information needed for troubleshooting and
malfunction detection.
- The “Repair Instructio n” part inclu des information
needed for maintenan ce and repair of the
machine, tools and devices needed formaintenance and repair, ma intenance standards,
removal/installation and assembly/disassembly
procedures.
SAFETY PRECAUTIONS Page
OPERATIONAL PRINCIPLE
Group 1 Mechatro control system................................................................ T2-1
OPERATIONAL PERFORMANCE TEST
Group 2 Standard Performances ................................................................. T4-2
TROUBLESHOOTING
Group 1 Troubleshooting (by error codes)................................................... T5-1
Group 2 Troubleshooting (by trouble).......................................................... T5-2
Group 3 Troubleshooting (trouble diagnosis mode)..... ................... ............. T5-3
REPAIR INSTRUCTIONS
Group 1 Precautions for Disassembly and Assembly.. ............. ............. .....W1-1
Group 6 Upper and Lower Roller ...............................................................W3-6

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
