Mitsubishi FB20CA1, FB25CA1, FB28CA1, FB30CA1 Forklift Service Manual

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Mitsubishi FB20CA1, FB25CA1, FB28CA1, FB30CA1 Forklift  Service Manual: 202 Pages
English
Format: PDF

Description
Mitsubishi FB20CA1, FB25CA1, FB28CA1, FB30CA1 Lift Truck Manual
Lift Truck Forklift Model
: FB20CA1, FB25CA1, FB28CA1, FB30CA1
English
Format: PDF
Mitsubishi FB20CA1, FB25CA1, FB28CA1, FB30CA1 Forklift  Service Manual: 202 Pages
Forklift Manual Table of Content:

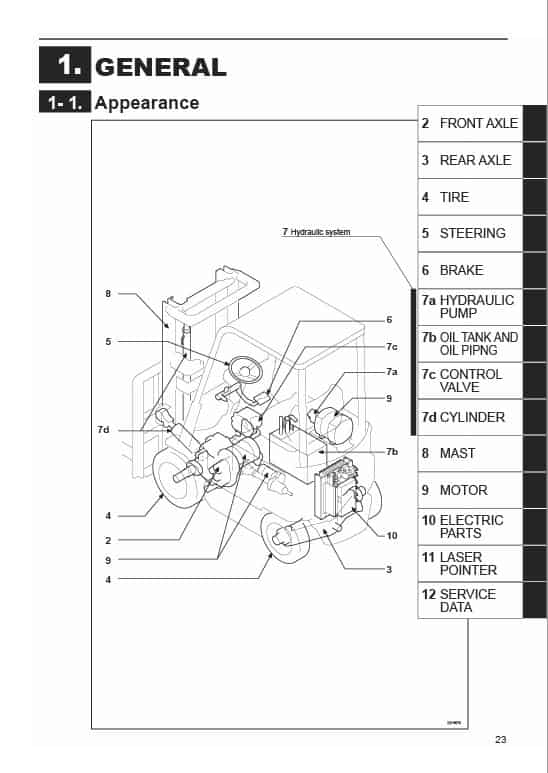

General

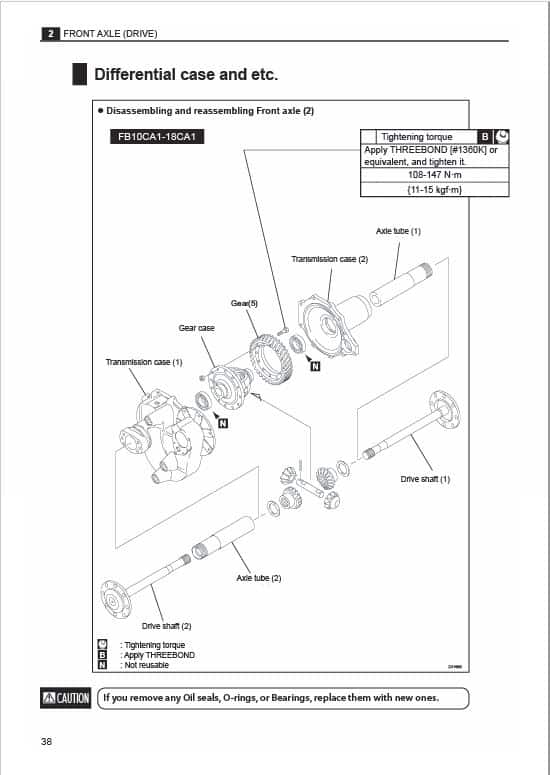

Front Axle
Rear Axle
Tire
Steering
Brake

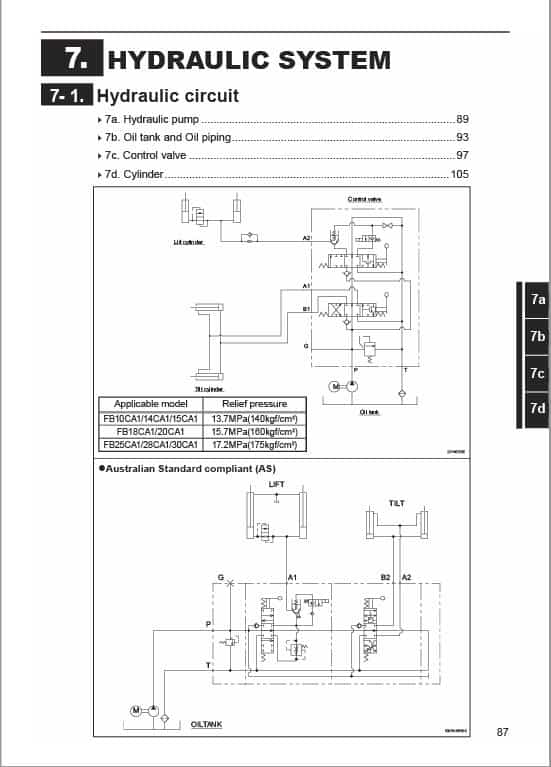

Hydraulic Pump
Oil Tank and Oil Piping
Control Valve

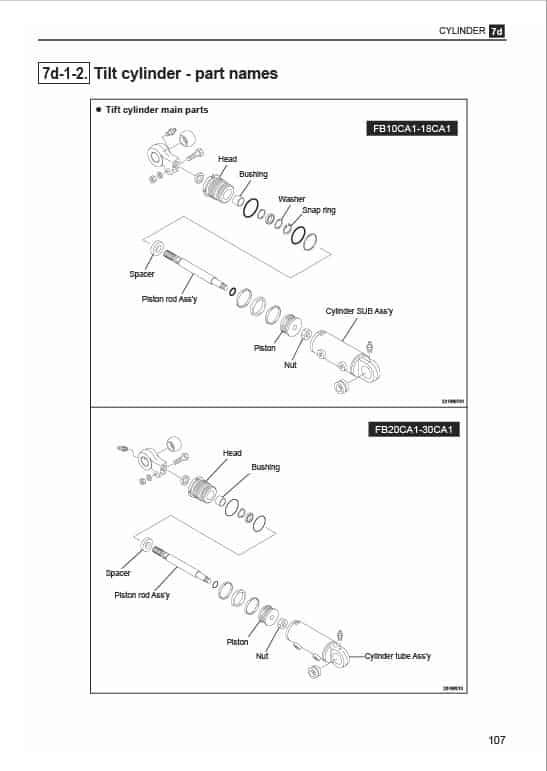

Cylinder
Mast
Motor
Electric Parts
Laser Pointer
Service Data
This service manual is a guide to servicing the FBCA Mitsubishi Forklift Series. The instructions are grouped by systems to serve the convenience of your ready reference.
Parking brake lever – inspection and adjustment
1. Check Parking brake lever for damage and deformation.
2. Check that the brake engages when pulling the lever.
If the brake is not secure after pulling the lever,
make the following adjustments.
– Pull the lever and leave it in that position.
– Tighten Adjusting bolt by turning it clockwise.
– Release the lever to release the brake.
– Check that Parking brake is fully released and does not interfere with traveling.
– If the brake is not fully released, make further adjustments
