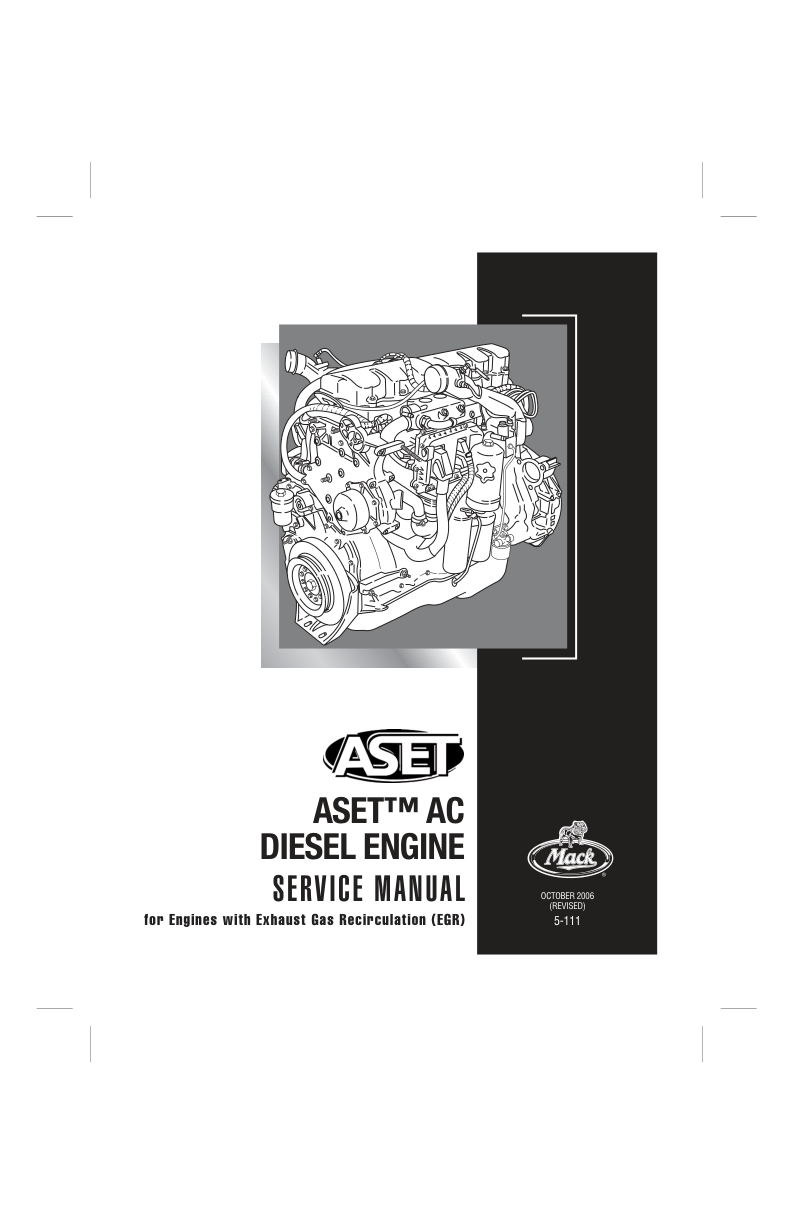

Mack ASET-AC (CEGR) Engine Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
Service Manual:
536 pages
Specifications:
Brand:
Mack
Model:
ASET AC
Type:
Engine (Diesel)
Manuals:
Service Manual
Publication Numbers:
5-111 (October 2006)
Language:
English
Format:
PDF

Description

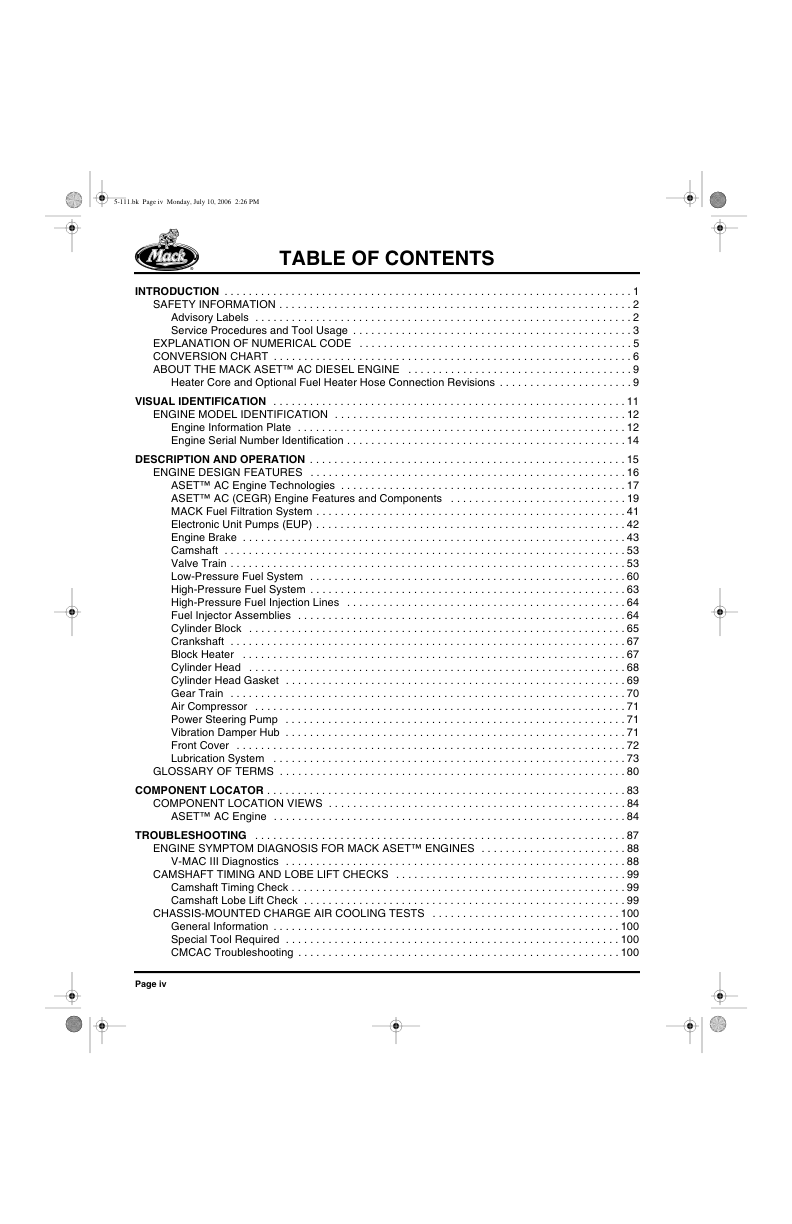

Table of Contents
GROUP
0
00 — GENERAL DATA
GROUP
1
00 — CHASSIS
GROUP
2
00 — ENGINE
GROUP
3
00 — CLUTCH, TRANSMISSION, TRANSFER CASE AND PTO
GROUP
4
00 — STEERING, AXLES, WHEELS AND TIRES, DRIVELINE
GROUP
5
00 — BRAKES, AUXILIARY SYSTEMS
GROUP
6
00 — CAB, TRUCK BODY
GROUP
7
00 — ELECTRICAL
This publication is intended to provide technicians with a working knowledge of the ASET AC diesel engine with cooled exhaust gas recirculation. MACK offers a similar engine to the AC which is more suited to the vocational applications called the AI/AMI. The AI/AMI engine is an internal exhaust gas recirculation design
engine. For service and overhaul procedures for the ASET AI/AMI engine, refer to the 5-110 ASET AI/AMI Engines Service Manual. ASET is an acronym meaning Application
Specific Engine Technology.
The ASET AC engine design is based on the E-Tech left-side redesign (LSR) with its plate-type oil cooler and oil filter mounting arrangement. A redesigned Centri-Max
ULTRA, and later ULTRA PLUS, centrifugal oil filter assembly and cover housing with an integral oil fill tube, is incorporated on all AC engines.
The ASET AC utilizes a new EECU with greater capacity which is relocated to the front left-side of the inlet manifold. The increased capacity of the EECU requires the addition of a cooling plate to help dissipate heat. The AC design also provides for cooling of the exhaust gases being recirculated through the combustion chambers
