Komatsu WB97S-2 Backhoe Loader Repair Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
Shop Manual:
316 pages

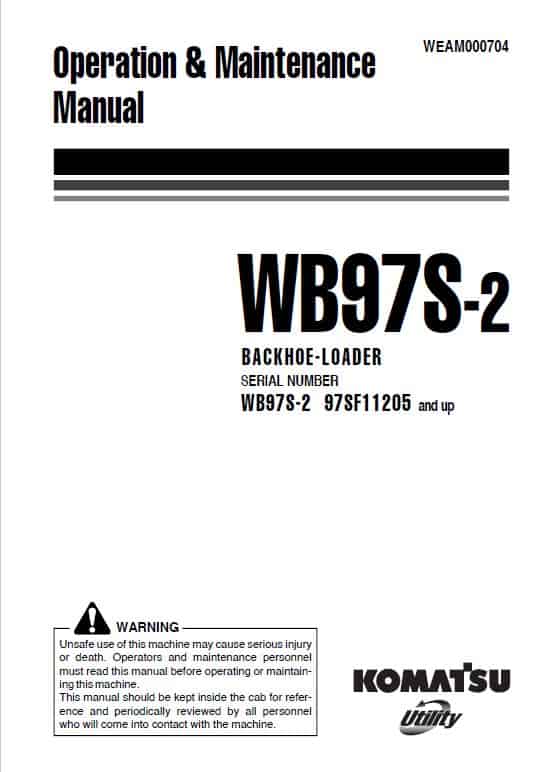

Operation and Maintenance Manual:
296 pages
Specifications:
Brand:
Komatsu
Model:
WB97S-8
Type:
Backhoe Loader
Serial Number:
WB97S-8: 97SF11205 and up (WEAM000704)
WB97S-8: 97SF10001 and up (WEAM002400)
Manual:
Shop Manual & Operation and Maintenance Manual
Publication Numbers:
WEAM000704 & WEAM002400
Language:
English
Format:
PDF

Description
Table of Content
Index and foreword
Specification
Structure, functions and maintenance standard
Standard value table
Testing and adjusting
Troubleshooting
Disassembly and assembly
Maintenance Standard
Appendix
Diagrams and drawings
Index
Composition of Komatsu WB97S-2 shop manual
This shop manual contains the necessary technical information for services performed in a workshop. For ease of understanding, the manual is divided into the following sections.

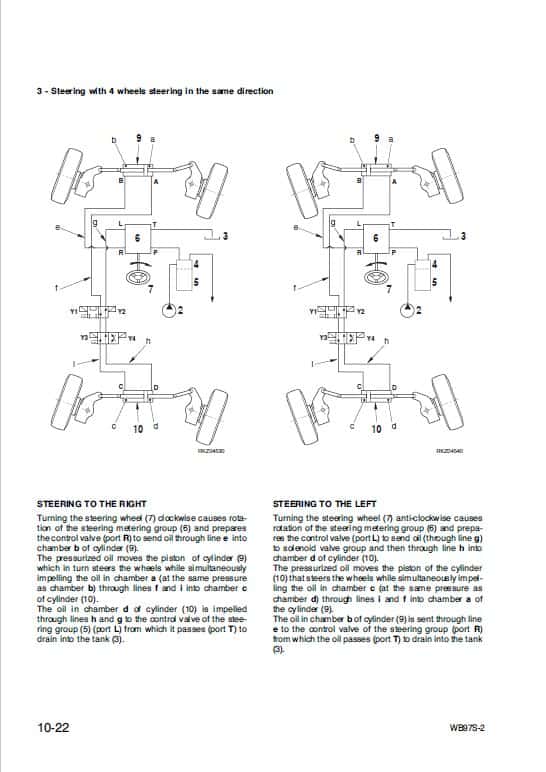

Structure and function
This section explains the structure and function of each component. It serves not only to give an understanding
for the structure of each component, but also serves as reference material for troubleshooting.

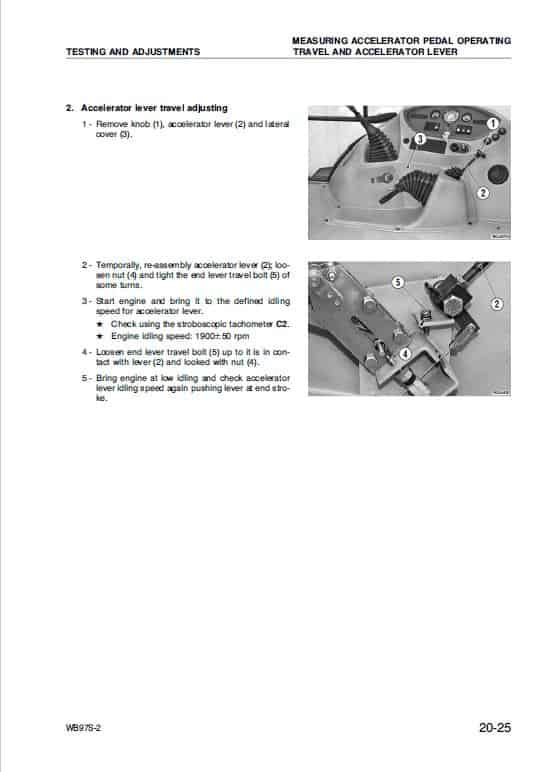

Testing and adjusting
This section explains measuring tools and measuring methods for testing and adjusting, as well as the
adjusting method of each part. The standard values and judgment criteria for "Testing and adjusting" are
explained in "Standard value table".
Disassembly and assembly
This section explains the special tools and procedures for removing, installing, disassembling, and assembling
each component, as well as precautions for them. In addition, tightening torque, and quantity and
weight of coating material, oil, grease, and coolant necessary for the work are also explained.
Maintenance standard
This section gives maintenance standard values of each component. The maintenance standard sub-section
explains the criteria and remedies for disassembly and service.
