Komatsu WA600-6, WA600-6R Wheel Loader Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
Shop Manual:
1990 pages and 1923 pages
Specifications:
Brand:
Komatsu
Models:
WA600-6, WA600-6R
Type:
Loader
Serial Numbers:
60001 and up (SEN00235-14)
65001 and up (SEN02211-08)
Manuals:
Shop Manual
Publication Number:
SEN02211-08 and SEN00235-14
Language:
English
Format:
PDF

Description
Table of Contents
Index and foreword
Specification

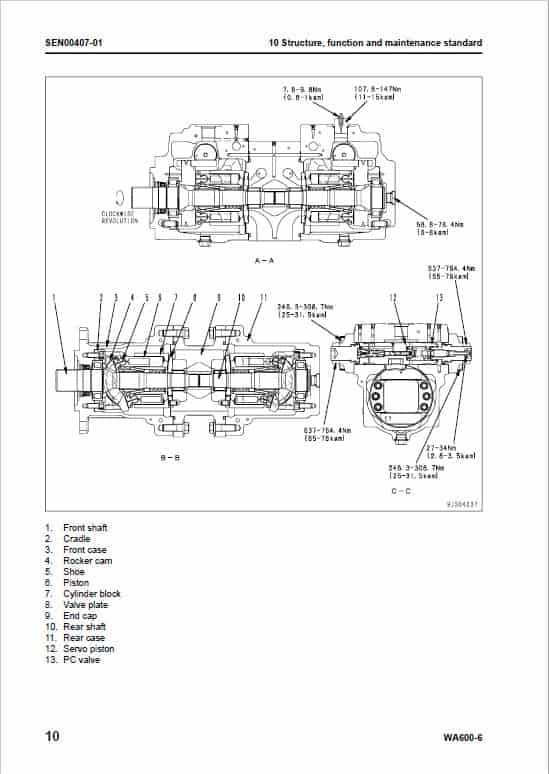

Structure, functions and maintenance standard
Standard value table

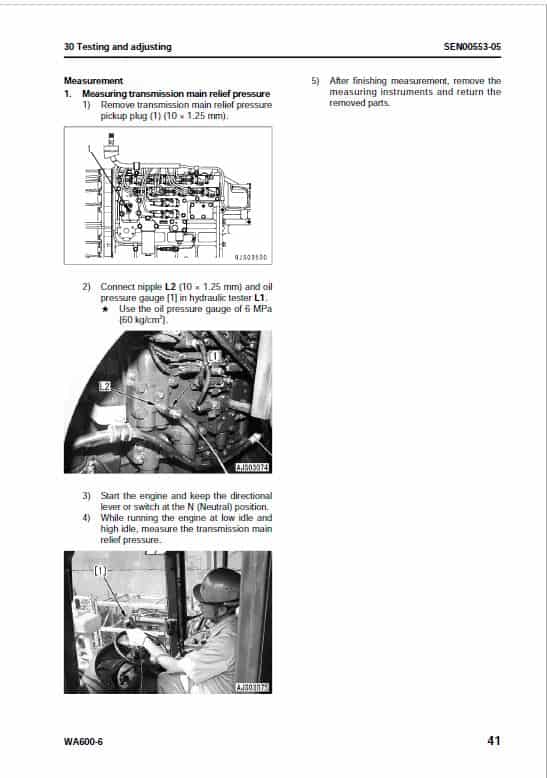

Testing and adjusting
Troubleshooting
Disassembly and assembly
Diagrams and drawings
Disassembly and assembly of backrest
1) Detach the storage box by referring to "1.
Removal and installation of storage box".
2) Remove the backrest upholstery by referring to "2. Removal and installation of seat pad and backrest upholstery".
3) Remove the armrests by referring to "4.
Removal and installation of armrests". (If equipped)
4) Disassemble the backrest adjustment by referring to "6. Disassembly and assembly of backrest adjustment".
5) Unscrew the hexagon nut (5) and remove the washers (6) and (7).
6) Remove the hexagon bolt (11) and the washer (10).
7) Press the backrest (1) slightly to the left and take it off upwards.
8) Remove the bearing (8) and the torsion spring (9) from the backrest (1).
