Kawasaki 90ZV-2 Wheel Loader Service Manual
Kawasaki 90ZV-2 Wheel Loader Service Manual
Regular price
$61.50 USD
Regular price
Sale price
$61.50 USD
Taxes included.
Shipping calculated at checkout.
Quantity
.
In Stock
Couldn't load pickup availability
Format : PDF
SUPPLIED AS DOWNLOADABLE LINK
Machinery Type: 90ZV-2
Wheel Loader
Language English
Format: PDF
Kawasaki 90ZV-2 Wheel Loader Repair Service Manual – 1011 Pages
Kawasaki 90ZV-2 Wheel Loader Operating (Owners) Manual – 230 Pages
Parts Catalog: 684 Pages
Description
Kawasaki 90ZV-2 Wheel Loader Service Manual
Machinery Type: 90ZV-2
Wheel Loader
Language English
Format: PDF
Kawasaki 90ZV-2 Wheel Loader Repair Service Manual – 1011 Pages
Kawasaki 90ZV-2 Wheel Loader Operating (Owners) Manual – 230 Pages
Parts Catalog: 684 Pages
Manual Details
This manual contains guidelines on repair and maintenance work for the 90ZV-2 Loader. All explanations, drawings and photographs are current at the time of going to press.
Repair and maintenance work should be carried out systematically and logically after thoroughly reading and understanding this manual to ensure that the shovel loader gives reliable, long-term service.
The manual is structured as follows to make it easy to use

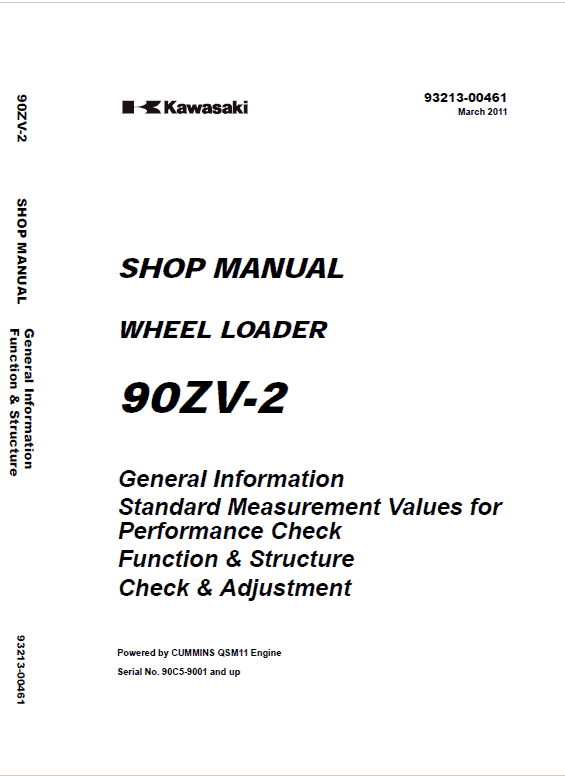

SHOP SERVICE MANUAL
CONTENT:
01 GENERAL OUTLINE
10 FUNCTIONS AND CONSTRUCTION
20 INSPECTION AND ADJUSTMENT
30 DISASSEMBLY AND ASSEMBLY
40 MAINTENANCE STANDARDS
The most important maintenance operations are those related to safety. The points that have special significance from the safety point-of-view are indicated with a A mark in this manual.
Manual Extract: Measuring loading circuit main relief pressure
1. Unload the bucket.
2. Press the brake pedal.
Set and confirm the transmission shift lever is neutral position.
3. Set and confirm the parking brake switch to the "ON" position.
4. Depress the brake pedal.
5. Lower the boom to the lowest limit.
6. Attach the pressure gauge 30 MPa (300 kgf/cm2) (5,000 psi) to the bucket cylinder bottom side (2).
7. Move the bucket control lever to the roll back position. Hold the lever at that position.
8. Increase the engine speed to the maximum, and measure and record the pressure using the pressure gauge.
Loosen the lock nut and adjust the pressure by the adjusting screw.
Turn clockwise the adjusting screw to raise the set pressure, or turn counterclockwise the adjusting screw to lower the set pressure.
