John Deere Cummins QSX15, ISX15 Diesel Engine Tier 4 Repair Technical Manual (CTM120219) Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
Component Technical Manual:
5638 Pages
Specifications:
Brand:
John Deere
Model:
QSX15, ISX15
Type:
Cummins Diesel Engine Tier 4
Manuals:
Component Technical Manual
Publication Numbers:
CTM120219
Language:
English
Format:
PDF

Description
Table of Content
1. Air Compressor
2. Air Controls
3. Air Shutoff Assemblies
4. Balance Weights
5. Cooling Fan
6. Fan Hub Assembly
7. Fan Mounting Bracket(s)
8. Fan Mounting Cap screws
9. Fan Hub Spindle
10. Flywheel
11. Flywheel Crankshaft Adapter
12. Flywheel Mounting Cap Screws
13. Fuel Shutoff Assemblies
14. Fuel Supply Tubes
15. Lifting Brackets
16. Throttle Controls
17. Turbocharger Compressor Casing
18. Turbocharger Oil Drain Line(s)
19. Turbocharger Oil Supply Line(s)
20. Turbocharger Turbine Casing
21. Vibration Damper Mounting Cap screws
22. Manual Service Disconnect
23. High-Voltage Interlock Loop
24. High-Voltage Connectors/Connections and Harnesses
25. High-Voltage Battery System
26. Power Inverter
27. Generator Motor
28. Clutch Pressure Plate
This repair manual covers the Cummins QSX15 Diesel Engine Tier 4 platform.
Section 01 covers the safety measures to follow while repairing the engine; engine identification features, engine emission and application details, and information about the fuels, lubricants, and coolants.

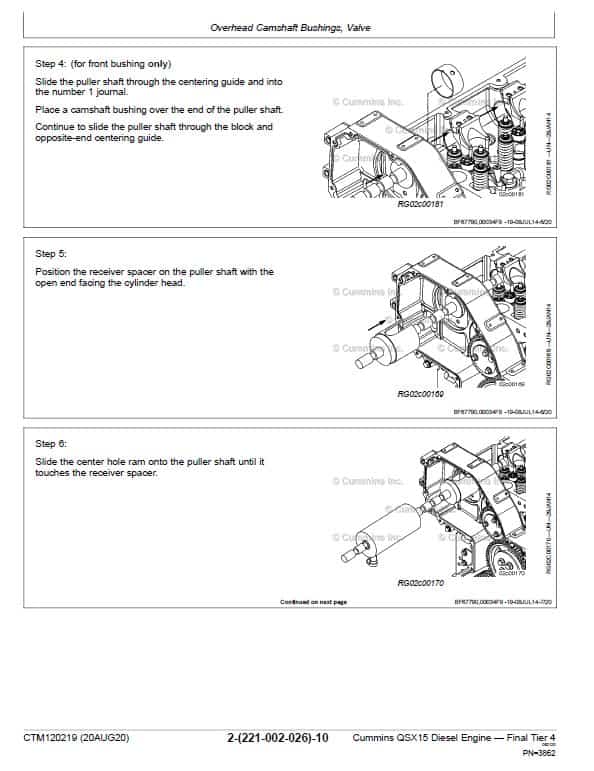

Section 02 covers the repair and adjustment procedures.
Section 03 explains the theory of operation of each system.
Section 04 is the diagnostics section that provides troubleshooting procedures to find problems
Section 05 covers other materials needed to do the job.
Section 06 details all specifications, wear tolerances, torque values, and contains the wiring diagrams.
