John Deere 1000 and 1010 Series Crawler Tractors Technical Manual (SM2034) Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
Repair Service Manual:
448 Pages
Specifications:
Brand:
John Deere
Model:
1000 and 1010 Series
Type:
Crawler
Manuals:
Repair Service Manual
Publication Numbers:
SM2034
Language:
English
Format:
PDF

Description
Table of Contents(Repair Service Manual – SM2034)
Description, Operation, and Specifications Periodic Lubrication
Engine Tune-Up and Tractor Adjustment Engine (Basic)-Gasoline
Engine (Basic)-Diesel

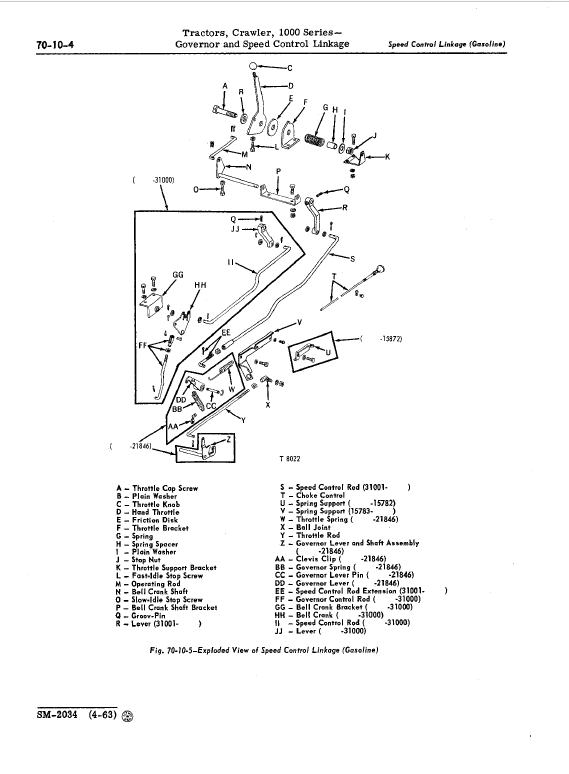

Engine Lubrication System Governor and Linkage
Cooling System
Gasoline Fuel System
Diesel Fuel System
Electrical System
Engine Clutch
Transmission and Ring Gear

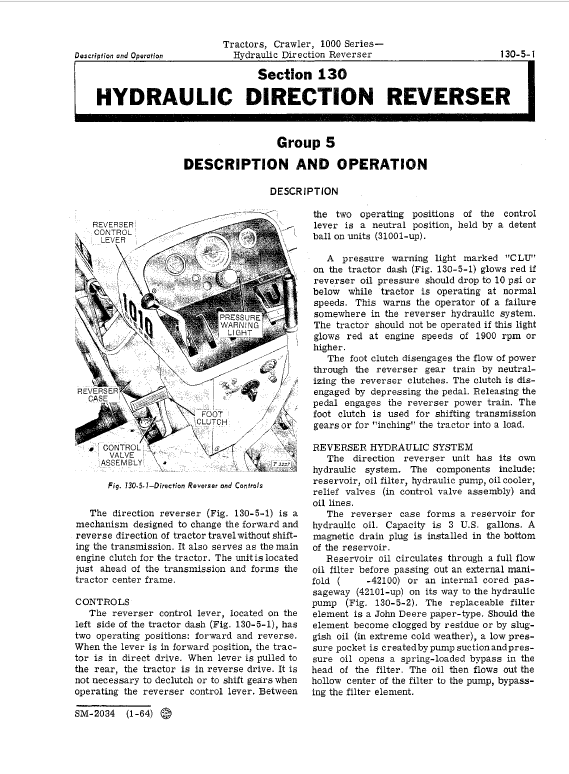

Hydraulic Direction
Reverser
Power Take-Off and Belt Pulley Series 10 Winch
Final Drives, Steering Clutch, and Brakes Hydraulic System
3-Point Hitch, Timber Hitch and Drawbar ..
Track System
Sheet Metal and Protective Equipment Trouble Shooting

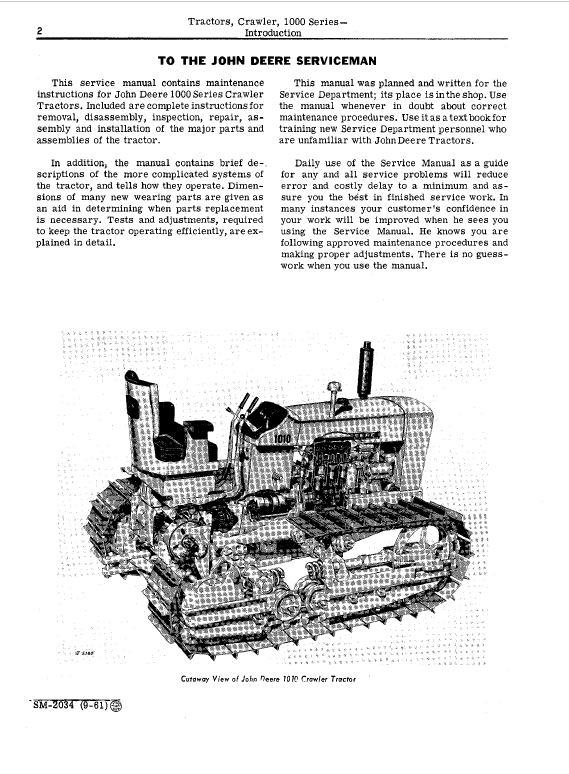

This Unit of the Service Manual contains maintenance instructions for the Model "1000 Series" Crawler Tractors.
Included are complete instructions for removal, disassembly, inspection, repair, assembly, and installation of all parts and assemblies.
In addition, the manual contains a brief description of the more complicated systems of the Crawler Tractors and tells how they operate. Dimensions of many new wearing parts are given as an aid in determining when parts replacement is necessary. Tests and adjustments required to keep the tractor operating at full efficiency are explained in detail. Full instructions on preparing a new tractor for delivery to the customer are included.
Use the manual whenever in doubt about correct maintenance procedures. Use it as a text book for new Service Department personnel who are unfamiliar with John Deere Tractors.
Daily use of the manual as a guide for any and all service problems will reduce error and costly delay to the minimum and assure you the best in finished service work.
