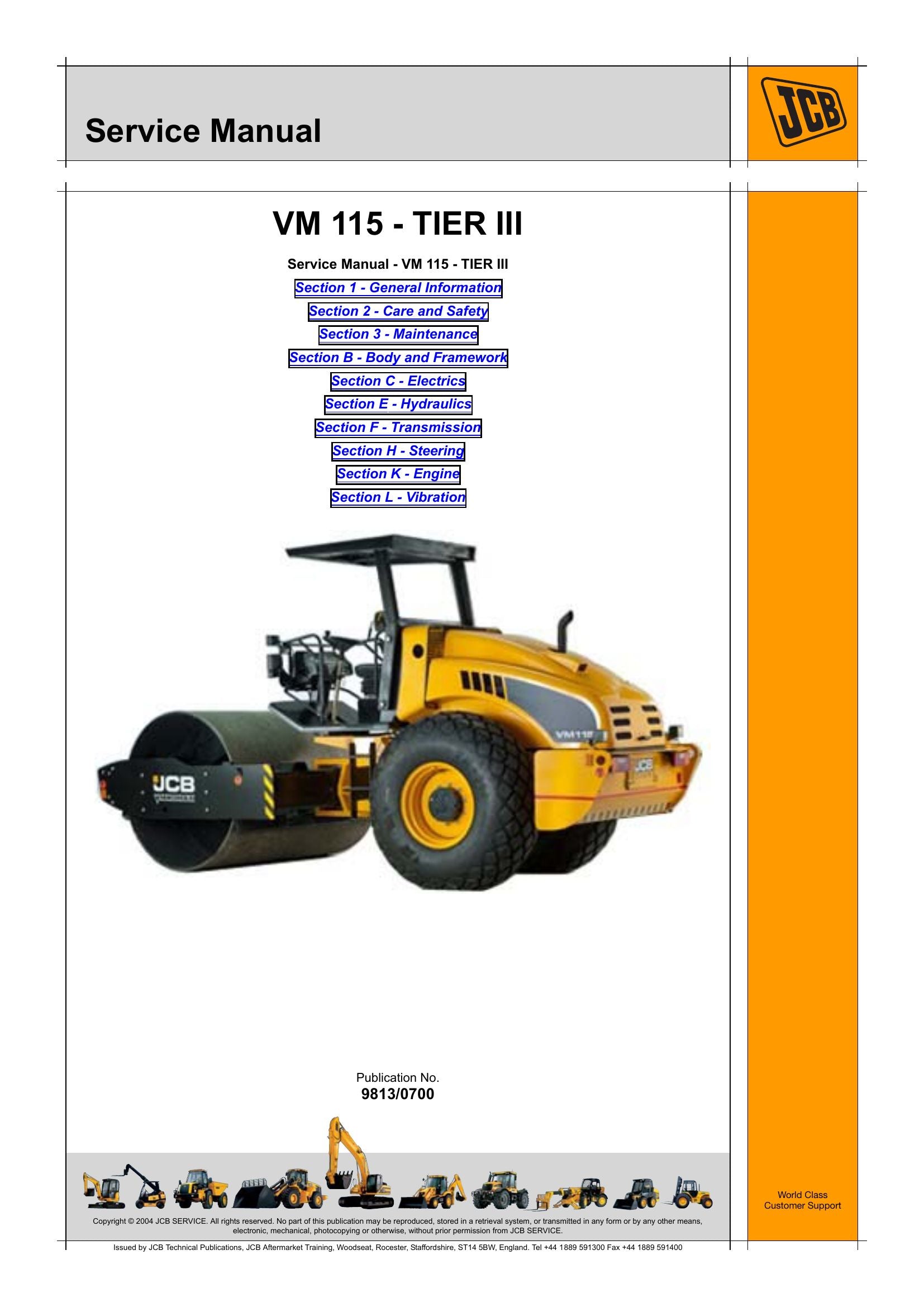

JCB VM 115 TIER III Soil Compactor Factory Workshop Service Manual 9813/0700

JCB VM 115 TIER III Soil Compactor Factory Workshop Service Manual 9813/0700
============================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 21.73 MB
Pages: 300
Format: PDF
Language: English
Brand: JCB

CONTENTS (Table of Contents):
----------------------------------------
Machine Model and Serial Number ... ....................................................1-1
Using the Service Manual .....................................................................1-1
Machine Identification Plate ........... .......................................................1-3
Component Identification Plates ..... .......................................................1-4
JCB Engine Identification ......................................................................1-5
Service Tools
Torque Settings
Zinc Plated Fasteners an d Dacromet Fasteners .....................................
Vibromax Specific Torque Settings ..........................................................
'O' Ring Face Seal System ..................................................................1-25

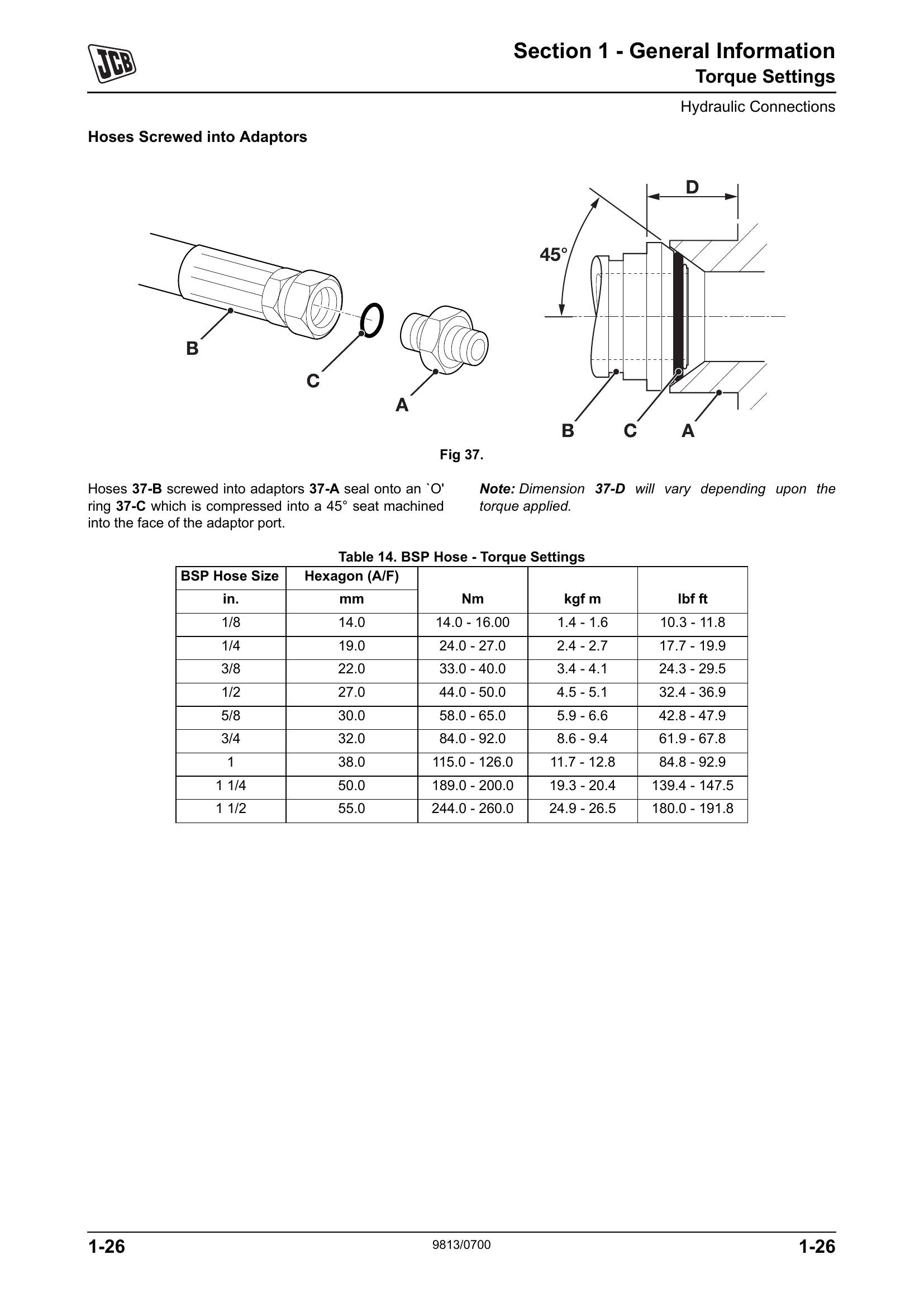

'Torque Stop' Hose System .................................................................1-28
About this Manual
Machine Model and Serial Number
This manual provides information for the following
model(s) in the JCB machine range:
– VM 115 from SN 1705097 onwards.
Using the Service Manual
T11-004
Distributor Service Engineers who are receiving, or have
received, training by JCB Technical Training Department.
These personnel should have a sound knowledge of
workshop practice, safety procedures, and general
techniques associated with the maintenance and repair of
hydraulic earthmoving equipment.
Where the machines differ, the text and/or the illustration will specify.
manual, as well as specific warnings. Read all safety
statements regularly, so you do not forget them.
Renewal of oil seals, gaskets, etc., and any component
showing obvious signs of wear or damage is expected as
a matter of course. It is ex pected that components will be
cleaned and lubricated where ap propriate, and that any
opened hose or pipe connections will be blanked to
prevent excessive loss of hydraulic fluid and ingress of dirt.
Where a torque setting is given as a single figure it may be
reduced by one third.
The manufacturer's policy is one of continuous
be accepted for discrepancies which may occur between
first!
T11-005
numbered and contain information as follows:
with Dismantling, Overhaul etc. of specific components, for
example:
operation descriptions etc. are inserted at the beginning of
service tools.
2 Care and Safety - includes warnings and cautions
pertinent to aspects of workshop procedures etc.

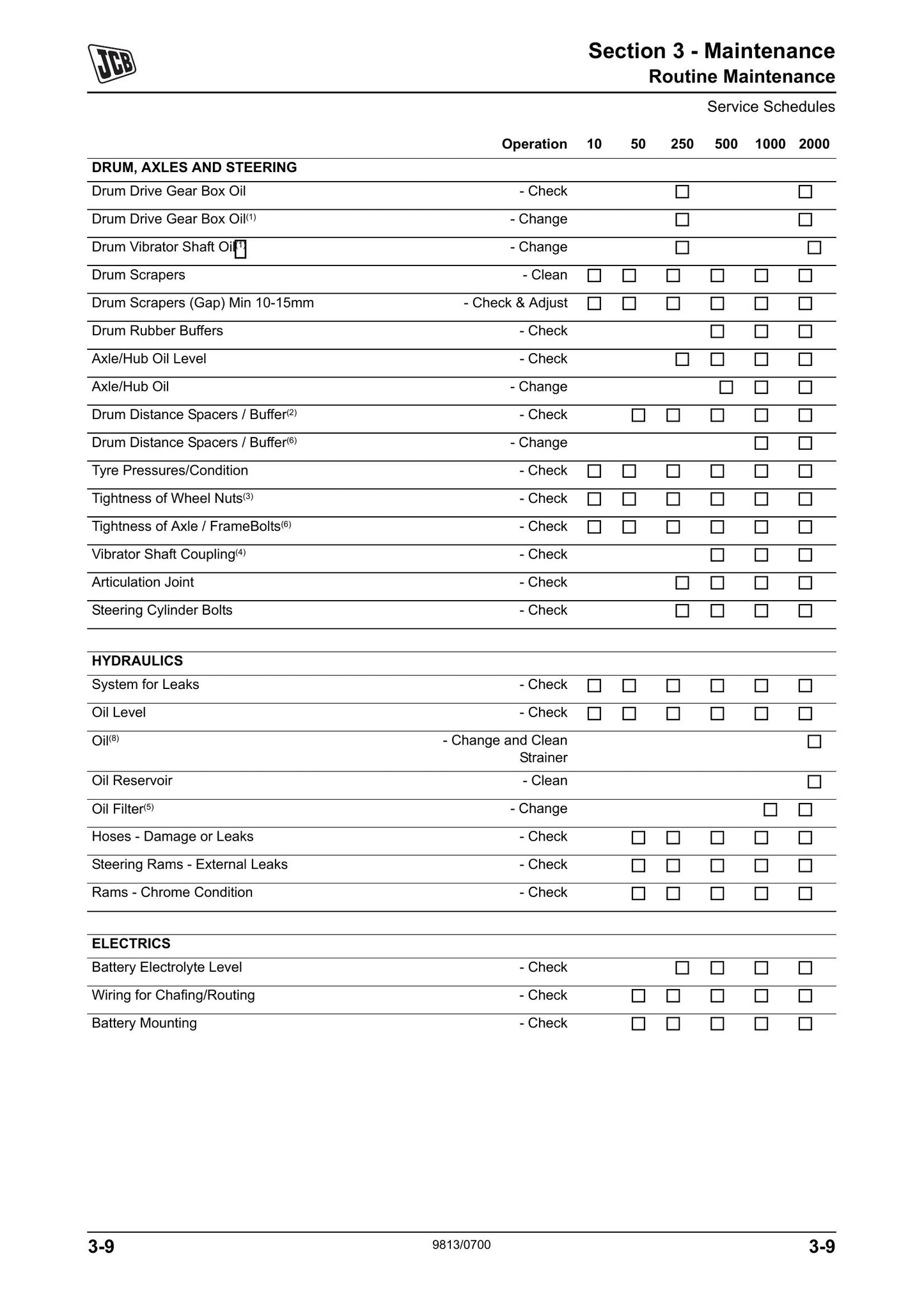

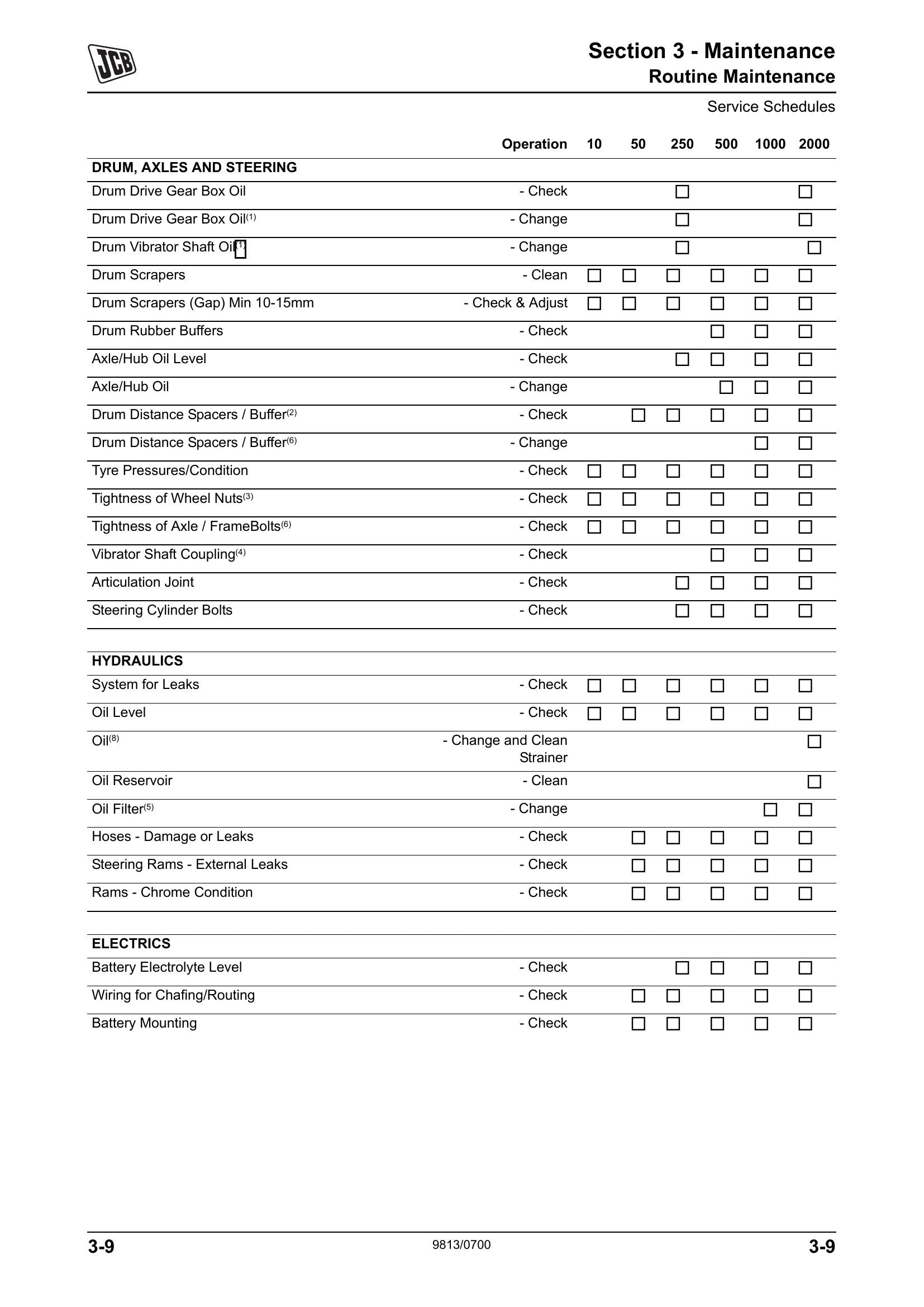

3 Maintenance - includes service schedules and
recommended lubricants for all the machine.
A Attachments
B Body and Framework, etc.

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
