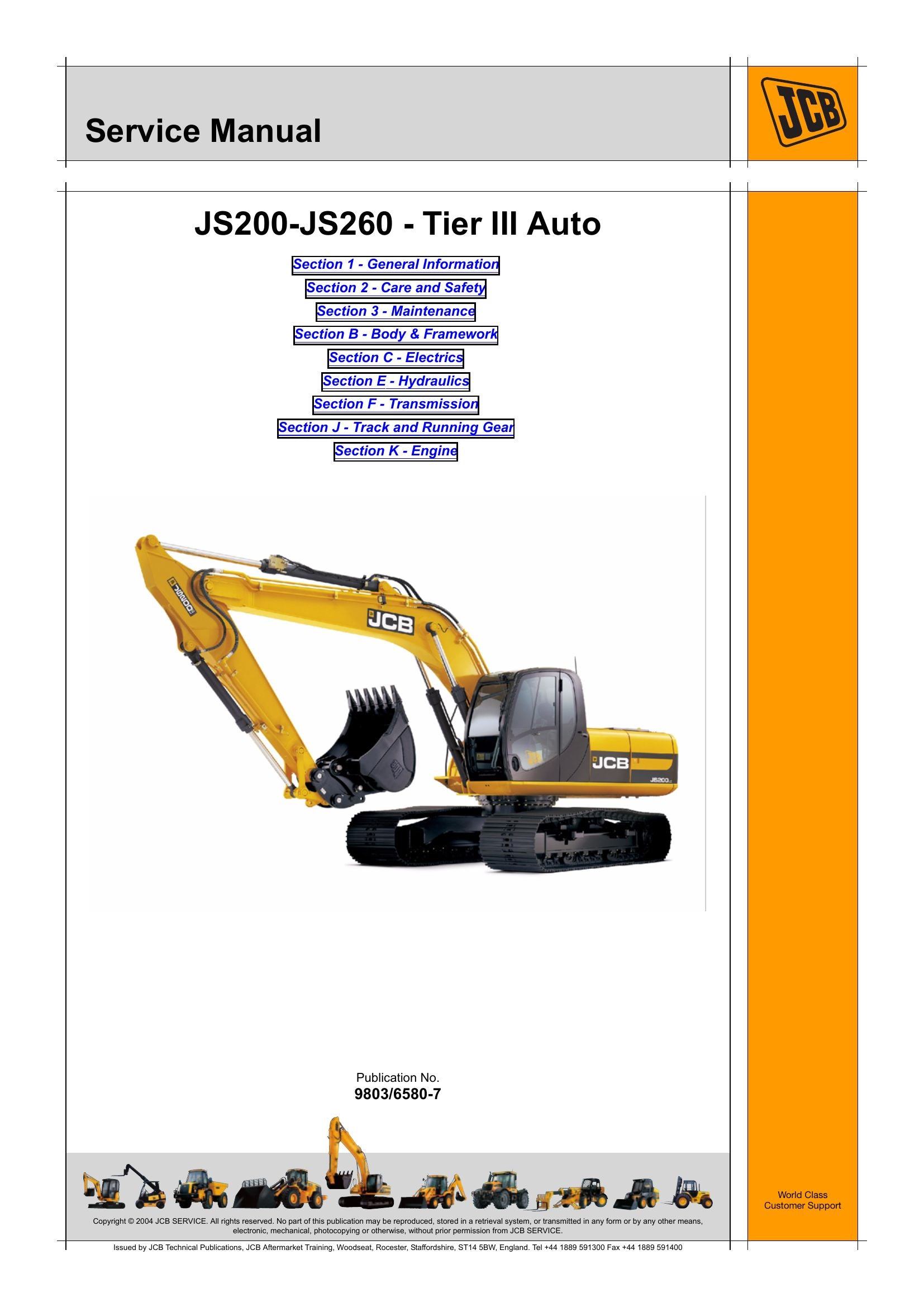

JCB JS200 JS220 JS235 JS240-2 JS240 JS260 Crawler Excavator Factory Workshop Service Manual 9803/6580

JCB JS200 JS220 JS235 JS240-2 JS240 JS260 Crawler Excavator Factory Workshop Service Manual 9803/6580
=====================================================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 95.29 MB
Pages: 885
Format: PDF
Language: English
Brand: JCB

CONTENTS (Table of Contents):
----------------------------------------
Torque Settings
Zinc Plated Fasteners and Dacromet Fasteners .......................................

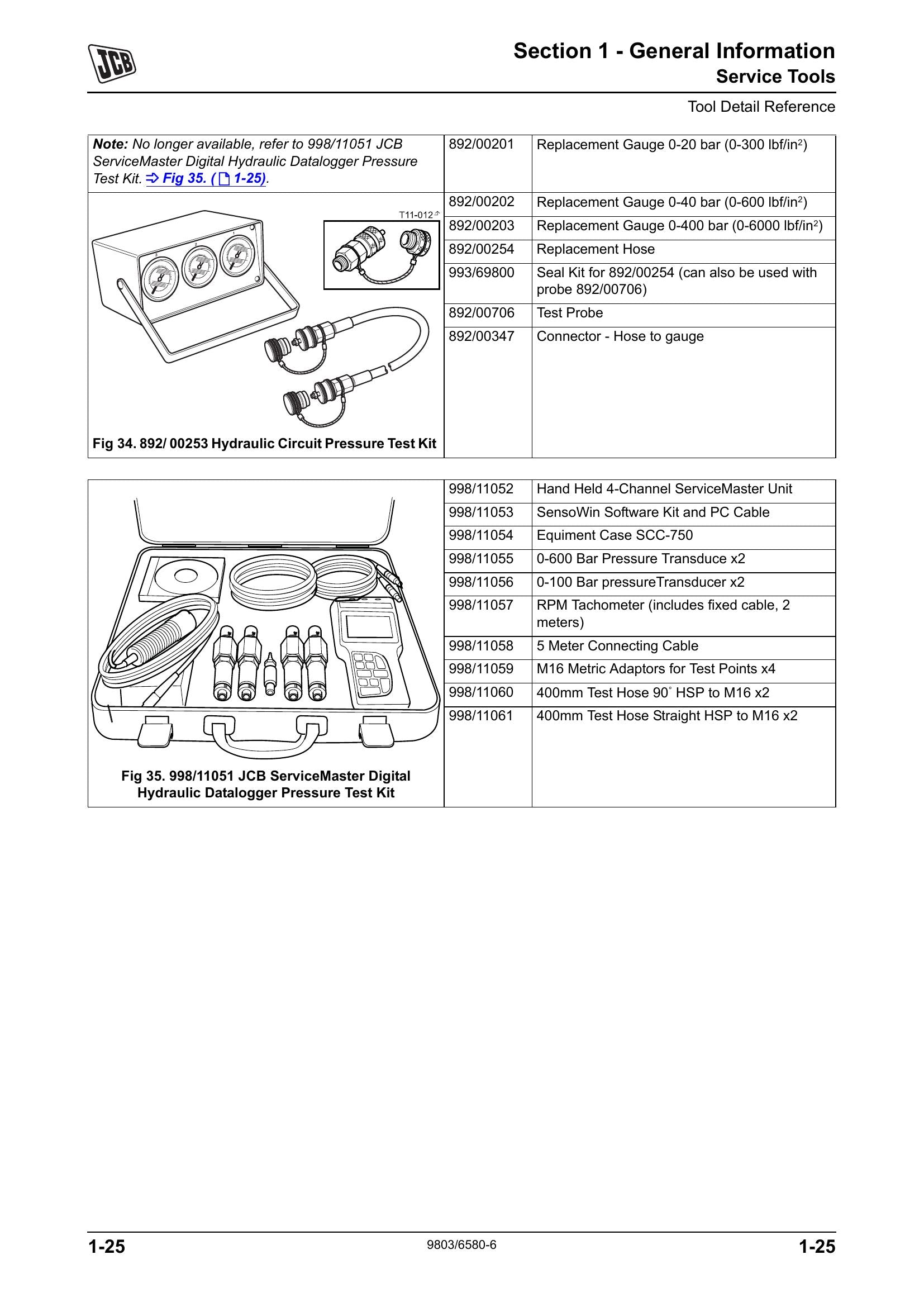

Service Tools
Service Consumables
Sealing and Retaining Compounds .........................................................
Terms and Definitions
1-ii 1-ii

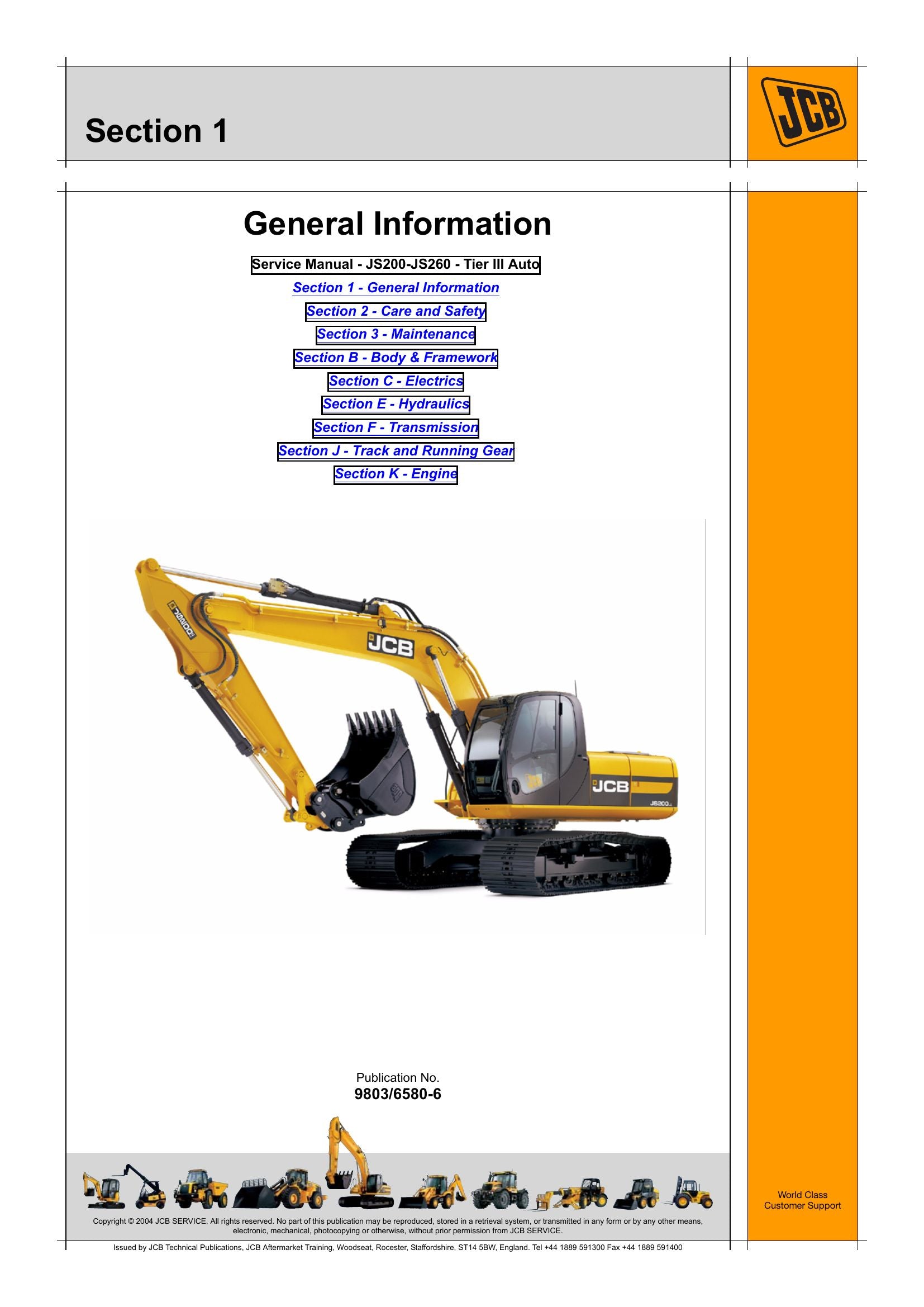

About this Manual
Machine Model and Serial Number
This manual provides information for the following
model(s) in the JCB machine range:
JCB JS200-220 from serial number 1610000 to
and 1459000 to 1461999.
JCB JS235 from serial number 1314000 to
JCB JS240-260 from serial number 1504700 to 1505099.JCB JS240 - JS260 from serial number 1773500 to
1774499
Using the Service Manual
T11-004
Distributor Service Engineers who are receiving, or have
received, training by JCB Technical Training Department.
These personnel should have a sound knowledge of
hydraulic earthmoving equipment.
Where the machines differ, the text and/or the illustration
will specify.
Renewal of oil seals, gaskets, etc., and any component
showing obvious signs of wear or damage is expected as
a matter of course. It is expected that components will be
cleaned and lubricated where ap propriate, and that any
opened hose or pipe connections will be blanked to
prevent excessive loss of hydraulic fluid and ingress of dirt.
Where a torque setting is given as a single figure it may be
reduced by one third.The manufacturer's policy is one of continuous
be accepted for discrepancies which may occur between
specifications of the ma chine and the descriptions
Finally, please remember above all else safety must come
first!
T11-005
with Dismantling, Overhaul etc. of specific components, for
example:
service tools.

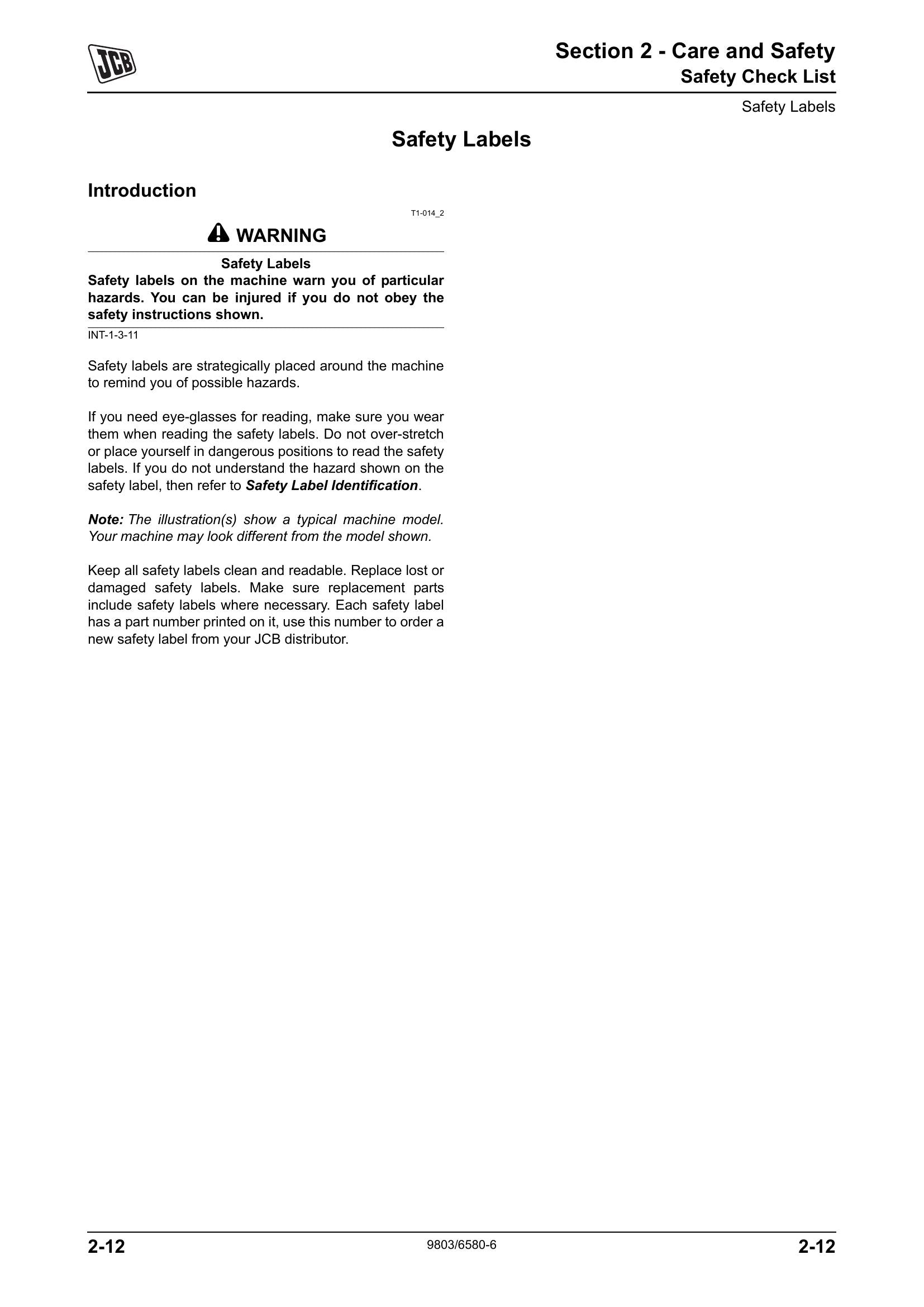

2 Care and Safety - includes warnings and cautions
pertinent to aspects of workshop procedures etc.
3 Maintenance - includes service schedules and
recommended lubricants for all the machine.
A Attachments
B Body and Framework, etc.
