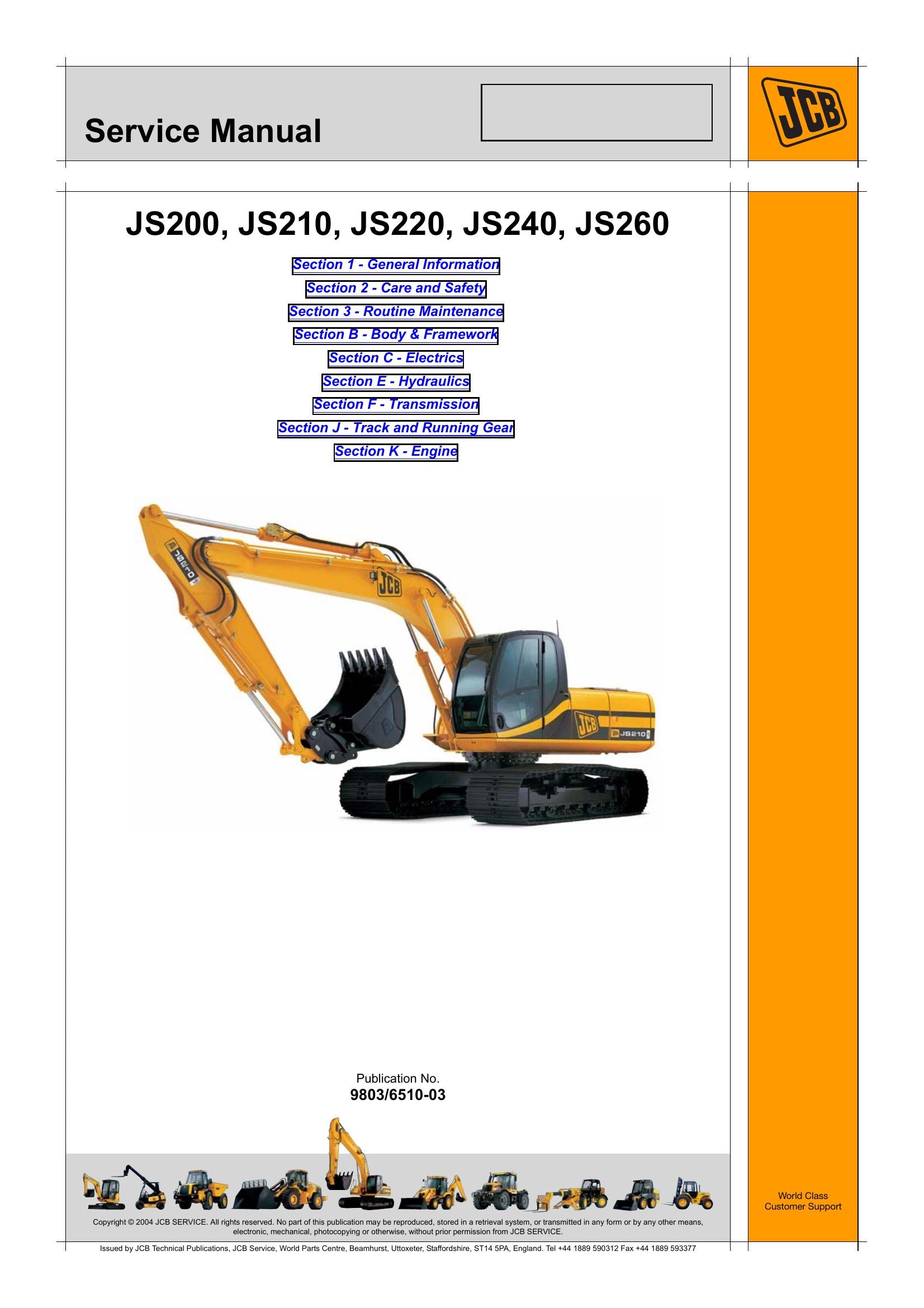

JCB JS200 JS210 JS220 JS240 JS260 Crawler Excavator Factory Workshop Service Manual 9803/6510-03

JCB JS200 JS210 JS220 JS240 JS260 Crawler Excavator Factory Workshop Service Manual 9803/6510-03
================================================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 55.42 MB
Pages: 823
Format: PDF
Language: English
Brand: JCB

CONTENTS (Table of Contents):
----------------------------------------
Identifying your Machine
Typical Product Identification Number (PIN) ......................................
Typical Engine Identificati on Number .................................................
Torque Settings
Zinc Plated Fasteners and Dacromet Fasteners .....................................
'O' Ring Face Seal System .................................................................
'Torque Stop' Hose System ..............................................................

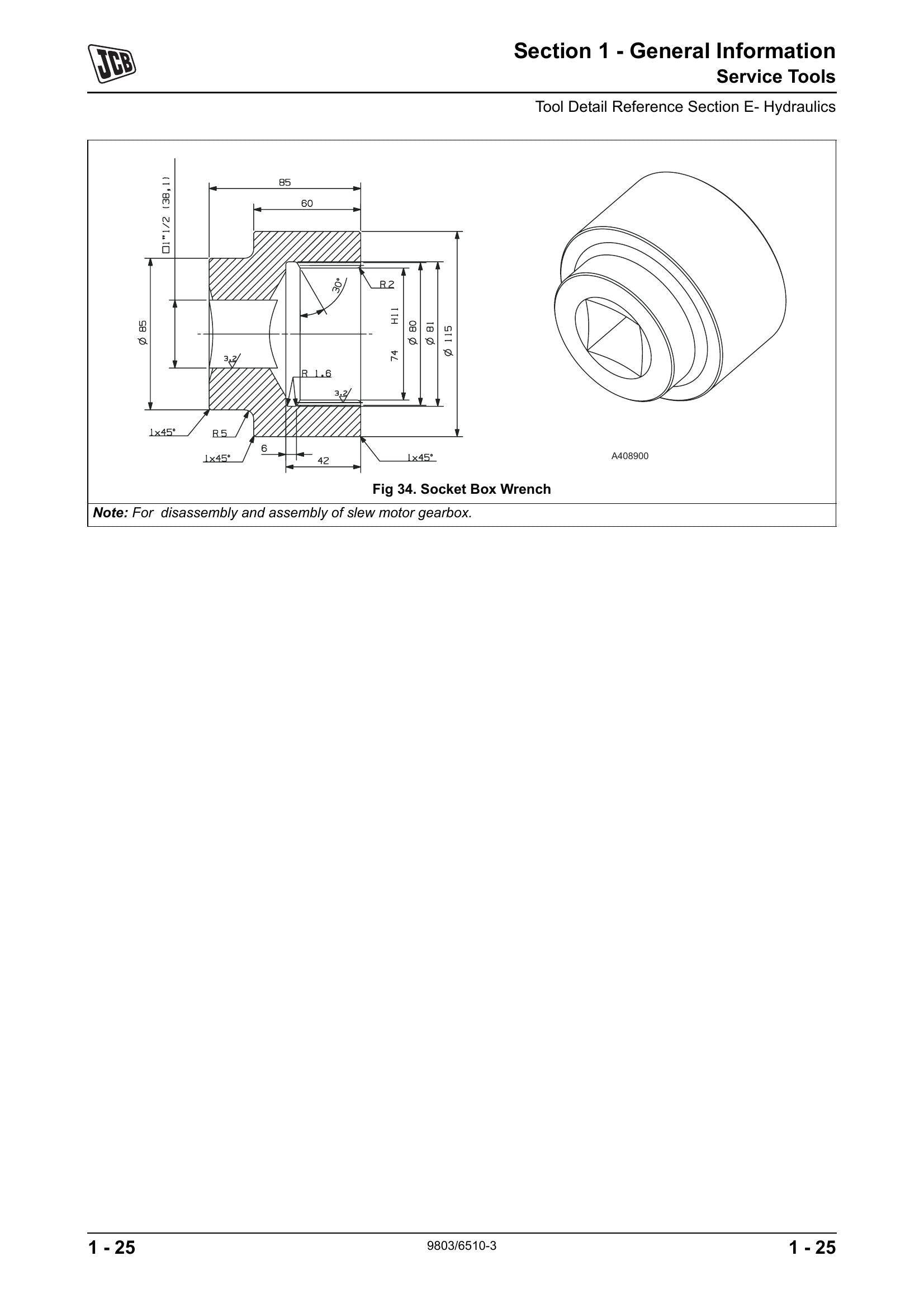

Service Tools
Inserting seal ring and correction jig .................................................
Jig for pulling out, press-fitting bushing ............................................
Jig for press-fitting wiper ring ...........................................................
Jig for inserting cylinder head ...........................................................
Seal Ring and Connector Jig ............................................................
Bush Removal Jig ............................................................................
Service Consumables
Sealing and Retaining Compounds .......................................................
1 - ii 1 - ii
These personnel should have a sound knowledge of
workshop practice, safety procedures, and general
techniques associated with the maintenance and repair of
hydraulic earthmoving equipment.
Renewal of oil seals, gaskets, etc., and any component
showing obvious signs of wear or damage is expected as
a matter of course. It is ex pected that components will be
cleaned and lubricated where ap propriate, and that any
Finally, please remember above all else SAFETY MUST
COME FIRST!
numbered and contain information as follows:

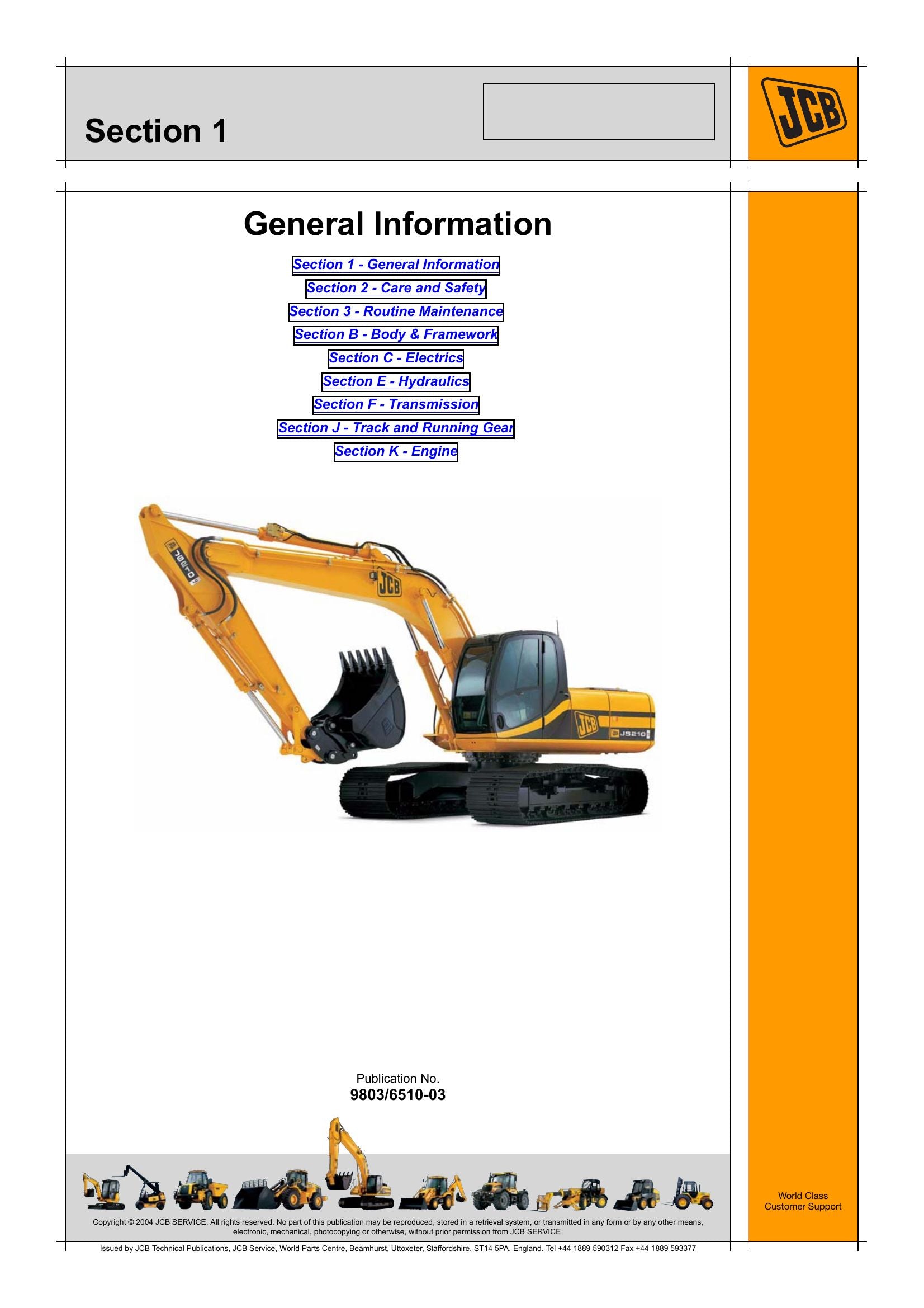

1 General Information - includes torque settings and
service tools.
2 Care & Safety - includes warnings and cautions
pertinent to aspects of workshop procedures etc.
3 Routine Maintenance - includes service schedules
and recommended lubricants for all the machine.
with Dismantling, Overhaul etc. of specific components, for
example:
is not continuous. This allows for the insertion of new items
operation descriptions etc. are in serted at the beginning of
Where a torque setting is given as a single figure it may be
varied by plus or minus 3%. Torque figures indicated are
for dry threads, hence for lubricated threads may be
reduced by one third.
'Left Hand' and 'Right Hand' are as viewed from the rear of
the machine facing forwards.
A Attachments
B Body & Framework...etc.This Service Manual covers the following machines:
JS200, JS210, JS220, JS260

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
