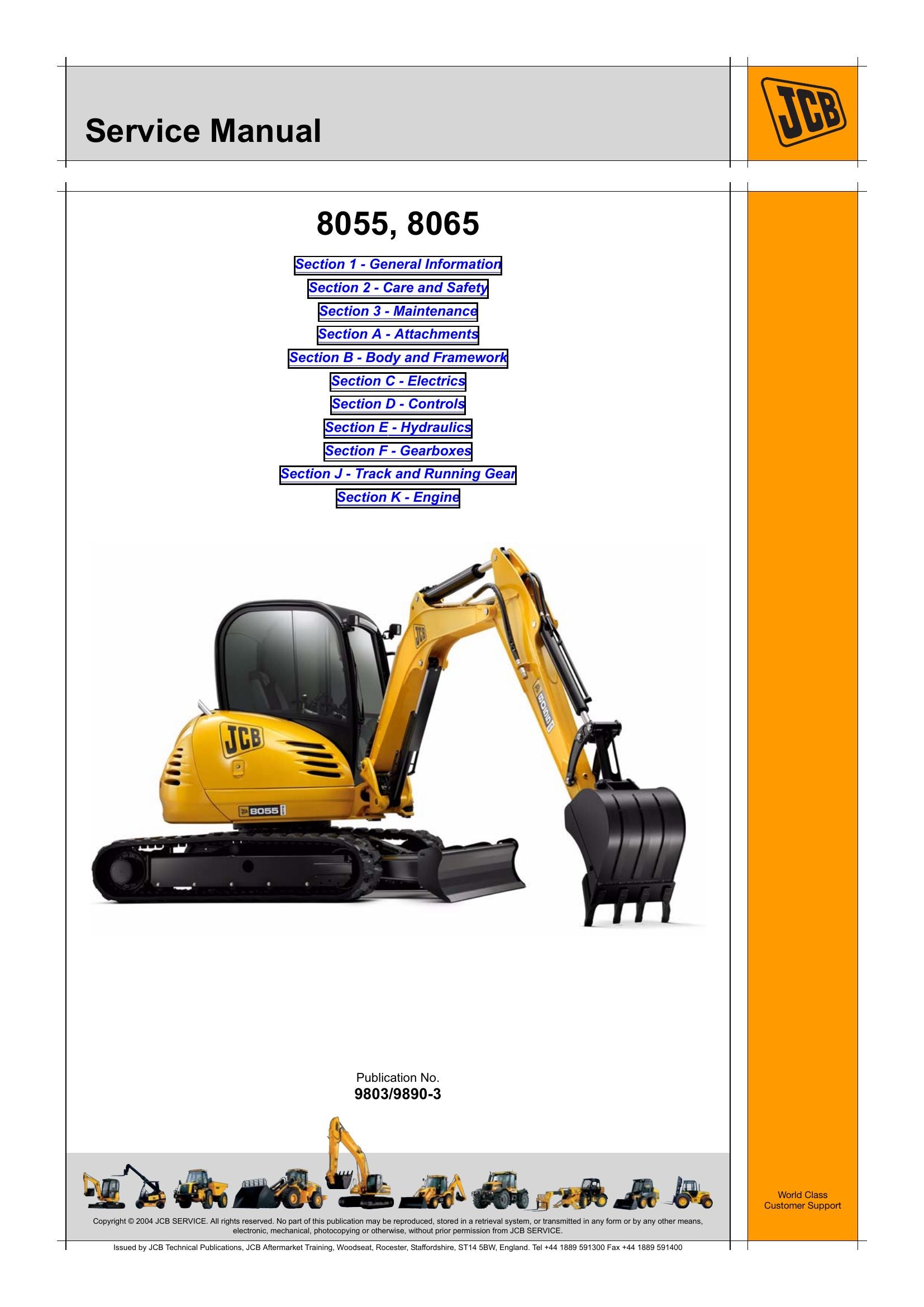

JCB 8055 8065 Crawler Excavator Factory Workshop Service Manual 9803/9890-3

JCB 8055 8065 Crawler Excavator Factory Workshop Service Manual 9803/9890-3
===========================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 47.14 MB
Pages: 407
Format: PDF
Language: English
Brand: JCB

CONTENTS (Table of Contents):
----------------------------------------
Machine Model and Serial Number ... ....................................................1-1
Using the Service Manual .....................................................................1-1
Identifying Your Machine
Typical Vehicle Identification Number (VIN) ..........................................1-3
Typical Product Identification Number (PIN) .........................................1-3
Typical Engine Identification ........... .......................................................1-4
ROPS, TOPS and FOGS ......................................................................1-5
Standard Torque Settings
Zinc Plated Fasteners and Dacromet Fasteners .......................................
'O' Ring Face Seal System ..................................................................
'Torque Stop' Hose System .................................................................1-14

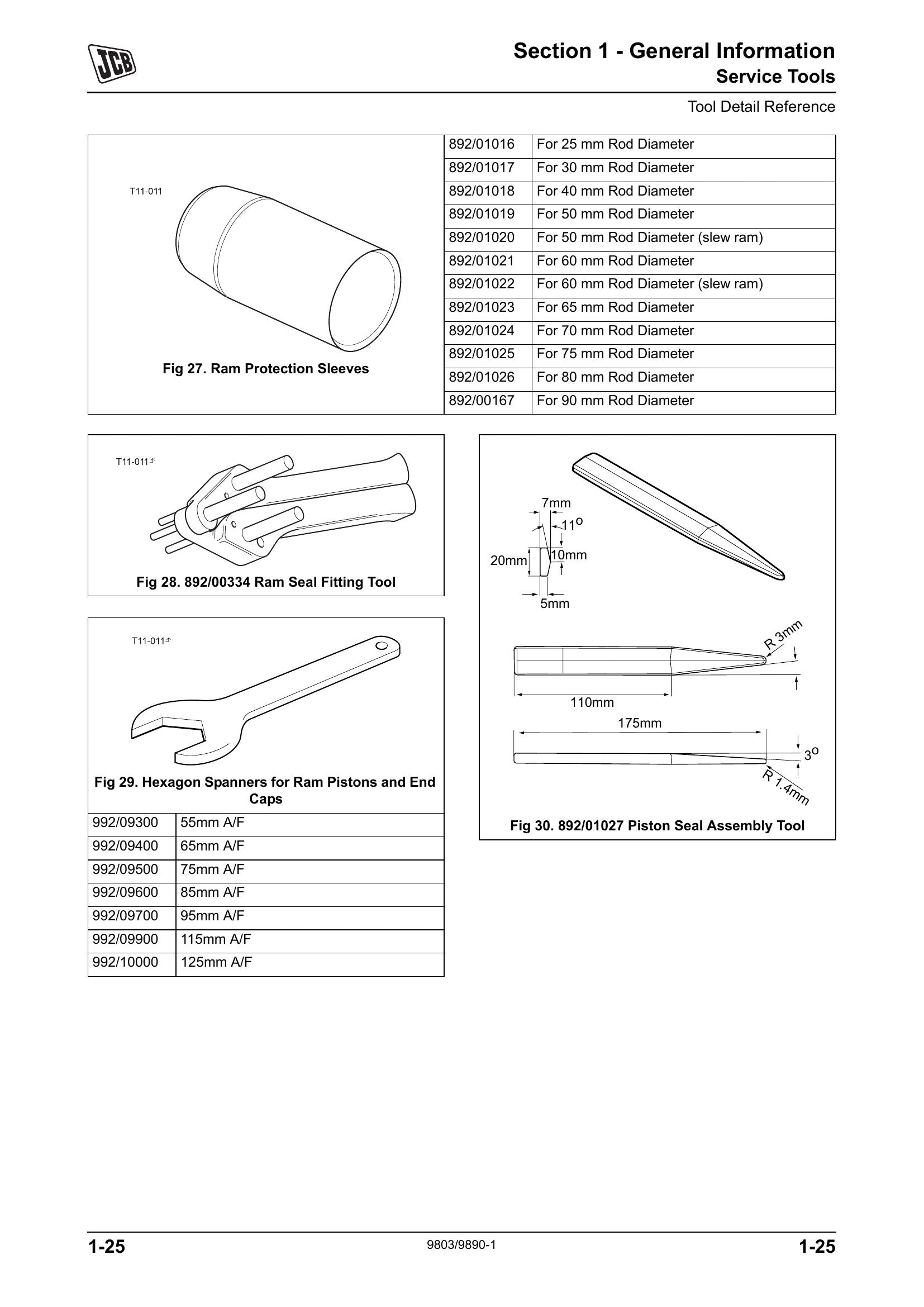

Service Tools
Service Consumables
Sealing and Retaining Compounds .........................................................
Terms and Definitions
Hydraulic Schematic Colour Codes .....................................................1-31
About this Manual
Machine Model and Serial Number
This manual provides information for the following
model(s) in the JCB machine range:
Using the Service Manual
T11-004
Distributor Service Engineers who are receiving, or have
received, training by JCB Technical Training Department.
These personnel should have a sound knowledge of
hydraulic earthmoving equipment.
Where the machines differ, the text and/or the illustration
will specify.
Renewal of oil seals, gaskets, etc., and any component
showing obvious signs of wear or damage is expected as
a matter of course. It is ex pected that components will be
cleaned and lubricated where ap propriate, and that any
opened hose or pipe connections will be blanked to
prevent excessive loss of hydraulic fluid and ingress of dirt.
Where a torque setting is given as a single figure it may be
varied by plus or minus 3%. Torque figures indicated are
for dry threads, hence for lubricated threads may be
reduced by one third.
The manufacturer's policy is one of continuous
improvement. The right to change the specification of the
specifications of the machine and the descriptions
first!
T11-005
numbered and contain information as follows:
with Dismantling, Overhaul etc. of specific components, for
example:
operation descriptions etc. are inserted at the beginning of
JCB 8065 from serial number 1537500 Onwards
1 General Information - includes torque settings and
service tools.
2 Care and Safety - includes warnings and cautions
pertinent to aspects of workshop procedures etc.

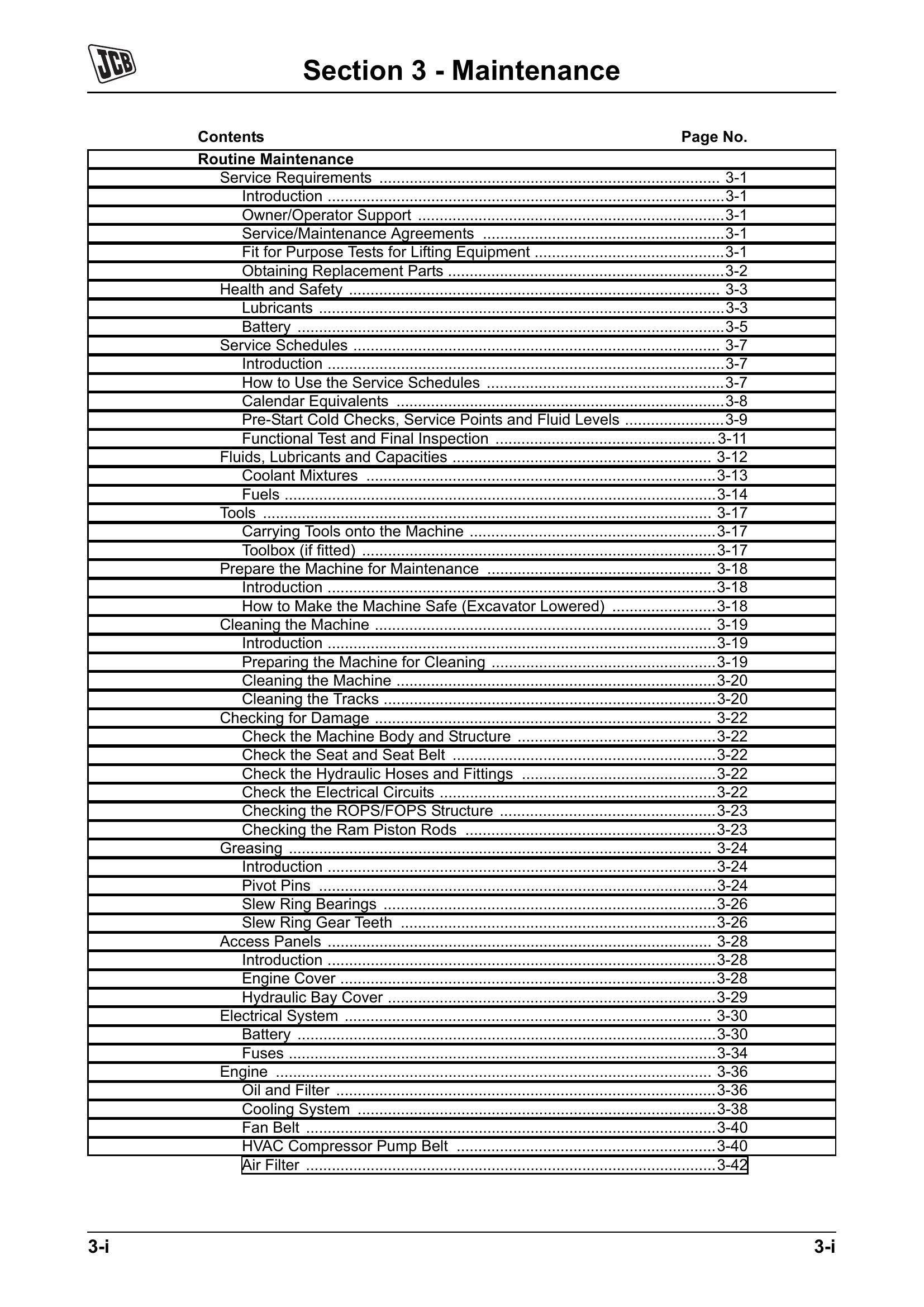

3 Maintenance - includes service schedules and
recommended lubricants for all the machine.
A Attachments
B Body and Framework, etc.

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
