JCB 802 802.4 802 Super Mini Excavator Factory Workshop Service Manual 9803/3140

JCB 802 802.4 802 Super Mini Excavator Factory Workshop Service Manual 9803/3140
================================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 20.13 MB
Pages: 293
Format: PDF
Language: English
Brand: JCB

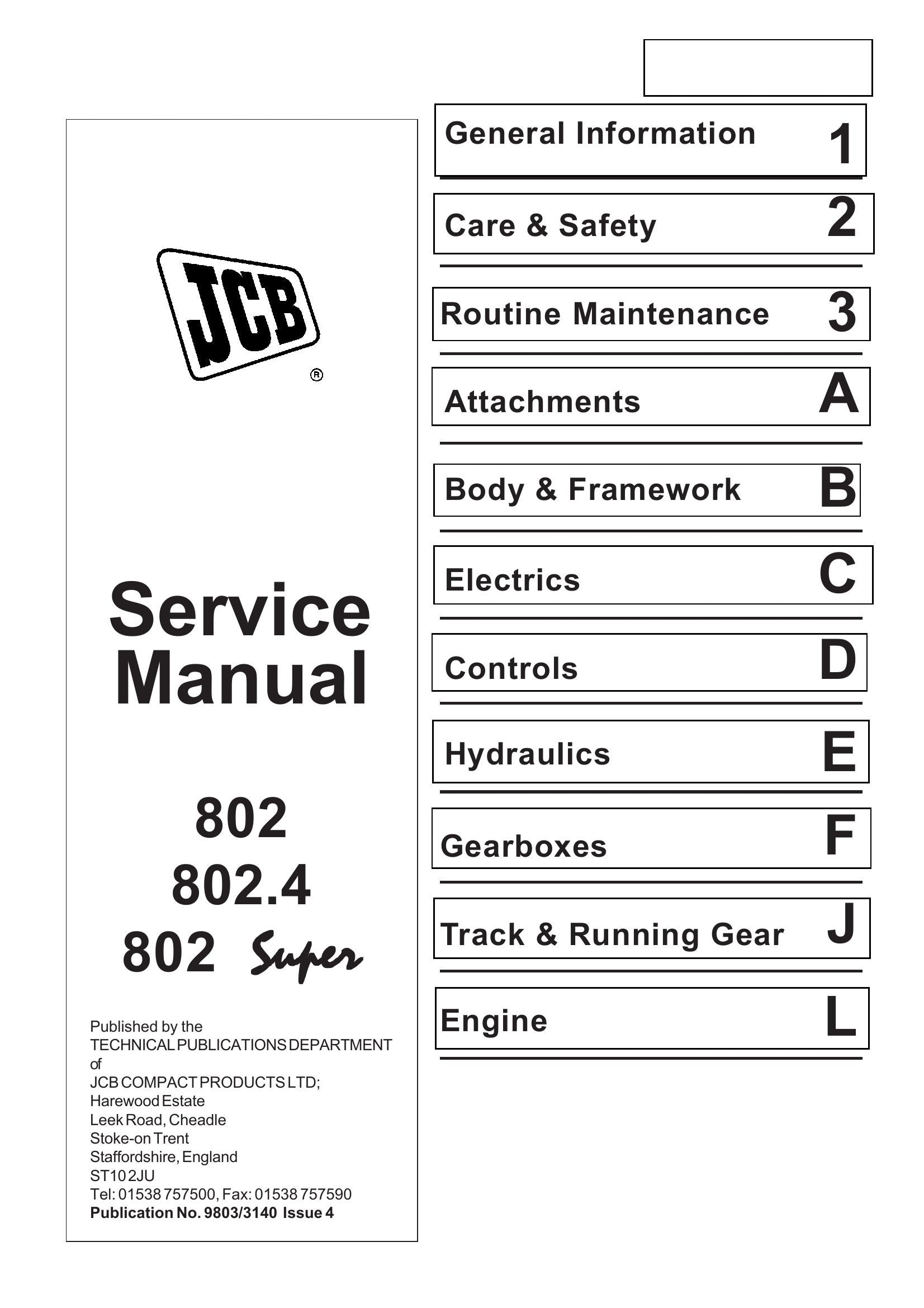

CONTENTS (Table of Contents):
----------------------------------------

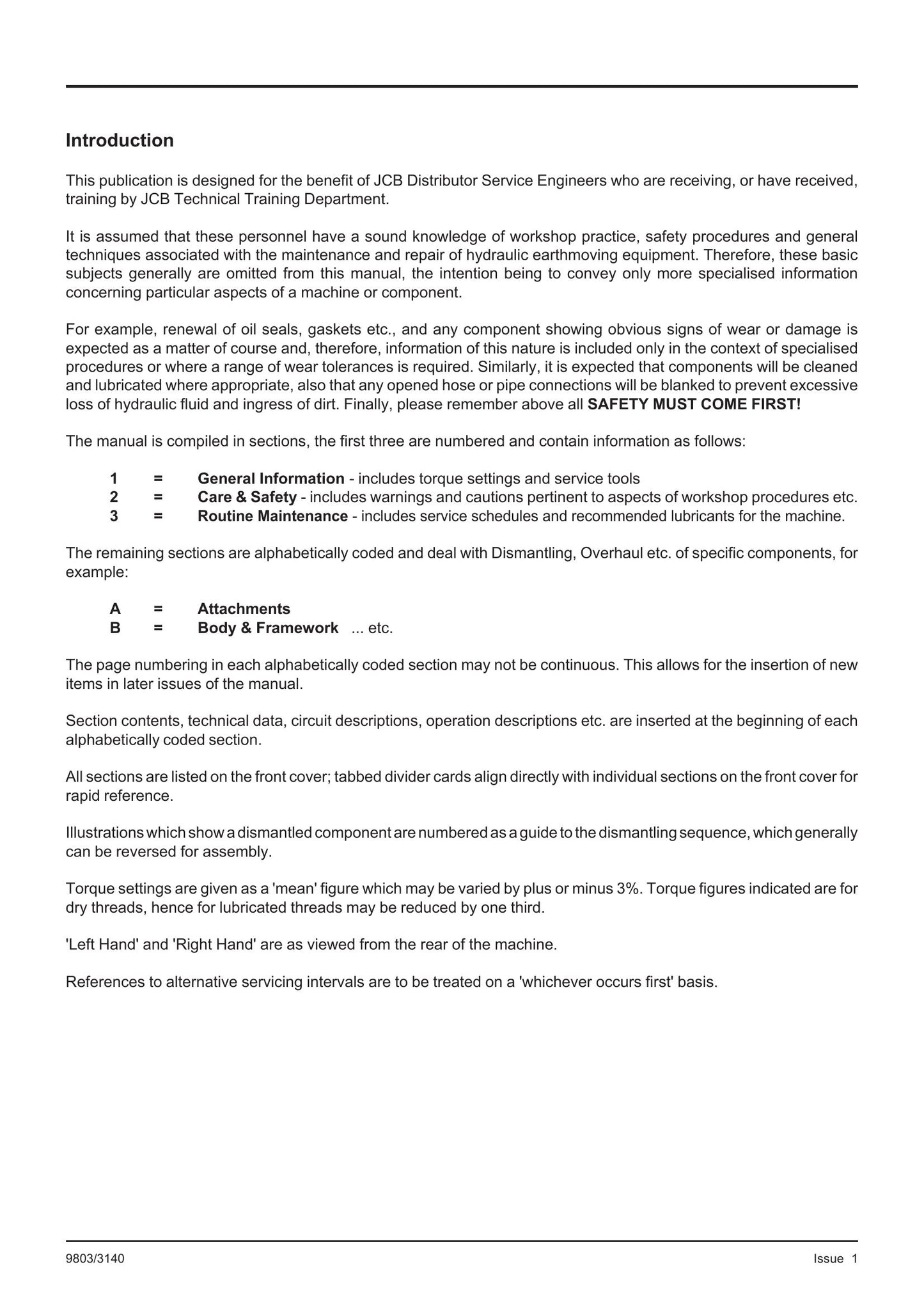

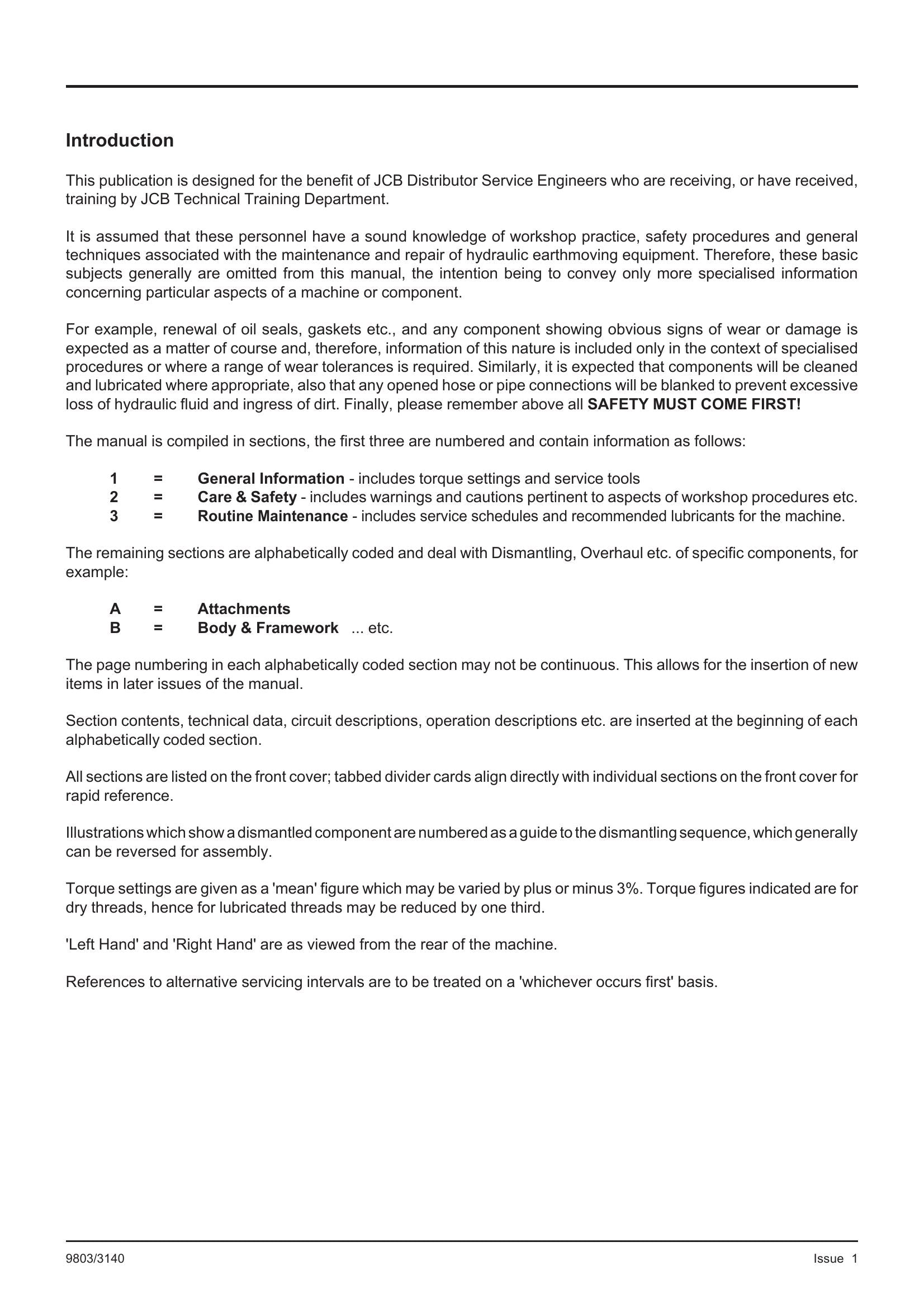

training by JCB Technical Training Department.
1 = General Information - includes torque settings and service tools
2 = Care & Safety - includes warnings and cautions pertinent to aspects of workshop procedures etc.

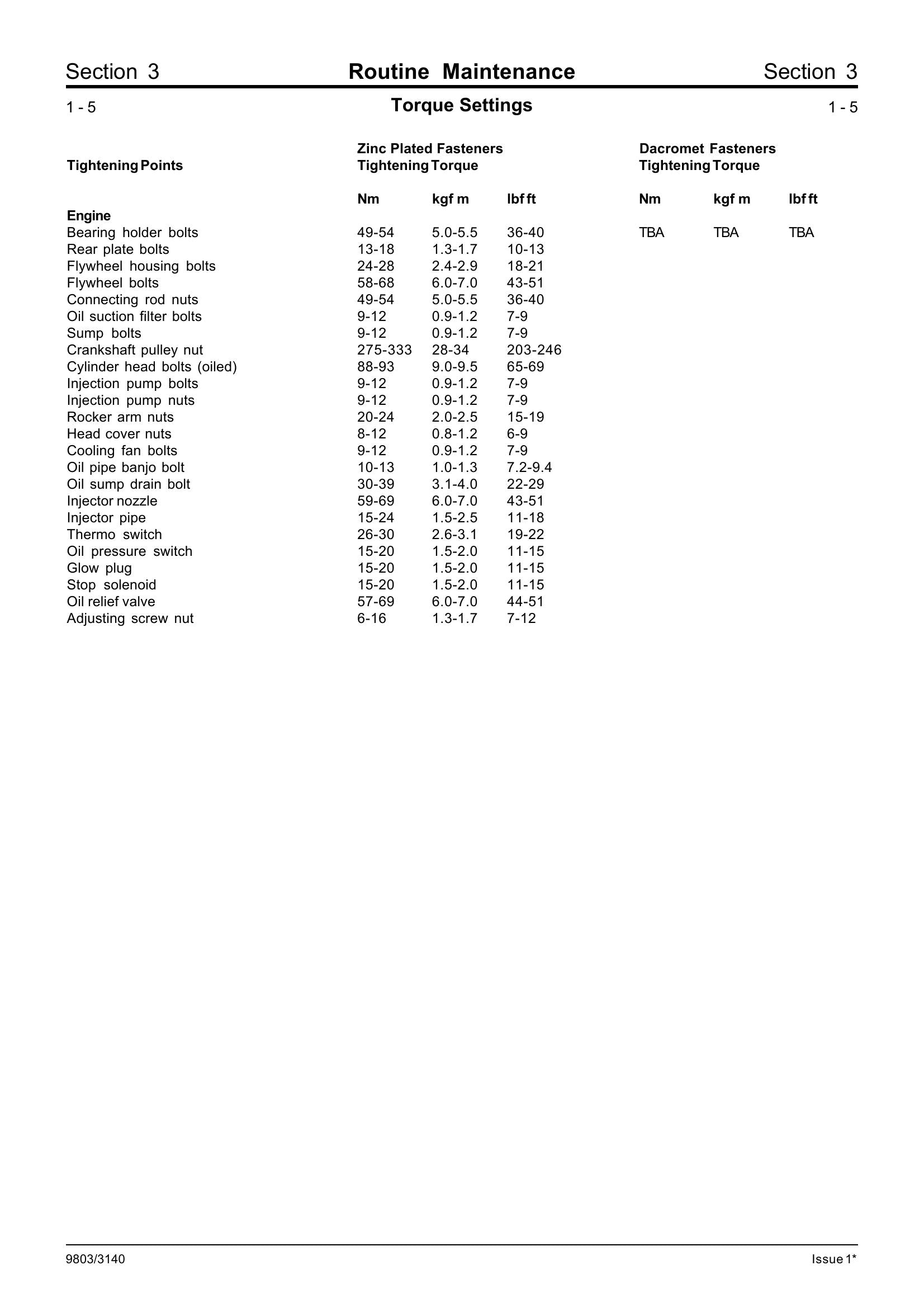

Routine Maintenance - includes service schedules and recommended lubricants for the machine.
example:
A = Attachments
B = Body & Framework ... etc.
rapid reference.
can be reversed for assembly.
dry threads, hence for lubricated threads may be reduced by one third.
General Information
Identification
Storing the machine 1 - 2ROPS, TOPS and FOGS

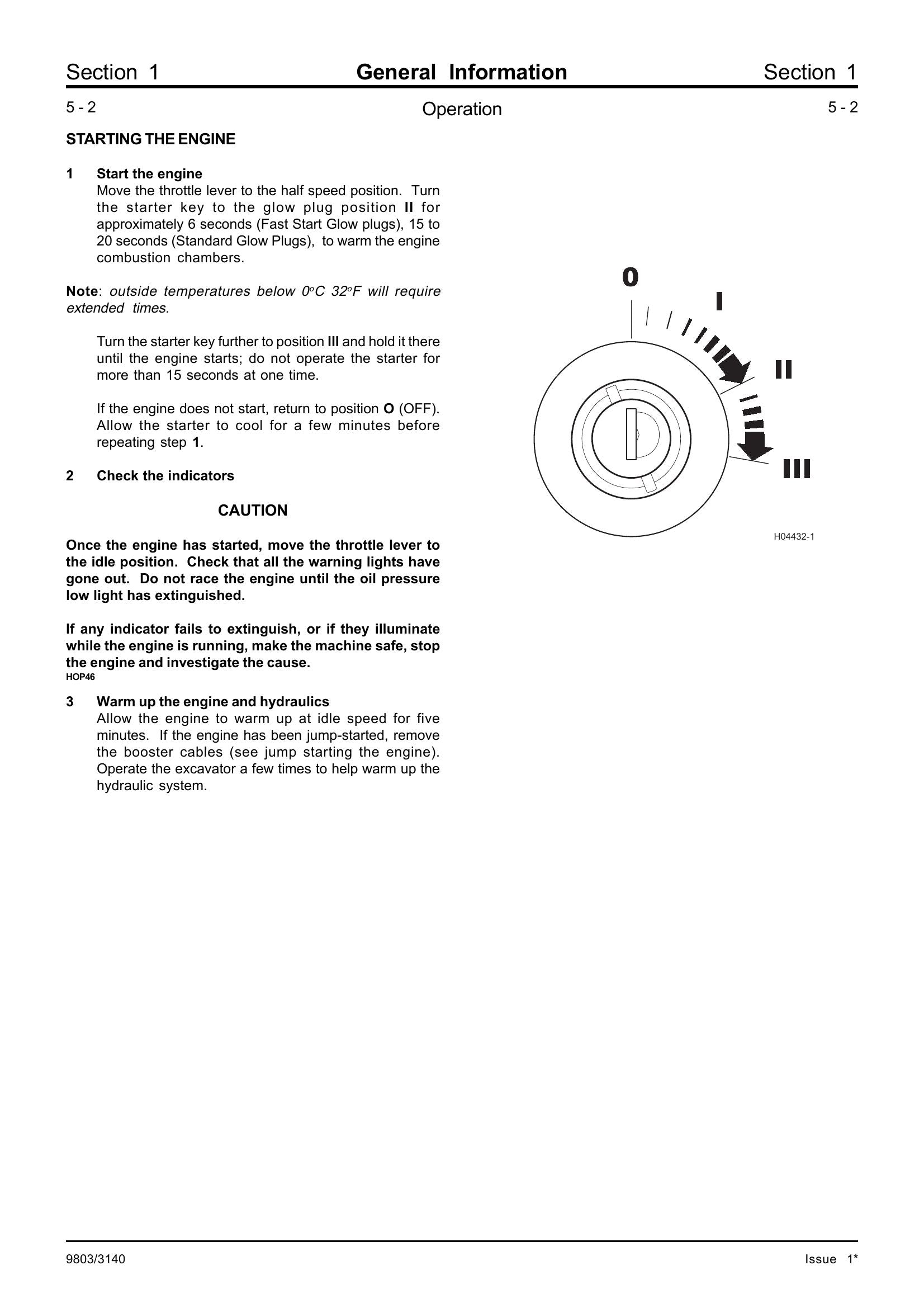

Track controls 3 - 2Engine controls 3 - 3Switches 3 - 4Instruments
Dozer controls 4 - 1Excavator controls
Service Tools
Sealing and Retaining Compounds
STORAGE
Preparation for Storage
The operations to place a machine into storage
(-15oC to 44o C) are given below.
2Switch off the engine. Operate controls to releasepressure from the rams.
3Disconnect battery to prevent discharge.
4Ensure the fuel tank is filled to a maximum, leavingno air space.
5Ensure hydraulic tank is filled to maximum on thesight gauge.
6Spray exposed ram rods with Waxoyl.
7Slacken off rubber tracks until no visible spring
tension exists.Preparation after Storage
The operations to remove a machine from storage
(-15oC to 44o C) and prepare it for use are given below.
1Lower the fuel level to ensure that sufficient air spaceexists in the tank.
3Ensure the battery is fully charged.
4Reconnect battery.
5Remove electrical contact from fuel injection pumpsolenoid.
6Crank engine for 15 seconds or until oil pressurewarning light goes out.
7Reconnect electrical supply to the fuel injectionpump solenoid.
8Start the engine. If the engine fails to start afterseveral attempts, bleed the fuel system.
9Adjust track tensions.
10Grease all lubrication points.1 -
