JCB 8025ZTS 8026CTS JS30 8029CTS 8030ZTS 8035ZTS Crawler Excavator Factory Workshop Service Manual 9803/9410-08

JCB 8025ZTS 8026CTS JS30 8029CTS 8030ZTS 8035ZTS Crawler Excavator Factory Workshop Service Manual 9803/9410-08
===============================================================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 21.67 MB
Pages: 453
Format: PDF
Language: English
Brand: JCB

CONTENTS (Table of Contents):
----------------------------------------
Machine Model and Serial Number ... ....................................................3-1
Using the Service Manual .....................................................................3-1
Identifying Your Machine
Typical Product Identification Number (PIN) .........................................3-3
Typical Engine Identificati on Number ....................................................3-3
ROPS, TOPS and FOGS ......................................................................3-4
Standard Torque Settings
Zinc Plated Fasteners and Dacromet Fasteners .......................................
'O' Ring Face Seal System ................ ....................................................3-9
'Torque Stop' Hose System .................................................................3-12

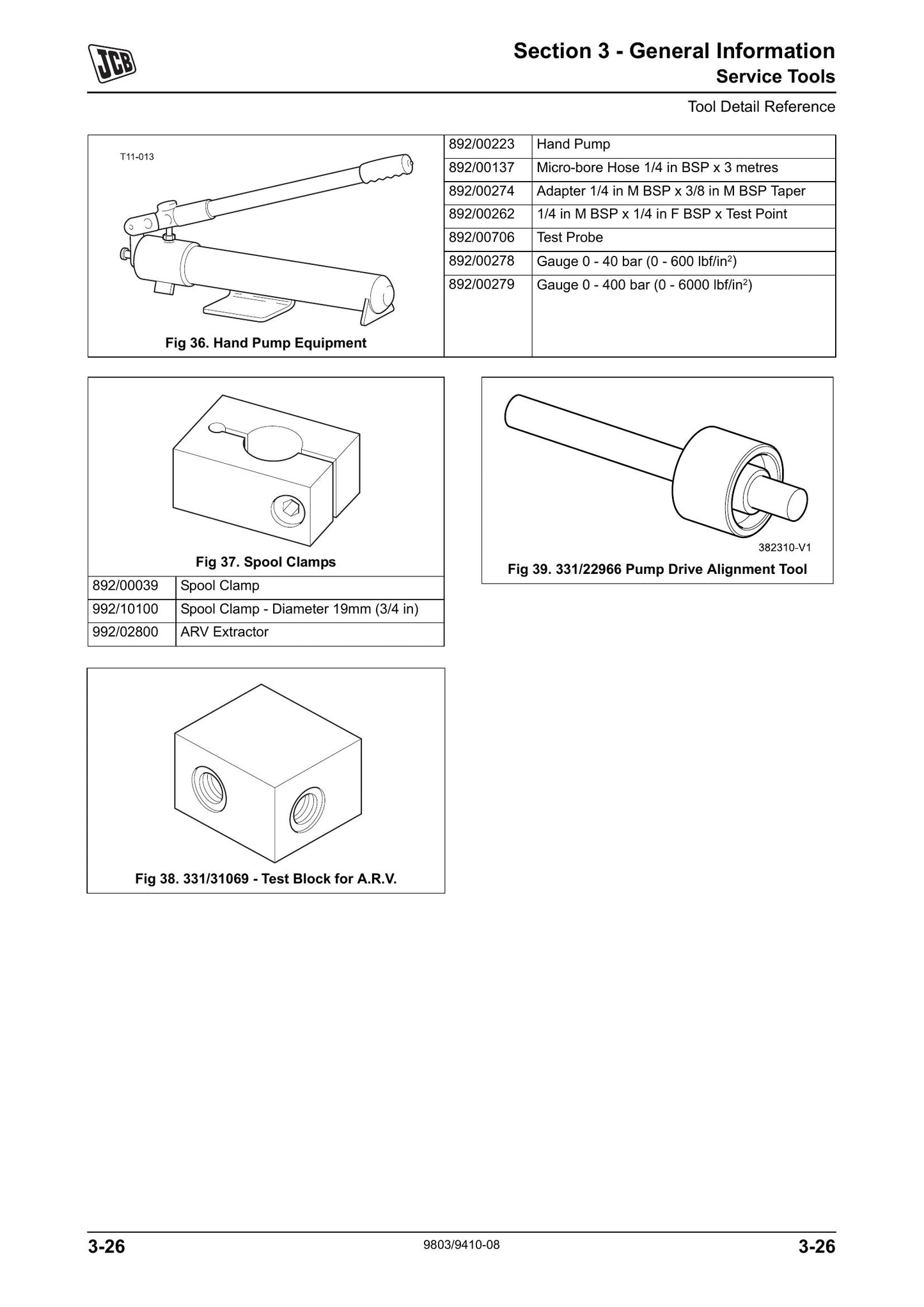

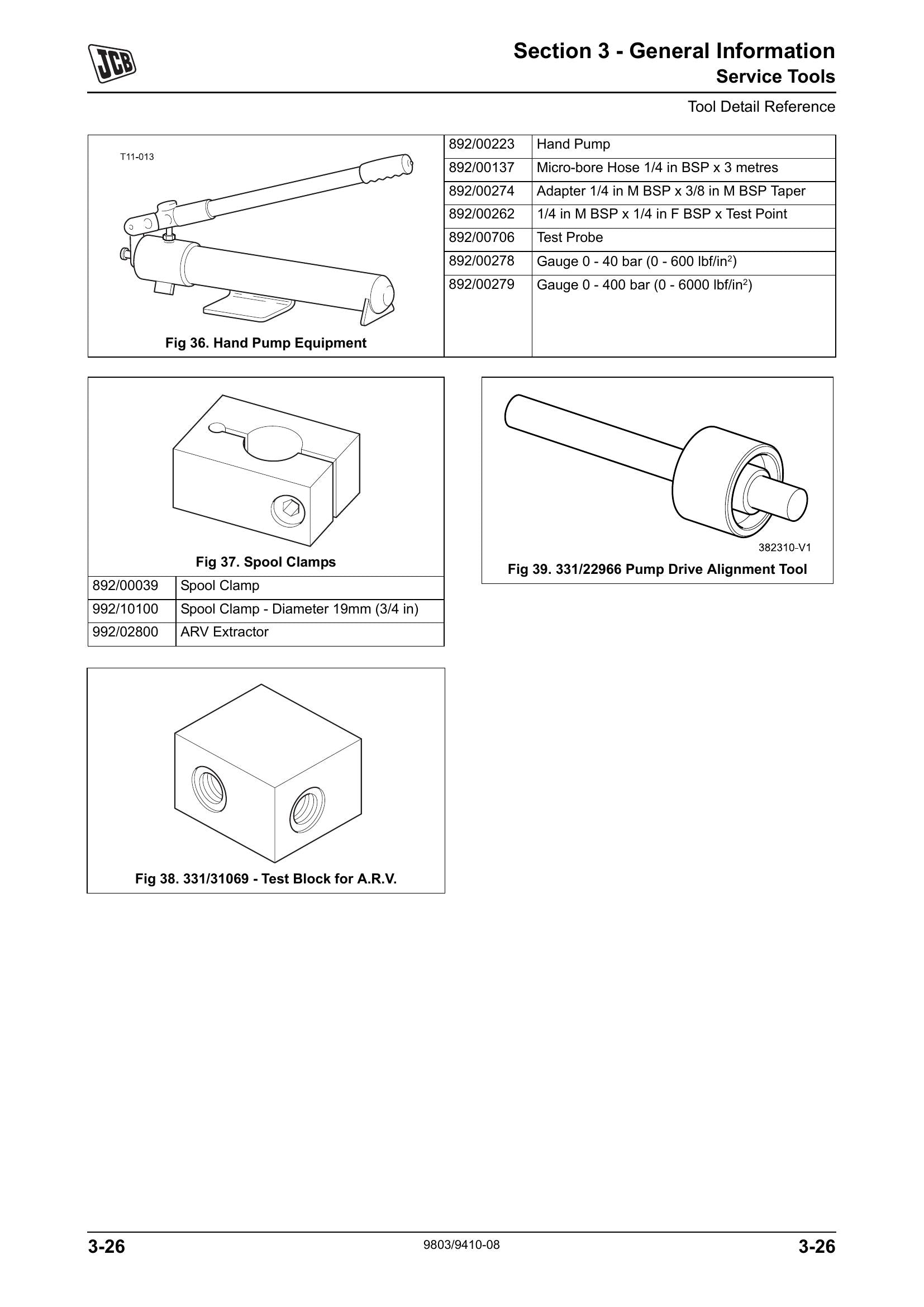

Service Tools
Service Consumables
Sealing and Retaining Compounds .........................................................
Terms and Definitions
Hydraulic Schematic Colour Codes .....................................................3-31
About this Manual
Machine Model and Serial Number
This manual provides information for the following
model(s) in the JCB machine range:
Using the Service Manual
T11-004
Distributor Service Engineers who are receiving, or have
received, training by JCB Technical Training Department.
These personnel should have a sound knowledge of
hydraulic earthmoving equipment.
Where the machines differ, the text and/or the illustration
will specify.
Renewal of oil seals, gaskets, etc., and any component
showing obvious signs of wear or damage is expected as
a matter of course. It is expected that components will be
cleaned and lubricated where ap propriate, and that any
Where a torque setting is given as a single figure it may be
reduced by one third.The manufacturer's policy is one of continuous
be accepted for discrepancies which may occur between
specifications of the ma chine and the descriptions
Finally, please remember above all else safety must come
first!
T11-005
with Dismantling, Overhaul etc. of specific components, for
example:
JCB 8026CTS from serial number
JCB 8029CTS from serial number
JCB 8030ZTS from serial number 1228500JCB 8035ZTS from serial number
JS30 from serial number 2305191 to
1 General Information - includes torque settings and
service tools.
2 Care and Safety - includes warnings and cautions
pertinent to aspects of workshop procedures etc.
3 Maintenance - includes service schedules and
recommended lubricants for all the machine.
A Attachments
B Body and Framework, etc.

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
