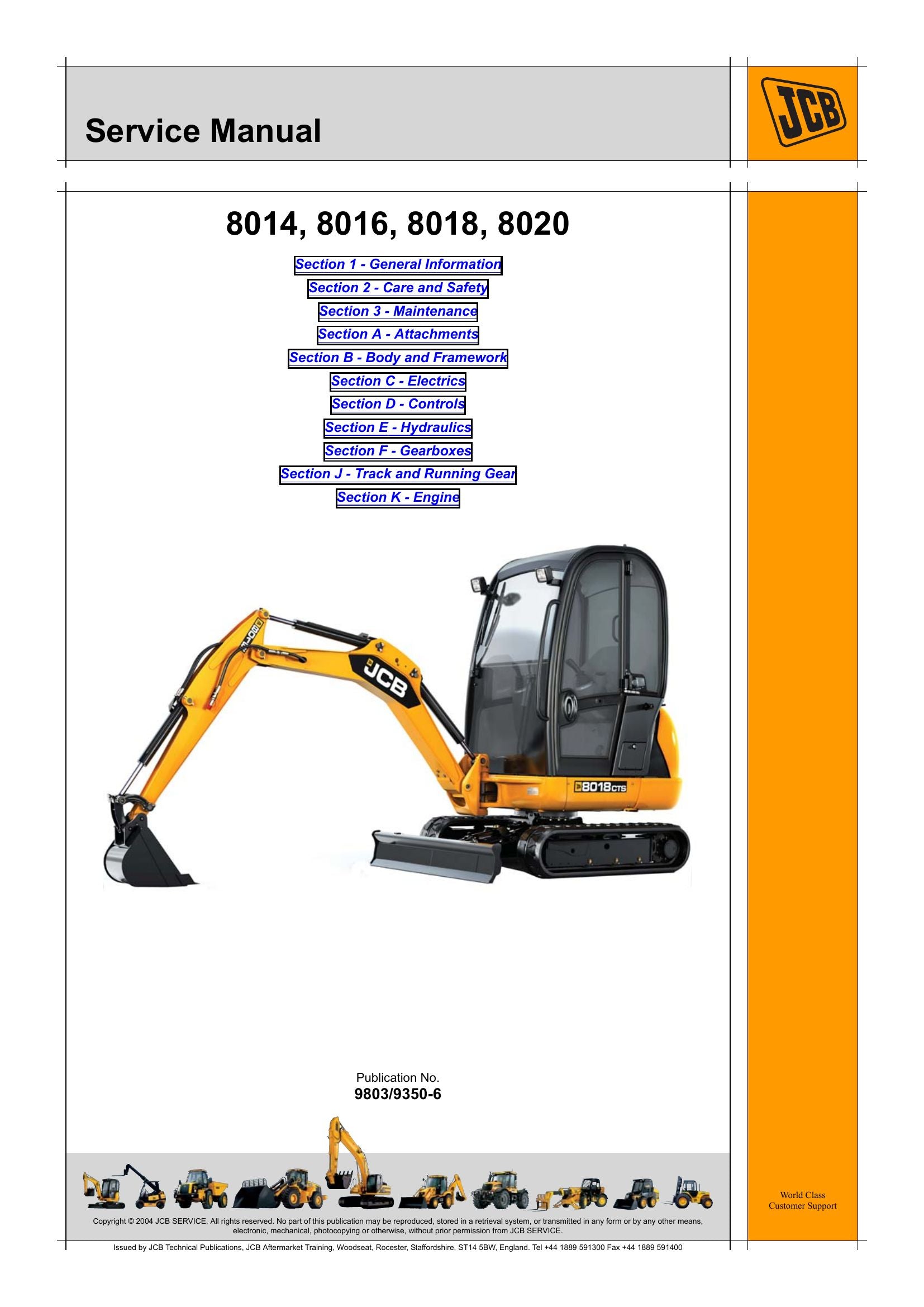

JCB 8014 8016 8018 8020 Mini Excavator Factory Workshop Service Manual 9803/9350

JCB 8014 8016 8018 8020 Mini Excavator Factory Workshop Service Manual 9803/9350
================================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 33.11 MB
Pages: 438
Format: PDF
Language: English
Brand: JCB

CONTENTS (Table of Contents):
----------------------------------------
Machine Model and Serial Number ... ....................................................1-1
Using the Service Manual .....................................................................1-1
Machine Identification Plate ........... .......................................................1-3
Component Identification Plates ..... .......................................................1-4
Standard Torque Settings
Zinc Plated Fasteners and Dacromet Fasteners .......................................
'O' Ring Face Seal System ..................................................................1-10
'Torque Stop' Hose System .................................................................1-13

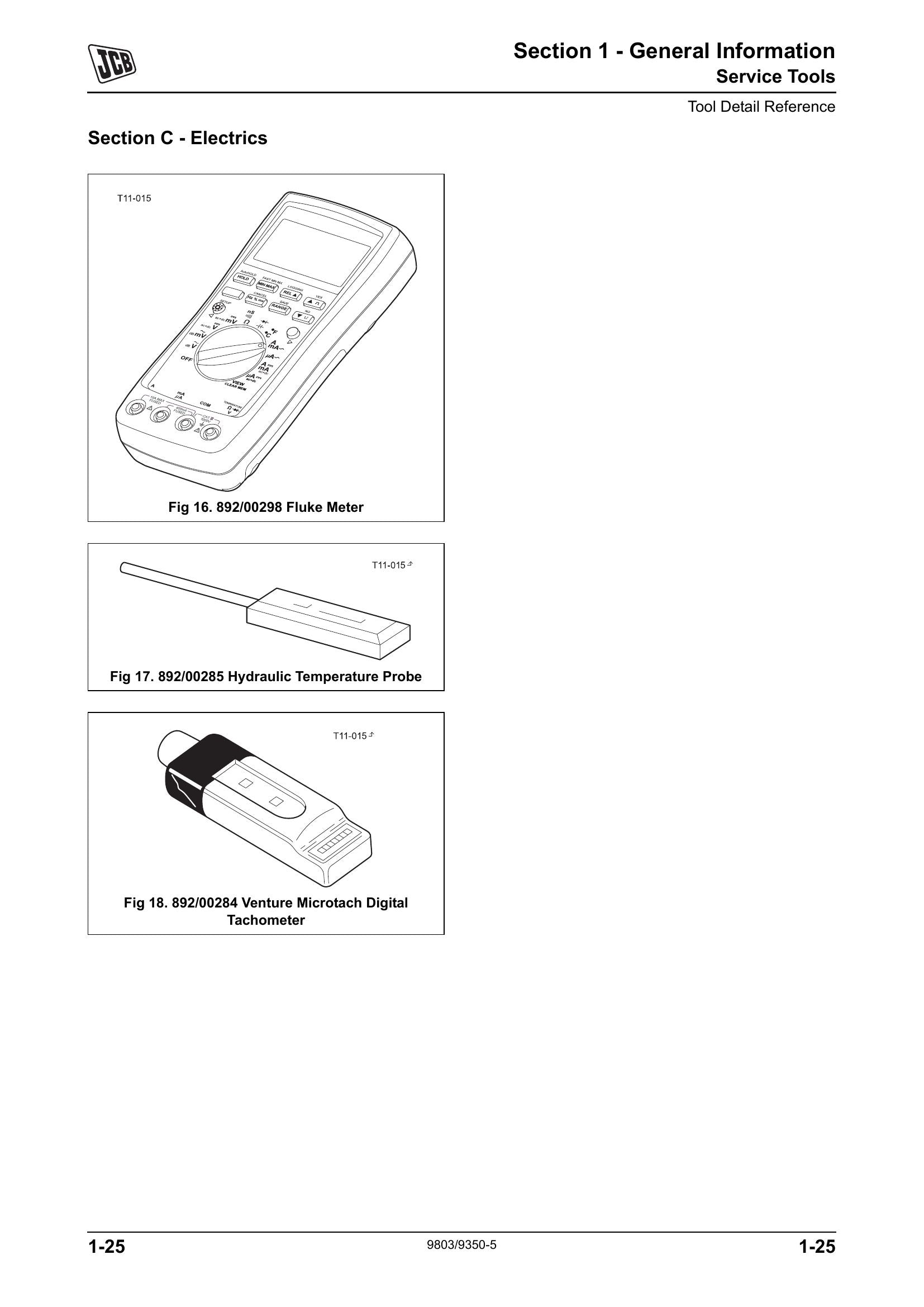

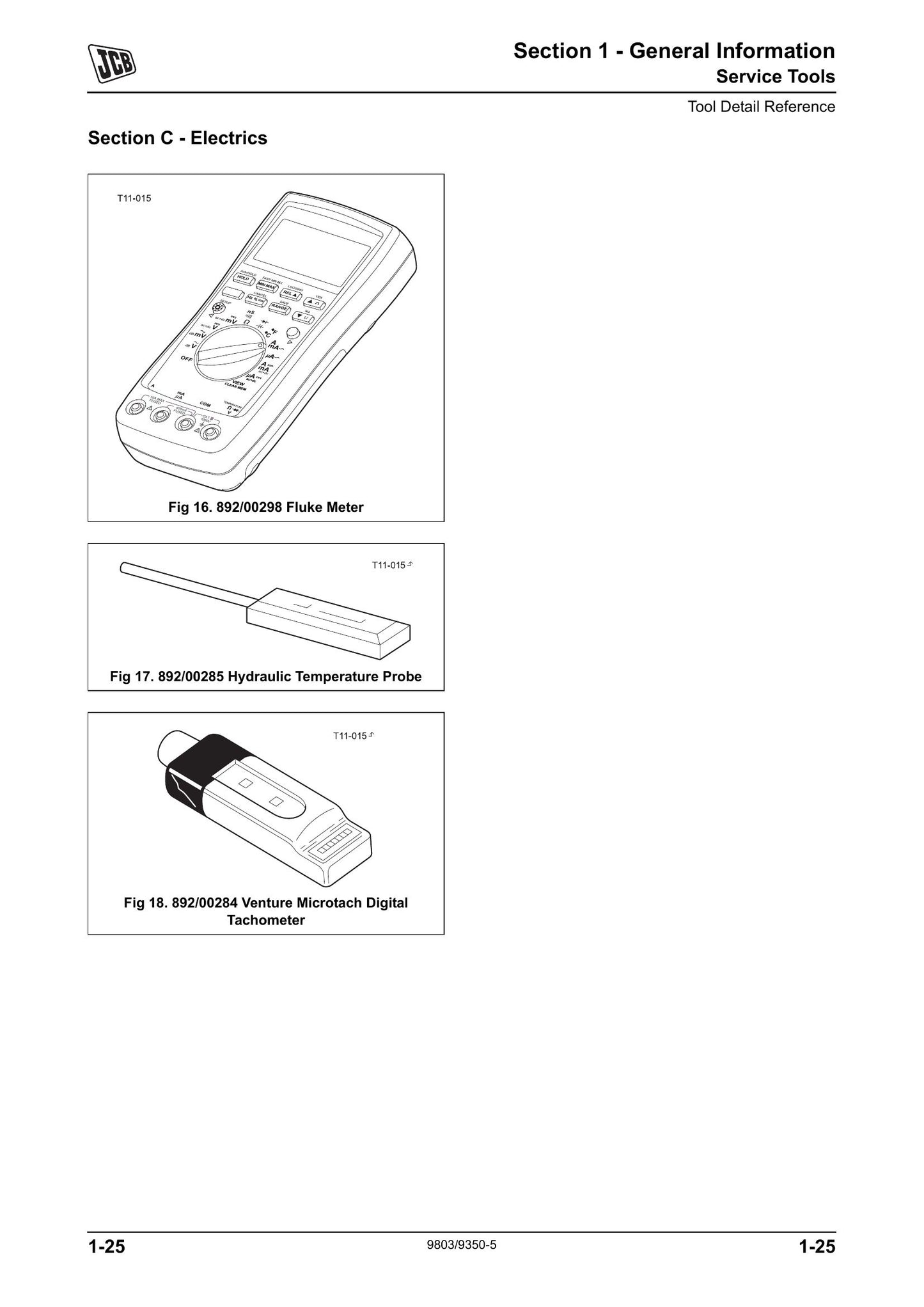

Service Tools
Service Consumables
Sealing and Retaining Compounds .........................................................
Terms and Definitions
Hydraulic Schematic Colour Codes .....................................................1-33
1-ii 1-ii

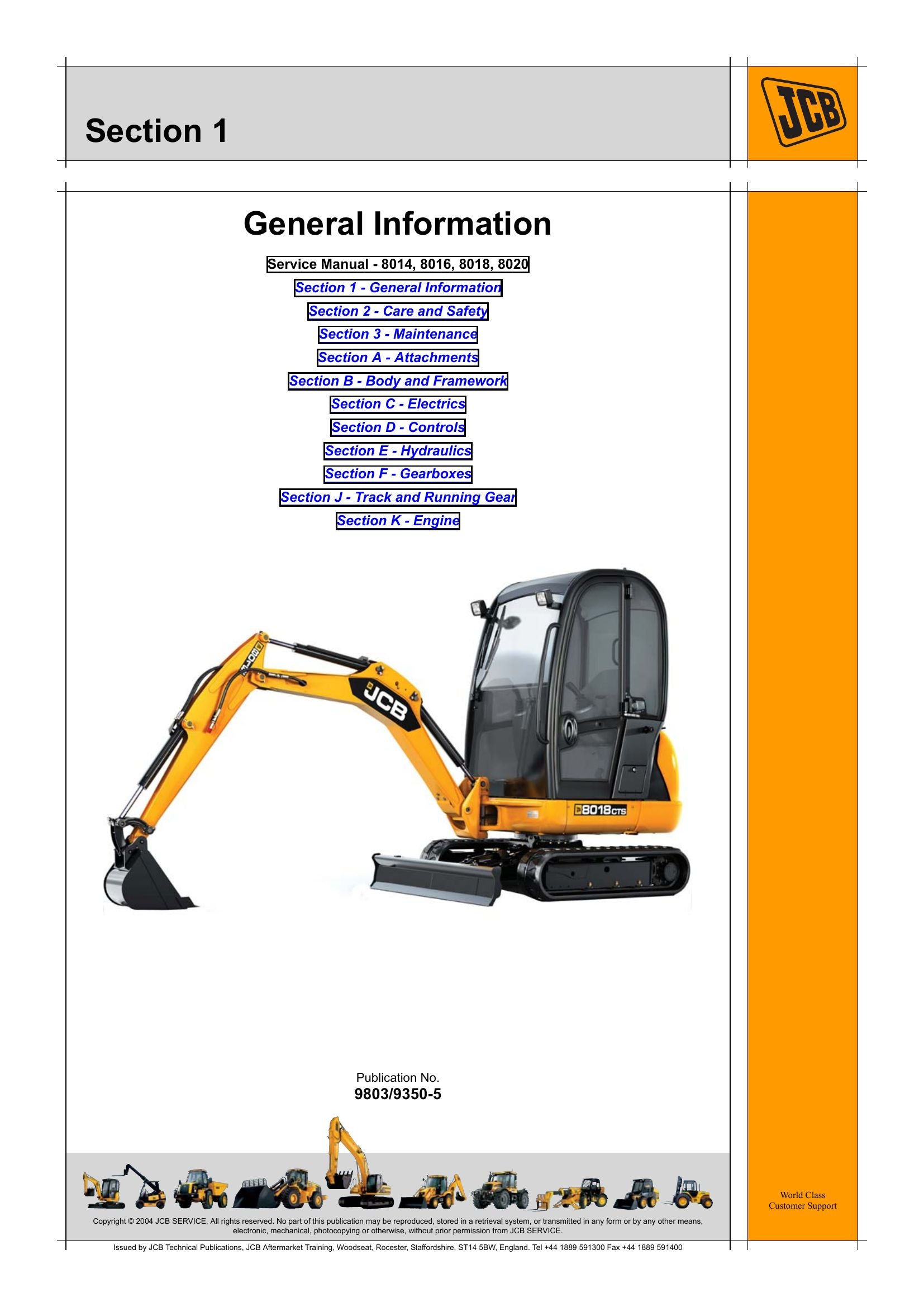

About this Manual
Machine Model and Serial Number
This manual provides information for the following
model(s) in the JCB machine range:
– 8014 from serial number 1156000 up to May
– 8016 from serial number 1155000 up to May
– 8018 from serial number 1046000 up to May 2012– 8020 from serial number 1284000 up to May
– All machines from June
Using the Service Manual
T11-004
Distributor Service Engineers who are receiving, or have
received, training by JCB Technical Training Department.
These personnel should have a sound knowledge of
workshop practice, safety procedures, and general
techniques associated with the maintenance and repair of hydraulic earthmoving equipment.
Where the machines differ, the text and/or the illustration
will specify.
manual, as well as specific warnings. Read all safety
statements regularly, so you do not forget them.
Renewal of oil seals, gaskets, etc., and any component
showing obvious signs of wear or damage is expected as
a matter of course. It is ex pected that components will be
cleaned and lubricated where ap propriate, and that any
opened hose or pipe connections will be blanked to
prevent excessive loss of hydraulic fluid and ingress of dirt.
Where a torque setting is given as a single figure it may be
varied by plus or minus 3%. Torque figures indicated are
for dry threads, hence for lubricated threads may be reduced by one third.
The manufacturer's policy is one of continuous
improvement. The right to change the specification of the
Finally, please remember above all else safety must come
first!
T11-005
with Dismantling, Overhaul etc. of specific components, for
example:
service tools.
2 Care and Safety - includes warnings and cautions
pertinent to aspects of workshop procedures etc.

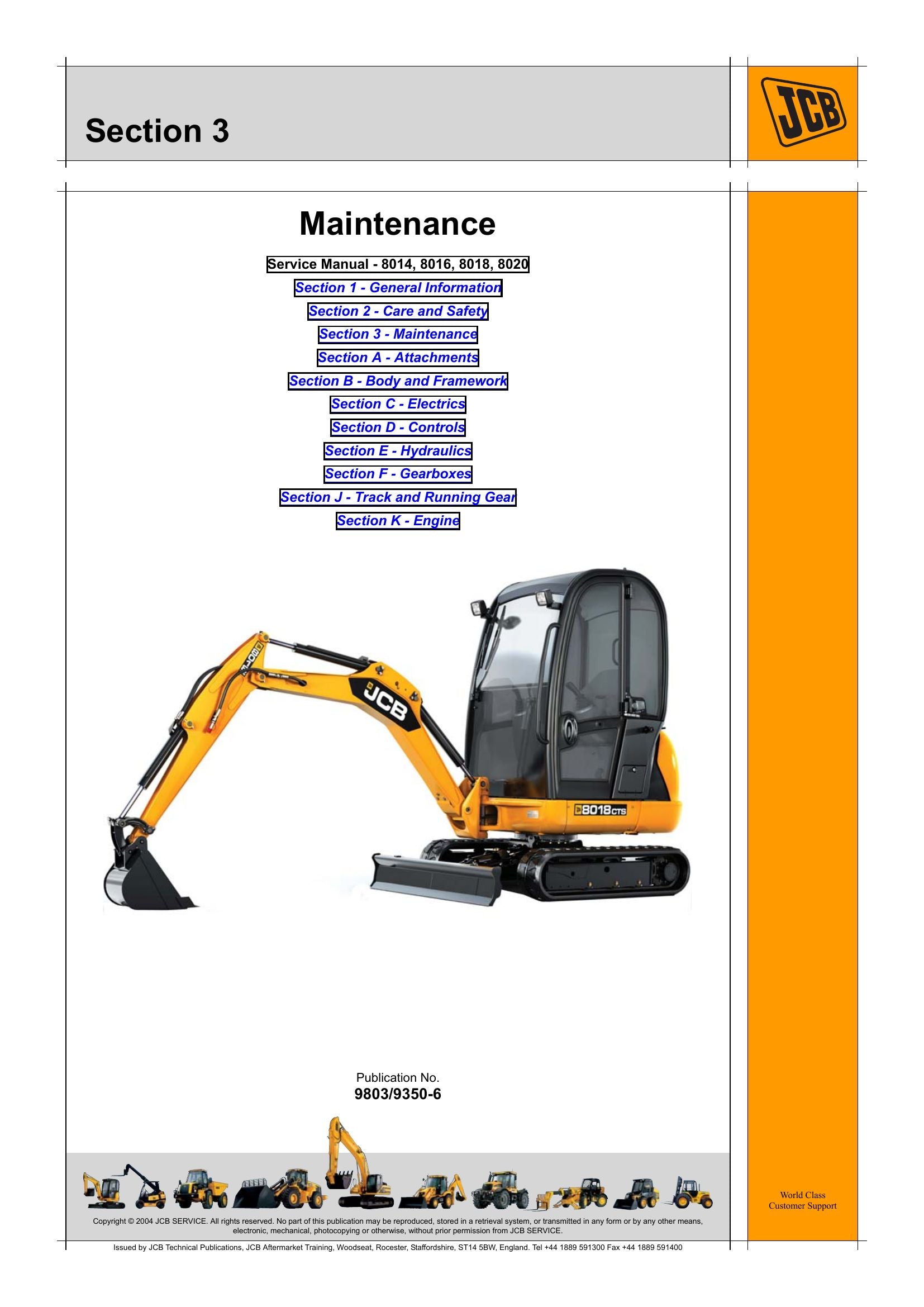

3 Maintenance - includes service schedules and
recommended lubricants for all the machine.
A Attachments
B Body and Framework, etc.

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
