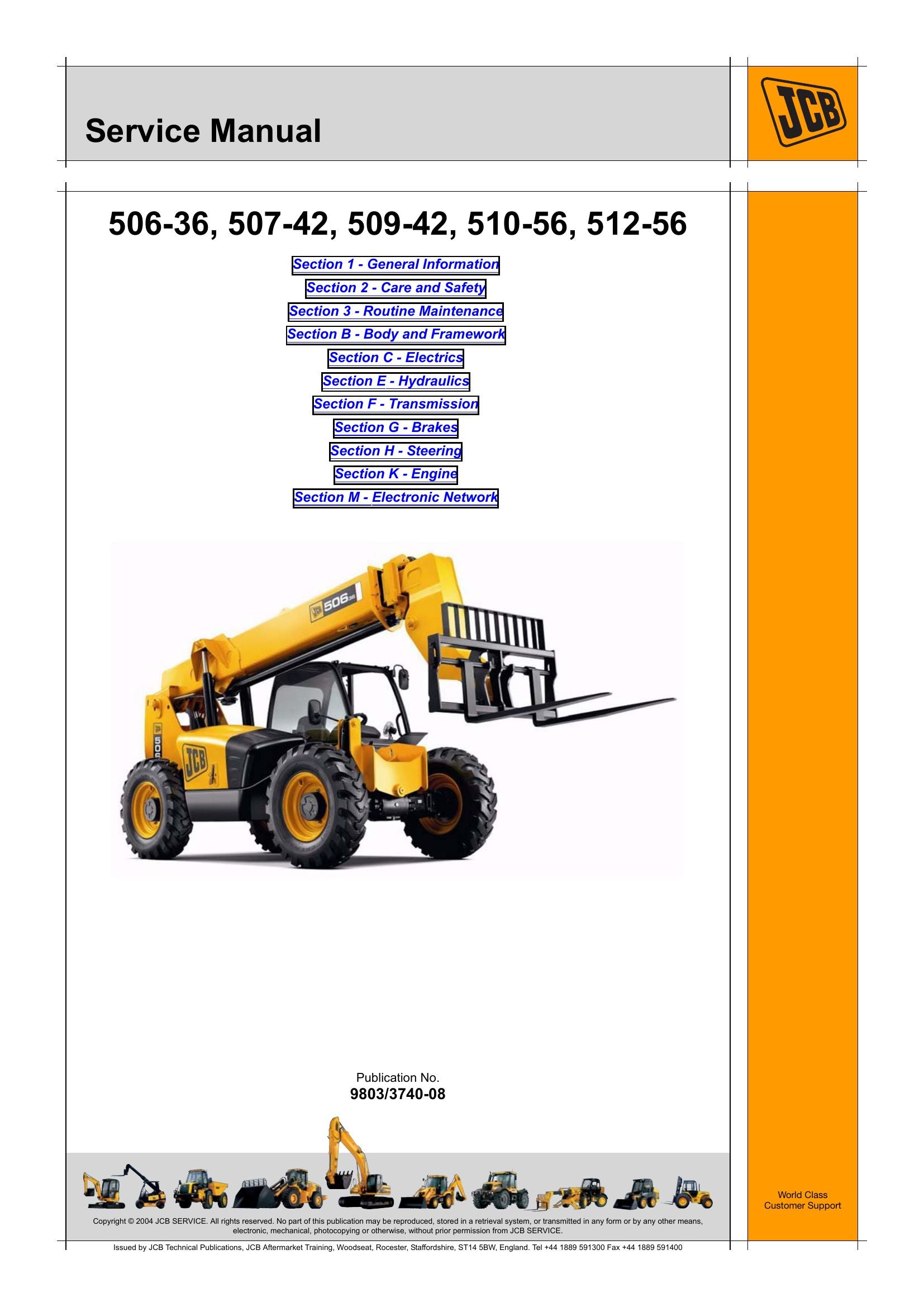

JCB 506-36 507-42 509-42 510-56 512-56 Telehandler Factory Workshop Service Manual 9803/3740

JCB 506-36 507-42 509-42 510-56 512-56 Telehandler Factory Workshop Service Manual 9803/3740
============================================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 119.84 MB
Pages: 1227
Format: PDF
Language: English
Brand: JCB

CONTENTS (Table of Contents):
----------------------------------------
1 - i 1 - iApplications
Hydraulic Schematic Codes ..................................................................1-2 -
Machine Identification
Typical Product Identification Number (PIN) ....................................1-3 -
Component Identification Plates ............................................................1-3 -
Typical Engine Identificati on Number ...............................................1-3 -
Transmission Identification Numbers ... ............................................1-3 -
ROPS/FOPS Certification Plates .....................................................1-3 -

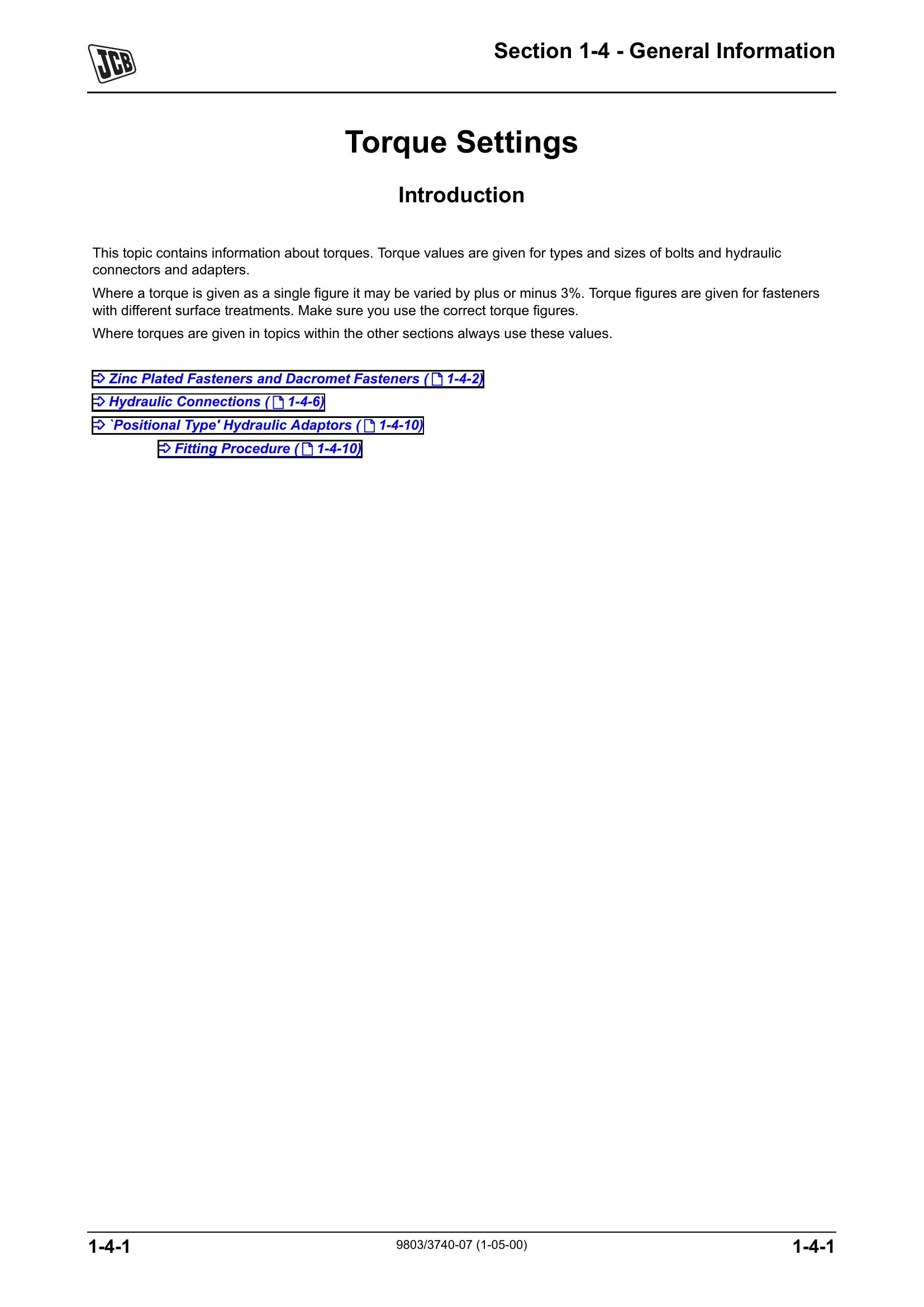

Torque Settings
Zinc Plated Fasteners and Dacromet Fasteners ...................................1-4 -
'O' Ring Face Seal System ...............................................................1-4 -
'Torque Stop' Hose System ..............................................................1-4 -
`Positional Type' Hydraulic Adaptors ...................................................1-4 -
Service Tools
Service Consumables
Sealing and Retaining Compounds .......................................................1-6 -
Fuel
Acceptable and Unacceptable Fuels .....................................................1-7 -
Service Requirements for use of B20 Biodiesel ...............................1-7 -
Usage and Effects of Fuels ..............................................................1-7 -
Effects of Fuel Contaminates ........................................................... 1-7 -

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
