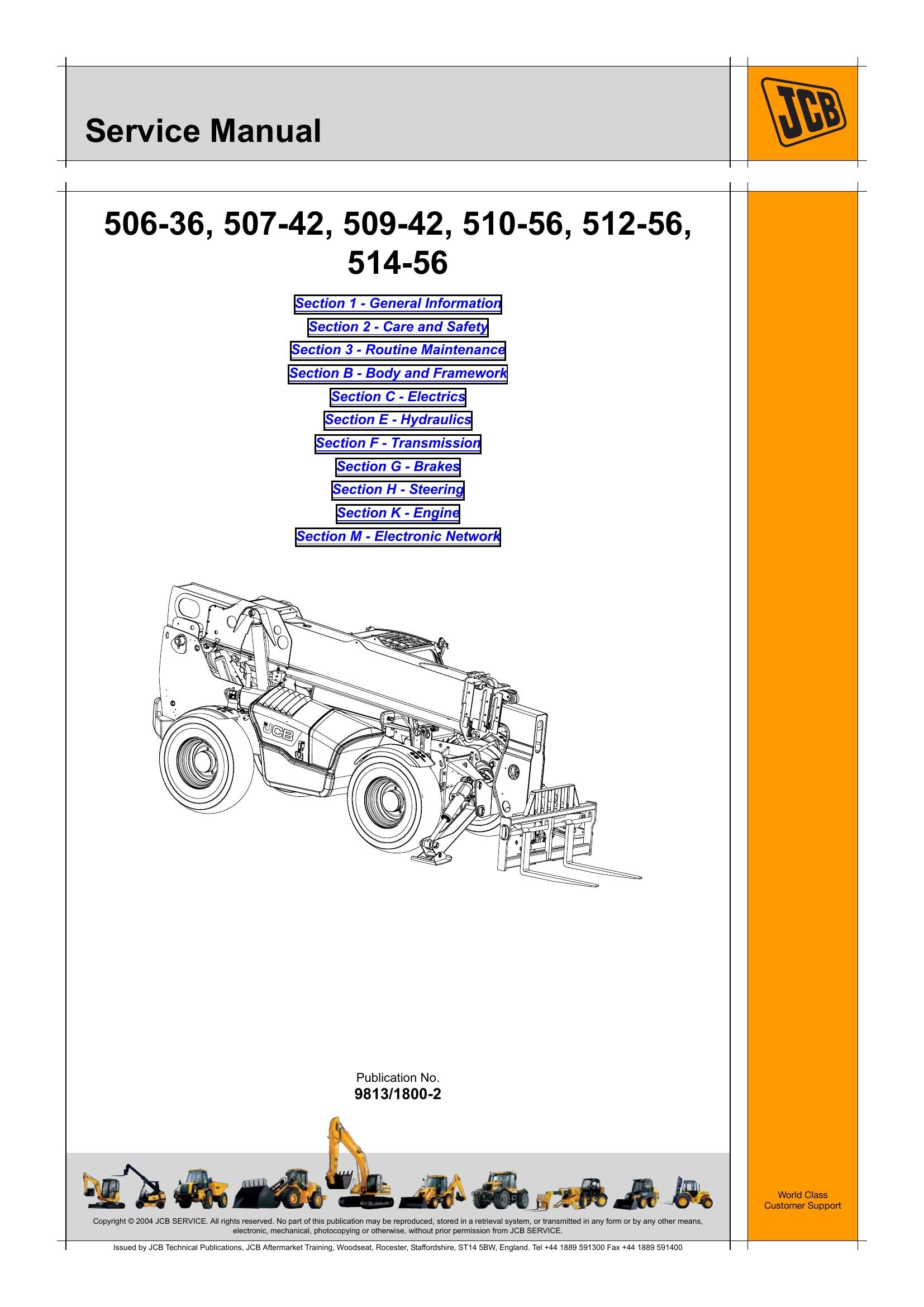

JCB 506-36 507-42 509-42 510-56 512-56 514-56 Loadall Factory Workshop Service Manual 9813/1800-2

JCB 506-36 507-42 509-42 510-56 512-56 514-56 Loadall Factory Workshop Service Manual 9813/1800-2
=================================================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 314.71 MB
Pages: 1801
Format: PDF
Language: English
Brand: JCB

CONTENTS (Table of Contents):
----------------------------------------
1-i 1-iApplications
Hydraulic Schematic Codes ................... ................................................ 1-2-5

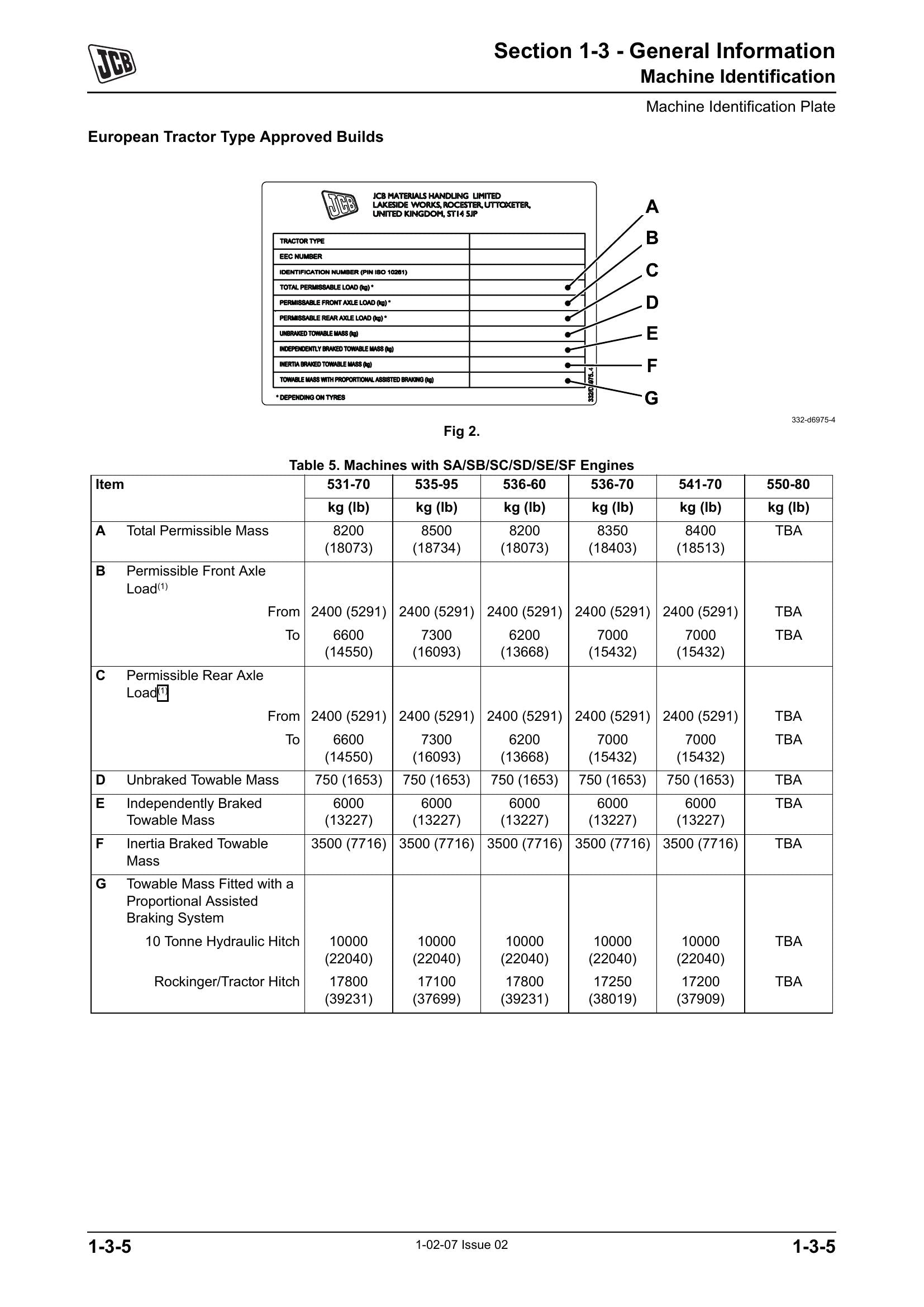

Machine Identification
Component Identification Plates ............................................................. 1-3-7
Torque Settings
Zinc Plated Fasteners and Dacromet Fasteners .................................... 1-4-2
`Positional Type' Hydraulic Adaptors .................................................... 1-4-10

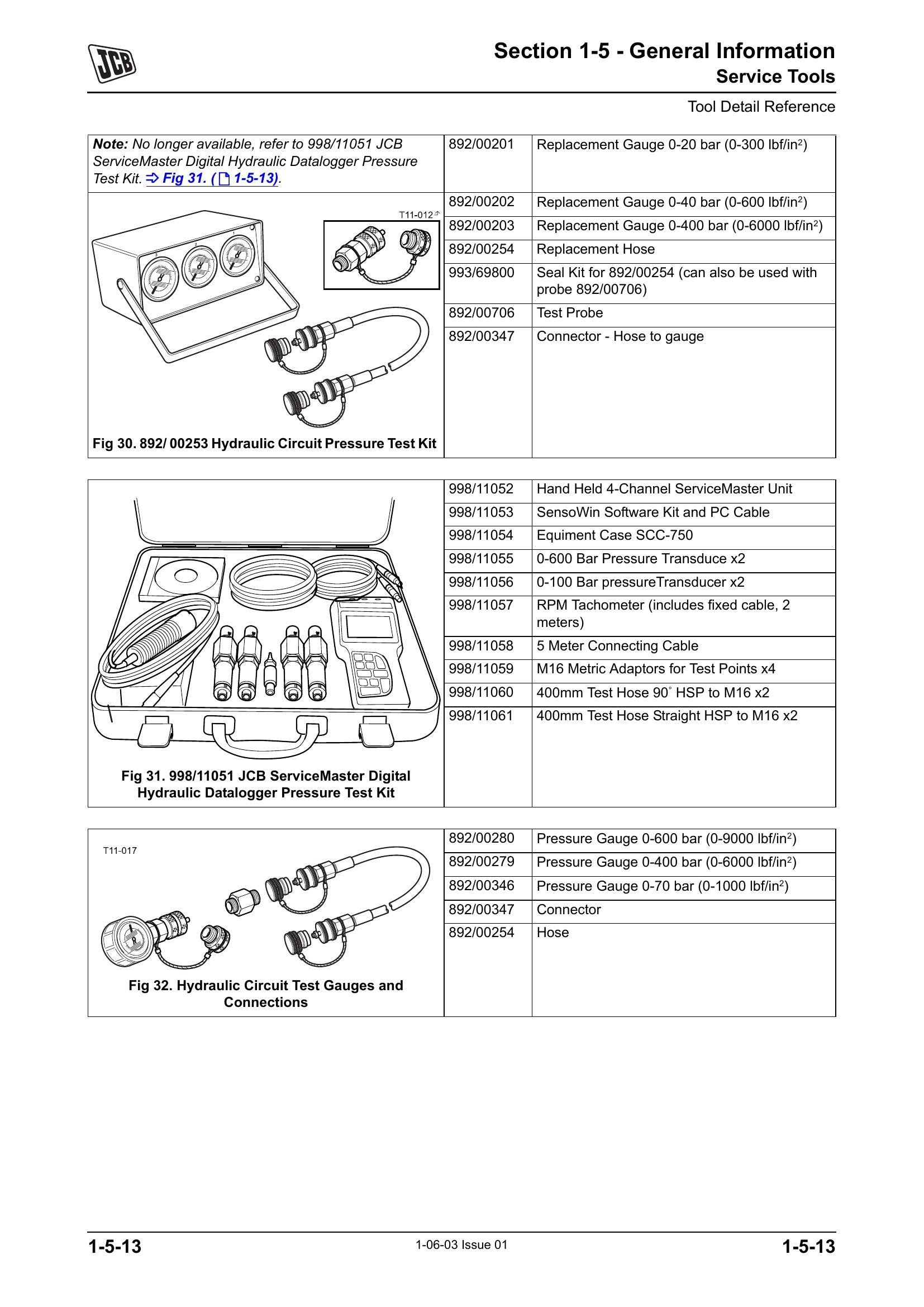

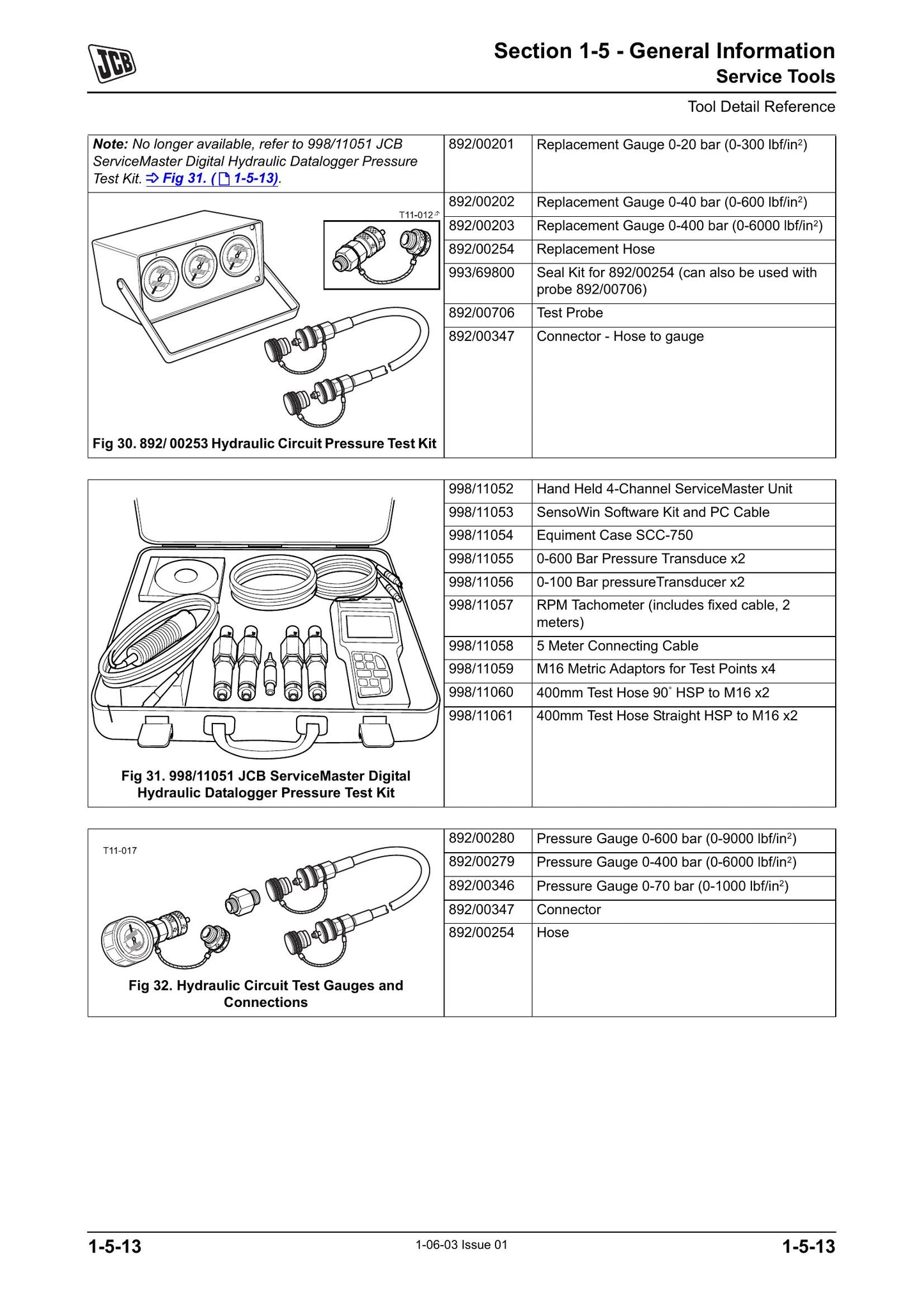

Service Tools
Service Consumables
Sealing and Retaining Compounds ........ ................................................ 1-6-2
Fuel
Acceptable and Unacceptable Fuels ...... ................................................ 1-7-3
Stall Speed Combinations
1-ii 1-ii

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
