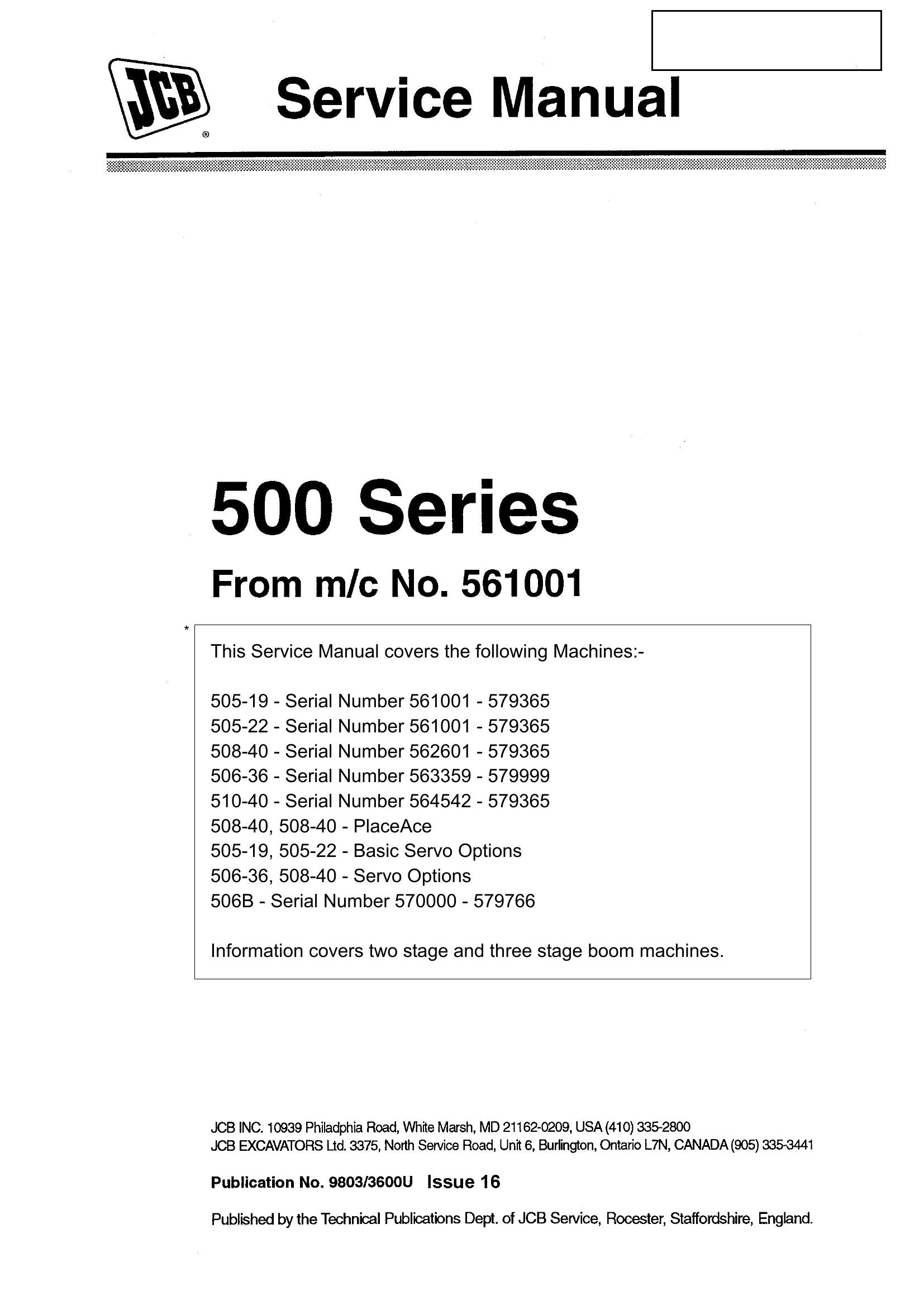

JCB 505-19 505-22 508-40 506-36 510-40 506B Loadall Factory Workshop Service Manual 9803/3600

JCB 505-19 505-22 508-40 506-36 510-40 506B Loadall Factory Workshop Service Manual 9803/3600
=============================================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 86.28 MB
Pages: 701
Format: PDF
Language: English
Brand: JCB

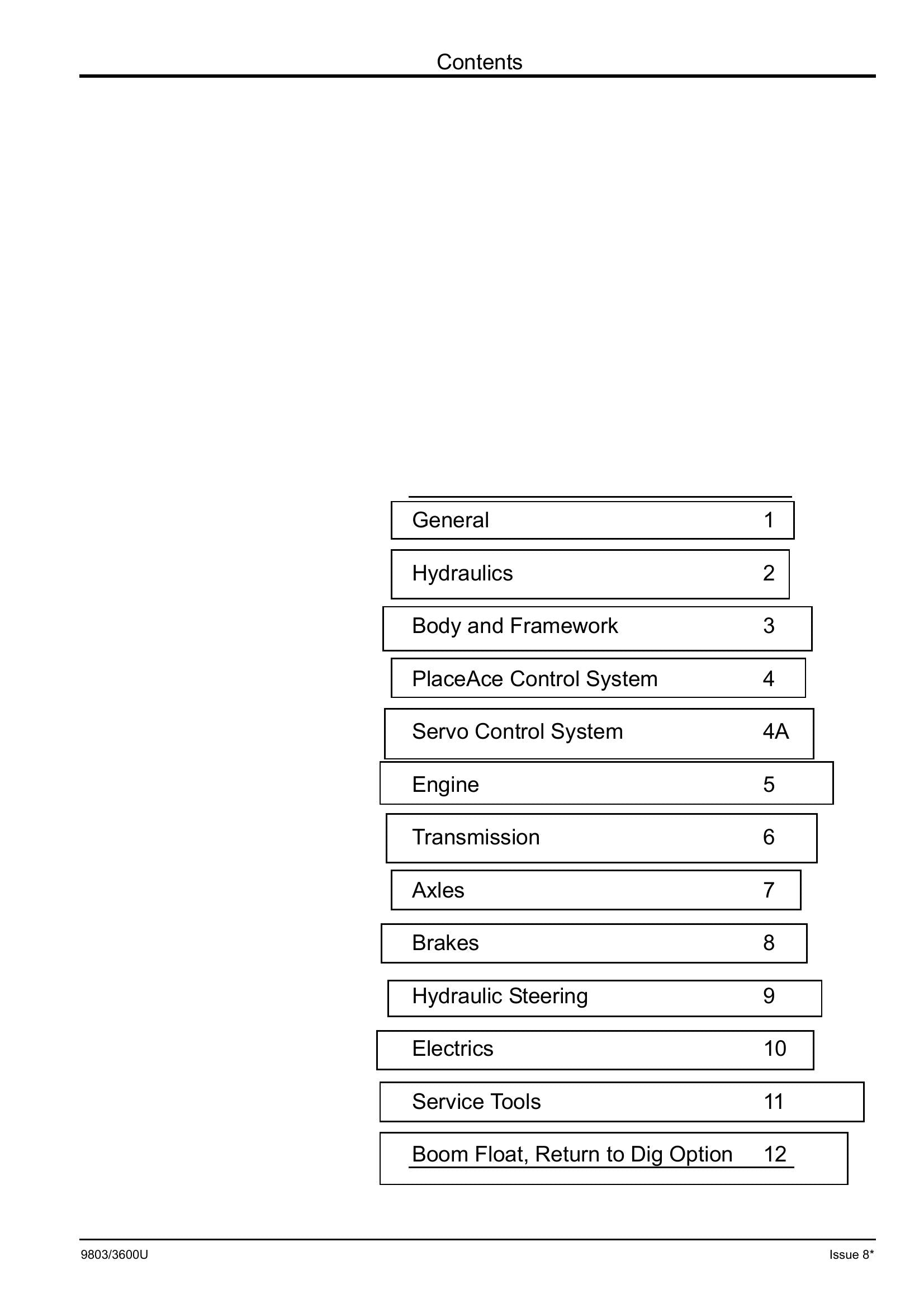

CONTENTS (Table of Contents):
----------------------------------------

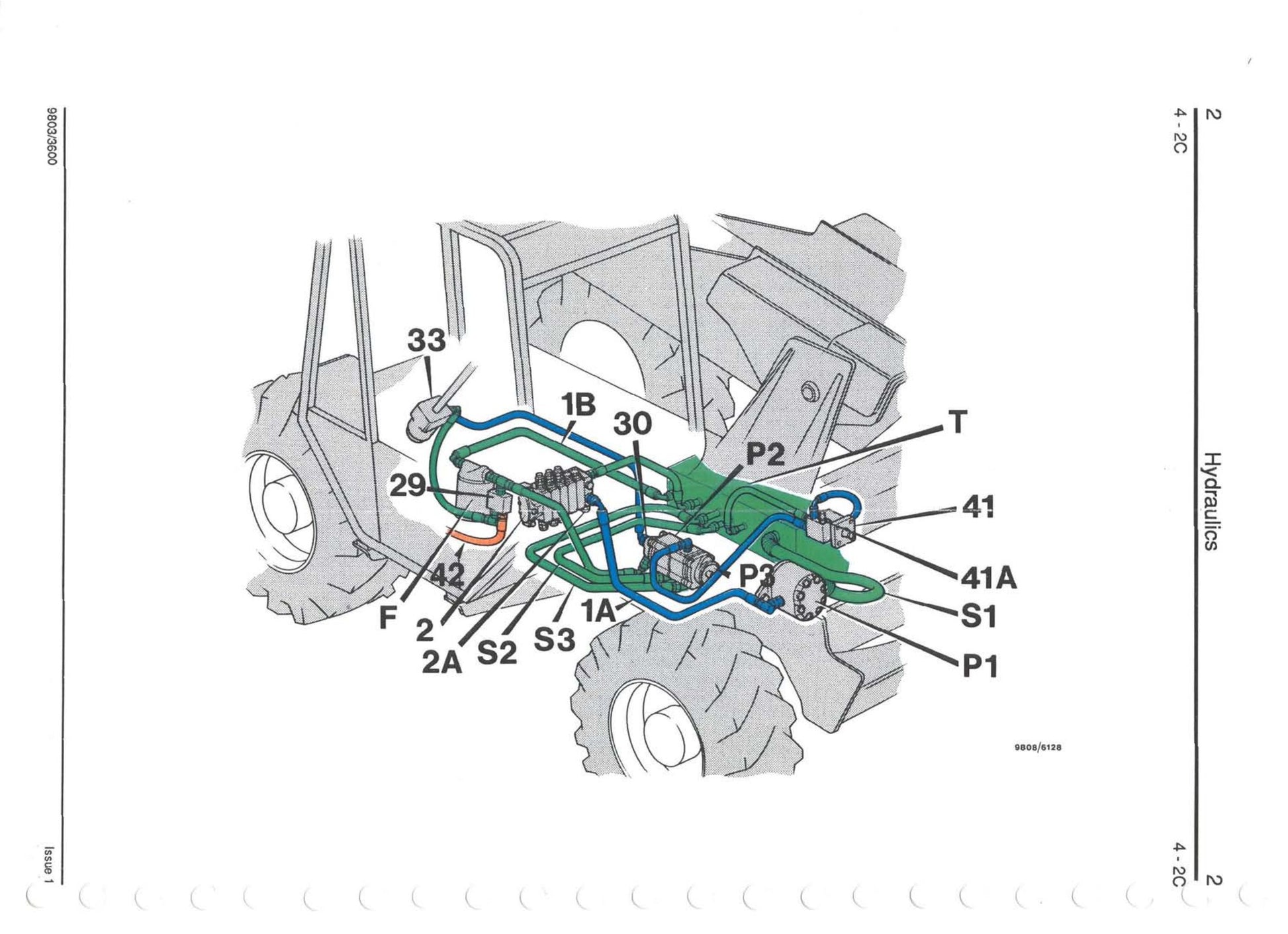

Hydraulics 2Body and Framework
PlaceAce Control System
Servo Control System 4AEngine 5Transmission 6Axles
Brakes 8Hydraulic Steering 9Electrics 10Service Tools 11Boom Float, Return to Dig Option
by JCB Technical Training Department.
be reversed for assembly.
'Left Hand' and 'Right Hand' are as viewed from the rear of the machine looking forward.
!WARNING
Asbestos
Asbestos dust can damage your lungs. Some engine joints
and gaskets may contain asbestos. Take the following
precautions when working on them.
water to contain loose particles.
5 Place all material into plastic bags and dispose in
accordance with local regulations.
GEN-1-8!WARNING
Fluoroelastomeric Materials
Certain seals and gaskets (e.g. crankshaft oil seal) on JCB
machines contain fluoroelastomeric materials such as Viton,
Fluorel and Technoflon. Fluoroelastomeric materials
New fluoroelastomeric components at ambient temperature
require no special safety precautions.
Used fluoroelastomeric components whose temperatures
Used fluoroelastomeric components subjected to
1 Ensure that components have cooled then remove and
place material into plastic bags.
2 Thoroughly wash contaminated area with 10% calcium
hydroxide or other suitable alkali solution, if necessary
use wire wool to remove burnt remains.
3 Thoroughly wash contaminated area with detergent and
water.
4 Contain all removed material, gloves etc. used in this
operation in sealed plastic bags and dispose of inaccordance with Local Authority Regulations.
DO NOT BURN FLUOROELASTOMERIC MATERIALS.
If contamination of skin or eyes occurs, wash the affected
INT-3-3-5/1
General
9803/3600U1
Fluids, Lubricants, Capacities & Specifications
- 505-19/22
- 506-36
- 508-40 & 510-40 1 - 2A
- 506B 1 - 2B- Torque Settings
Service Schedules
Greasing
Pivot Pins
Oiling
- 506B

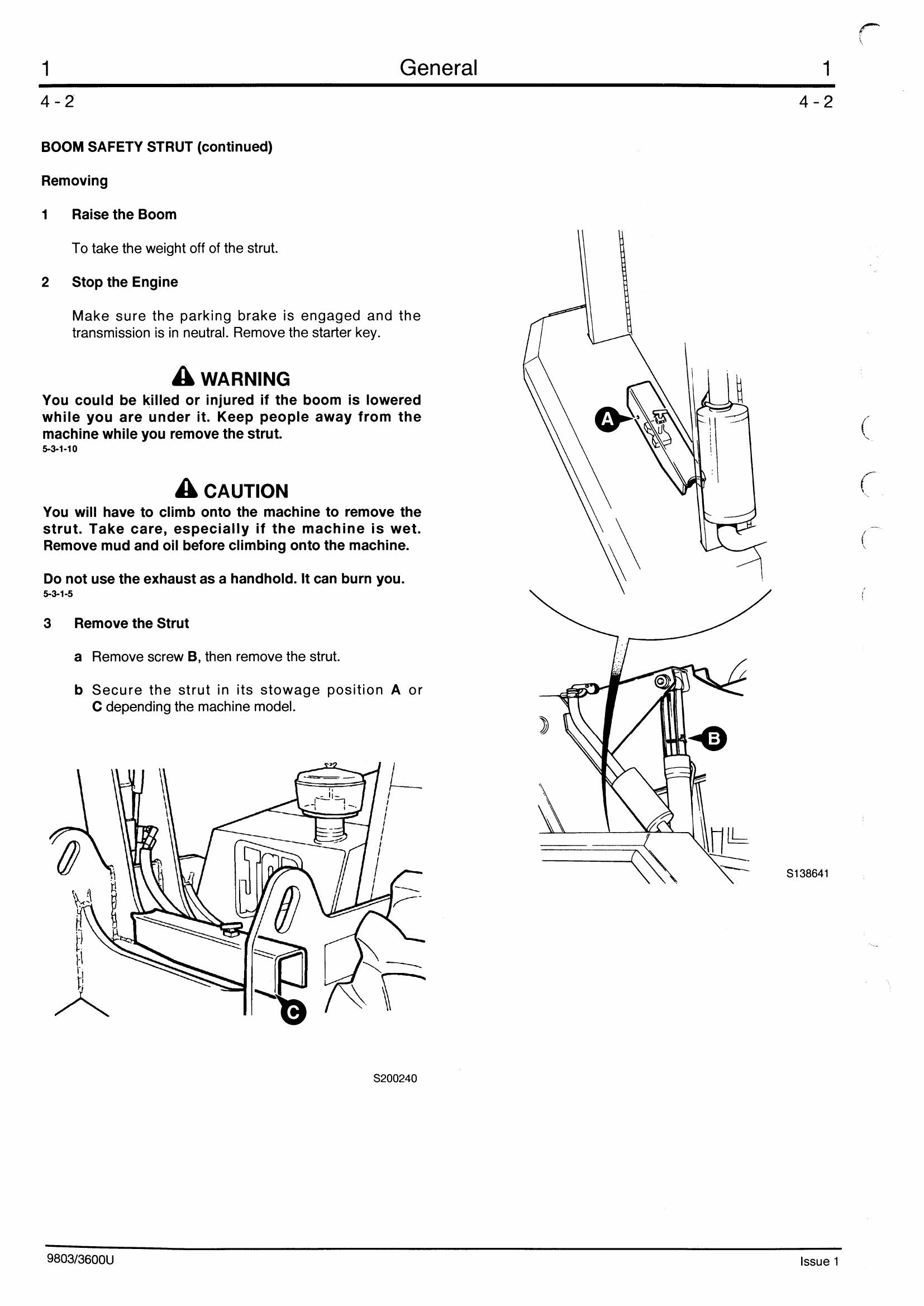

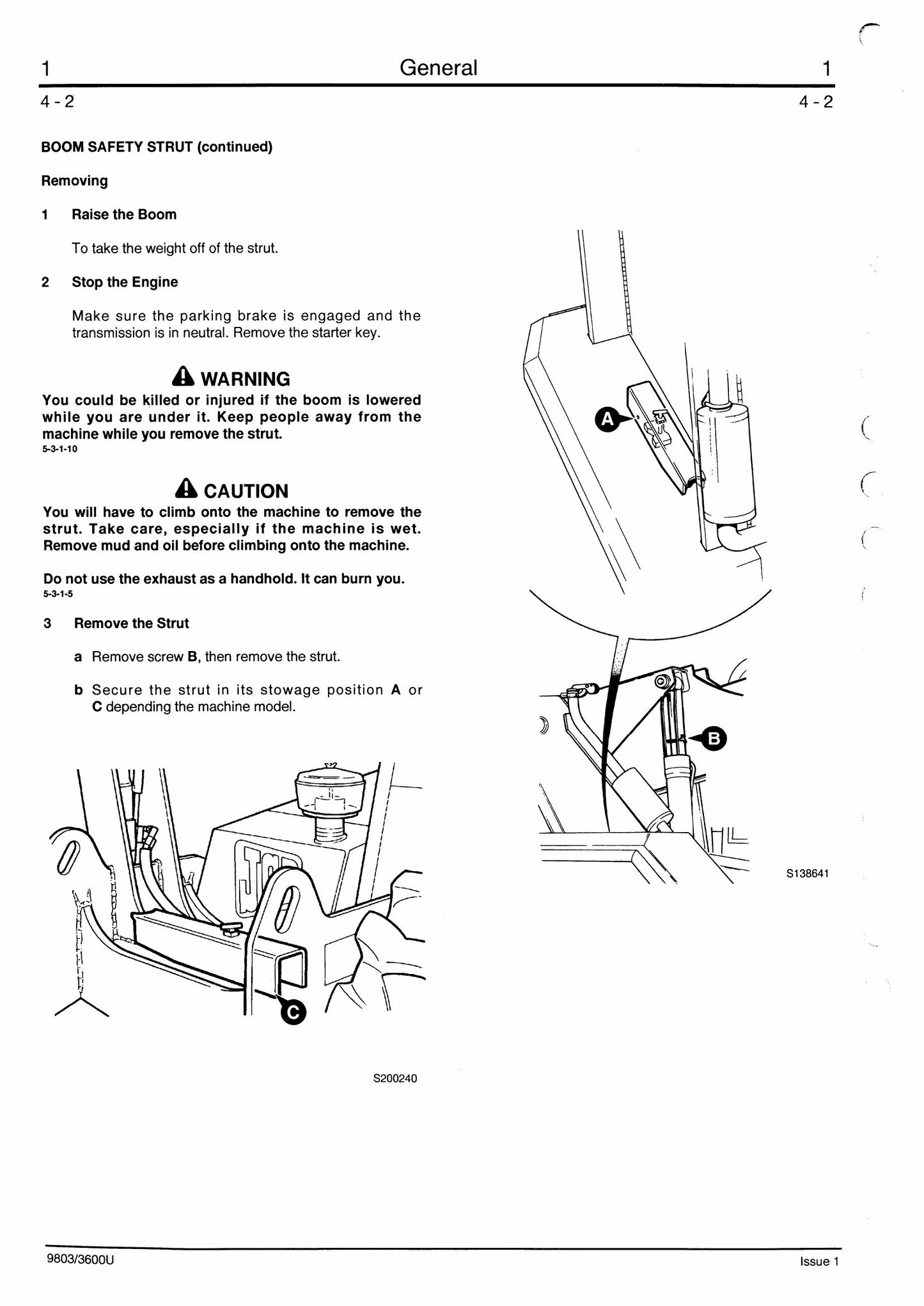

Boom Safety Strut

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
