JCB JS290 Tier 3 Auto Tracked Excavator Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Model:
Excavator
JS290 Tier 3
Language: English
Format PDF
Type: Service Repair Manual
Publication No: 9803/9800-4
JCB JS290 Tier 3 Auto Tracked Excavator Service Repair Manual 861 Pages

Description
JCB JS290 Tier 3 Auto Tracked Excavator Service Manual
Model:
Excavator
JS290 Tier 3
Language: English
Format PDF
Type: Service Manual
Publication No: 9803/9800-4
JCB JS290 Tier 3 Auto Tracked Excavator Service Manual 861 Pages
Section Numbering
The first three sections of this manual are numbered and contain the following information:
1 General Information includes torque settings and service tools.
2 Care and Safety includes warnings and cautions pertinent to aspects of workshop procedures etc.
3 Maintenance includes service schedules and recommended lubricants for all the machine.
The remaining sections are alphabetically coded and deal with Dismantling, Overhaul etc. of specific components, for example:
A Attachments
B Body and Framework, etc.
Section contents, technical data, circuit descriptions, operation descriptions etc. are present at the beginning of each alphabetically coded section.

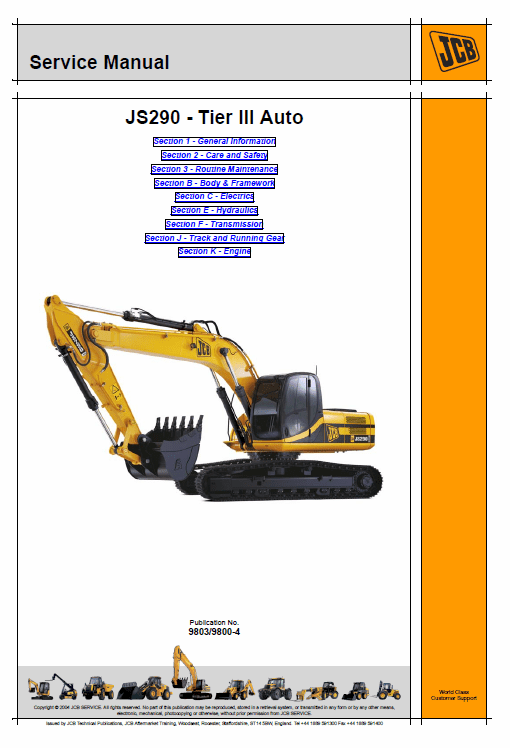

JCB JS290 Tier 3 Auto Tracked Excavator Service Manual Content:
Section.1 General Information
Section.2 Care and Safety
Section.3 Routine Maintenance
Section.B Body and Framework

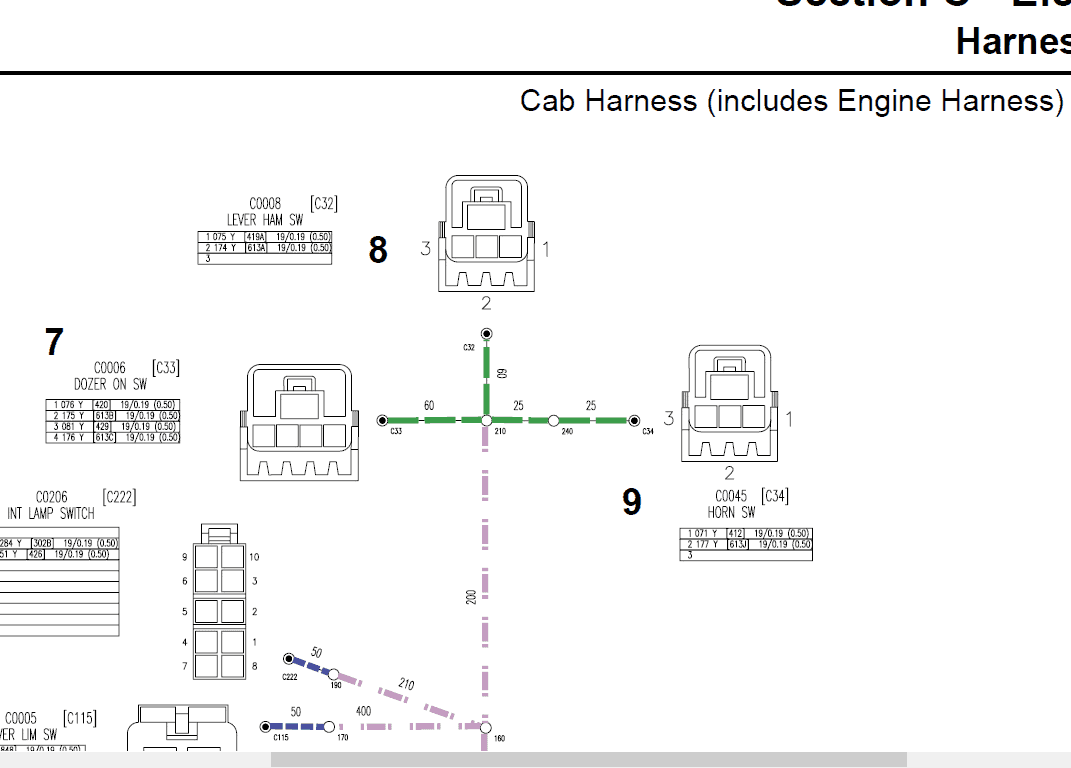

Section.C Electric

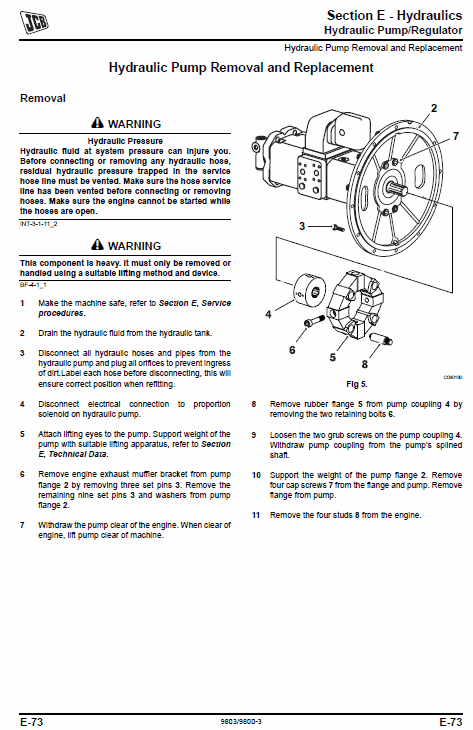

Section.E Hydraulics
Section.F Transmissions
Section.G – Brakes
Section.J Tracks & Running Gear
Section.K Engine
