JCB 526-56 Loadall Telescopic Handlers Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Model:
Telescopic Handlers
Loadalls 526-56
Language: English
Format PDF
Type: Service Repair Manual
Publication No: 9813/6000
JCB 526-56 Loadall Telescopic Handlers Service Repair Manual – 1724 Pages

Description
JCB 526-56 Loadall Telescopic Handlers Service Manual
Model:
Telescopic Handlers
Loadalls 526-56
Language: English
Format PDF
Type: Service Manual
Publication No: 9813/6000
JCB 526-56 Loadall Telescopic Handlers Service Manual – 1724 Pages
Section Numbering
The first three sections of this manual are numbered and contain the following information:
1 General Information includes torque settings and service tools.
2 Care and Safety includes warnings and cautions pertinent to aspects of workshop procedures etc.
3 Maintenance includes service schedules and recommended lubricants for all the machine.
The remaining sections are alphabetically coded and deal with Dismantling, Overhaul etc. of specific components, for example:
A Attachments
B Body and Framework, etc.
Section contents, technical data, circuit descriptions, operation descriptions etc. are present at the beginning of each alphabetically coded section.

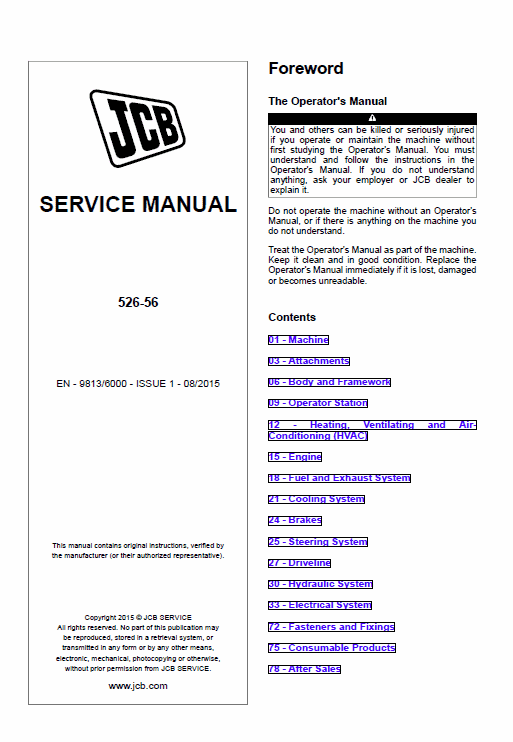

JCB 526-56 Loadall Telescopic Handlers Service Manual Content:
01 – Machine
03 – Attachments
06 – Body and Framework
09 – Operator Station
12 – Heating, Ventilating and Air-Conditioning (HVAC)

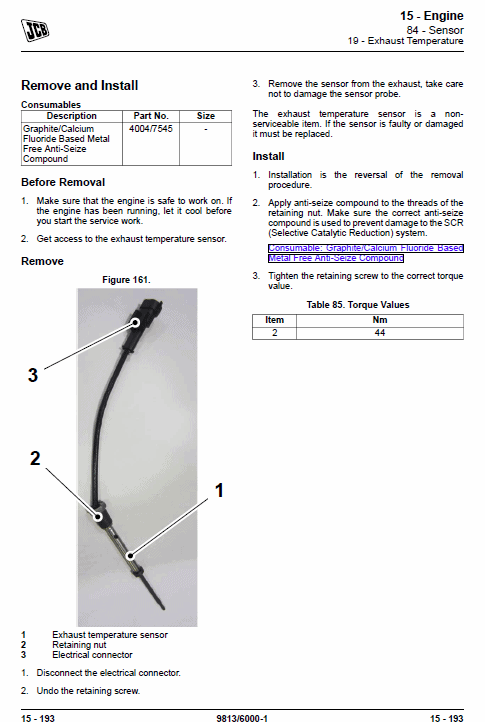

15 – Engine
18 – Fuel and Exhaust System

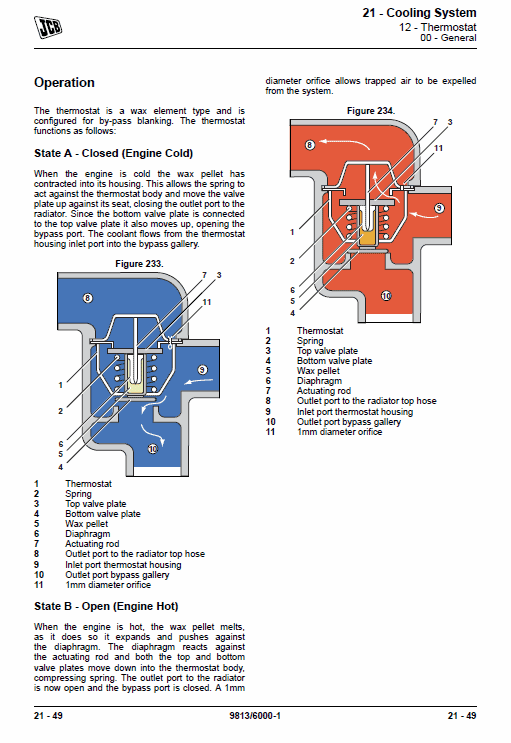

21 – Cooling System
24 – Brakes
25 – Steering System
27 – Driveline

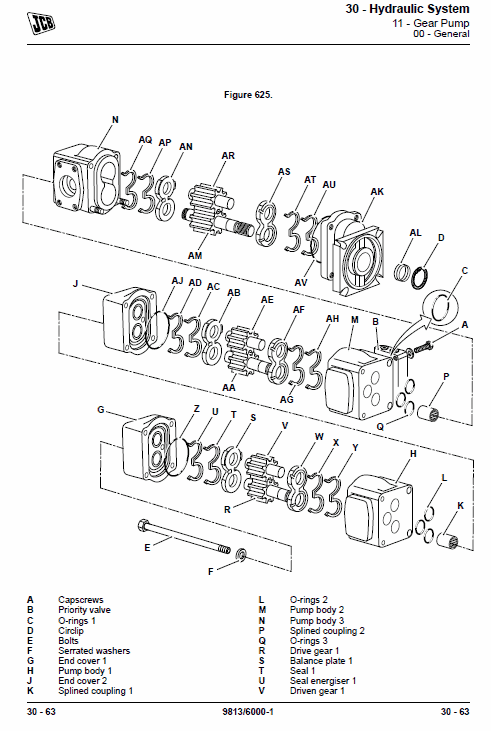

30 – Hydraulic System
33 – Electrical System
72 – Fasteners and Fixings
75 – Consumable Products
78 – After Sales
