JCB 526-56, 531-70, 531-T70, 533-105, 535-95, 535-T95, 536-60, 536-T60, 536-70, 536-T70, 541-70, 541-T70, 550-80, 550-T80 Loadall Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Type:
Telescopic Handlers
Loadalls
Applicable Model: 526-56, 531-70, 531-T70, 533-105, 535-95, 535-T95, 536-60, 536-T60, 536-70, 536-70 LC, 536-T70, 536-T70 LC, 536-T70 LP, 541-70, 541-T70, 550-80, 550-T80
Language: English
Format PDF
Publication no:
9803-3730
– 1404 Pages
9803-3760 & 9813-0900
– 2660 Pages & 2947 Pages
9813-4500 & 9813-5600
– 3430 Pages & 3334 Pages
9813-7600 & 9813-9050 & 9823-0050 –
4470 Pages & 2332 Pages & 3320 Pages
9823-0550 –
3630 Pages
Please scroll below for the full list of Publication number and corresponding Serial Number

Description
JCB 526-56, 531-70, 531-T70, 533-105, 535-95, 535-T95, 536-60, 536-T60, 536-70, 536-70 LC, 536-T70, 536-T70 LC, 536-T70 LP, 541-70, 541-T70, 550-80, 550-T80 Loadall Service Manual
Model:
Telescopic Handlers
Loadalls
Language: English
Format PDF
Type: Service Manual
1. Publication 9803-3730:
Serial Number:
from SN 1422000 to 1441999
Model:
531-70, 535-95, 536-60, 536-70, 541-70
Service Manual – 1404 Pages
2. Publication
9803-3760 & 9813-0900
531-70 – from SN 1522574 to 1534999
535-95 – from SN 1522588 to 1534999
536-60 – from SN 1522577 to 1534999
541-70 – from SN 1522566 to 1534999
533-105 – from SN 1522615 to 1534999
536-70 – from SN 1522577 to 1534999
526-56 – from SN 1448231 to 1534999
550-80 – from SN 1186000 to 1534999
531-T70 – from SN 1522570 to 1534999
541-T70 – from SN 1522566 to 1534999
536-T60 – from SN 1522577 to 1534999
535-T95 – from SN 1522569 to 1534999
536-T70 – from SN 1522577 to 1534999
550-T80 – from SN 1186000 to 1534999
Service Manual – 2660 Pages & 2947 Pages
3. Publication 9813-4500 & 9813-5600:
Serial Number:
from SN 2336575 to 2356575
Model:
526-56, 531-70, 531-T70, 533-105, 535-95, 535-T95, 536-60, 536-T60, 536-70, 536-70 LC, 536-T70, 536-T70 LC, 536-T70 LP, 541-70, 541-T70, 550-80, 550-T80
Service Manual – 3430 Pages & 3334 Pages
4. Publication 9813-7600 & 9813-9050 & 9823-0050:
Serial Number:
from SN 2460601 to 2473000
from SN 2902000 to 2908741
Model:
526-56, 531-70, 531-T70, 533-105, 535-95, 535-T95, 536-60, 536-T60, 536-70, 536-70 LC, 536-T70, 536-T70 LC, 536-T70 LP, 541-70, 541-T70, 550-80, 550-T80
Service Manual – 4470 Pages & 2332 Pages & 3320 Pages
5. Publication 9823-0550:
Serial Number:
from SN 2565203 to 2575200
Model:
531-70, 535-95, 536-60, 536-70, 536-70, 536-70LP, 541-70, 550-80, 560-80
Note: Only for 536-60 from SN SN 02724382 to 03412999
Service Manual – 3630 Pages

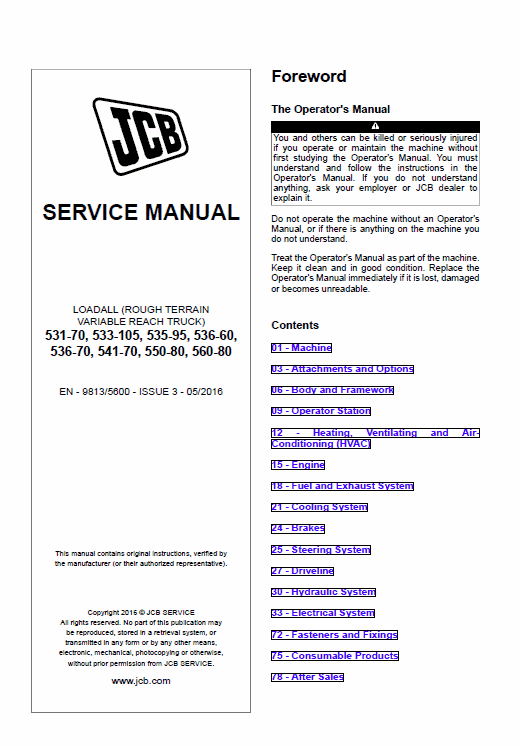

JCB Loadall Service Manual Content:
01 – Machine
03 – Attachments
06 – Body and Framework
09 – Operator Station
12 – Heating, Ventilating and Air-Conditioning (HVAC)
15 – Engine
18 – Fuel and Exhaust System
21 – Cooling System
24 – Brakes
25 – Steering System
27 – Driveline
30 – Hydraulic System
33 – Electrical System
72 – Fasteners and Fixings
75 – Consumable Products
78 – After Sales
