JCB 520HL/M, 525HL/B, 530HL/B and 540B/BM Loadall Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Model:
Telescopic Handlers
Loadalls 520-55, 526-55
Language: English
Format PDF
Type: Service Repair Manual
Publication No: 9803/3350
JCB 520 HL/M, 525 HL/B, 530 HL/B and 540 B/BM Loadall Service Repair Manual – 400 Pages
See description for all S/N covered

Description
JCB 520HL/M, 525HL/B, 530HL/B and 540B/BM Loadall Service Manual
Model:
Telescopic Handlers
Loadalls 520HL/M, 525HL/B, 530HL/B and 540B/BM
Language: English
Format PDF
Type: Service Manual
Publication No: 9803/3350
JCB 520HL/M, 525HL/B, 530HL/B and 540B/BM Loadall Service Manual – 400 Pages
This Service Manual covers the following machines Serial No:
520-2: 0500000-0560999
520-2HL: 0500000-0560999
520-4: 0500000-0560999
520-4HL: 0500000-0560999
520M-2: 0500000-0560999
525B-2: 0272000-0276999
525B-2HL : 0272000-0276999
525B-4: 0272000-0276999, Year 1988 – 1988
525B-4HL: 0272000-0276999
530B-2: 0580001-0584999
530B-4: 0580001-0584999
530B HL-2: 0580001-0584999
530B HL-4: 0580001-0584999
540B-2: 0275001-0275999
540B-4: 0275001-0275999
540BM-2: 0274001-0274019
540BM-4: 0274001-0274019
Information covers 2 and 4 wheel drive machines.
Section Numbering
The first three sections of this manual are numbered and contain the following information:
1 General Information includes torque settings and service tools.
2 Care and Safety includes warnings and cautions pertinent to aspects of workshop procedures etc.
3 Maintenance includes service schedules and recommended lubricants for all the machine.
The remaining sections are alphabetically coded and deal with Dismantling, Overhaul etc. of specific components, for example:
A Attachments
B Body and Framework, etc.
Section contents, technical data, circuit descriptions, operation descriptions etc. are present at the beginning of each alphabetically coded section.

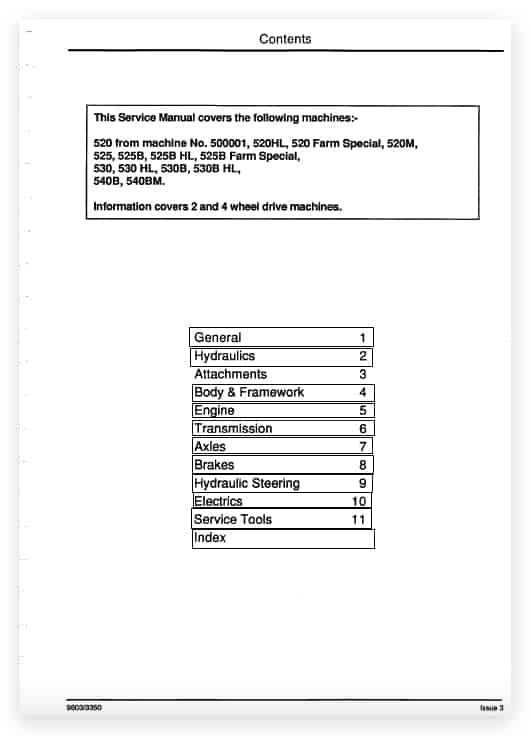

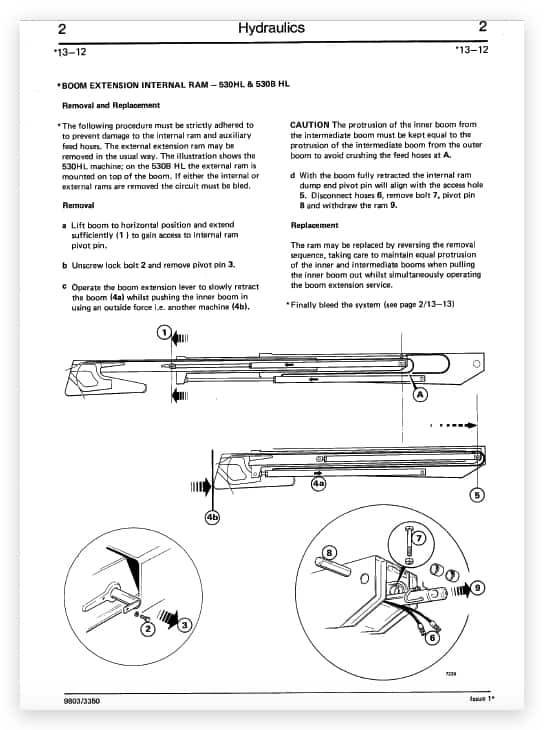

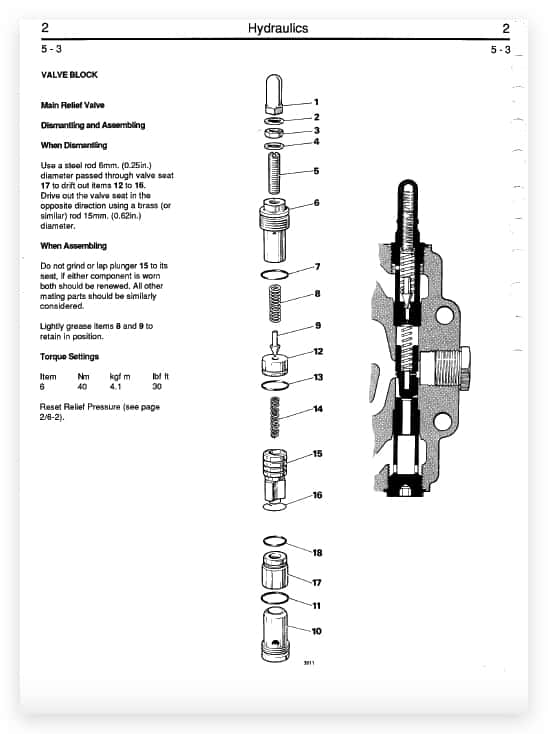

JCB 520HL/M, 525HL/B, 530HL/B and 540B/BM Loadall Service Manual Content:
Section.1 – General Information
Section.2 – Care and Safety
Section.3 – Maintenance
Section.A – Attachments
Section.B – Body and Framework
Section.C – Electrics
Section.D – Controls
Section.E – Hydraulics
Section.F – Transmission
Section.G – Brakes
Section.H – Steering
Section.K – Engine
