JCB 520-50, 525-50 Year 1996 – 2012 Loadall Service Manual Workshop Guide
JCB 520-50, 525-50 Year 1996 – 2012 Loadall Service Manual Workshop Guide
Regular price
$57.00 USD
Regular price
Sale price
$57.00 USD
Taxes included.
Shipping calculated at checkout.
Quantity
.
In Stock
Couldn't load pickup availability
Format : PDF
SUPPLIED AS DOWNLOADABLE LINK
Model:
Telescopic Handlers
Loadalls 520-50, 525-50
Language: English
Format PDF
Type: Service Repair Manual
Publication No: 9803/3620
JCB 520-50, 525-50 Year 1996 – 2012 Loadall Service Repair Manual – 279 Pages
Perkins 1000 Engine Service Manual – 370 Pages
This publication provides information for the following models in the JCB product range:
Loadall 520-50: S/N 0754000-1462269 (1996 – 2012)
Loadall 525-50: S/N 0789308-1049999 (1998 – 2003)
Description
JCB 520-50, 525-50 Year 1996 – 2012 Loadall Service Manual
Model:
Telescopic Handlers
Loadalls 520-50, 525-50
Language: English
Format PDF
Type: Service Manual
Publication No: 9803/3620
JCB 520-50, 525-50 Year 1996 – 2012 Loadall Service Manual – 279 Pages
Perkins 1000 Engine Service Manual – 370 Pages
This publication provides information for the following models in the JCB product range:
Loadall 520-50: S/N 0754000-1462269 (1996 – 2012)
Loadall 525-50: S/N 0789308-1049999 (1998 – 2003)
Section Numbering
The first three sections of this manual are numbered and contain the following information:
1 General Information includes torque settings and service tools.
2 Care and Safety includes warnings and cautions pertinent to aspects of workshop procedures etc.
3 Maintenance includes service schedules and recommended lubricants for all the machine.
The remaining sections are alphabetically coded and deal with Dismantling, Overhaul etc. of specific components, for example:
A Attachments
B Body and Framework, etc.
Section contents, technical data, circuit descriptions, operation descriptions etc. are present at the beginning of each alphabetically coded section.

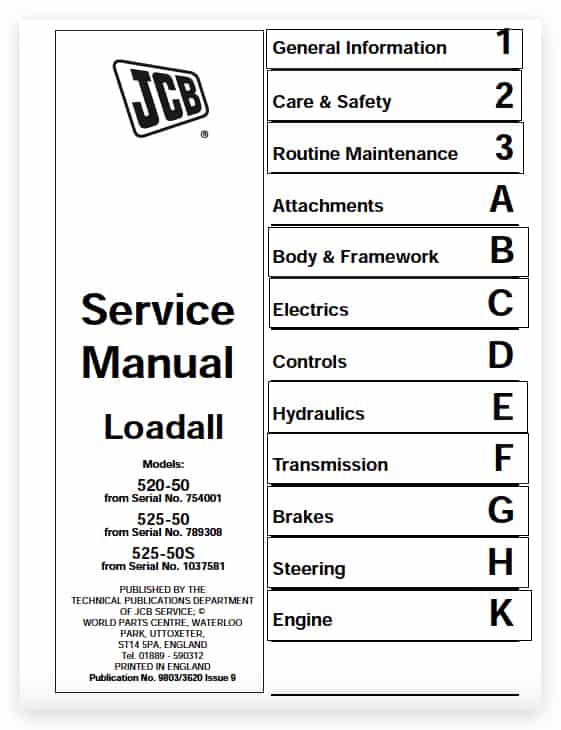

JCB 520-50, 525-50 Loadall Service Manual Content:
Service Manual – Side Engine Loadalls
Section.1 – General Information
Section.2 – Care and Safety
Section.3 – Maintenance
Section.A – Attachments

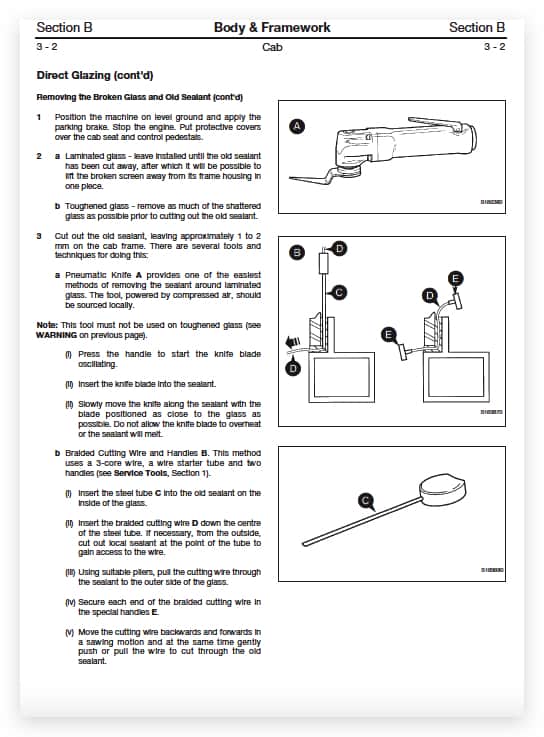

Section.B – Body and Framework

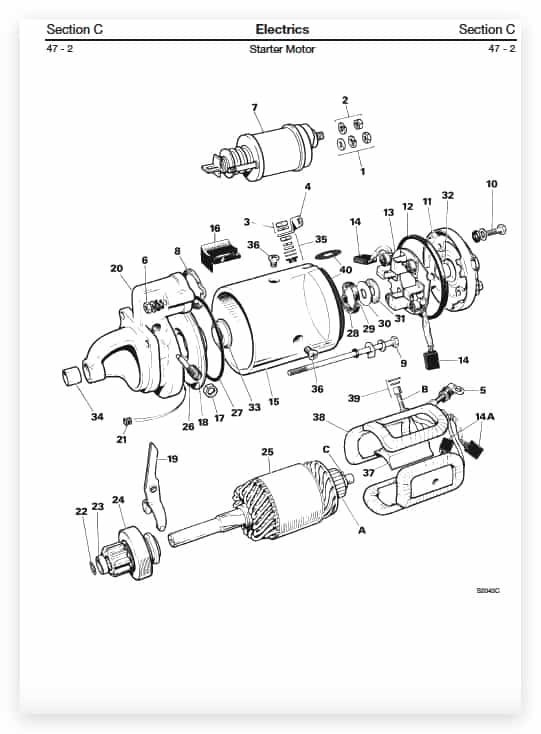

Section.C – Electrics
Section.D – Controls

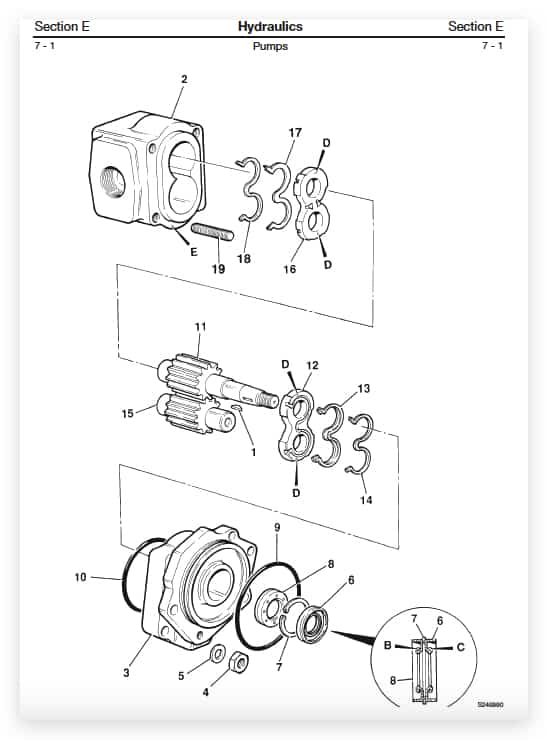

Section.E – Hydraulics
Section.F – Transmission
Section.G – Brakes
Section.H – Steering
Section.K – Engine
