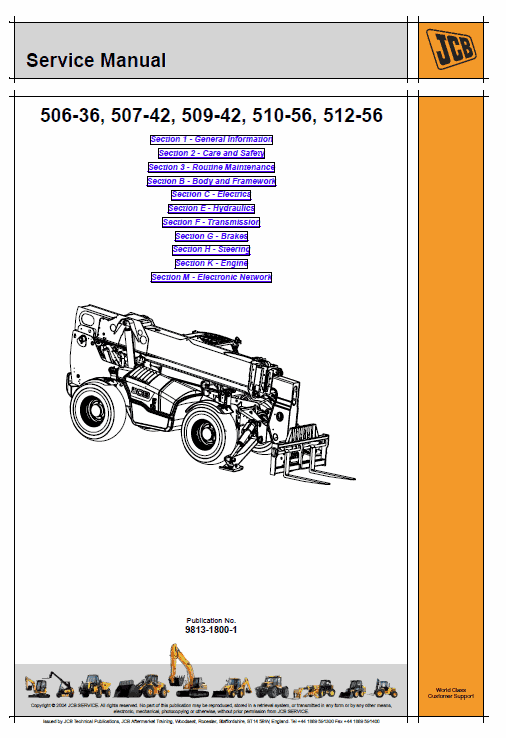

JCB 506-36, 507-42, 509-42, 510-56, 512-56, 514-56, 516-42 Loadall Service Repair Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Model:
Telescopic Handlers
Loadalls
Language: English
Format PDF
Model Covered : 506-36, 507-42, 509-42, 510-42, 510-56, 512-56, 514-56, 516-42
Publication No:
9823/1700 & 9823/1650 –
2364 Pages & 2046 Pages
9803/3740-08 & 9813/1800-2  –
1801 Pages & 1227 Pages
9813/5050 –
2046 Pages
Please scroll below for the full list of Publication number and corresponding Serial Number

Description
JCB 506-36, 507-42, 509-42, 510-56, 512-56, 514-56, 516-42 Loadall Service Repair Manual
Model:
Telescopic Handlers
Loadalls
Language: English
Format PDF
Type: Service Manual
Publication No:
9823/1700 & 9823/1650
506-36 – from SN 1402020-1402919 and SN 1185011-1185020
507-42 – from SN 1402000-1402919 and SN 1185011-1185020
509-42 – from SN 1402000-1402919 and SN 1185011-1185020
510-56 – from SN 1402000-1402919 and SN 1185012-1185015
512-56 – from SN 1402020-1402919 and SN 1185011-1185020
514-56 – from SN 1402020-1402919 and SN 1185011-1185020
JCB 506-36, 507-42, 509-42, 510-56, 512-56, 514-56 Loadall Service Manual – 2364 Pages & 2046 Pages
9803/3740-08 & 9813/1800-2:
506-36 – from SN 01403000-01404999, SN 02083497-02084497, SN 02144565-02149565, SN 02173052-02183052
507-42 – from SN 01403000-01404999, SN 02083497-02084497, SN 02144565-02149565, SN 02173052-02183052
509-42 – from SN 01403000-01404999, SN 02083497-02084497, SN 02144565-02149565, SN 02173052-02183052
510-56 – from SN 01403000-01404999, SN 02083497-02084497, SN 02144565-02149565, SN 02173052-02183052
512-56- from SN 01403000-01404999, SN 02083497-02084497, SN 02144565-02149565, SN 02173052-02183052
514-56 from SN 01403000-01404999, SN 02083497-02084497, SN 02144565-02149565, SN 02173052-02183052
JCB 506-36, 507-42, 509-42, 510-56, 512-56, 514-56 Loadall Service Manual – 1801 Pages & 1227 Pages
9813/5050:
506-36 – from SN 2433101 and onwards
507-42 – from SN 2433101 and onwards
509-42 – from SN 2433101 and onwards
510-42 – from SN 2433101 and onwards
510-56 – from SN 2433101 and onwards
512-56 – from SN 2433101 and onwards
514-56 – from SN 2433101 and onwards
516-42 – from SN 2433101 and onwards
JCB 506-36, 507-42, 509-42, 510-42, 510-56, 512-56, 514-56, 516-42 Loadall Service Manual – 2046 Pages
JCB Loadall Service Manual Content:
01 – Machine
03 – Attachments, Couplings and Load
Handling
06 – Body and Framework
09 – Operator Station
12 – Heating, Ventilating and Air- Conditioning (HVAC)
15 – Engine
18 – Fuel and Exhaust System
21 – Cooling System
24 – Brake System
25 – Steering System
27 – Driveline
30 – Hydraulic System
33 – Electrical System
72 – Fasteners and Fixings
75 – Consumable Products
78 – After Sales
Information in this manual conforms to a standard JCB service manual format.
Information in this manual can help you diagnose machine faults.
Before attempting to diagnose possible faults check the following.
• Make sure that the operator understands the machine controls, functions and use. Refer to the applicable Operator Manual.
• Check that the maintenance record complies with the applicable schedule for the operating environment.
• Check that the fluids in use comply with the standards specified.
• Make sure that the machine electronic set-up is applicable. Use the applicable Servicemaster vehicle set-up tool.
