JCB 3CX, 4CX, 214, 215, 217 Loader Service Repair Manual (0930000 – 0959999)

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Model:
Backhoe Loader
3CX, 4CX, 214, 215, 217 & Variants
Language: English
Format PDF
Type: Service Manual
Publication No: 9803/3280 Issue 9
For Serial no:
0930000 – 0959999
0903000- 0905900 (North America Only)
JCB 3CX, 4CX, 214, 215, 217 & Variants Backhoe Loader Service Manual – 1212 Pages

Description
JCB 3CX, 4CX, 214, 215, 217 Loader Service Repair Manual (0930000 – 0959999)
Model:
Backhoe Loader
3CX, 4CX, 214, 215, 217 & Variants
Language: English
Format PDF
Type: Service Manual
Publication No: 9803/3280 Issue 9
For Serial no:
0930000 – 0959999
0903000- 0905900 (North America Only)
JCB 3CX, 4CX, 214, 215, 217 & Variants Backhoe Loader Service Manual – 1212 Pages
Section Numbering
The first three sections of this manual are numbered and contain the following information:

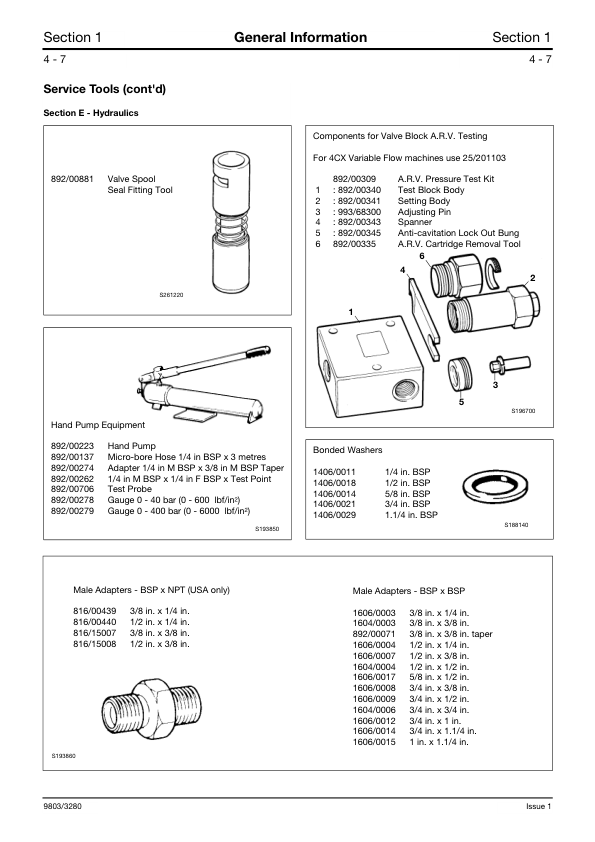

1 General Information includes torque settings and service tools.
2 Care and Safety includes warnings and cautions pertinent to aspects of workshop procedures etc.
3 Maintenance includes service schedules and recommended lubricants for all the machine.
The remaining sections are alphabetically coded and deal with Dismantling, Overhaul etc. of specific components, for example:
A Attachments
B Body and Framework, etc.
Section contents, technical data, circuit descriptions, operation descriptions etc. are present at the beginning of each alphabetically coded section.

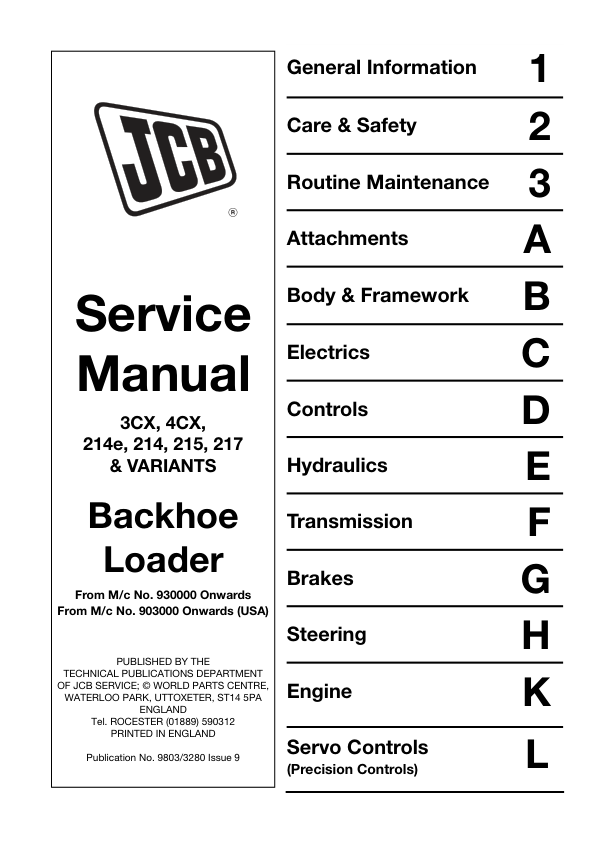

JCB 3CX, 4CX, 214, 215, 217 & Variants Backhoe Loader Service Manual Content:
Section.1 General Information
Section.2 Care and Safety
Section.3 Routine Maintenance
Section.A Attachments
Section.B Body and Framework
Section.C Electrics
Section.D Controls
Section.E Hydraulics

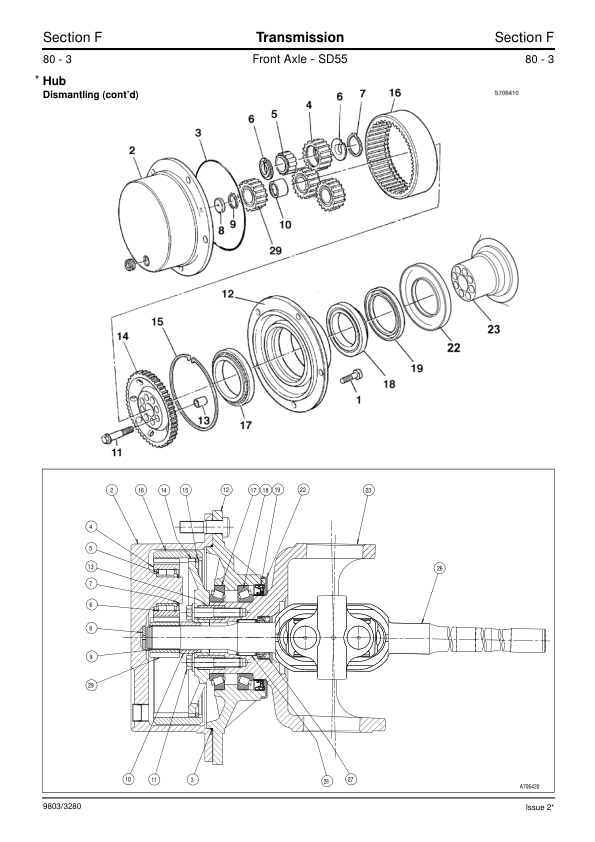

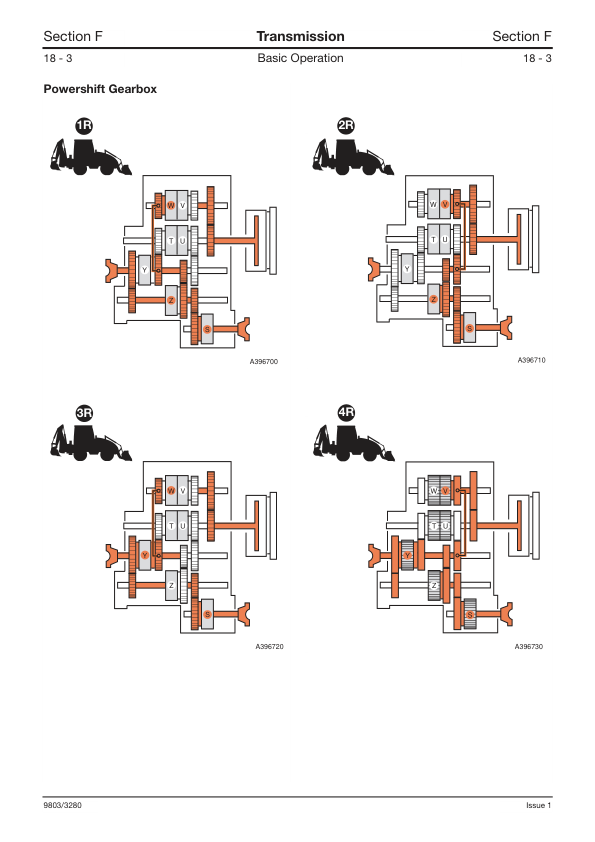

Section.F Transmission
Section.G – Brakes
Section.H Steering
Section.K Engine
