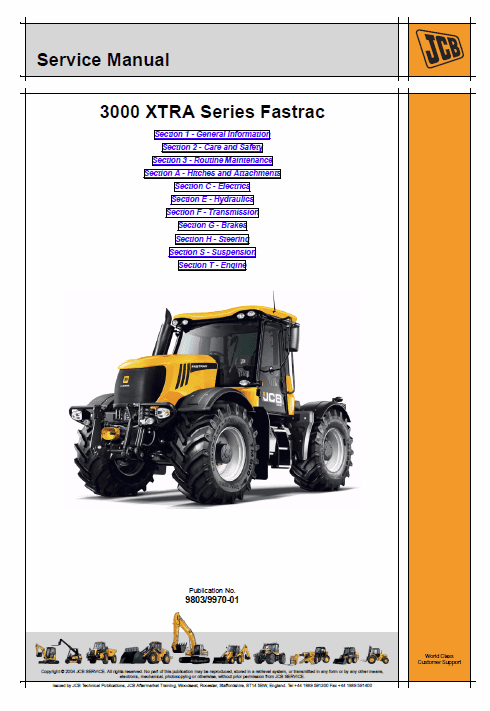

JCB 3000 XTRA Series Fastrac Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Model: Fastrac 3000 XTRA
Language: English
Format PDF
Type: Service Repair Manual
Publication No: 9803/9970-01
JCB 3000 XTRA Series Fastrac Service Repair Manual – 725 Pages

Description
JCB 3000 XTRA Series Fastrac Service Manual
Model:
Fastrac
3000 XTRA
Language: English
Format PDF
Type: Service Manual
Publication No: 9803/9970-01
JCB 3000 XTRA Series Fastrac Service Manual – 725 Pages
Section Numbering
The first three sections of this manual are number and contain the following information:
1 General Information – includes torque settings and service tools.
2 Care and Safety – includes warnings and cautions pertinent to aspects of workshop procedures etc.
3 Maintenance – includes service schedules and recommended lubricants for all the machine.
The remaining sections are alphabetically coded and deal with Dismantling, Overhaul etc. of specific components, for example:
A Attachments
B Body and Framework, etc.
Section contents, technical data, circuit descriptions, operation descriptions etc. are inserted at the beginning of each alphabetically coded section.
JCB 3000 XTRA Series Fastrac Service Manual Content:
1 – General Information
2 – Care and Safety
3 – Maintenance
A – Hitches and Attachments
C – Electrics

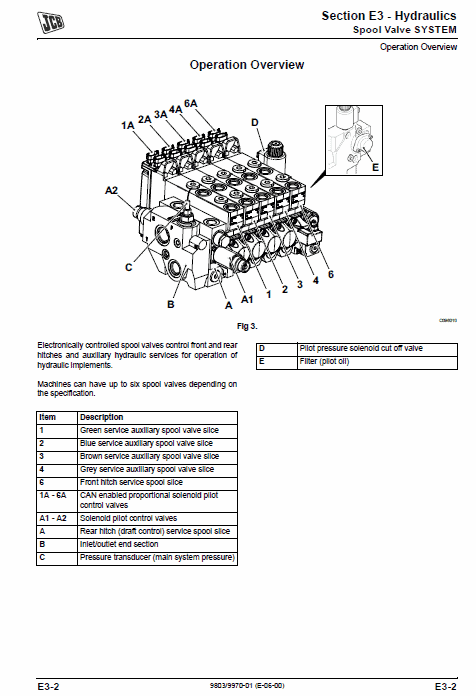

E – Hydraulics
F – Transmission
G – Brakes

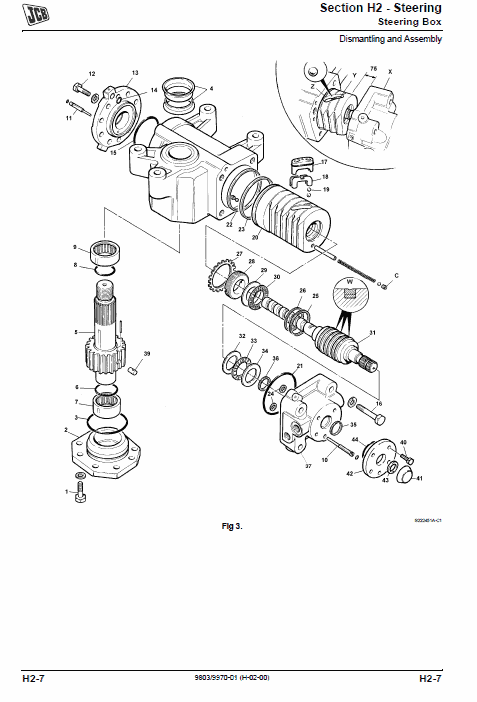

H – Steering

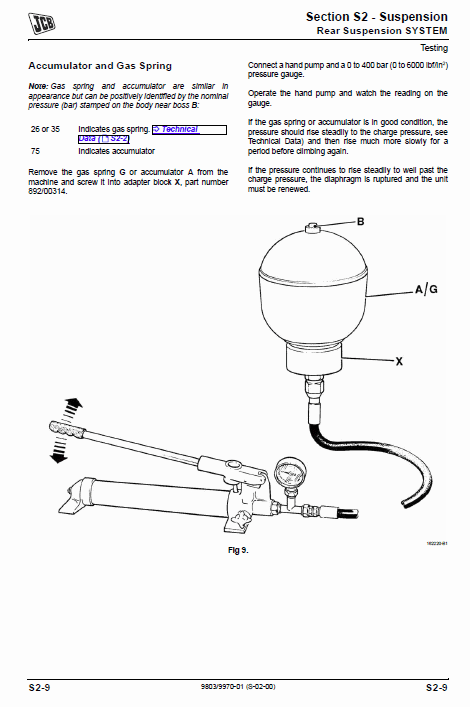

S – Suspension
T – Engine
