JCB 2CX Backhoe Loader Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

JCB 2CX Backhoe Loader Service Repair Manual
This manual contains information for the 210S U.S.A build machine as well.
Publication No: 9803/7100
Language: English
Format PDF
Type: Service Repair Manual
JCB 2CX Backhoe Loader Service Repair Manual – 342 Pages

Description
JCB 2CX Backhoe Loader Service Manual
This manual contains information for the 210S U.S.A build machine as well.
Publication No: 9803/7100
Language: English
Format PDF
Type:
Backhoe Loader
JCB 2CX Backhoe Loader Service Manual – 342 Pages
Only for Serial : 0655030-0656999
Section Numbering
The first three sections of this manual are numbered and contain the following information:
1 General Information – includes torque settings and service tools.
2 Care and Safety – includes warnings and cautions pertinent to aspects of workshop procedures etc.
3 Maintenance – includes service schedules and recommended lubricants for all the machine.
The remaining sections are alphabetically coded and deal with Dismantling, Overhaul etc. of specific components, for example:
A Attachments
B Body and Framework, etc.
Section contents, technical data, circuit descriptions, operation descriptions etc. are inserted at the beginning of each alphabetically coded section.

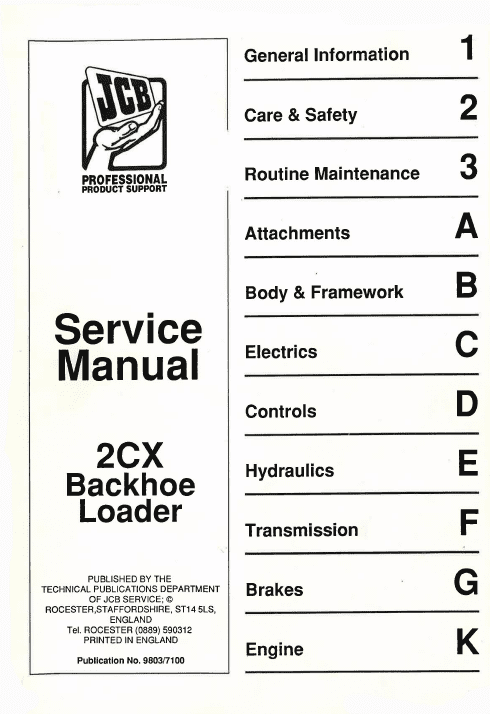

JCB 2CX Backhoe Loader Service Manual Content:
Section.1 – General Information
Section.2 – Care and Safety
Section.3 – Routine Maintenance
Section.A – Attachments
Section.B – Body and Framework
Section.C – Electrics
Section.D – Controls

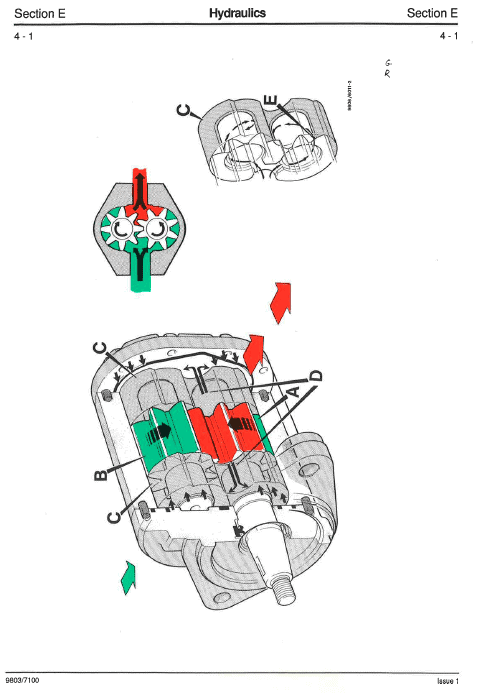

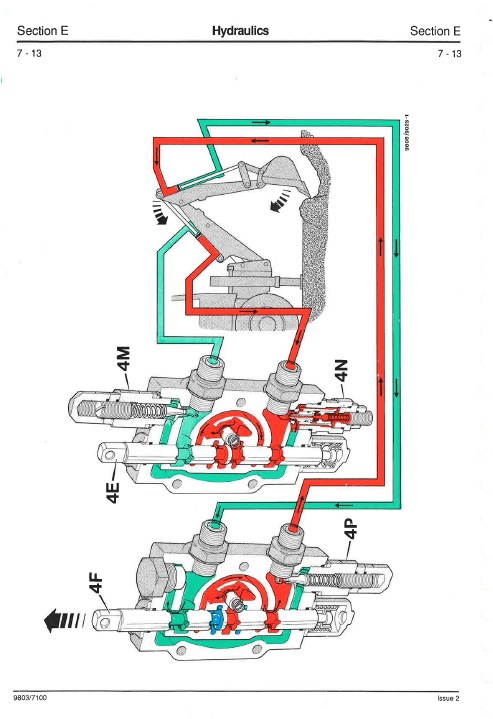

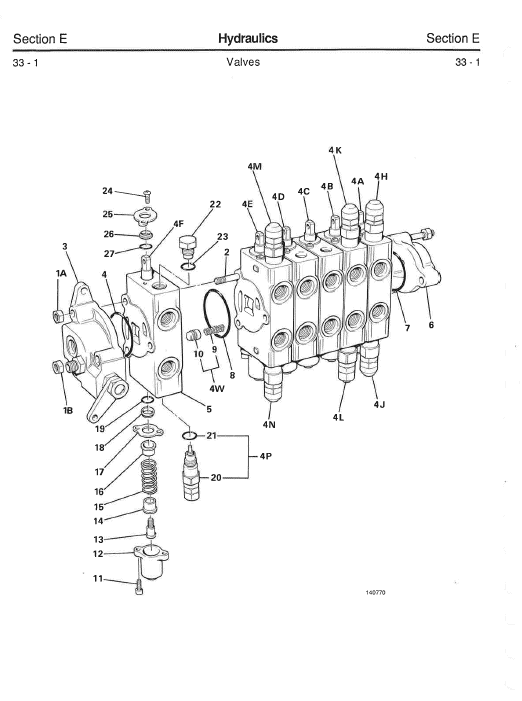

Section.E – Hydraulics
Section.F – Transmission
Section.G – Brakes
Section.K – Engine
