JCB 1THT Site Dumper Thwaites Service Manual Workshop Guide
JCB 1THT Site Dumper Thwaites Service Manual Workshop Guide
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Taxes included.
Shipping calculated at checkout.
Quantity
.
In Stock
Couldn't load pickup availability
Format : PDF
SUPPLIED AS DOWNLOADABLE LINK
Model:
Dumper
1THT
Language: English
Format PDF
Type: Service Repair Manual
Publication No: 9813/5200
Machine Model and Serial Number
JCB 1THT Site Dumper Thwaites Service Repair Manual 614 Pages
Description
JCB 1THT Site Dumper Thwaites Service Manual
Model:
Dumper
1THT
Language: English
Format PDF
Type: Service Manual
Publication No: 9813/5200
Machine Model and Serial Number
JCB 1THT Site Dumper Thwaites Service Manual 614 Pages
Section Numbering
The first three sections of this manual are numbered and contain the following information:
1 General Information includes torque settings and service tools.
2 Care and Safety includes warnings and cautions pertinent to aspects of workshop procedures etc.
3 Maintenance includes service schedules and recommended lubricants for all the machine.
The remaining sections are alphabetically coded and deal with Dismantling, Overhaul etc. of specific components, for example:
A Attachments
B Body and Framework, etc.
Section contents, technical data, circuit descriptions, operation descriptions etc. are present at the beginning of each alphabetically coded section.
JCB 1THT Site Dumper Thwaites Service Manual Content:

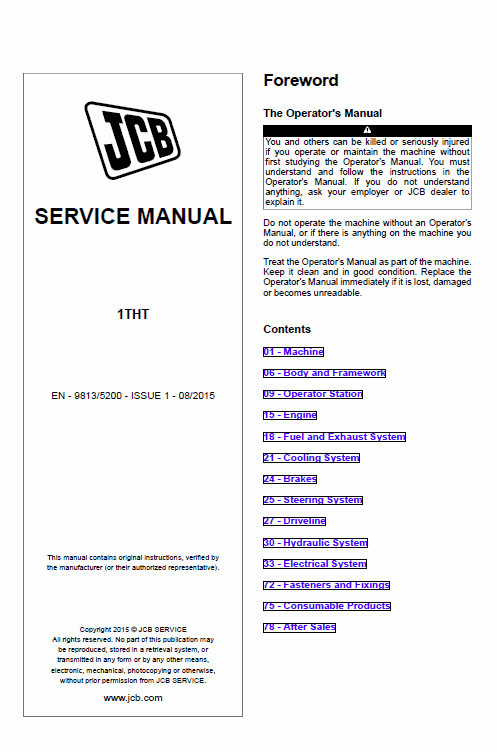

Contents
01 – Machine
06 – Body and Framework
09 – Operator Station
15 – Engine

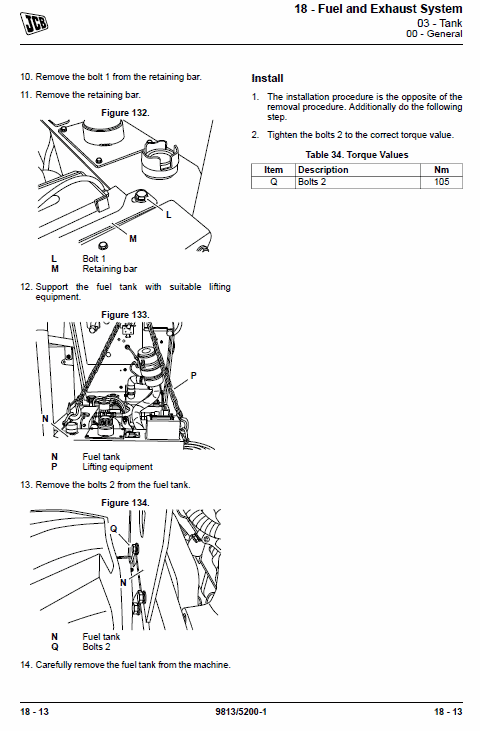

18 – Fuel and Exhaust System
21 – Cooling System
24 – Brakes

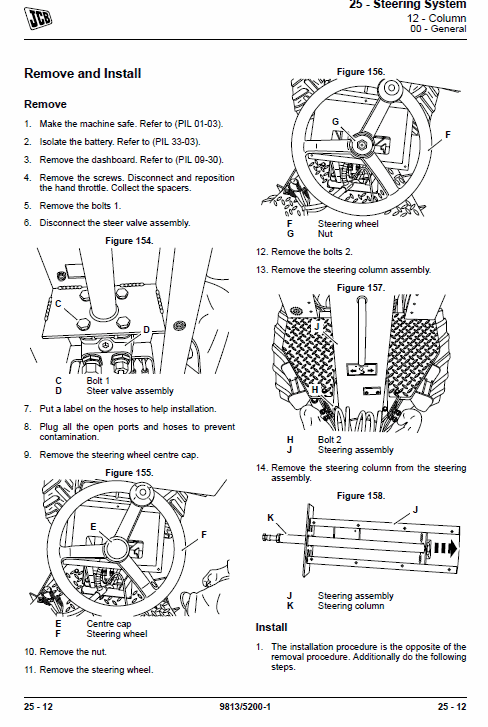

25 – Steering System
27 – Driveline

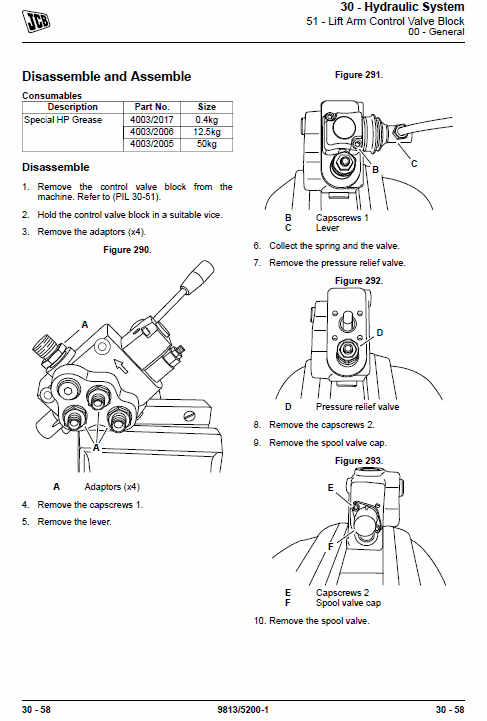

30 – Hydraulic System
33 – Electrical System
72 – Fasteners and Fixings
75 – Consumable Products
78 – After Sales
Where a torque setting is specify as a single figure it may vary by plus or minus 3%. Torque figures indicated are for dry threads, hence for lubrication threads may be reduce by one third.
