JCB 1CX Backhoe Loader Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

JCB 1CX Backhoe Loader Service Repair Manual
Machine Model and Serial Number
This manual provides information for the following model(s) in the JCB machine range:
1CX (series 1) from serial 751600
1CX (series 2) from serial 1743153
Publication No: 9803/9960-4
Language: English, Format PDF , Type: Service Repair Manual
JCB 1CX Backhoe Loader Service Repair Manual – 477 Pages

Description
JCB 1CX Backhoe Loader Service Manual
Machine Model and Serial Number
This manual provides information for the following model(s) in the JCB machine range:
1CX (series 1) from serial 751600
1CX (series 2) from serial 1743153
Publication No: 9803/9960-4
Language: English, Format PDF , Type:
Backhoe Loader
JCB 1CX Backhoe Loader Service Manual – 477 Pages
Section Numbering
The first three sections of this manual are numbered and contain the following information:
1 General Information – includes torque settings and service tools.
2 Care and Safety – includes warnings and cautions pertinent to aspects of workshop procedures etc.
3 Maintenance – includes service schedules and recommended lubricants for all the machine.
The remaining sections are alphabetically coded and deal with Dismantling, Overhaul etc. of specific components, for example:
A Attachments
B Body and Framework, etc.
Section contents, technical data, circuit descriptions, operation descriptions etc. are inserted at the beginning of each alphabetically coded section.

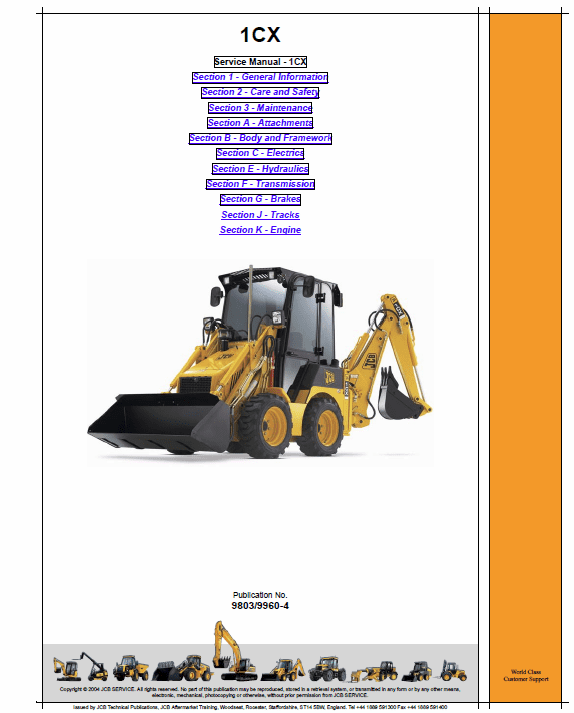

JCB 1CX Backhoe Loader Service Manual Content:
Section.1 – General Information
Section.2 – Care and Safety
Section.3 – Maintenance
Section.A – Attachments

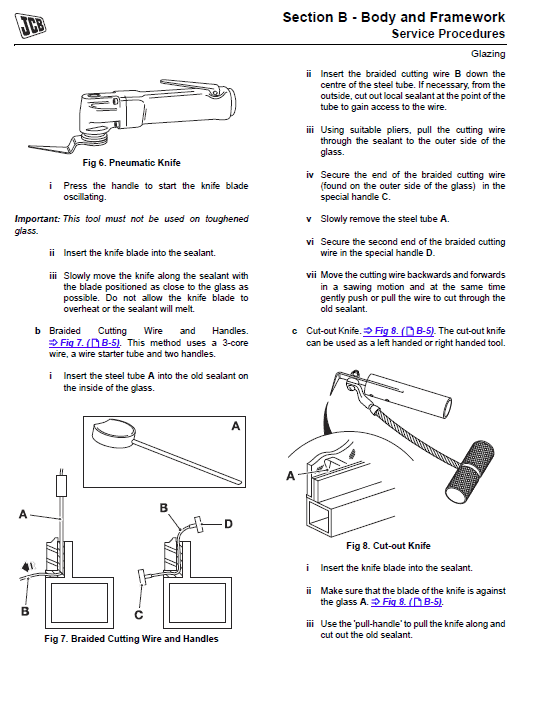

Section.B – Body and Framework
Section.C – Electrics

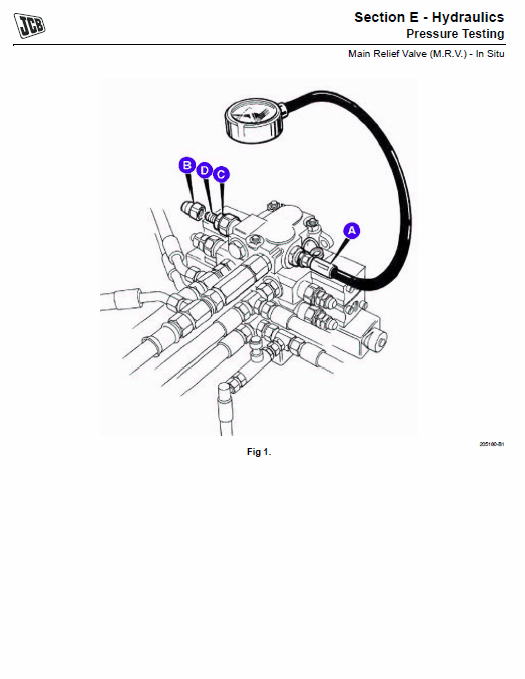

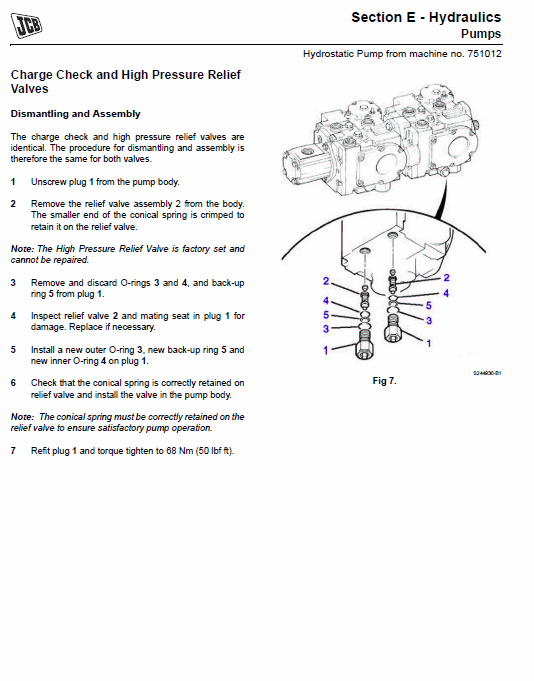

Section.E – Hydraulics
Section.F – Transmission
Section.G – Brakes
Section.J – Tracks
Section.K – Engine
