JCB 1CX, 208S Backhoe Loader Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Publication No: 9803/8550 issue 12
Language: English, Format PDF , Type:
Backhoe Loader
JCB 1CX, 208S Backhoe Loader Service Manual 232 Pages
Applicable Serial Number:
1CX from serial 751600 to 752999
1CX from serial 806000 Onwards
208S from serial 751600 to 752999
208S from serial 806000 Onwards

Description
JCB 1CX 208S Backhoe Loader Service Manual
Publication No: 9803/8550
Language: English, Format PDF , Type:
Backhoe Loader
JCB 1CX, 208S Backhoe Loader Service Manual 232 Pages
Applicable Serial Number:
1CX from serial 751600 to 752999
1CX from serial 806000 Onwards
208S from serial 751600 to 752999
208S from serial 806000 Onwards
Section Numbering
The first three sections of this manual are numbered and contain the following information:
1 = General Information – includes torque settings and service tools.
2 = Care & Safety – includes warnings and cautions pertinent to aspects of workshop procedures etc.
3 = Routine Maintenance – includes service schedules and recommended lubricants for all the machine.
The remaining sections are alphabetically coded and deal with Dismantling, Overhaul etc. of specific components, for example:
A = Attachments
B = Body & Framework …etc.
Section contents, technical data, circuit descriptions, operation descriptions etc. are at the beginning of each alphabetically coded section.

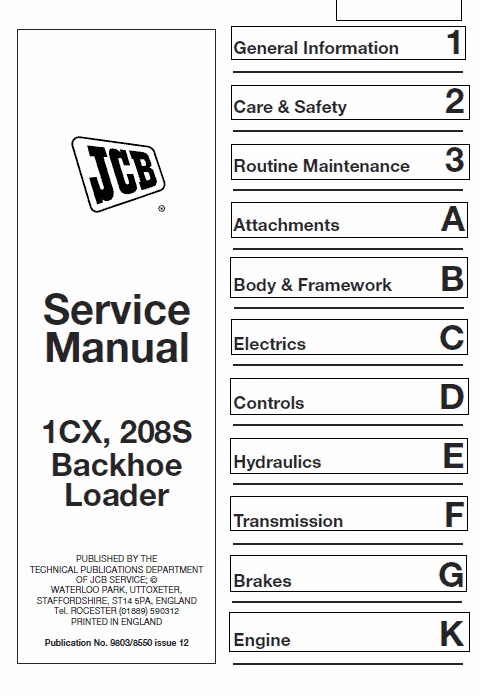

JCB 1CX, 208S Backhoe Loader Service Manual Content:
General Information 1
Care & Safety 2
Routine Maintenance 3
Attachments A
Body & Framework B
Electrics C
Controls D

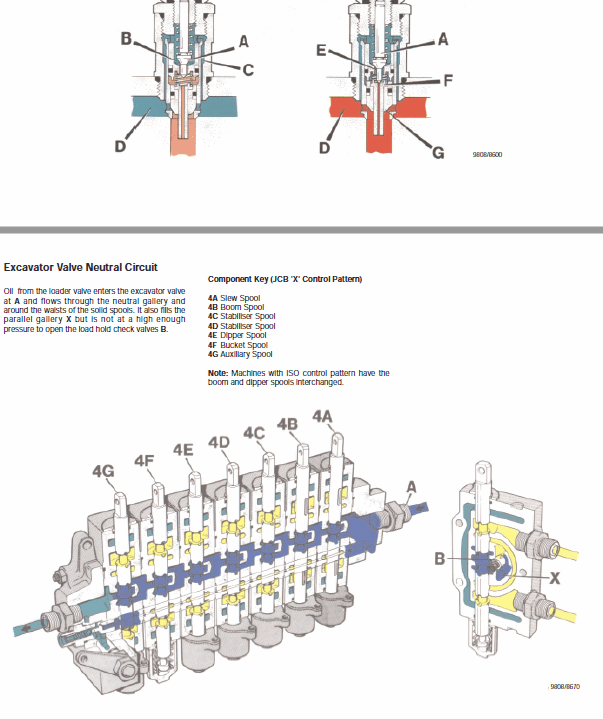

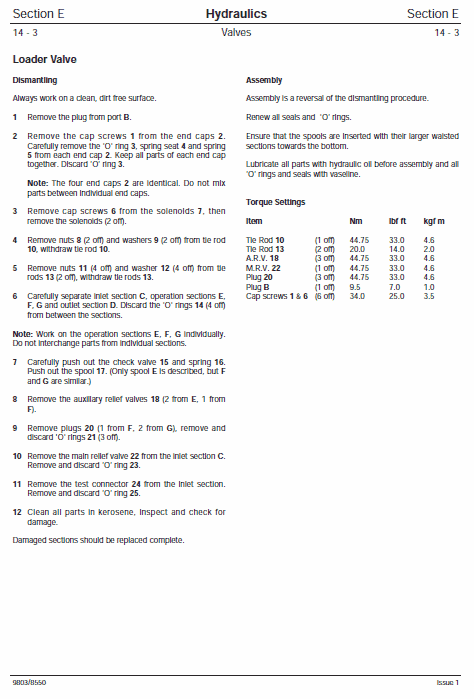

Hydraulics E
Transmission F
Brakes G
Engine K
