JCB 1115, 1115S, 1125, 1135 Fastrac Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Model: Fastrac 1115, 1115S, 1125, 1135
Language: English
Format PDF
Type: Service Repair Manual
Publication No: 9803/8010
JCB 1115, 1115S, 1125, 1135 Fastrac Service Repair Manual – 562 Pages
See description for serial number covered

Description
JCB 1115, 1115S, 1125, 1135 Fastrac Service Manual
Model:
Fastrac
1115, 1115S, 1125, 1135
Language: English
Format PDF
Type: Service Manual
Publication No: 9803/8010
JCB 1115, 1115S, 1125, 1135 Fastrac Service Manual – 562 Pages
Applicable serial number:
1115 – 00736000-00736999
1115S – 00737001-00737999
1125 – 00737098-00737464
1135 – 00736000-00736999
1135 – 00737017-00737575
Section Numbering
The first three sections of this manual are number and contain the following information:
1 General Information – includes torque settings and service tools.
2 Care and Safety – includes warnings and cautions pertinent to aspects of workshop procedures etc.
3 Maintenance – includes service schedules and recommended lubricants for all the machine.
The remaining sections are alphabetically coded and deal with Dismantling, Overhaul etc. of specific components, for example:
A Attachments
B Body and Framework, etc.
Section contents, technical data, circuit descriptions, operation descriptions etc. are inserted at the beginning of each alphabetically coded section.

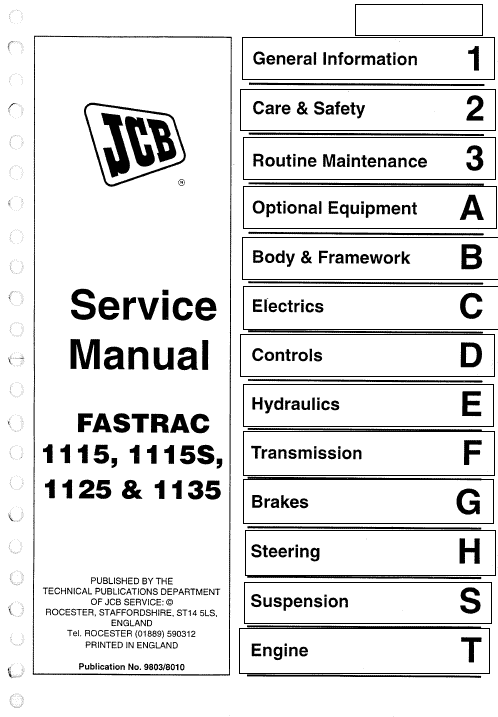

JCB 1115, 1115S, 1125, 1135 Fastrac Service Manual Content:
1 – General Information
2 – Care and Safety
3 – Routine Maintenance
A – Optional Equipment
B – Body and Framework
C – Electrics

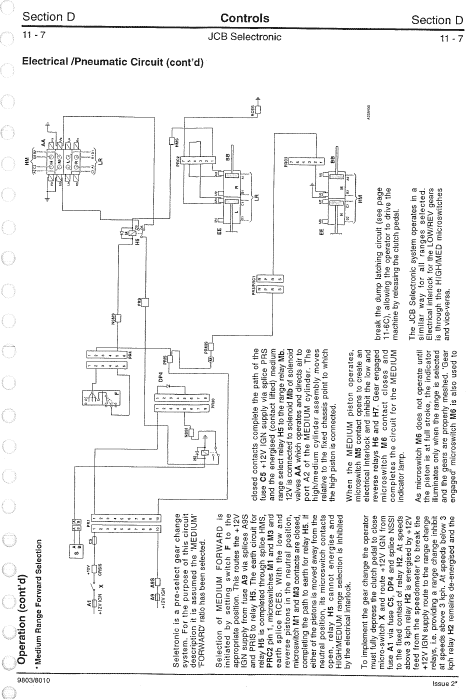

D – Controls
E – Hydraulics

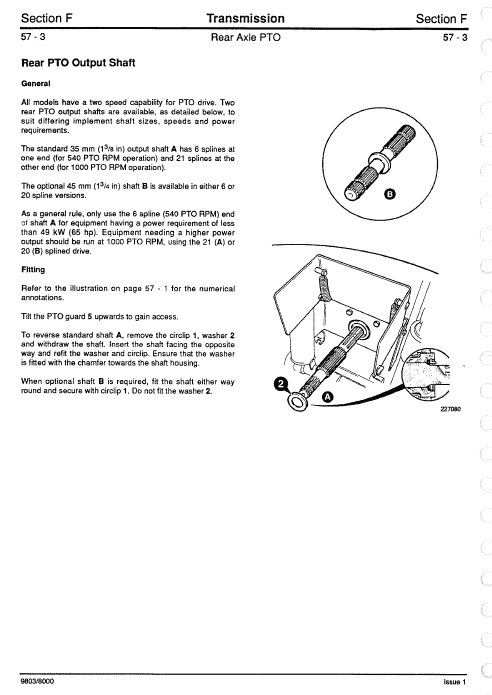

F – Transmission
G – Brakes
H – Steering
S – Suspension
T – Engine
