ISUZU AA-4BG1T AA-6BG1 BB-4BG1T BB-6BG1T Industrial Diesel Engine Workshop Manual 9806-2210

ISUZU AA-4BG1T AA-6BG1 BB-4BG1T BB-6BG1T Industrial Diesel Engine Workshop Manual 9806-2210
===========================================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 6.54 MB
Pages: 220
Format: PDF
Language: English
Brand: ISUZU

CONTENTS (Table of Contents):
----------------------------------------

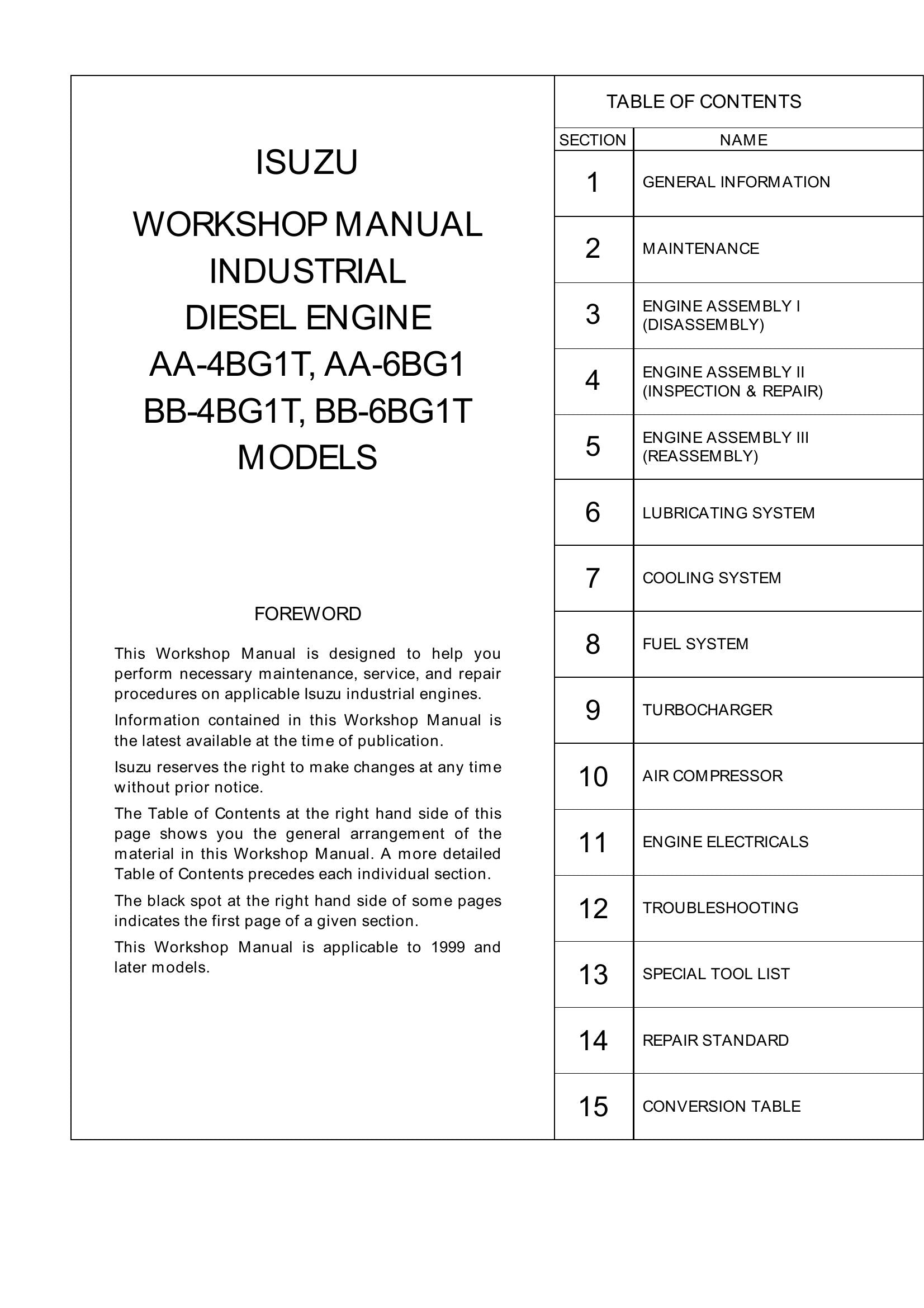

ISUZU
WORKSHOP MANUAL
INDUSTRIAL
DIESEL ENGINE
AA-4BG1T, AA-6BG1
BB-4BG1T, BB-6BG1T
MODELS
FOREWORD
This Workshop Manual is designed to help you
perform necessary maintenance, service, and repairprocedures on applicable Isuzu industrial engines.
Information contained in this Workshop Manual is
the latest available at the time of publication.
Isuzu reserves the right to make changes at any time
without prior notice.
The black spot at the right hand side of some pages
This Workshop Manual is applicable to 1999 and
23456789
101112131415GENERAL INFORMATION
MAINTENANCE
ENGINE ASSEMBLY I
(DISASSEMBLY)
ENGINE ASSEMBLY II
(INSPECTION & REPAIR)
ENGINE ASSEMBLY III
(REASSEMBLY)
LUBRICATING SYSTEM
COOLING SYSTEM

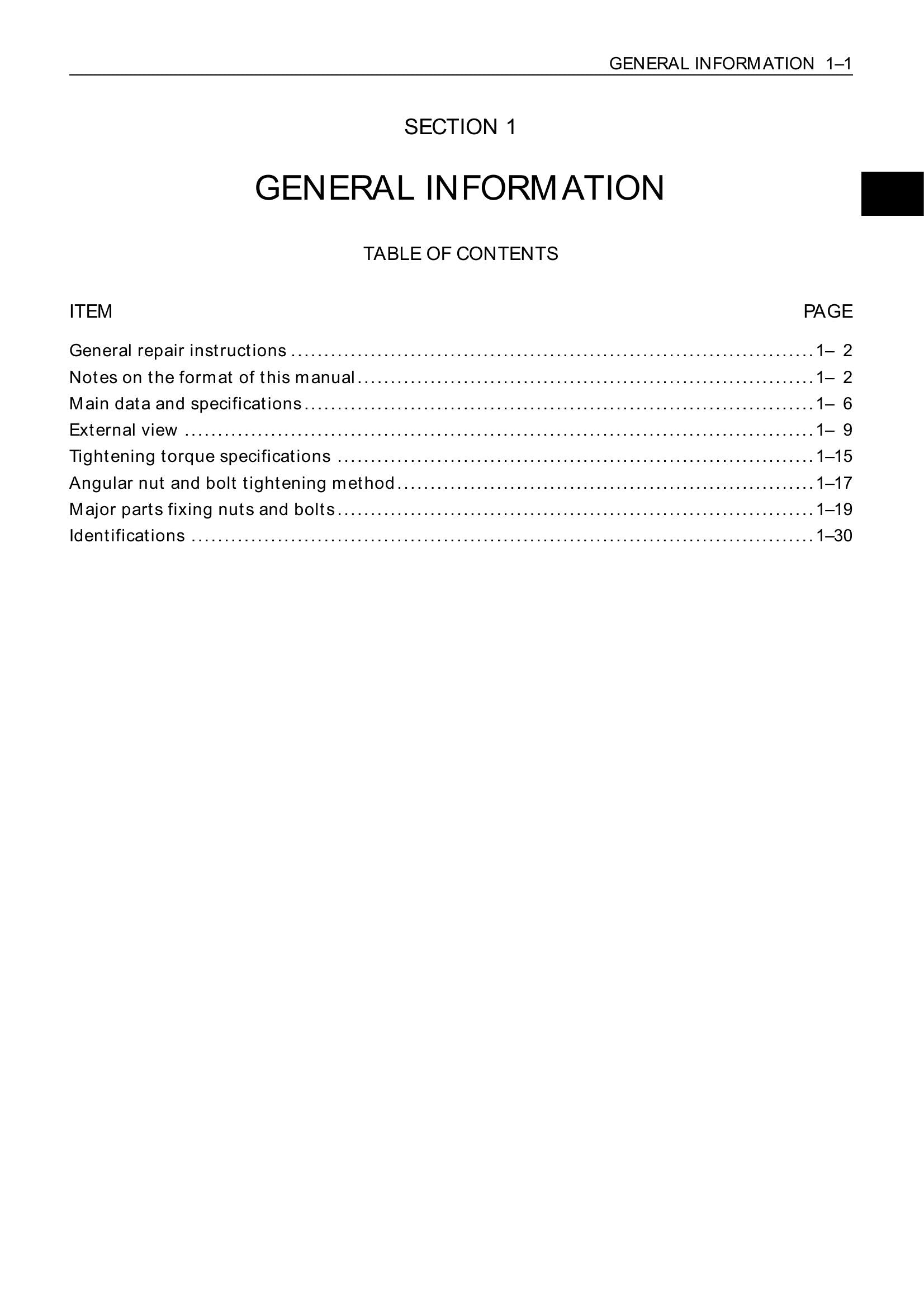

GENERAL INFORMATION 1–1
GENERAL INFORMATION
ITEM PAGE
1–2 GENERAL INFORMATION
NOTES ON THE FORMAT OF THIS MANUAL
This Workshop Manual is applicable to the 4BG1, 4BG1T, 6BG1, and 6BG1T family of industrial diesel
reassembly.
to the appropriate page.
5. For the sake of brevity, self-explanatory removal and installation procedures are omitted.
More complex procedures are covered in detail.GENERAL REPAIR INSTRUCTIONS
1. Before performing any service operation with the engine mounted, disconnect the grounding cable
from the battery.
This will reduce the chance of cable damage and burning due to short circuiting.
2. Always use the proper tool or tools for the job at hand.
Where specified, use the specially designed tool or tools.
remove them. Replace them with new ones.
5. Always keep disassembled parts neatly in groups. This will ensure a smooth reassembly operation.
depending on their installation position.
6. All parts should be carefully cleaned before inspection or reassembly.
Oil ports and other openings should be cleaned with compressed air to make sure that they are com-
pletely free of obstructions.
or disconnecting pipes and hoses. To not do so is extremely dangerous.

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
