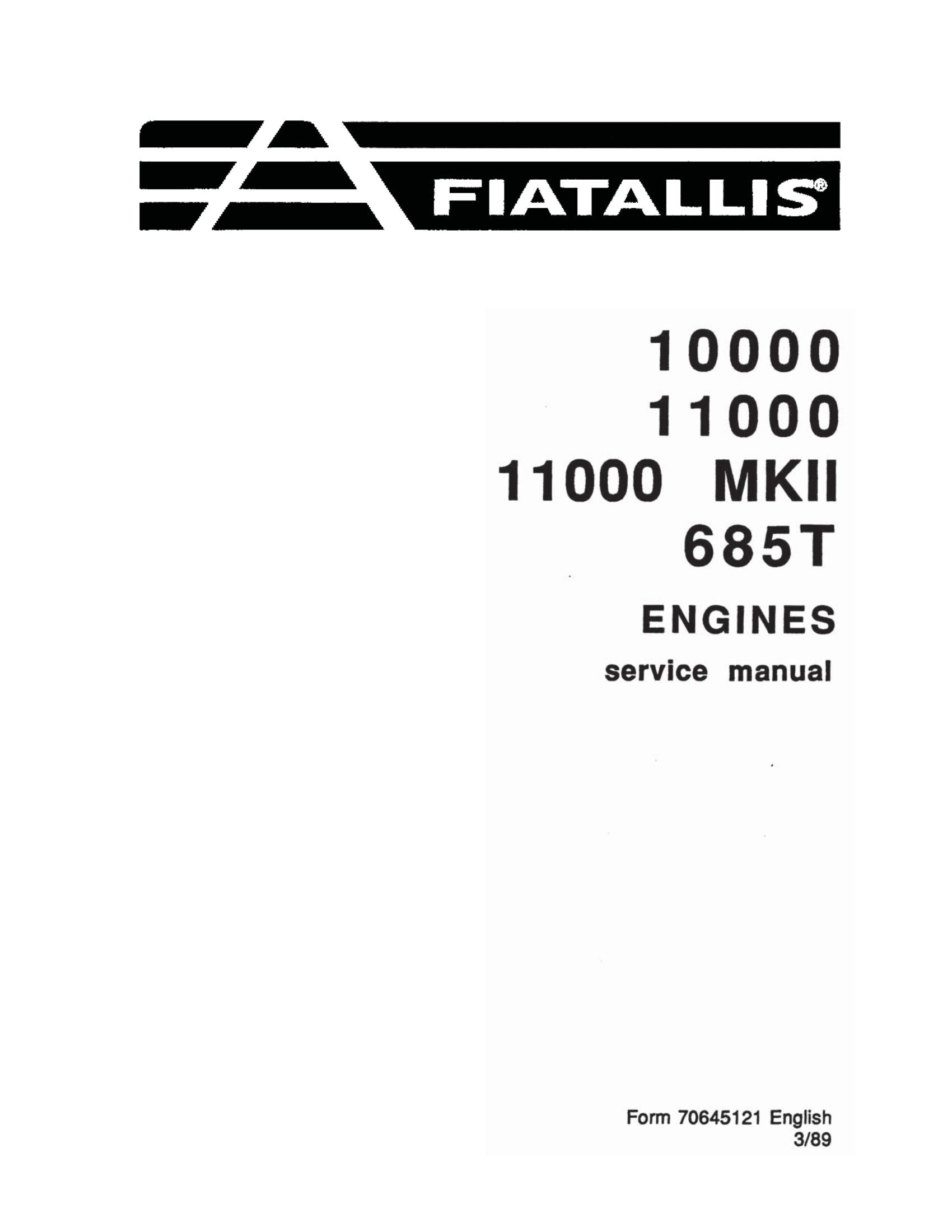

FIATALLIS 10000 11000 11000 MKII 685T Engines Factory Workshop Service Manual 70645121

FIATALLIS 10000 11000 11000 MKII 685T Engines Factory Workshop Service Manual 70645121
======================================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 44.73 MB
Pages: 240
Format: PDF
Language: English
Brand: FIAT

CONTENTS (Table of Contents):
----------------------------------------
- Supplement No. 6 Service Manual Form 70645121 10000, 11000, 11000 MKII, 685T Engines

- Supplement No. 5 Service Manual Form 70645121 10000, 11000, 11000 MKII Engines

- Supplement No. 4 Service Manual Form 70645121 10000, 11000, 11000 MKII Engines

- Supplement No. 3 Service Manual Form 0645121-5 (7-66) 10000, 11000 Engines Construction Machinery Division

- Section 1 - Description and Specifications

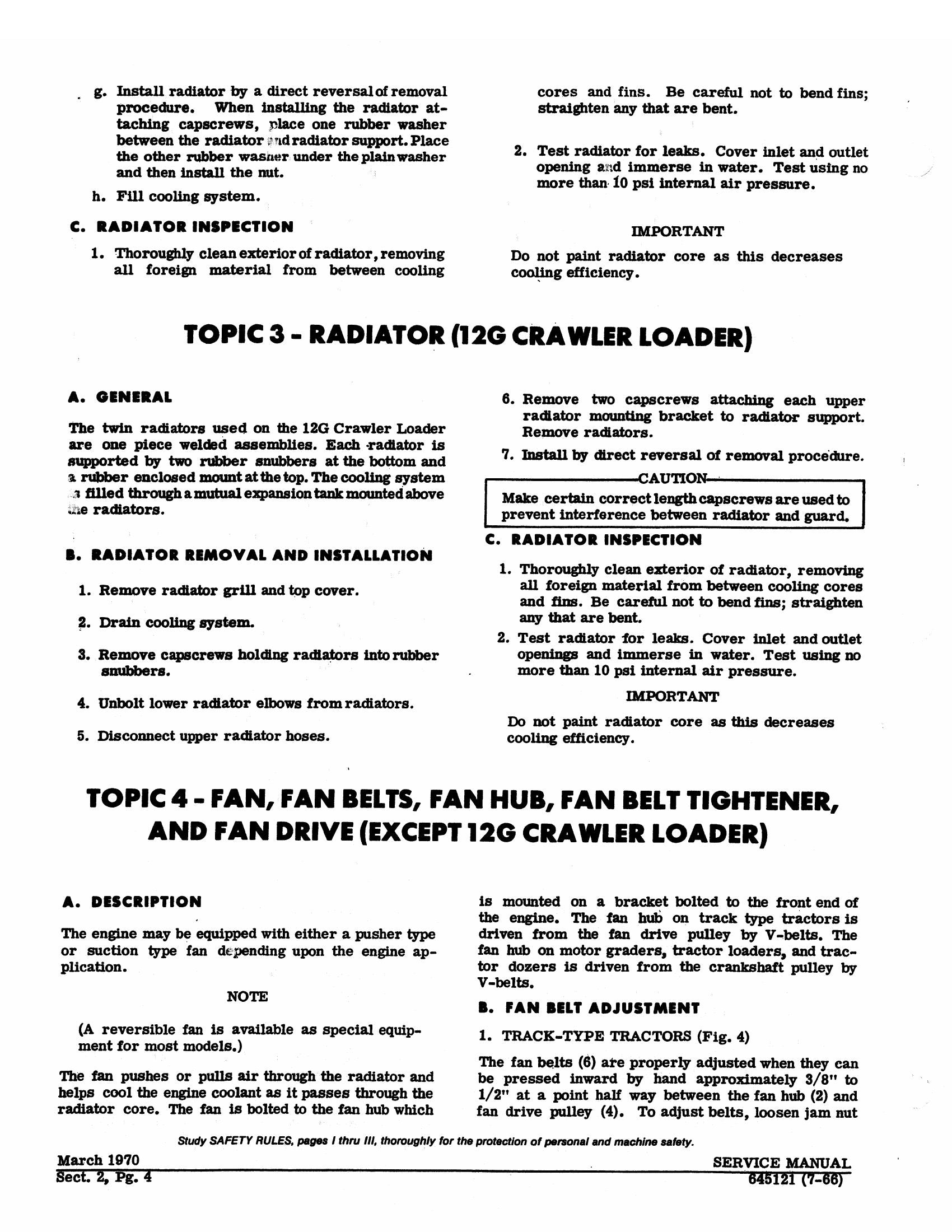

- Section 2 - Cooling System

- Section 3 - Electrical System

- Section 4 - Fuel System (With American Bosch Fuel Injection Pump)

- Section 5 - Fuel System (With Roosa Master Fuel Injection Pump)

- Section 5A - Fuel System (With Bosch (Germany) Fuel Injection Pump)

- Section 6 - Air Cleaner and Intake Manifold

- Section 7 - Exhaust Manifold and Turbocharger

- Section 8 - Valves, Valve Operating Mechanism, and Cylinder Heads

- Section 9 - Front End and Gear Train

- Section 10 - Flywheel and Ring Gear; Flywheel Housing and Crankshaft Rear Oil Seal

- Section 11 - Lubrication System

- Section 12 - Camshaft and Camshaft Bearings

- Section 13 - Pistons, Piston Rings, Connecting Rods, and Connecting Rod Bearings

- Section 14 - Crankshaft and Crankshaft Gear, Main Bearings, and Main Bearing Caps

- Section 15 - Cylinder Block and Cylinder Sleeves

- Section 16 - Engine Removal and Installation

- Section 17 - Engine Disassembly and Assembly

- Section 18 - Fits and Tolerances; Bolt, Capscrew, and Nut Torque Wrench Specifications; Stud Gauge Heights

- Section 19 - Troubleshooting

- Section 20 - Service Tools

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
