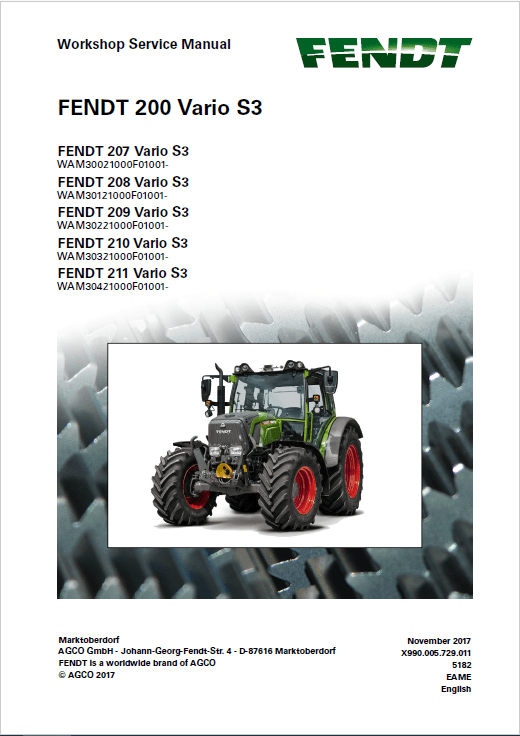

Fendt 207, 208, 209, 210, 211 Vario S3 Tractors Workshop Repair Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual for:
AGCO Fendt
Series: FENDT 200 Vario S3
Format: PDF
English
Fendt 207, 208, 209, 210, 211 Vario S3 Tractors Workshop Repair Manual – 1206 Pages
Fendt 900 Vario S4 (Tier 4) Wiring Diagram and Schematics – 149 Pages
Operators Manual – 206 Pages
Maintenance Manual – 192 Pages

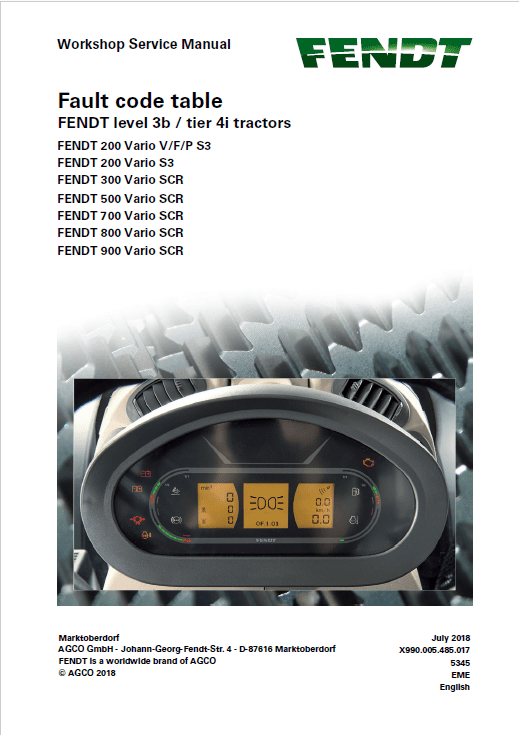

Fault Code Table – 238 Pages
Applicable Models: Please see below description

Description
Fendt 207, 208, 209, 210, 211 Vario S3 Tractors Workshop Repair Manual
Manual for:
AGCO Fendt
Series: FENDT 200 Vario S3
Format: PDF
English
Applicable Models:
Model
Chassis Number
Serial
FENDT 207 Vario S3
300
WAM30021000F01001 –
FENDT 208 Vario S3
301
WAM30121000F01001 –
FENDT 209 Vario S3
302
WAM30221000F01001 –
FENDT 210 Vario S3
303
WAM30321000F01001-
FENDT 211 Vario S3
304
WAM30421000F01001-
Fendt 207, 208, 209, 210, 211 Vario S3 Tractors Workshop Repair Manual – 1206 Pages
Fendt 900 Vario S4 (Tier 4) Wiring Diagram and Schematics – 149 Pages
Operators Manual – 206 Pages
Maintenance Manual – 192 Pages
Fault Code Table – 238 Pages
Workshop Manual TABLE OF CONTENTS
General Information
Safety Instructions
Tightening requirements
Fuels and lubricants
Technical specification

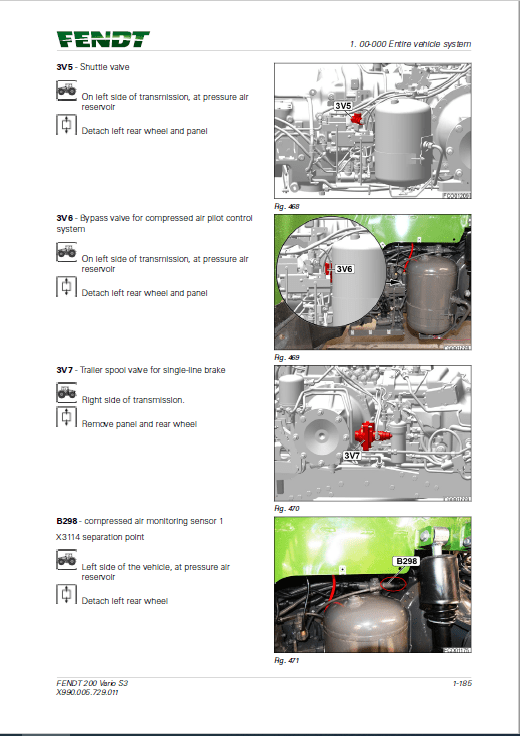

Component position
Fault code tables
Engine, fuel and exhaust system
General
Engine
Intake system
Fuel system
Cooling system
Lubrication oil system
Exhaust after-treatment
Front axle
Differential unit
Front axle suspension
Steering system
Attach sensor
Variotronic
Drive train
General
Rear Axle
Vario Insert
Clutch
Housing
Front PTO
Rear PTO
Front Wheel Drive
Brake System
Compressed Air System
General
Diagram
Compressed Air System
Hydraulic System
General
Hydraulic Pumps
Pump Drive
Power determination
Pressure testing
Valves
Emergency actuation
Electrical System
General
Circuit Diagrams
Fuse alignment

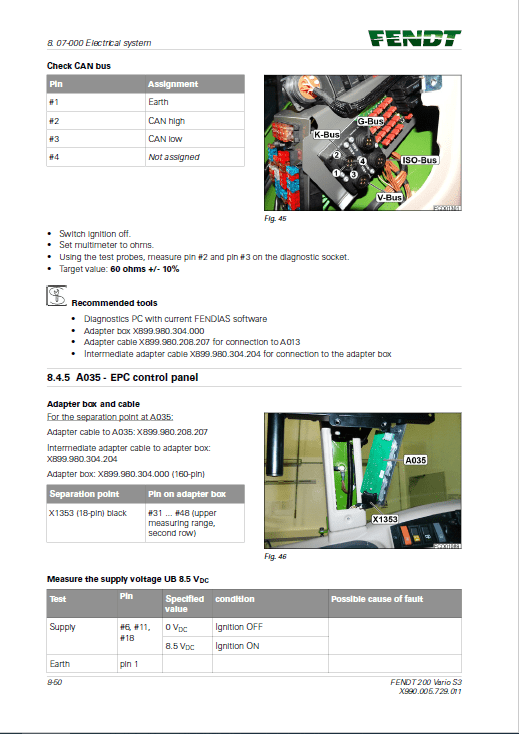

Measure and Test a component
Cab
Cab roof
Cab
Rotating beacon
Air Conditioning system and heating
Components
Air Condition System
Floor Heating
Rear Power lift
Power lift
Emergency actuation
Diagnostics
Service
Special Tools
Assembly Instruction
Index
Manual Extract
This workshop manual provides notes for trained technicians to maintain our tractors. Read and observe the information in this documentation. This will help you prevent accidents.
Intended use includes maintaining operating the service and maintenance conditions as specified by the manufacturer. Operation, maintenance and repair of the tractor may only be carried out by people who are familiar with this equipment and aware of the associated dangers. Ensure that this documentation is available to and understood by everyone involved in operation, maintenance and repair. Not observing this documentation
can lead to faults, damage and personal injury.
The prerequisite for the Fendt 207, 208, 209, 210, 211 Vario S3 tractor being correctly serviced and maintained is the perfect condition and availability of all necessary equipment, standard tools and general workshop equipment as well as special tools. Special tools must only be used where absolutely necessary. The tools are displayed where they need to be used in each case.
The machine must be maintained according to its proper use. Always replace parts with genuine FENDT spare parts! When ordering parts, please provide the chassis number as per the most up-to-date spare parts documentation.
Workshops should also refer to documentation on maintenance work and technical data. Once maintenance is complete, take a test drive to ensure the vehicle's correct operation and road safety.
