Drott 45 Cruz Air Excavator Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
•
Service Manual:
314 pages
Specifications:
•
Brand:
Drott
•
Model:
45 Cruz
•
Type:
Air Excavator
•
Manuals:
Service Manual
•
Publication Numbers:
S406267M1
•
Language:
English
•
Format:
PDF

Description
Table of Contents
General
Scheduled Preventive Maintenance
Mechanical System
The Air System

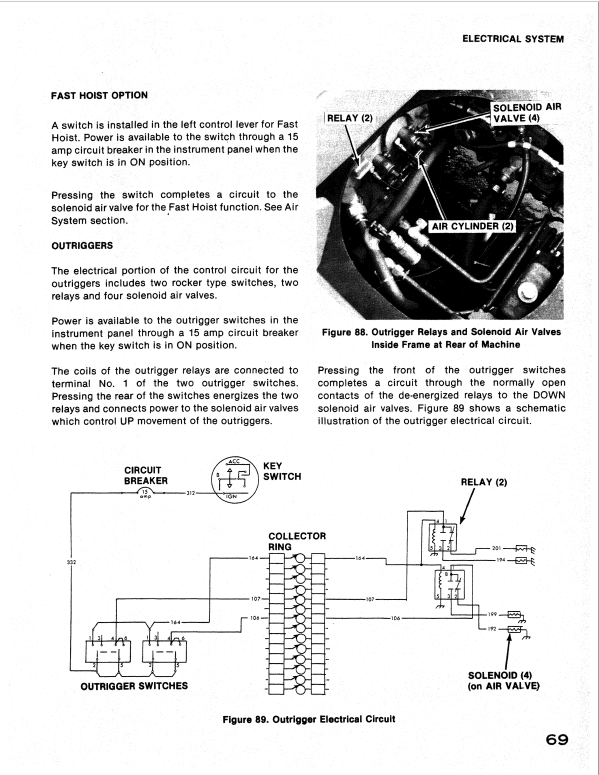

Electrical System

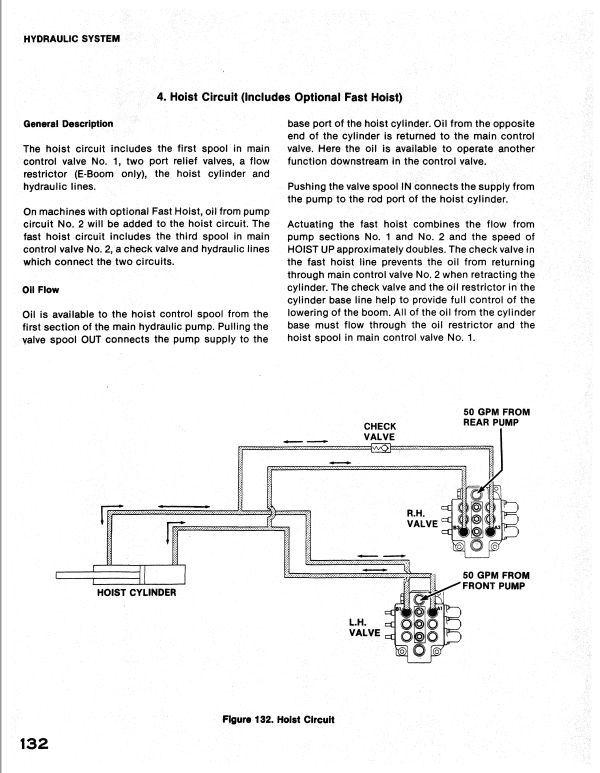

The Hydraulic System

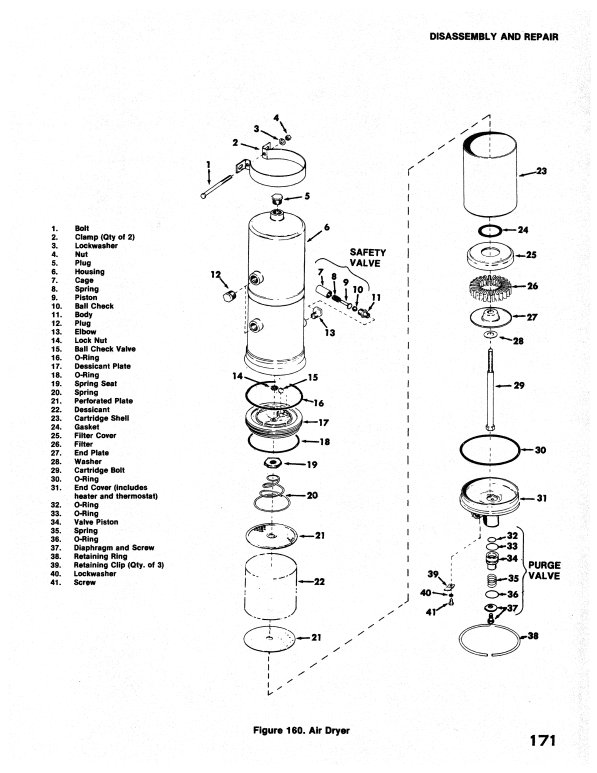

Disassembly and Repair
Torque Charts and Schematics
This manual gives information on maintenance and service of the Drott 45 CRUZ-AIR Excavator and Logger units.
All components, systems and functions are included, except the engine.
Information on service of the engine can be found in the separate engine manual included with the machine.
The manual has two main parts. The first part gives information on maintenance, description and troubleshooting. The second part gives instructions for disassembly and repair of components.
A separate section is included on Preventive Maintenance. Use this section as a ready reference for normal maintenance of the machine. The section includes a maintenance chart, component capacities, lubricants and fluids, hydraulic pressure settings and a list of grease fitting locations.
For purposes of explanation, the machine Is separated into four general systems: Mechanical, Air, Electrical and Hydraulic.
Torque charts and schematics of the electrical and hydraulic systems can be found in back of this manual.
