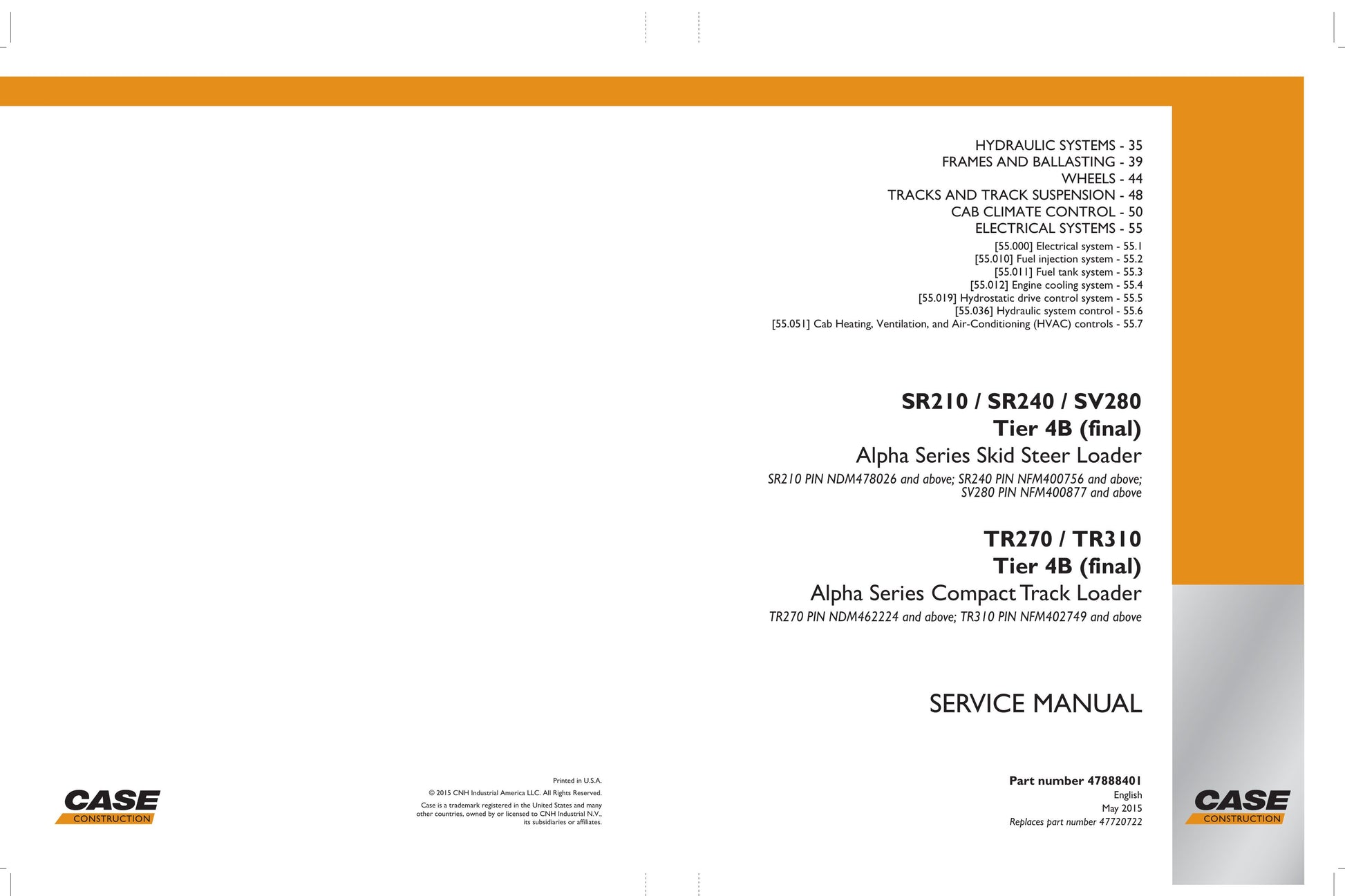

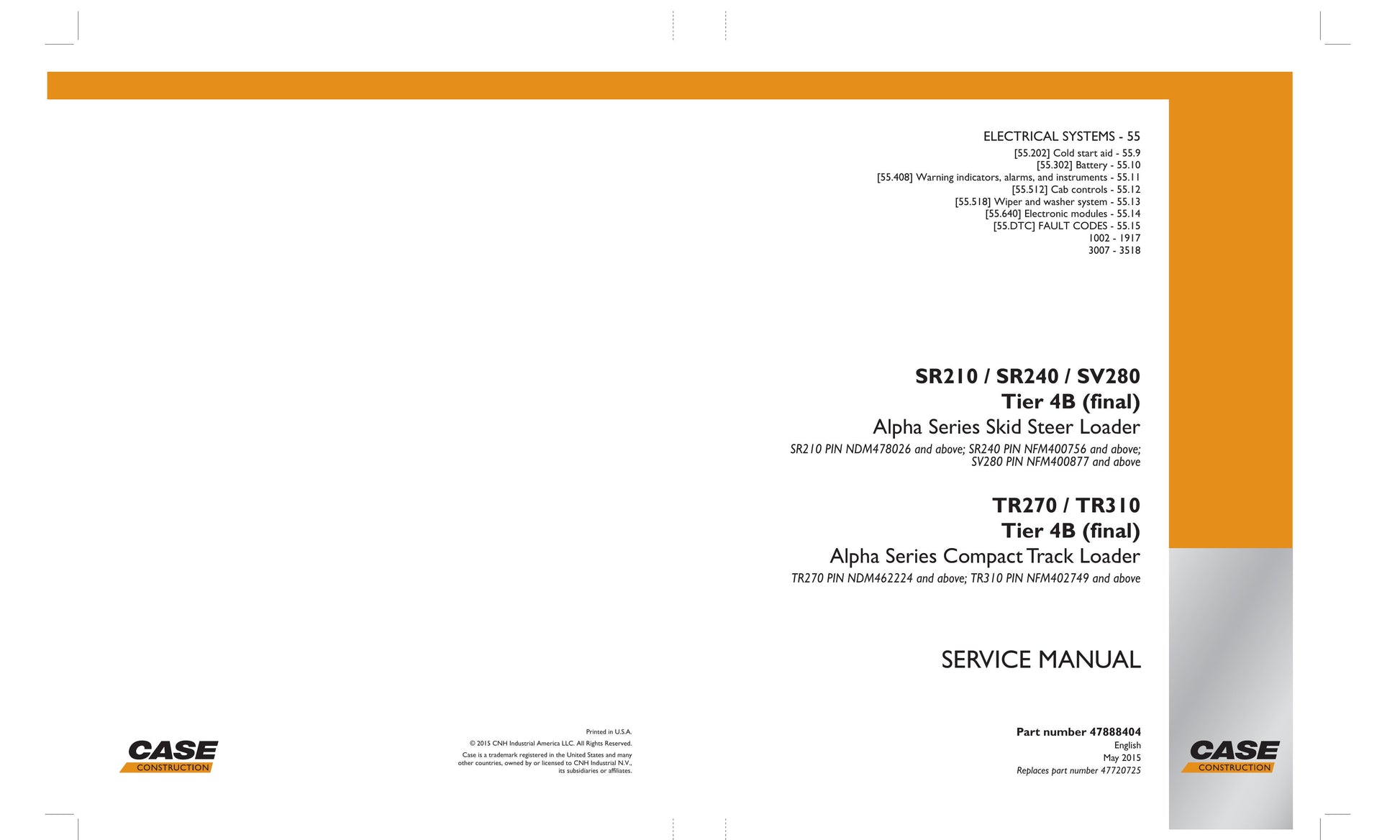

CASE SR210 SR240 SV280 TR270 TR310 Skid Steer Loader Factory Workshop Service Manual 47884041
=============================================================================================
TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 27.4 MB
Pages: 359
Format: PDF
Language: English
Brand: CASE
CONTENTS (Table of Contents):
----------------------------------------

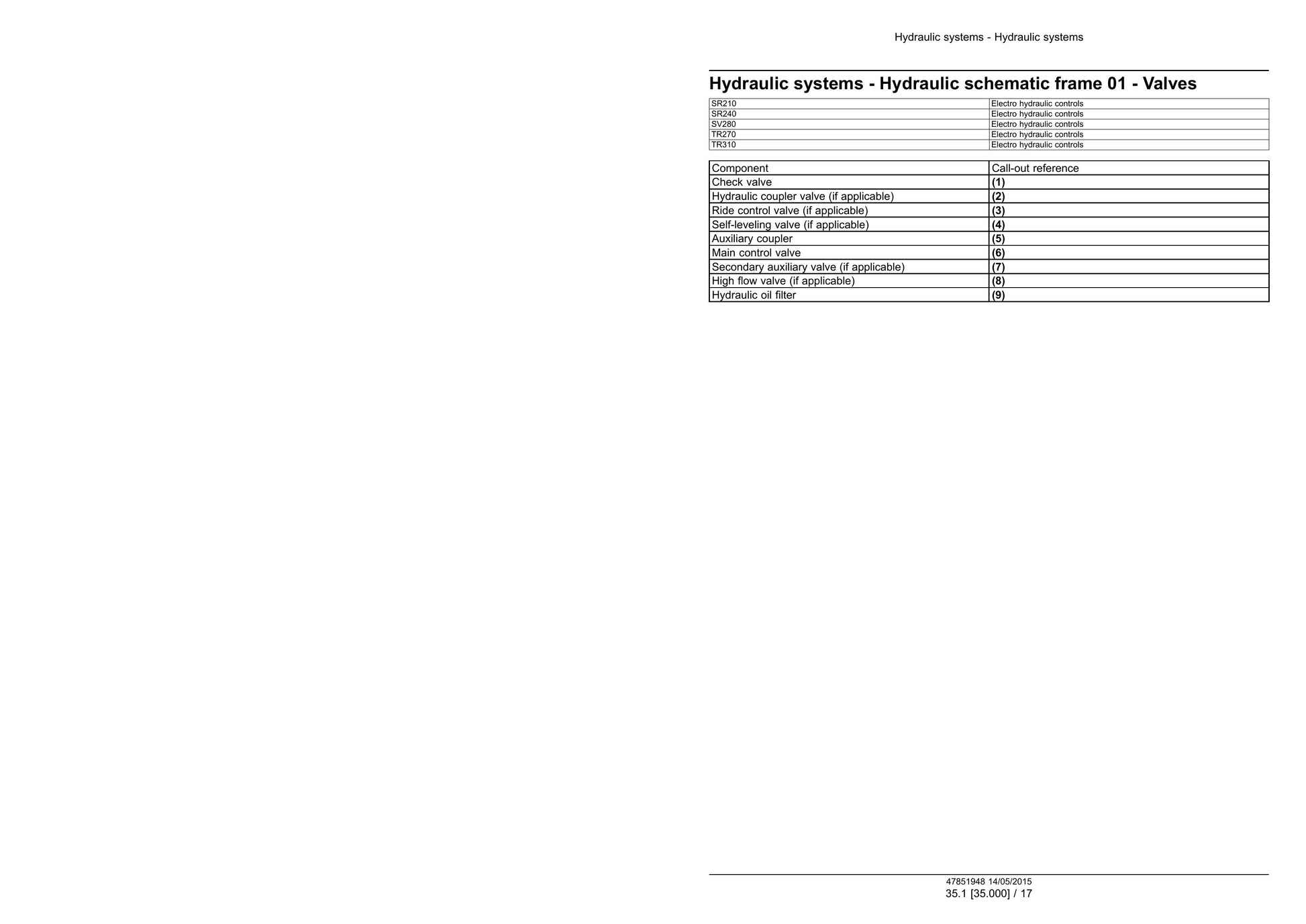

- Hydraulic systems - 35
- Hydraulic systems - 000
- Reservoir, cooler, and filters - 300

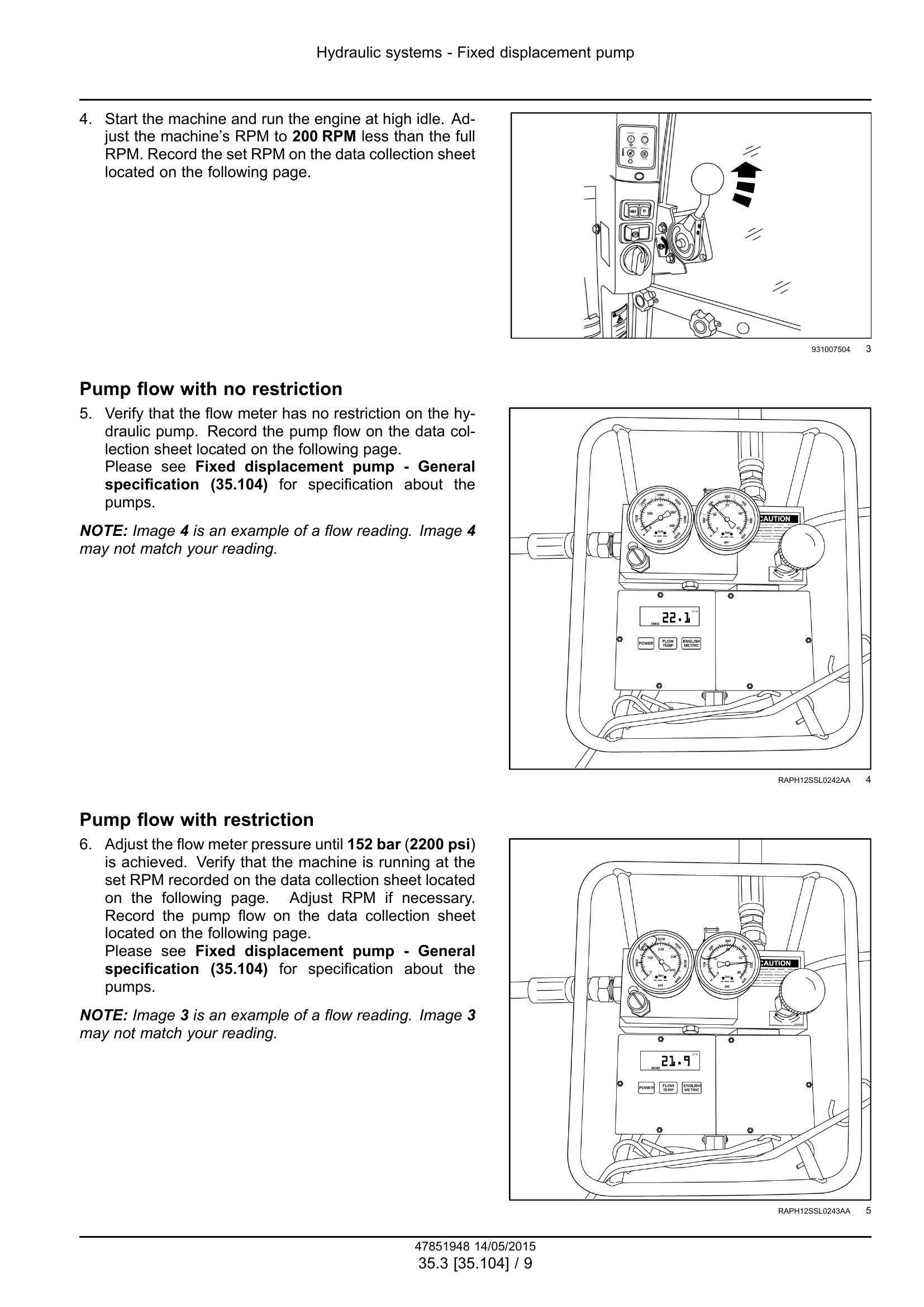

- Fixed displacement pump - 104
- Main control valve - 359
- Auxiliary hydraulic valves and lines - 525
- High flow hydraulics - 600
- Front loader hydraulic system control - 724
- Front loader arm hydraulic system - 701
- Tool quick coupler hydraulic system - 734
- Frames and ballasting - 39
- Ballasts and supports - 140
- Wheels - 44
- Front wheels - 511
- Rear wheels - 520
- Tracks and track suspension - 48
- Track frame and driving wheels - 130
- Tracks - 100
- Track tension units - 134
- Track rollers - 138
- Cab climate control - 50
- Heating - 100
- Air conditioning - 200

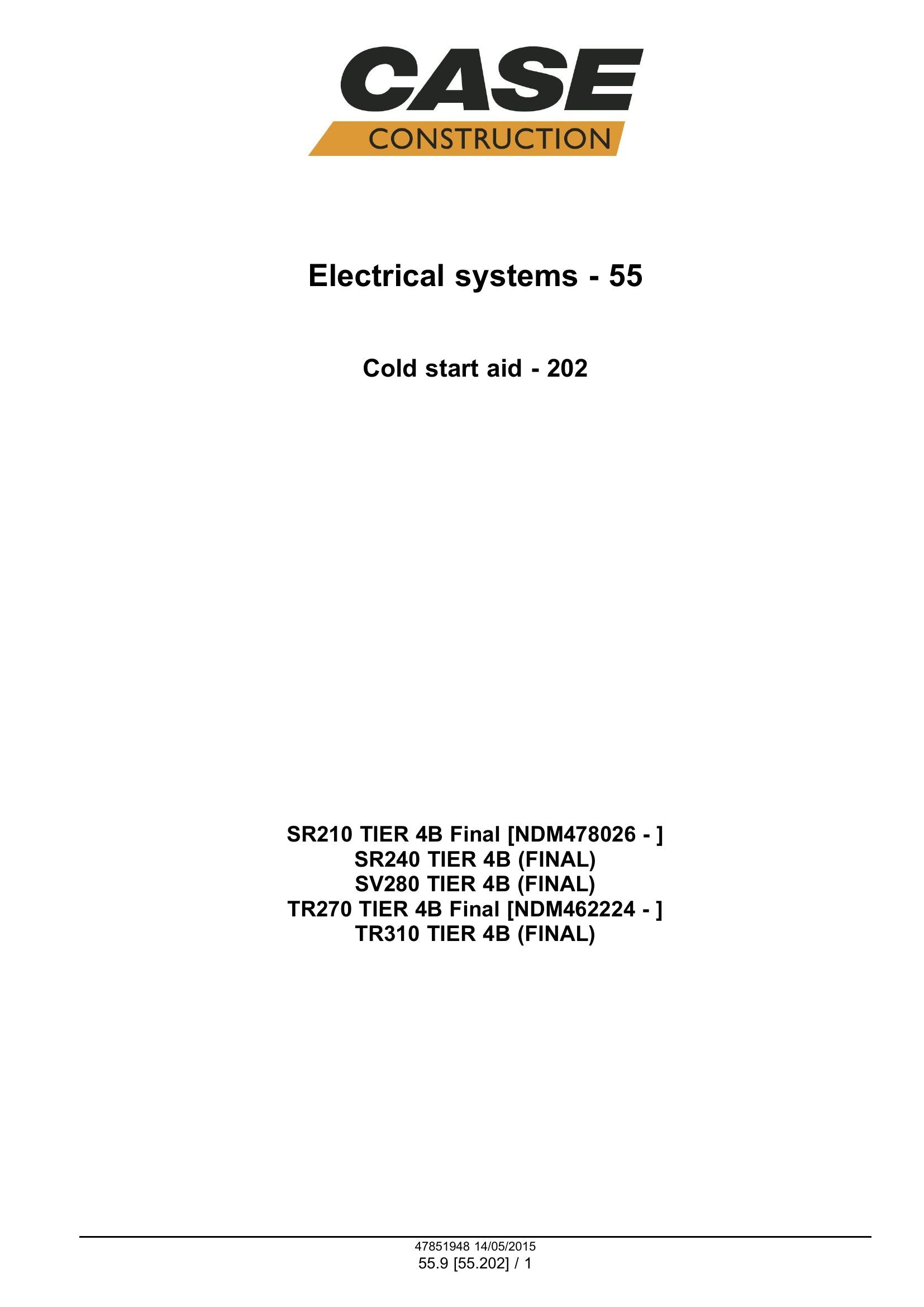

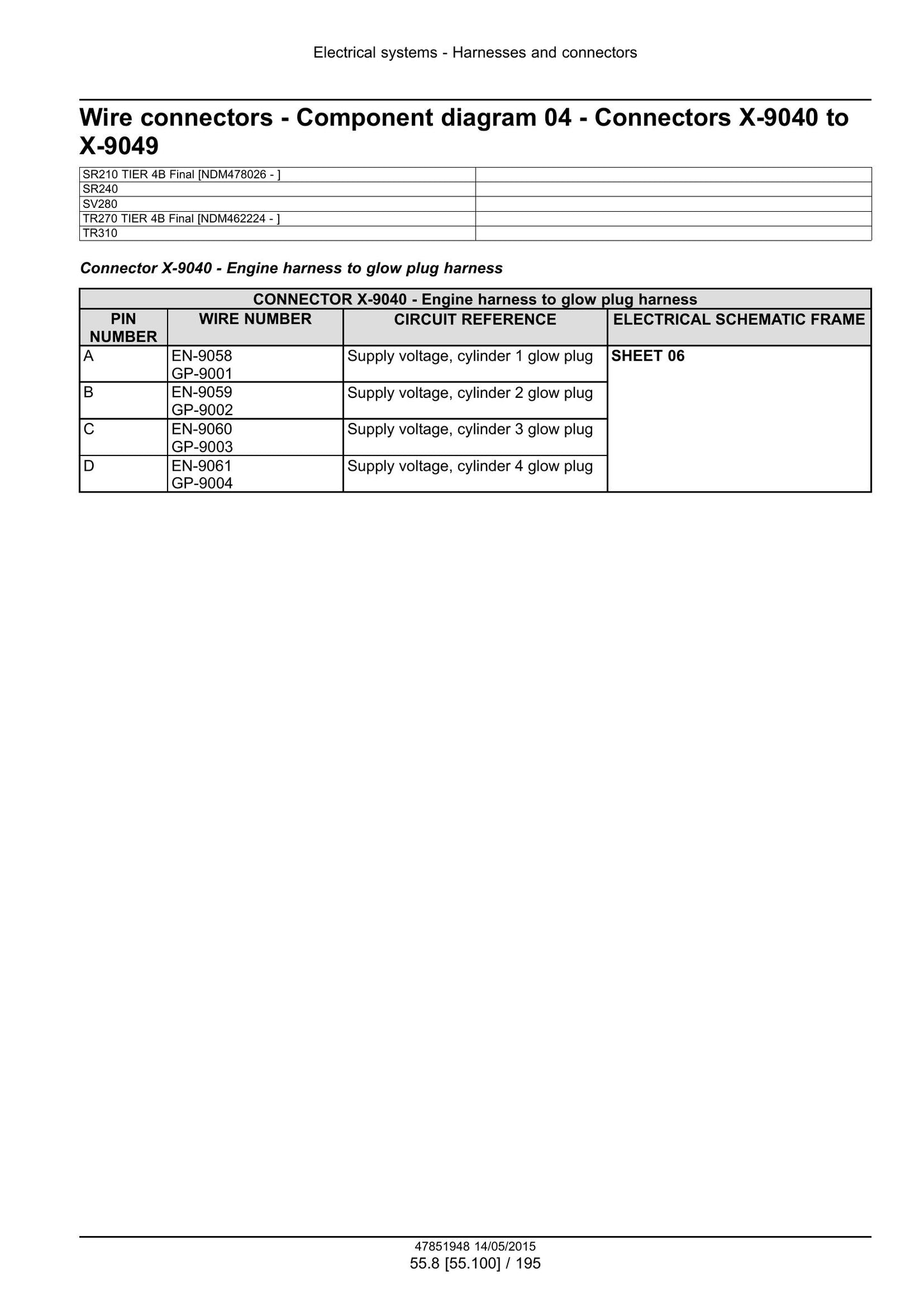

- Electrical systems - 55

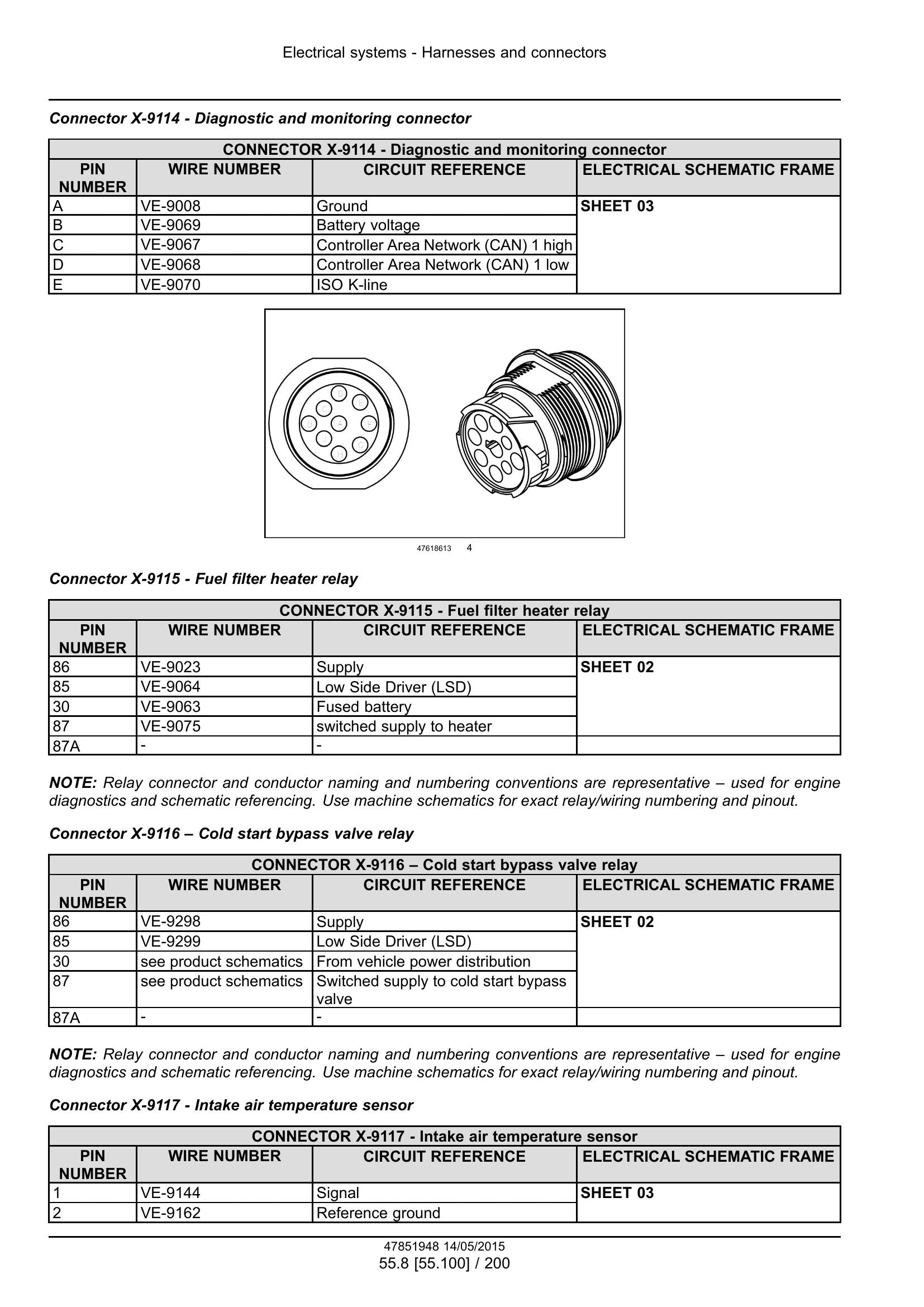

- Electrical system - 000
- Fuel injection system - 010
- Fuel tank system - 011
- Engine cooling system - 012
- Hydrostatic drive control system - 019
- Hydraulic system control - 036
... and 1 more sections
PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
