Case W24 Loader Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
•
Service Manual:
596 pages
Specifications:
•
Brand:
New Holland
•
Model:
W24
•
Type:
Loader
•
Manuals:
Service Manual
•
Publication Numbers:
9-99737 (June 1978)
•
Language:
English
•
Format:
PDF

Description

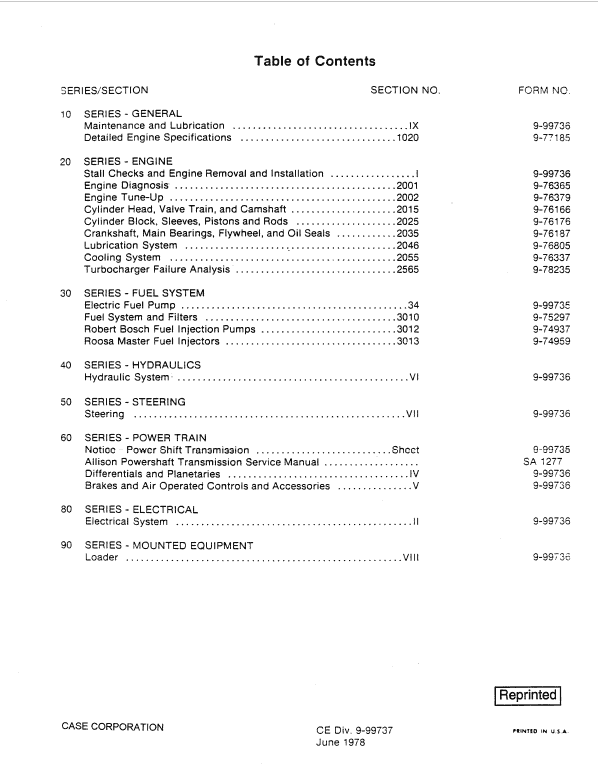

Table of Contents
10 SERIES – GENERAL
Maintenance and Lubrication
Detailed Engine Specifications
20 SERIES – ENGINE
Stall Checks and Engine Removal and Installation
Engine Diagnosis
Engine Tune-Up
Cylinder Head, Valve Train, and Camshaft
Cylinder Block, Sleeves, Pistons and Rods

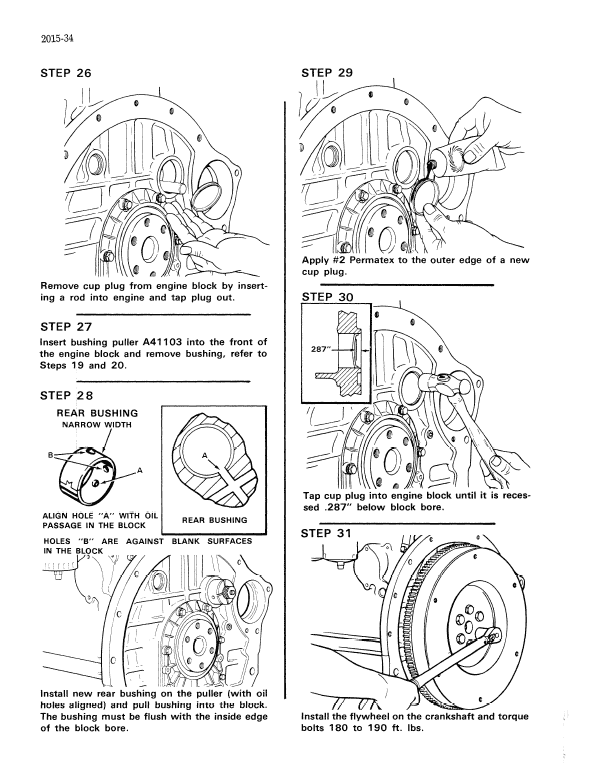

Crankshaft, Main Bearings, Flywheel, and Oil Seals
Lubrication System
Cooling System
Turbocharger Failure Analysis
30 SERIES – FUEL SYSTEM
Electric Fuel Pump

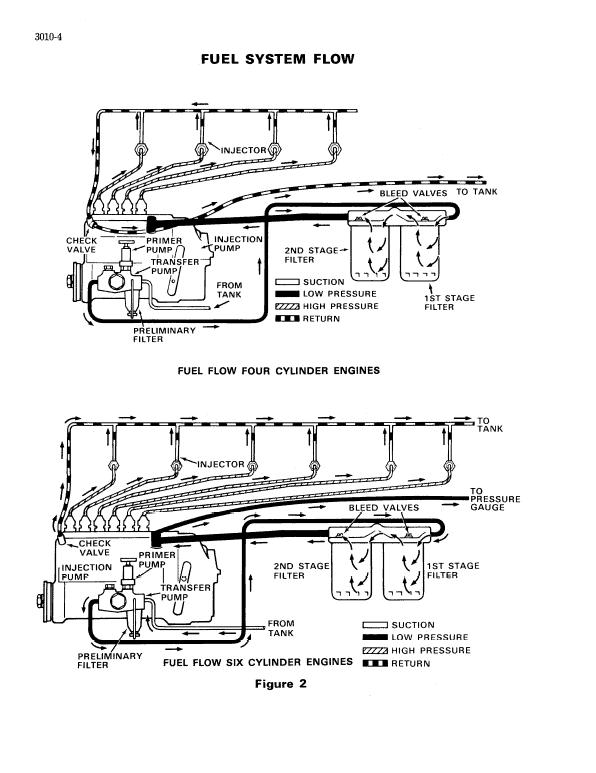

Fuel System and Filters
Robert Bosch Fuel Injection Pumps
Roosa Master Fuel Injectors
40 SERIES – HYDRAULICS

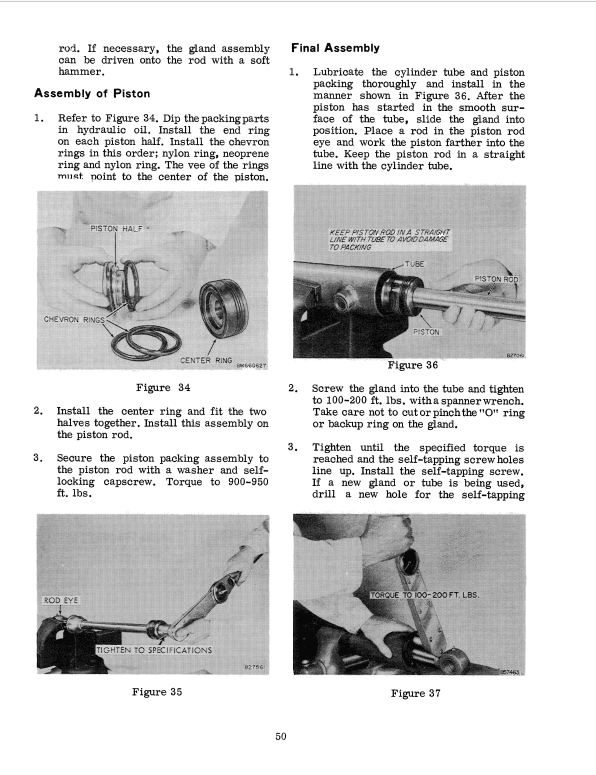

Hydraulic System
50 SERIES – STEERING
Steering
60 SERIES – POWER TRAIN
Notice – Power Shift Transmission
Allison Power shaft Transmission Service Manual
Differentials and Planetaries
Brakes and Air Operated Controls and Accessories
80 SERIES – ELECTRICAL
Electrical System
90 SERIES – MOUNTED EQUIPMENT
Loader
The use of number 1 Diesel Fuel, which is a lighter fuel, may result in a loss of engine power and increased fuel consumption because it has less heat content and a lower viscosity than number 2 Diesel Fuel.
The life of the injection pump may also be affected because of the lack of lubricant in the light number 1 Diesel Fuel.
