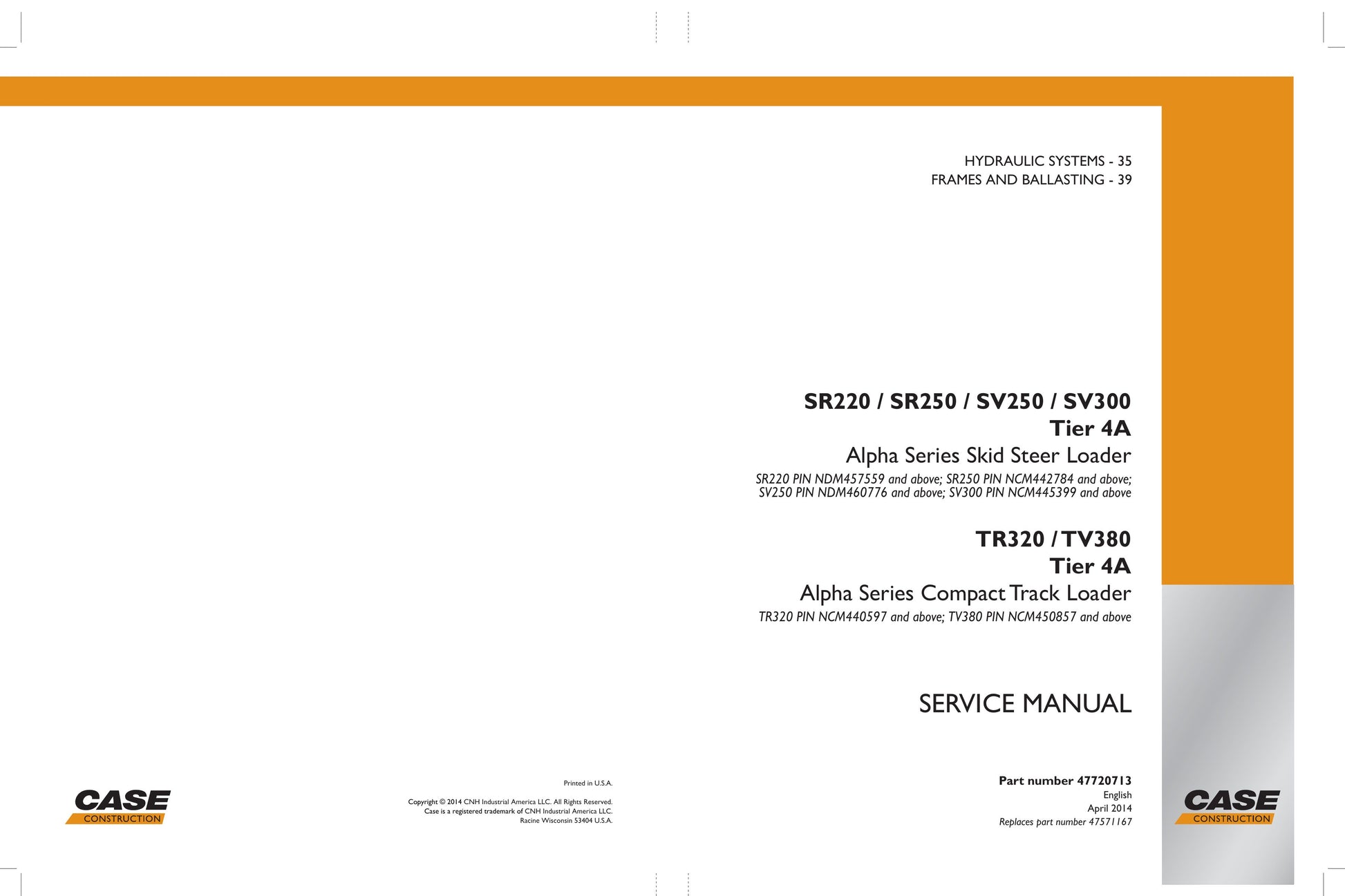

CASE SR220 SR250 SV250 SV300 TR320 TV380 Skid Steer Loader Factory Workshop Service Manual 47720713

CASE SR220 SR250 SV250 SV300 TR320 TV380 Skid Steer Loader Factory Workshop Service Manual 47720713
===================================================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 19.6 MB
Pages: 229
Format: PDF
Language: English
Brand: CASE

CONTENTS (Table of Contents):
----------------------------------------
- Hydraulic systems - 35
- Hydraulic systems - 000
- Fixed displacement pump - 104
- Auxiliary hydraulic function control - 128
- Reservoir, cooler, and filters - 300
- Safety and main relief valves - 350
- Main control valve - 359
- High flow hydraulics - 600
- Front loader arm hydraulic system - 701
- Front loader bucket hydraulic system - 723
- Front loader hydraulic system control - 724
- Tool quick coupler hydraulic system - 734
- Frames and ballasting - 39
- Ballasts and supports - 140

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
