Case MXM155, MXM175, MXM190 Tractor Service Manual Workshop Guide
Case MXM155, MXM175, MXM190 Tractor Service Manual Workshop Guide
Regular price
$67.50 USD
Regular price
Sale price
$67.50 USD
Taxes included.
Shipping calculated at checkout.
Quantity
.
In Stock
Couldn't load pickup availability
Format : PDF
SUPPLIED AS DOWNLOADABLE LINK
Manual Included:
•
Repair Manual:
7929 pages
Specifications:
•
Brand:
Case
•
Model:
MXM155, MXM175, MXM190
•
Type:
Tractor
•
Manuals:
Repair Manual
•
Publication Number:
87613659 (Nov 2006)
•
Language:
English
•
Format:
PDF
Description
Table of Contents
SECTION 00 – GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SECTION 10 – ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SECTION 18 – CLUTCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
SECTION 21 – TRANSMISSION SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
SECTION 23 – DRIVE LINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
SECTION 25 – FRONT AXLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
SECTION 27 – MECHANICAL REAR WHEEL DRIVE . . . . . . . . . . . . . . . . . . . . 26
SECTION 31 – POWER TAKE-OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
SECTION 33 – BRAKES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
SECTION 35 – HYDRAULIC SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
SECTION 41 – STEERING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
SECTION 44 – FRONT AXLE AND WHEELS . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
SECTION 50 – AUXILIARY UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
SECTION 55 – ELECTRICAL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
SECTION 90 – CAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

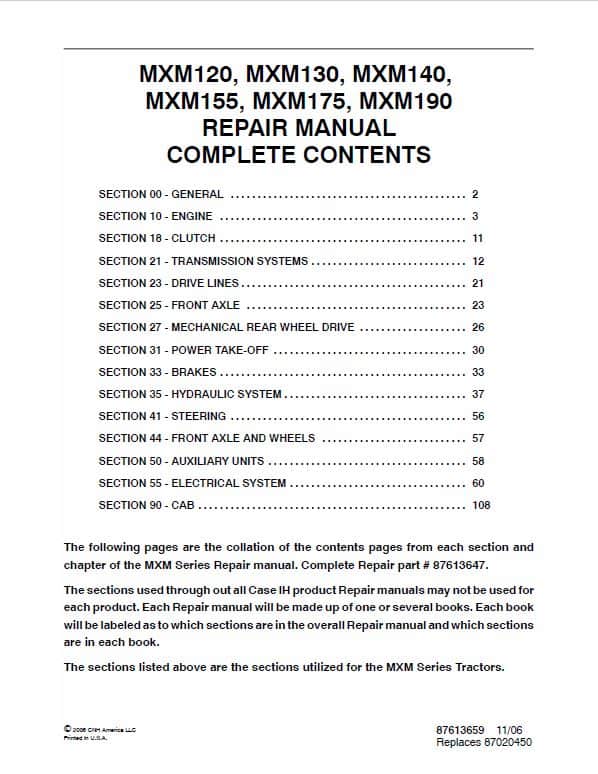

The following pages are the collation of the contents pages from each section and chapter of the MXM155, MXM175, MXM190 Series Repair manual. Complete Repair Manual # 87613647.
Manual Extract: Remove the lift ram as follows:
1. Open and raise engine hood.
2. Detach negative cable (1), from battery and insulate.
3. Fully lower lift arms and support with blocks.
4. Disconnect the oil supply line taking care to drain the oil into a suitable container, undo bolts and slide out pins (1 and 2) . Remove the lift ram.
5. Reinstallation of the lift ram follows the removal
procedure in reverse.
6. Reinstall the lift ram to the tractor.
