Case JX1080U, JX1090U, JX1100U Tractor Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
•
Service Manual:
1604 pages
Specifications:
•
Brand:
Case
•
Model:
JX1080U, JX1090U, JX1100U
•
Type:
Tractor
•
Manuals:
Service Manual
•
Publication Number:
87054735 (Oct 2004)
•
Language:
English
•
Format:
PDF

Description
Table of Content (
Service Manual)
SECTION 00 – GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

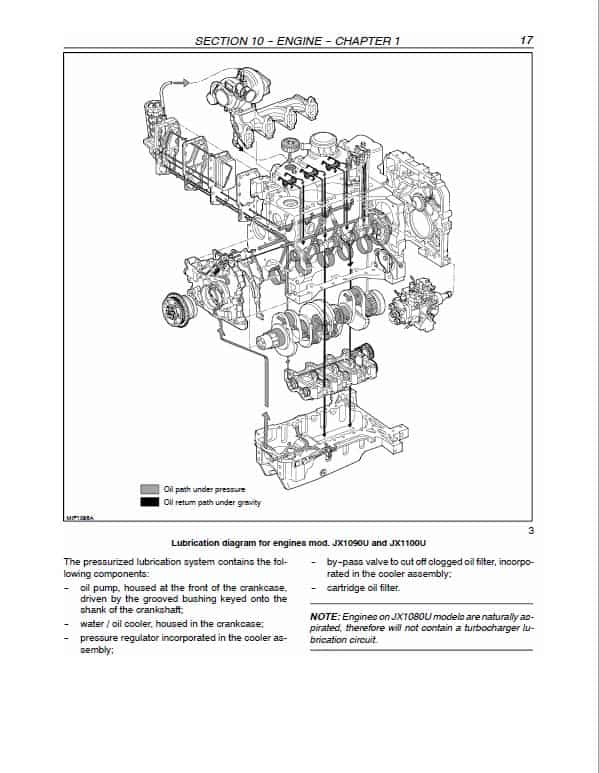

SECTION 10 – ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SECTION 18 – CLUTCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SECTION 21 – TRANSMISSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
SECTION 23 – MFD TRANSFER BOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

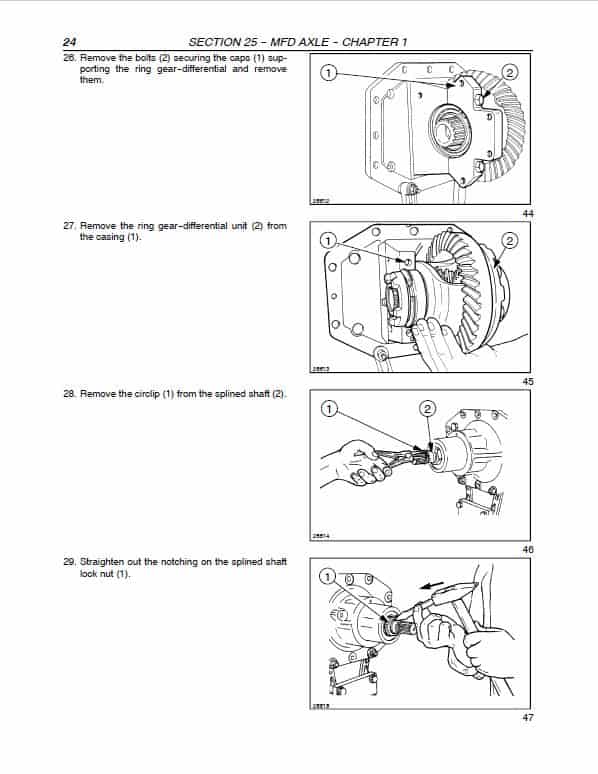

SECTION 25 – MFD AXLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
SECTION 27 – REAR AXLE MECHANICAL TRANSMISSION . . . . . . . . . . . . . 11
SECTION 31 – POWER TAKE-OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
SECTION 33 – BRAKES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

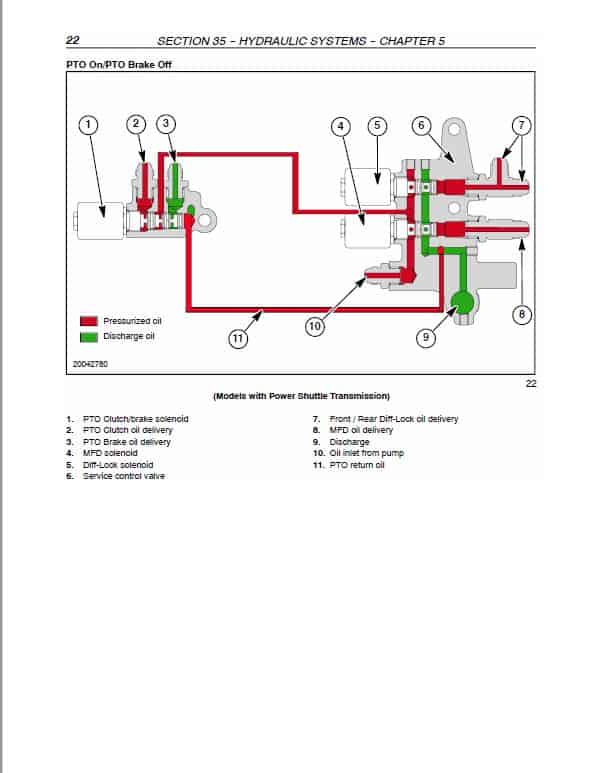

SECTION 35 – HYDRAULIC SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
SECTION 41 – STEERING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
SECTION 44 – AXLES AND WHEELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
SECTION 50 – AUXILIARY UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
SECTION 55 – ELECTRICAL SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
SECTION 90 – CAB, PLATFORM AND BODYWORK . . . . . . . . . . . . . . . . . . . . 35

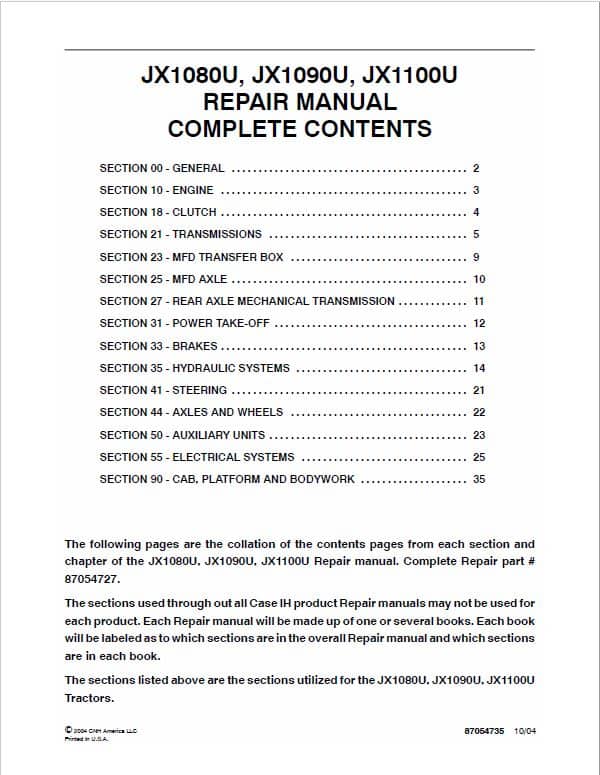

The following pages are the collation of the contents pages from each section and chapter of the JX1080U, JX1090U, JX1100U Repair manual. Complete Repair Manual #87054727.
Manual Extract: ELECTRONIC LIFT CALIBRATION
1. Move the lift-lower lever (1) to the lowering position (2).
2. Rotate the knob (1) clockwise to the arm lowering full speed position (on the hare symbol) (2).
3. Rotate the knob (1) counterclockwise to (maximum working depth) (2).
4. Start the engine and run the engine speed to 1500 rpm.
5. Rotate the knob (1) fully clockwise until the lift arms raise and reach the limit stop.
If the position of the arms does not vary for a period of > 1 second, the fault code indicator (1) will flash for 2 seconds at 8 Hz (fast flashing for 2 seconds) indicating that the upper limit has been reached.
At this point, calibration of the arm upper travel limit and the working depth potentiometer maximum limit has been carried out.
6. Rotate the knob (1) fully counterclockwise and allow for the arms to lower completely.
If the position of the arms does not vary for a period of > 1 second, the fault code indicator will flash for 2 seconds at 8Hz (fast flashing for 2 seconds).
This means that the calibration operation has been carried out successfully.
7. Turn the key to the STOP position to confirm and store the calibration data in the electronic control unit.
