Case Farmall 80N, 90N, 100N, 110N Tractor Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
•
Service Manual:
4237 pages
Specifications:
•
Brand:
Case
•
Model:
Farmall 80N, 90N, 100N, 110N
•
Type:
Tractor
•
Manuals:
Service Manual
•
Publication Numbers:
51430129 (Dec 2017)
•
Language:
English
•
Format:
PDF

Description
Table of Contents
Introduction
Engine
Clutch
Transmission
Four Wheel Drive

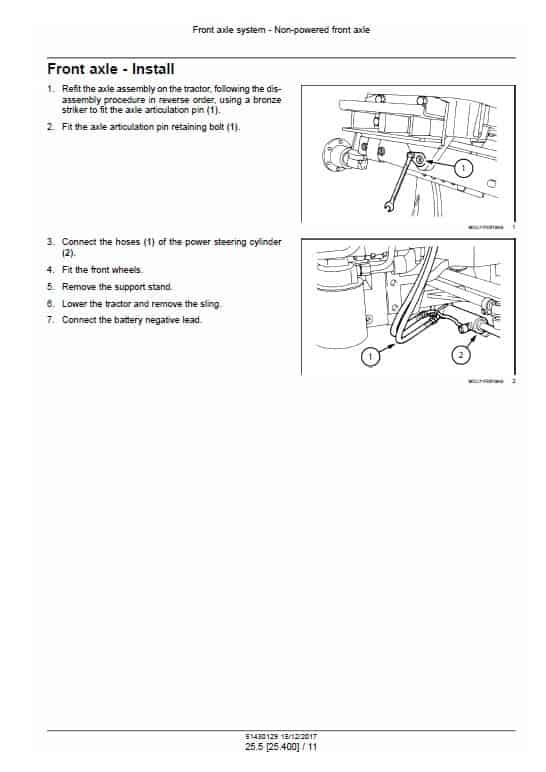

Front Axle
Rear Axle
Power Take Off
Brake and Controls

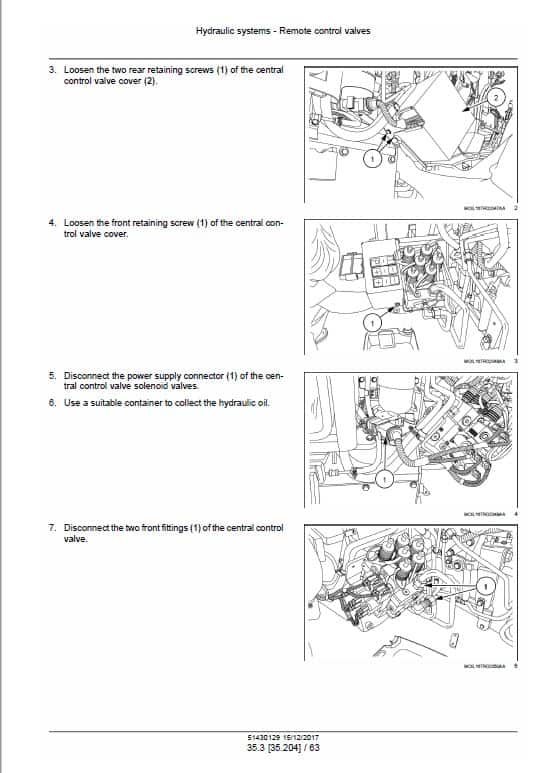

Hydraulic Systems
Hitches, Drawbars and implement couplings
Frames and ballasting

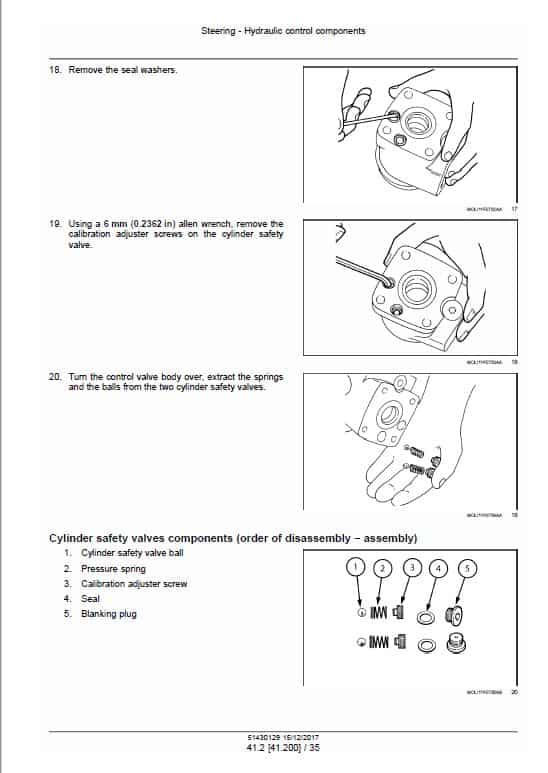

Steering
Wheels
Cab Climate Control
Electrical System
Platform, cab, bodywork and decals
Special Tools
Manual Extract: Diesel Particulate Filters (DPF) – Install – Protective grill
1. Recover and thoroughly clean the particulate filter (DPF)protective grill (1) and store it in a suitable place.
2. Correctly position the protective grill (1) on the particulate filter (DPF).
3. Tighten the two retaining screws (1) on the rear face of the particulate filter (DPF) protective grill (2).
4. Tighten the two retaining screws (1) on the front face of the particulate filter (DPF) protective grill (2).
5. Tighten the upper retaining screw (1) on the upper front face of the particulate filter protective grill (DPF).
