Case Farmall 55C, 65C, 75C Tractor Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
•
Service Manual:
628 pages
Specifications:
•
Brand:
Case
•
Model:
Farmall 55C, 65C, 75C
•
Type:
Tractor
•
Manuals:
Service Manual
•
Publication Numbers:
84419878A (Oct 2011)
•
Language:
English
•
Format:
PDF

Description
Table of Contents
General
Engine
Clutch

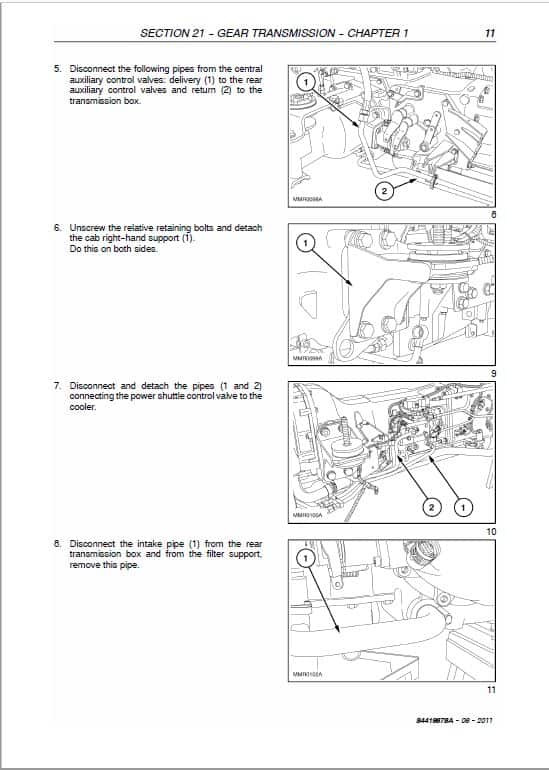

Gear Transmission
Drive Lines

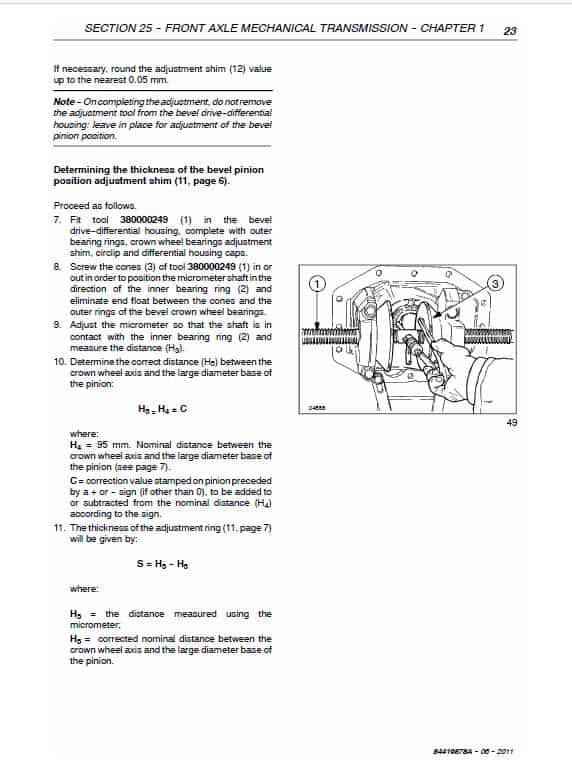

Front Axle
Rear Axle
Power Take Off
Brakes

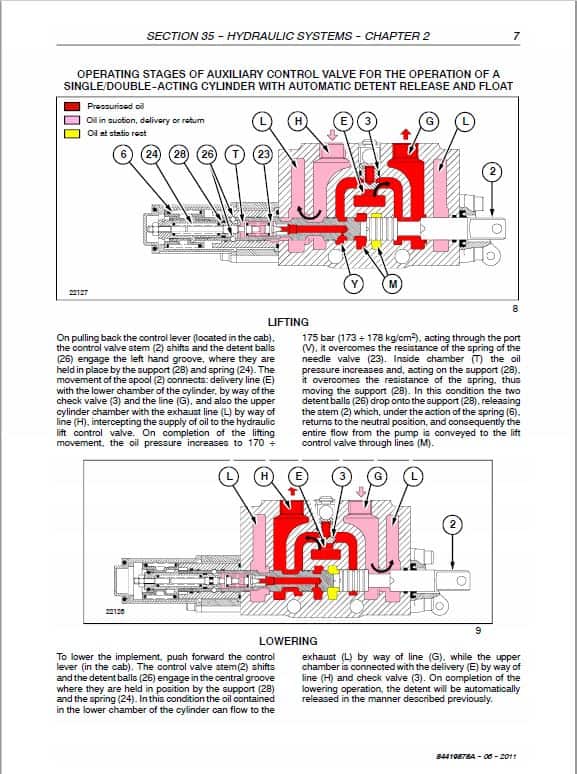

Hydraulic Systems
Hitches, Drawbars and implement couplings
Steering
Cab Air Conditioning System
Electrical System
Cab
Manual Extract: BRAKE TROUBLESHOOTING
Problems
Possible causes
Solutions
Brake pedals hard to operate.
The brakes stick when the pedals
are released.
Noisy brakes.
Pedal stroke too long.
Unbalanced braking.
1. Corresponding master cylinder seized.
2. Brake control pipes obstructed or pinched.
1. Brake control pump pistons locked.
2. Master cylinders seized.
1. Friction material on brake disks (1, fig. 2) worn.
1. Air in the brake circuit.
2. Brake control pumps worn.
3. Leakage from control pipes.
1. Wrong tire pressure.
2. Brake control pumps worn.
3. Pump connection pipes obstructed or pinched.
4. Brake control pipes obstructed or pinched.
5. Pump control piston seals worn or damaged.
6. Friction material on brake disk (1, fig. 2) worn.
Replace the brake control pumps.
Clean or replace the control pipes.
Release the piston and, if necessary, replace the brake control pumps.
Replace the brake control pumps. Replace the brake disks.
Bleed air from the brake circuit. Replace the brake control pumps. Eliminate the cause of the leakage. Inflate tires to correct pressure. Replace the brake control pumps. Clean or replace the pipes.
Clean or replace the control pipes.
Replace the brake control pumps.
Replace disk.
