Case Farmall 45A, 50A Tractor Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
•
Service Manual:
1305 pages
Specifications:
•
Brand:
Case
•
Model:
Farmall 45A, 50A
•
Type:
Tractor
•
Manuals:
Service Manual
•
Publication Numbers:
51453914 (May 2018)
•
Language:
English
•
Format:
PDF

Description
Table of Contents
Introduction
Engine
Clutch
Transmission
Four Wheel Drive
Front Axle
Rear Axle
Power Take Off
Brake and Controls
Hydraulic Systems
Hitches, Drawbars and implement couplings
Steering
Electrical System
Platform, cab, bodywork and decals
Special Tools

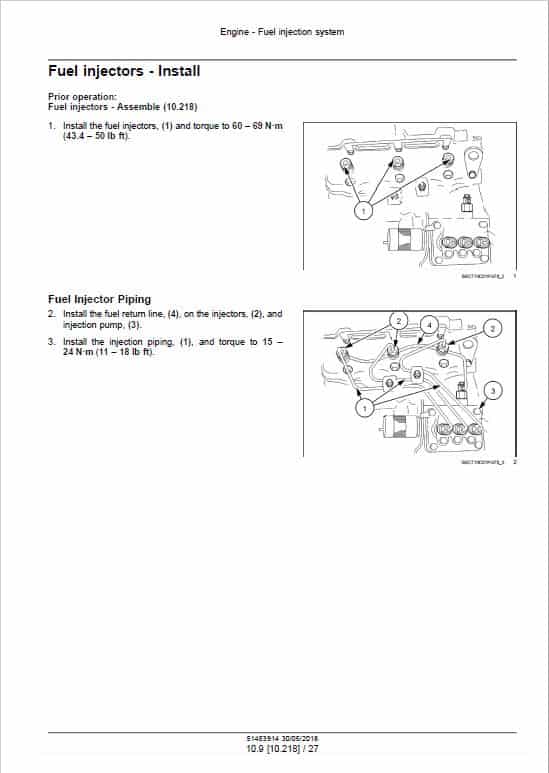

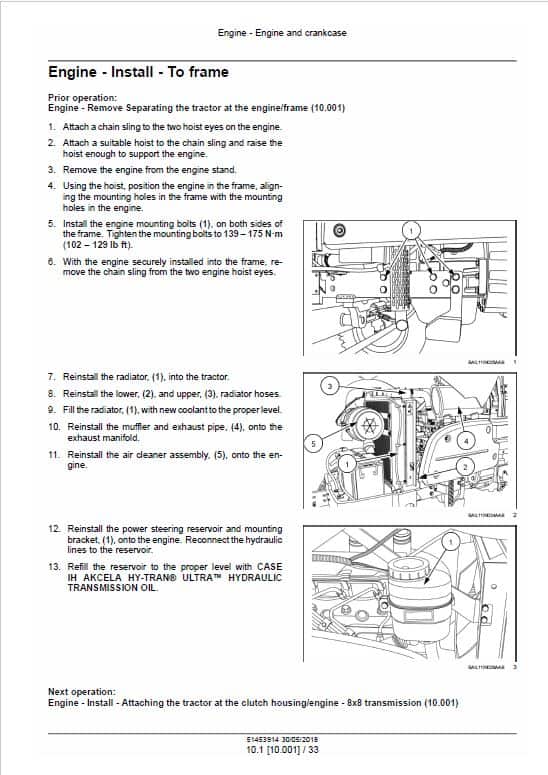

Manual Extract: Engine – Install – To frame
Prior operation:
Engine – Remove Separating the tractor at the engine/frame (10.001) 1. Attach a chain sling to the two hoist eyes on the engine.
2. Attach a suitable hoist to the chain sling and raise the hoist enough to support the engine.
3. Remove the engine from the engine stand.
4. Using the hoist, position the engine in the frame, aligning the mounting holes in the frame with the mounting holes in the engine.
5. Install the engine mounting bolts (1), on both sides of the frame. Tighten the mounting bolts to 139 – 175 N·m (102 – 129 lb ft).
6. With the engine securely installed into the frame, remove the chain sling from the two engine hoist eyes.
7. Reinstall the radiator, (1), into the tractor.
8. Reinstall the lower, (2), and upper, (3), radiator hoses.
9. Fill the radiator, (1), with new coolant to the proper level.
10. Reinstall the muffler and exhaust pipe, (4), onto the exhaust manifold.
11. Reinstall the air cleaner assembly, (5), onto the engine.
12. Reinstall the power steering reservoir and mounting bracket, (1), onto the engine. Reconnect the hydraulic lines to the reservoir.
13. Refill the reservoir to the proper level with CASE IH AKCELA HY-TRAN® ULTRA™ HYDRAULIC
TRANSMISSION OIL.
